DC power conversion module

Adjustable voltage, 5.0V, 3.3V, continuous current of 1.5A for each group, peak of 2A

Product introduction

      The YR-2596 DC power conversion module is an efficient and reliable power module, suitable for motor drives, etc. It can convert an input voltage of 7-30V to 5v, 3.3V and adjustable voltage outputs. It adopts a DC-DC architecture, with the advantages of low ripple and a maximum continuous load of 1500mA. This module uses high-quality electronic components, featuring stability and reliability, and can provide a stable power supply for your circuit. Whether you are conducting electronic experiments, DIY projects or other circuit designs, this power module is your ideal choice.

Product details

Performance parameters

1.Power input: DC 7V-30, the input voltage is 2V higher than the output voltage.

2. Three-channel output.

     3.3V, continuous load 1.5A, peak load 2A.

     5.0V, continuous load 1.5A, peak load 2A.

     Adjustable voltage output ADJ, continuous load 1.5A, peak load 2A.

3. Double-panel design, with an elegant and generous layout.

4. Multiple pin headers are used for input and output, which is convenient for use and connection.

5. PCB board size :68mm*44mm

6. With 3 power indicator lights (red).

7.DC interface: 5.5*2.1mm

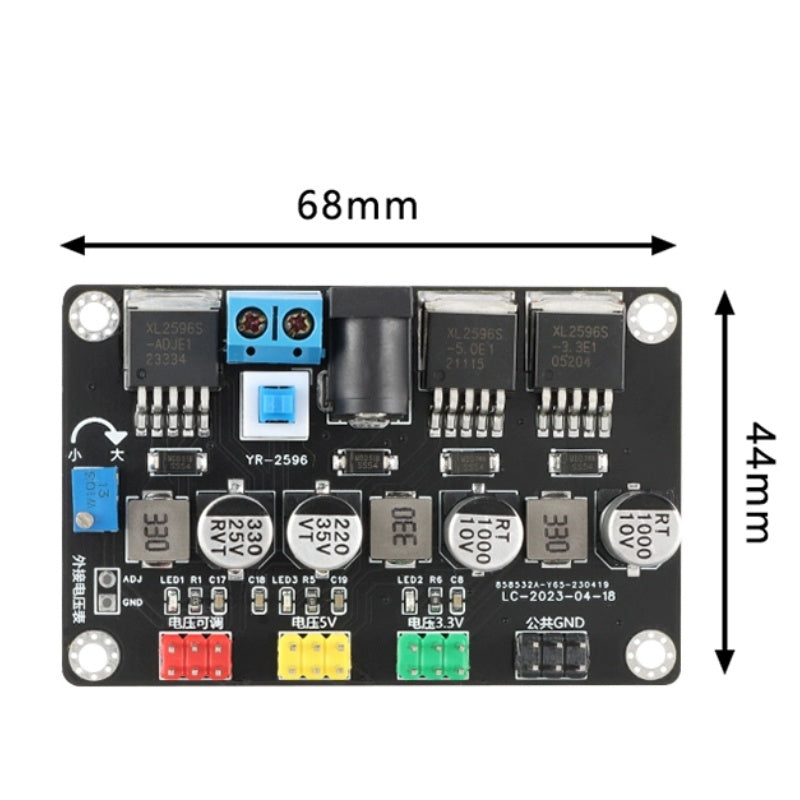

Product dimension

Note: Manual measurement may have errors. Please refer to the actual product.

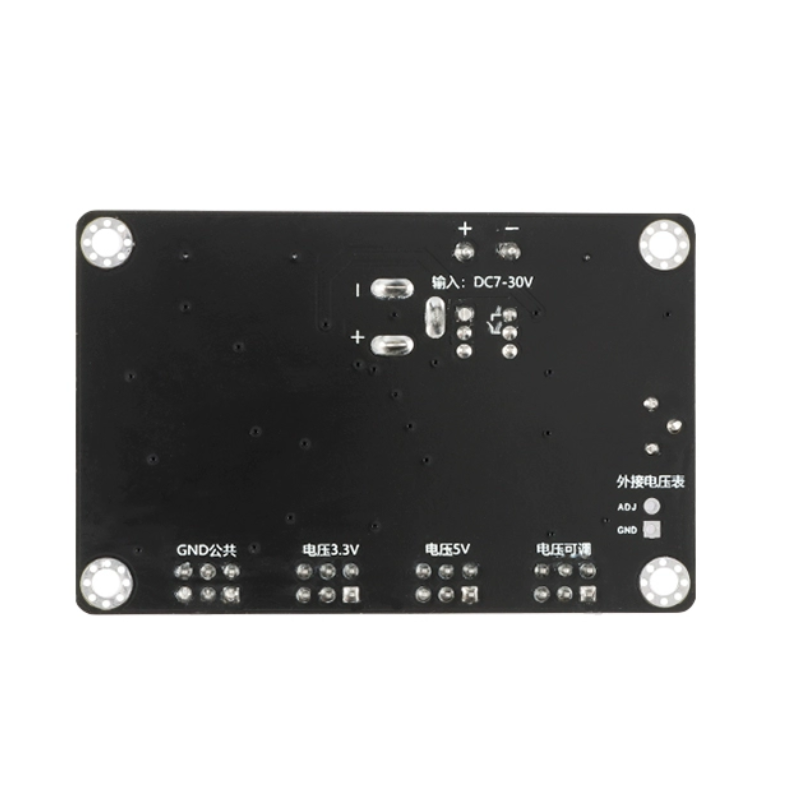

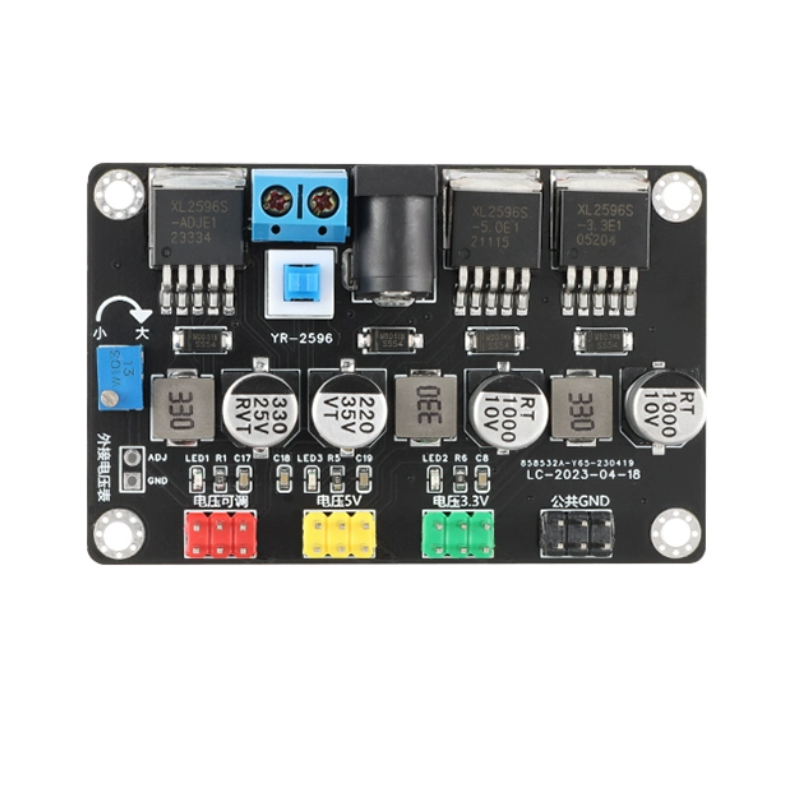

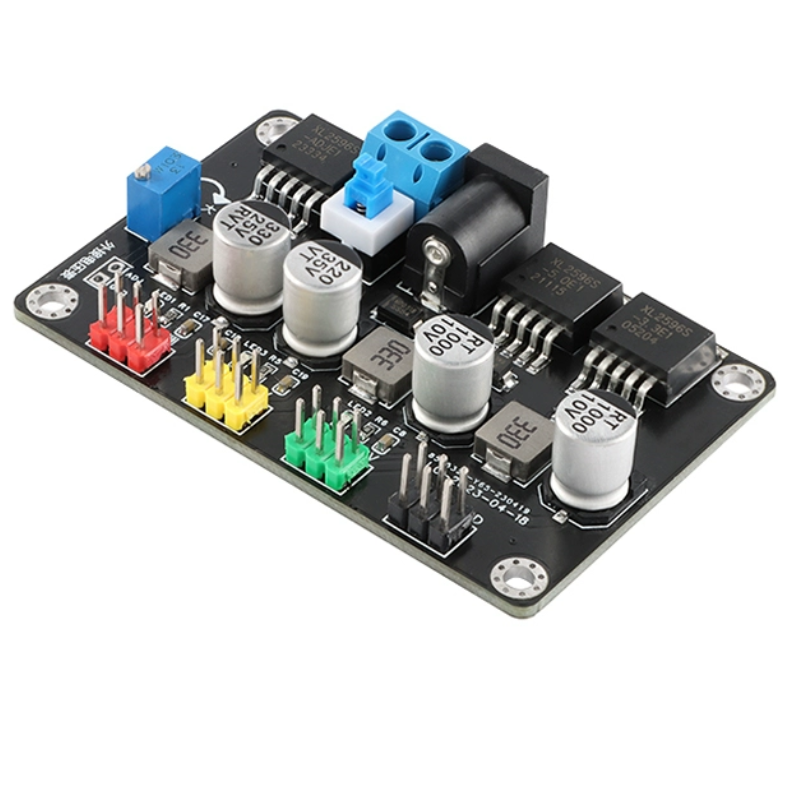

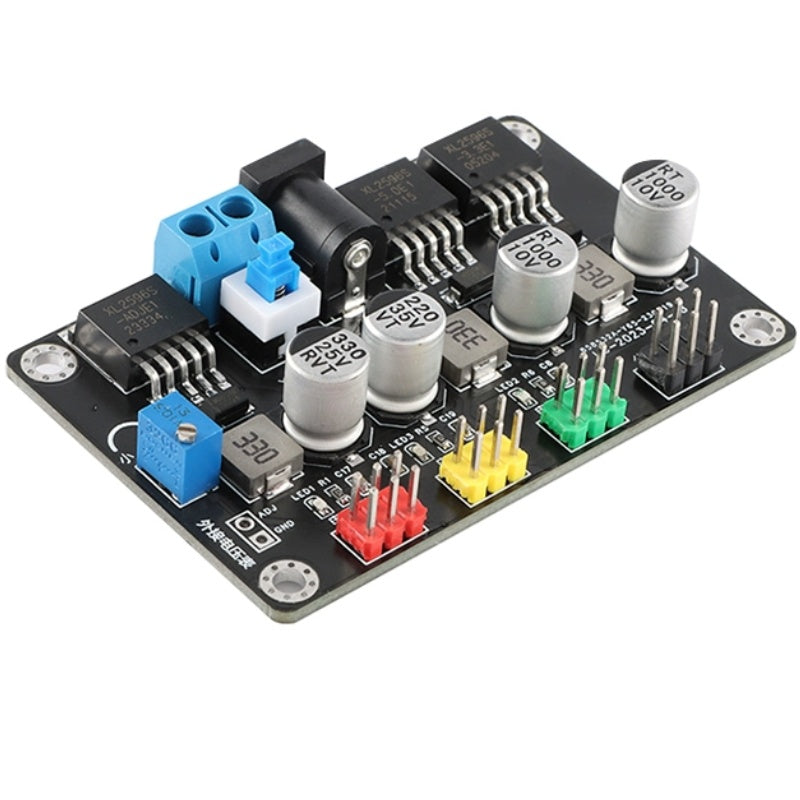

Products photography
