XL2530-232AP1 CC2530F256 Core Board 2.4G Wireless Module /Zigbee Smart Home

¥18.00 CNY

~~¥0.00 CNY~~ ¥18.00 CNY

Sale Sold out

Specification XL2530-232AP1(surface mount)/ Wireless module CC2530 Wireless module/Plug-in

XL2530-232AP1(surface mount)/CC2530 wireless module

ZIGBEE Wireless Module/Source code /wsn Wireless Sensor Network /RF4CE/zigbee Smart Home/Networking

Product introduction

The XL2530-232AP1 is a data conversion device for serial ports and 2G IGBee, supporting transparent serial port transmission (point-to-point and one-to-many). When equipped with different level conversion boards, it can achieve multiple interfaces such as RS232, RS485, and USB. With it, serial port devices can be easily wirelized, eliminating the trouble of wiring, saving manpower, materials, and development time. To enable the product to enter the market more quickly and enhance its competitiveness, it adopts the TI C02530 chip and runs the ZigBee2007/PRO protocol stack, which features all the characteristics of the 2igBe6 protocol. The module is an industrial-grade product with a frequency of 2405-2480MHz (16 RF channels). It supports a maximum baud rate of 115200bps for serial communication and transparent forwarding of serial data.

Product details

Model	XL2530-232AP1(Chip version: CC2530F256RHAR)
Frequency	2400-2483MHZ
Transmission power	4dBm@28mA
Serial port rate	2.4-115.2Kbps
Interface pitch	1.27mm
Size	21*26mm
Maximum distance	100 meters

Typical applications

Industrial automation
Agricultural automation
Intelligent control of street lamps
Remote data acquisition
Intelligent transportation system
Coal mine safety monitoring
Supermarket terminal
Telemedicine monitoring system

Product features

1. Data transparent transmission can conveniently transform wired serial port devices into wireless serial port devices, enabling transparent data transmission between any nodes in the network. It can directly replace the wired 232 and 485 networking structures, featuring flexibility, convenience, no need for wiring and easy expansion.

2. It is simple and easy to use. Users can wirelessly and transparently transmit serial port data without learning the complex ZigBee protocol.

3. After being powered on, the automatic networking device can automatically form a network. In case of power failure, it can self-repair after being powered on again.

4. Data transparent transmission can be carried out in one-to-many, many-to-one, and point-to-point modes.

5. Network Topology: The network topology structure of XL2530-AP1 is a mesh network structure. When used as a router, it can achieve data relay function, thereby expanding the coverage of the network.

6. Parameter Settings: Users can configure the module through the configuration software, including node type, communication channel, PANID, short address, baud rate, and parity bit.

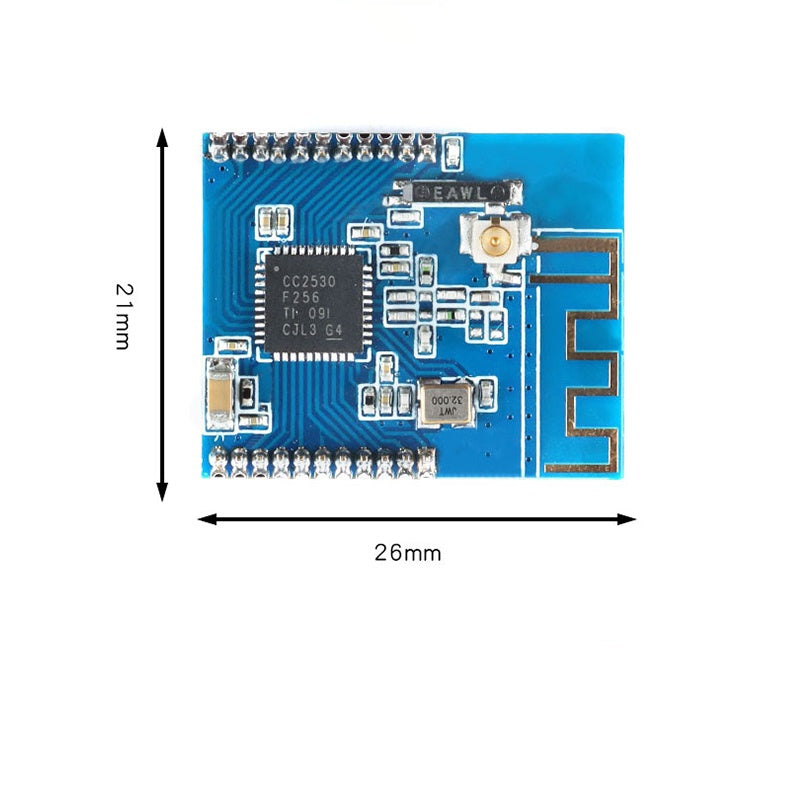

Product size
