XH-M609 DC voltage protection module lithium battery under voltage loss of electricity low power disconnection ,outputs 6-60V.
Product parameters
| Name | Battery Over-Discharge Protection Module |
| Model | M609 |
| Input voltage | DC 12-36V |
| The output voltage is equal to the input voltage | |
| Display accuracy | 0.1V |
| Control accuracy | 0.1V |
| Voltage error | +/-0.1V |
| Application range | 12-36 lithium battery storage batteries |
| Product dimensions | 57*42*19mm |
Instructions for Use
+ key: Short press to display the protection value, long press to set the protection value.
- Key: Short press to display the hysteresis value, long press to set the hysteresis value.
Set an instance
1.Does it disconnect when the voltage is below 11V and start when it is above 11.6V?
Method: Long press + screen flicker to set 11, then long press - screen flicker to set 0.6, and it's done.
2. Disconnect when the voltage is below 12.5V and start when the voltage is above 14.8V?
Method: Long press + Screen flicker to set the stop value to 12.5. When the screen stops flickering, long press - screen flicker again and set the hysteresis voltage value to 2.3V.

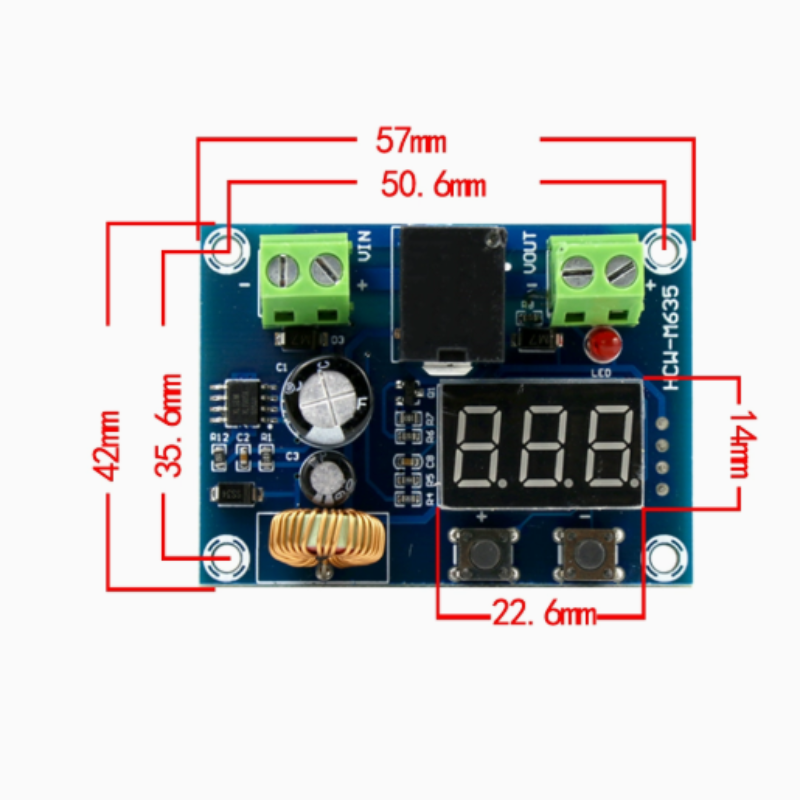

Product dimension
Note: Manual measurement may have errors. Please refer to the actual product.

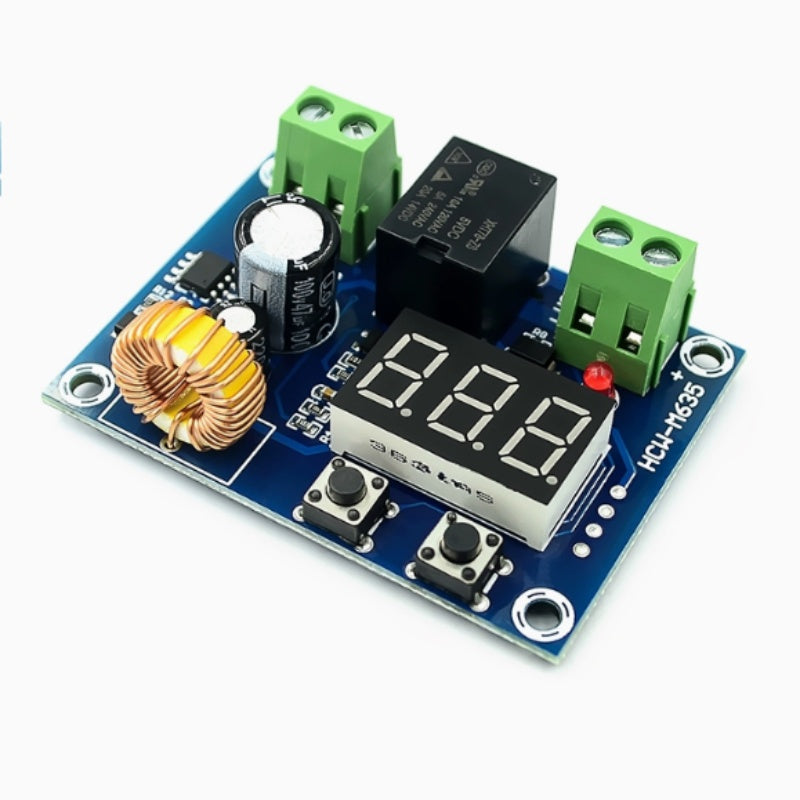

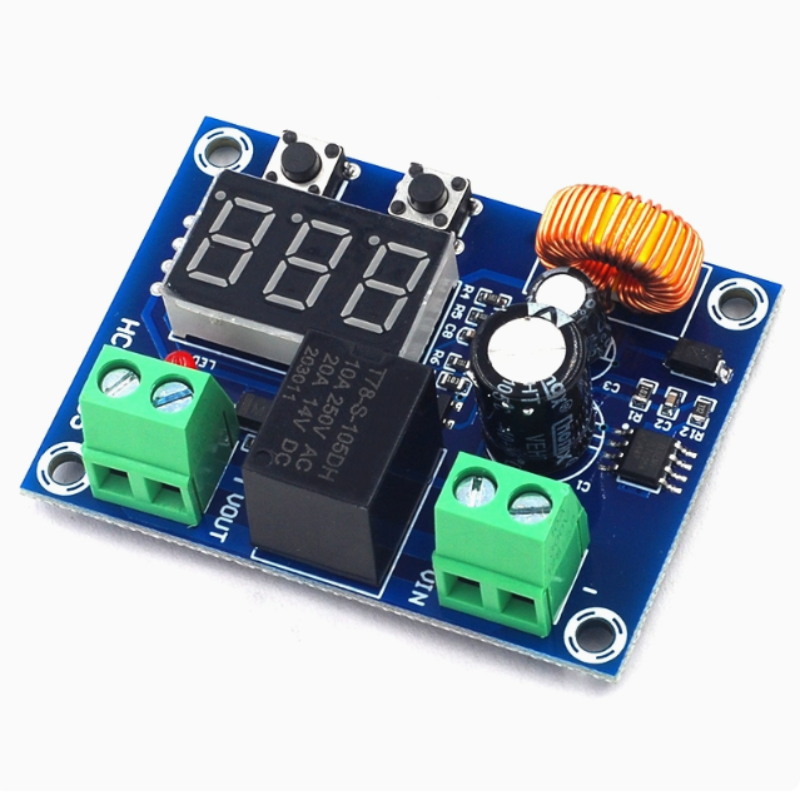

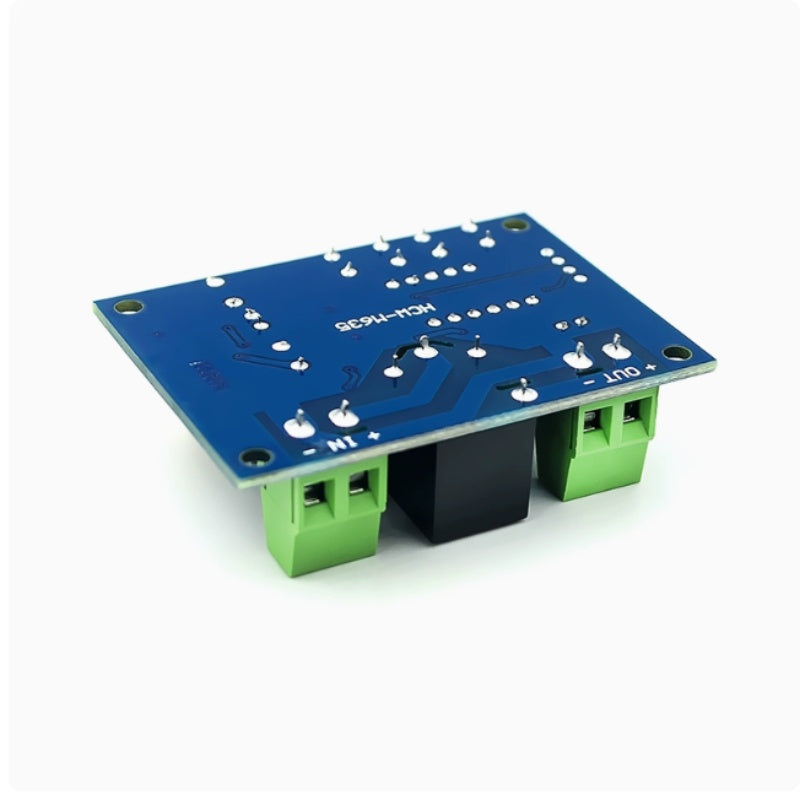

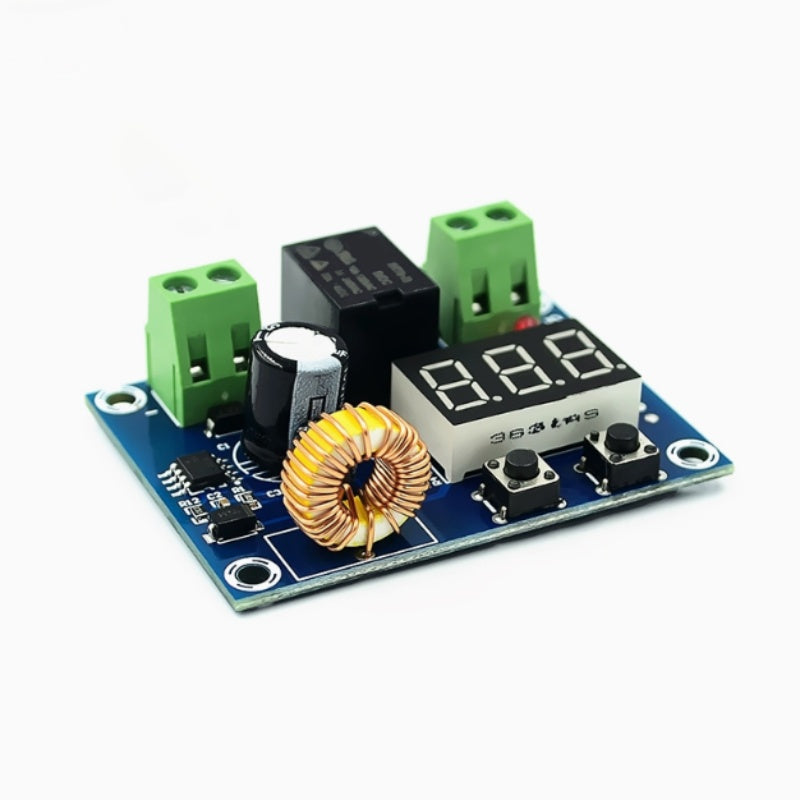

Products photography
