XC5015 Isolated DC-DC Wide Voltage 9-42V Input 5/12V Output Power Module Reserved LDO

Product Introduction

  This module is a flyback isolated power supply module with a wide input voltage range of 9-42V and output options of 5/12V. It features many output short circuits and reserves LDO pad positions for customers to provide more stable 3.3V/5V output.
   The half-hole gold-plated design allows users to install surface mount devices. The LDO area at the bottom can be hollowed out for the package before mounting.

Product Details

4V output: No-load sampling test

5V output: max load current is recommended

12V output: No-load sampling test

12V output: max load current is recommended

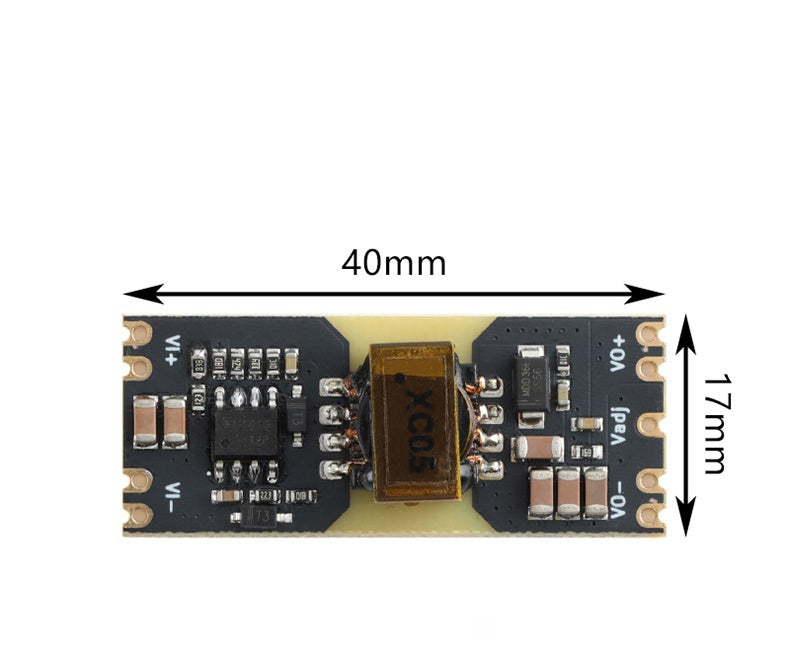

Product dimension

Note: Manual measurement may have errors. Please refer to the actual product

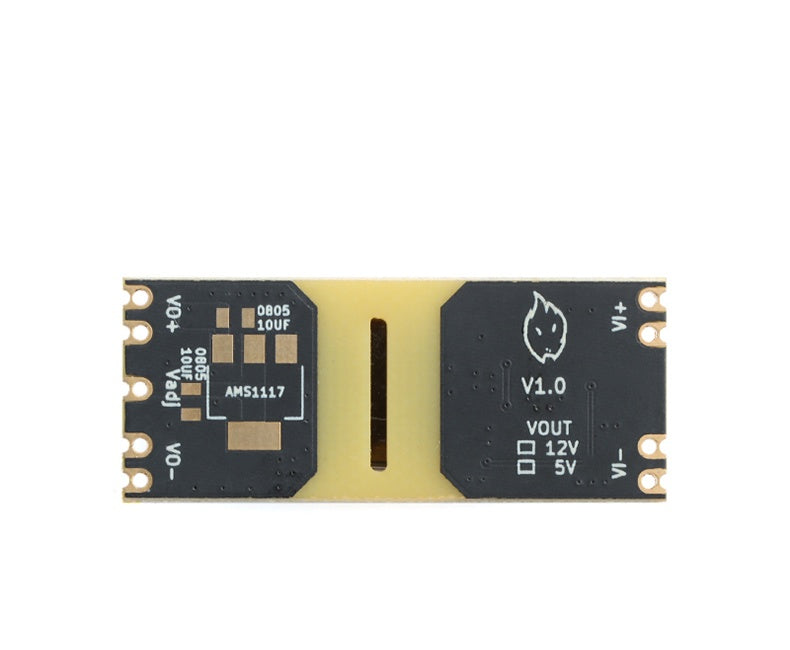

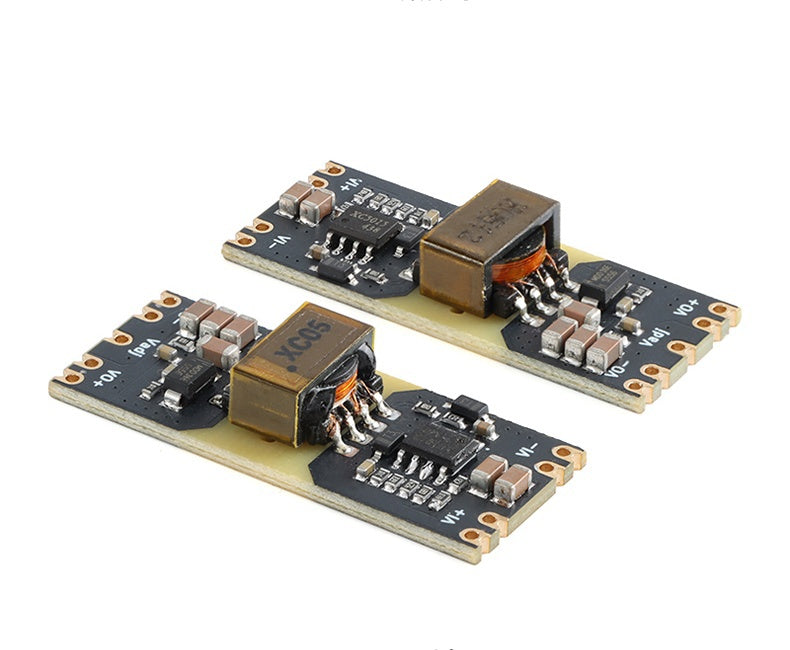

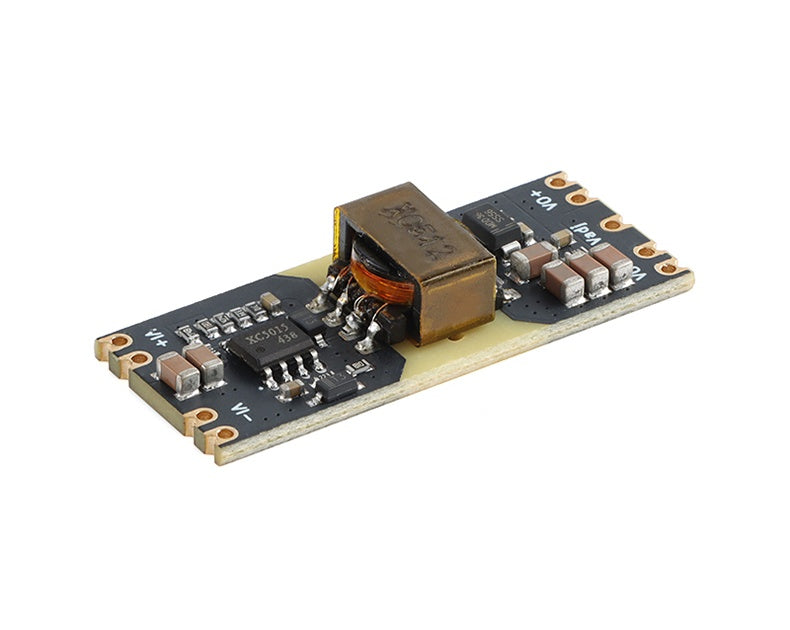

Products photography
