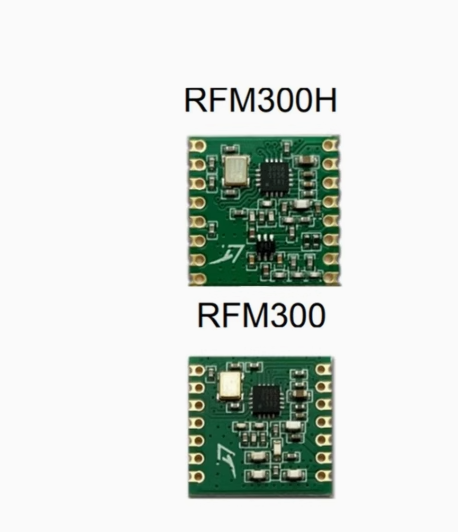

THE RFM300/RFM300H WIRELESS RADIO FREQUENCY TRANSCEIVER MODULE LORA COB IS DESIGNED BASED on the CMT2300 CHIP

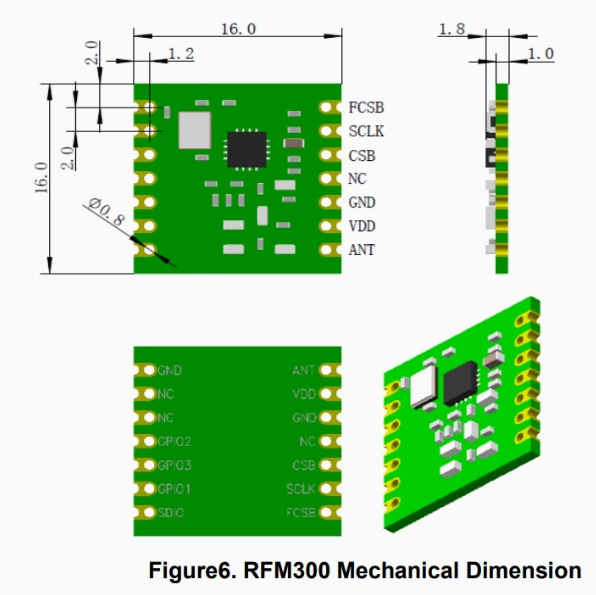

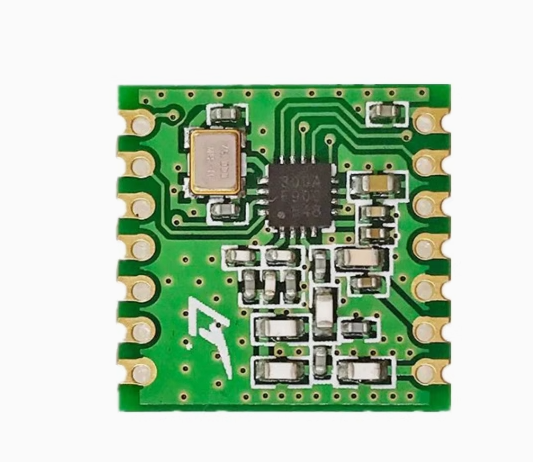

Basic features of the M300 transceiver module

1.Maximum link budget :140dB

2. Low receiving current :7mA

3. Transmission power :+13dBm

4. High sensitivity: Minimum -120 DBM

5. Modulation modes :FSK, GFSK, 0OK

6.SMD packaging (16x16X1.8mm)

The application of RFM300 transceiver module

1. Automatic meter reading, wireless data collection, car anti-theft alarm system, home automation and security system.

2. RFM300 module series based on CMOSTEKNextGenRFTMCMT2300 chip design and become, can work in 433/868/915 MHZ, ultra low receive sensitivity (120 DBM), + 20 DBM (RFM300H) / + 13 DBM (RFM300) transmitted power, Wide frequency and high connection performance.

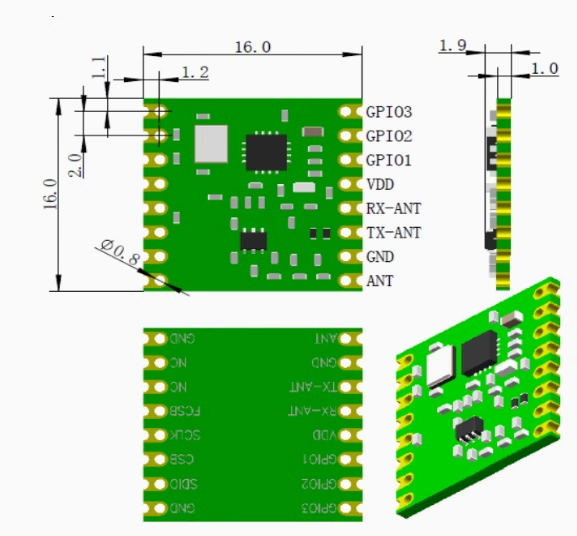

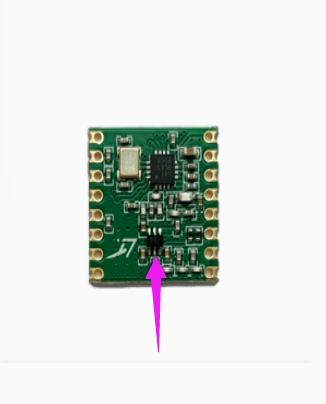

The basic characteristics of the RFM300H transceiver module

1.Maximum link budget :140dB

2. Low receiving current :7mA

3.RFM300H Transmission power :+20dBm

4. High sensitivity: Minimum -120 DBM

5. Modulation modes :FSK, GFSK, 0OK

6.SMD packaging (16x16×1.8m)

Application of RFM300H Transceiver module

1. Automatic meter reading, wireless data collection, car anti-theft alarm system, home automation and security system.

2. RFM300H module series based on CMOSTEKNextGenRFTMCMT2300 chip design and become, can work in 433/868/915 MHZ, ultra low receive sensitivity (120 DBM), + 20 DBM (RFM300H) / + 13 DBM (RFM300) transmitted power, Wide frequency linkage.
