The Original Genuine Surface Mount N76E003AT20 TSSOP-20 Is Compatible And Can Replace The STM8S003F3P6 Chip

The Original Genuine Surface Mount N76E003AT20 TSSOP-20 Is Compatible And Can Replace The STM8S003F3P6 Chip

¥2.35 CNY
¥0.00 CNY ¥2.35 CNY
Sale Sold out

Patch N76E003AT20 TSSOP-20

Compatible with the alternative STM8S003F3P6 chip



Product Description

          N76E003 is a series of Newtang high-speed 1T 8051 single-chip microcomputer products, providing 18 KB Flash ROM, configurable Data Flash and high-capacity 1 KB SRAM, supporting a wide operating voltage from 2.4V to 5.5V and an operating temperature from -40℃ to 105℃. And it has high anti-interference capability, including 7KV ESD/4KV EFT.

        The N76E003 offers up to 18 I/O pins in a 20-pin package. The periphery includes dual serial ports, SPI, I2C, and 6-channel PWM output. It is equipped with a high-precision 16 MHz RC crystal oscillator with an error of less than 2%, which is superior to similar products, and a high-resolution 8-channel 12-bit ADC. And it is equipped with functions such as self-wake-up and under-voltage detection; We offer TSSOP20 (4mm*6.5mm) and QFN20 (3mm*3mm) small packages, combining high performance with design flexibility.


Application fields

Access control system/alarm

Temperature sensing device

Bluetooth speaker

Electric vehicle meter head

Digital voltmeter head

Gas detector

Collector

Charger

Beauty equipment

Small household appliances


Key features

core

-1T 8051 microprocessor

-The operating frequency can reach up to 16 MHz

- Operating voltage: 2.4V to 5.5V

-Operating temperature: -40℃ to 105℃


memory

-18 KB application Flash

- Embedded 1 KB SRAM

- Configurable Data Flash

- Support online system updates:

  •  ISP(In-System Programming)

  •  ICP(In-Circuit Programming)

  •  IAP(In-Application Programming)


Pulse Width Modulation (PWM)

-6-channel PWM output

- Dead zone generator


Analog-to-digital converter (ADC)

-12-bit 8-channel ADC

-The conversion rate can reach up to 500 kSPS per second


Communication Interface (connectivity)

-Two groups of UART, up to 115,200 bps

-A set of SPI, up to 8 MHz

-A group of I2C, up to 400 kHz


clock control

- Built-in high-precision RC crystal oscillator with an error of less than 2% at 16 MHz

- Built-in low-speed power-saving 10 kHz RC crystal oscillator

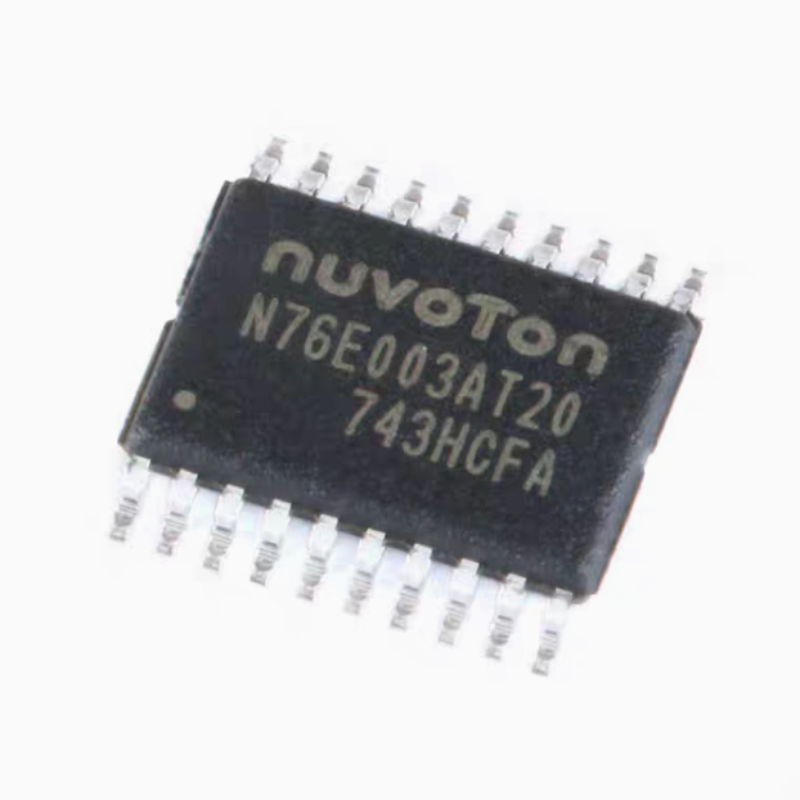

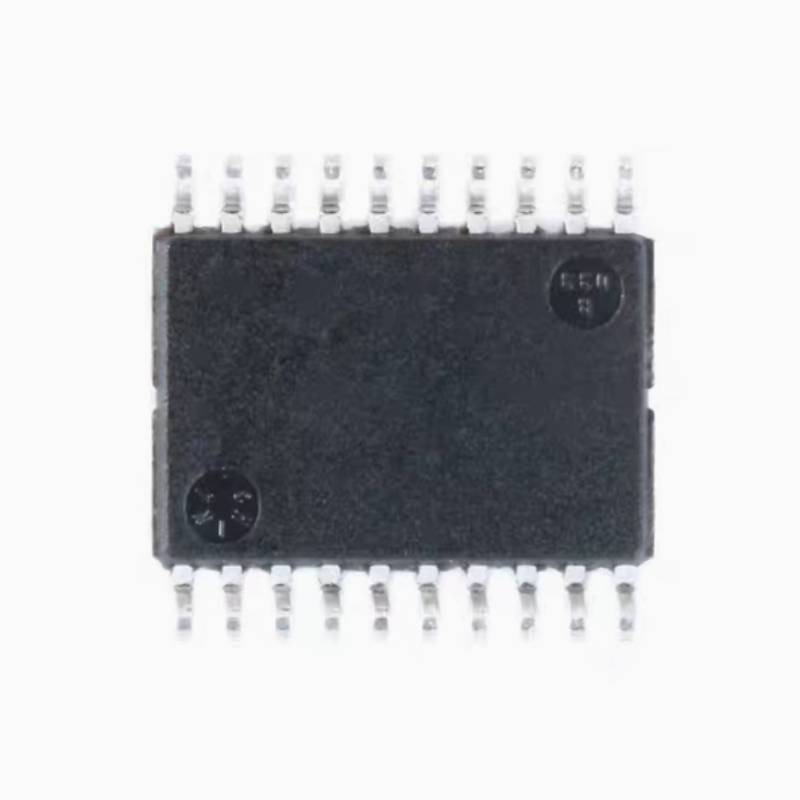

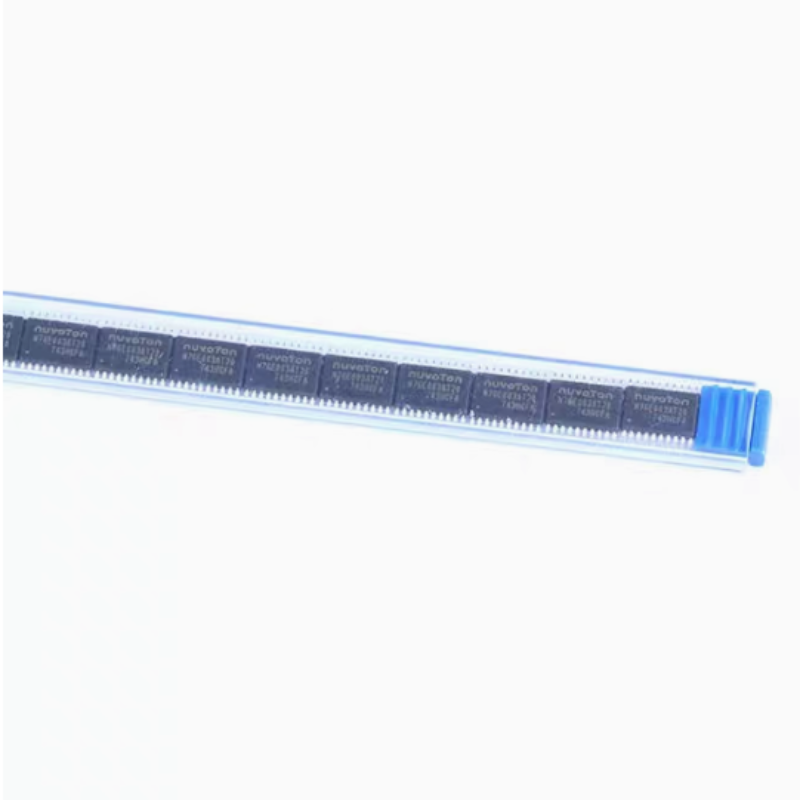

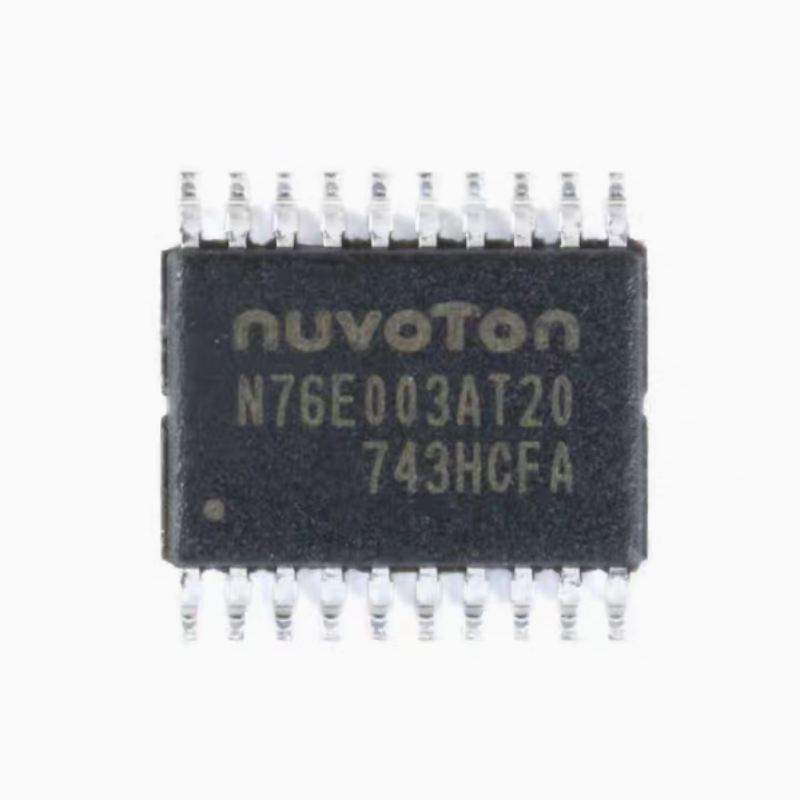

Products photography
