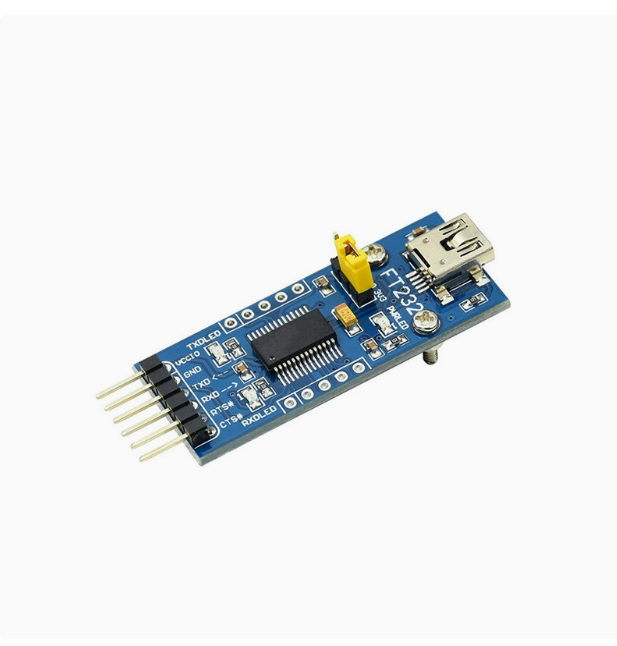

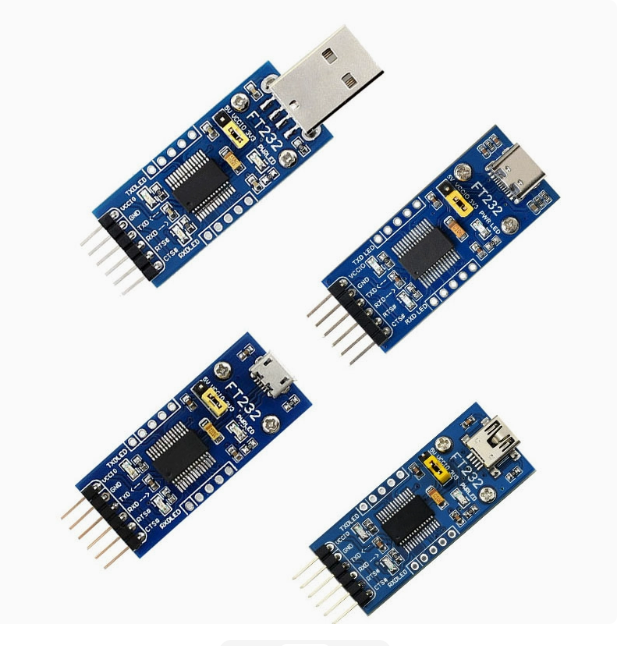

Product features
1.The FT232RNL chip is adopted.
2. Supports Mac OS, Linux, Android, WinCE, Windows 7/8/8.1/10/11
3. Support setting three power supply modes of VCCI0 through jumper caps:
VCCIO-5V:5V external power supply
VCCI0-3.3V:3.3V external power supply
No jumper cap connected: Powered externally (supports 3.3V to 5V)
4. Three on-board LED indicator lights :TXD, RXD, and PWR.
5.TXD, RXD, RTS#, and CTS# are all led out using curved pin headers.
6. Other functional pins: Reserved pads (can be inserted upwards or downwards to connect to the user system; PIN pitch supports insertion into universal boards.

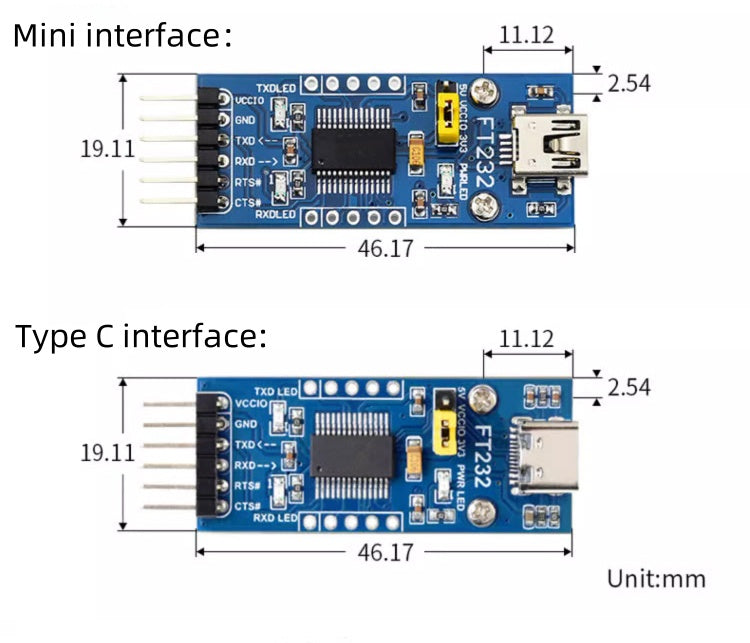

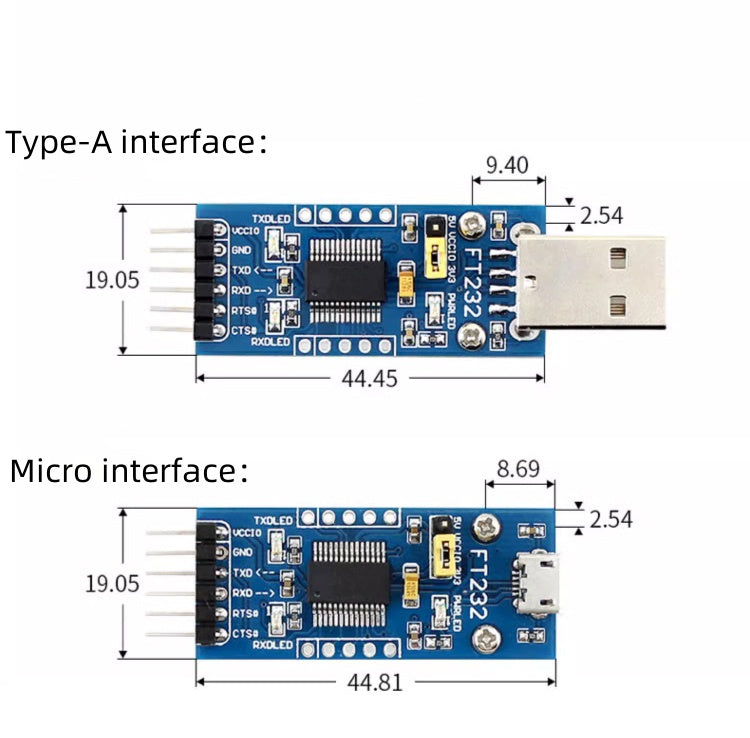

Product size

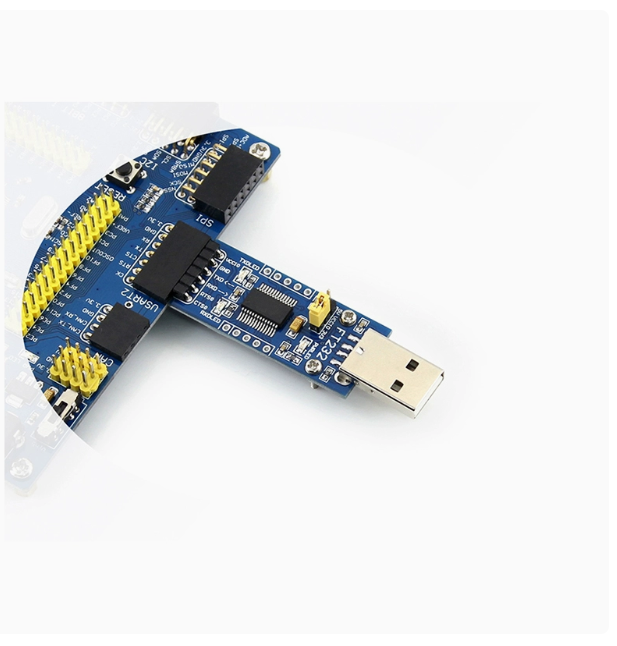

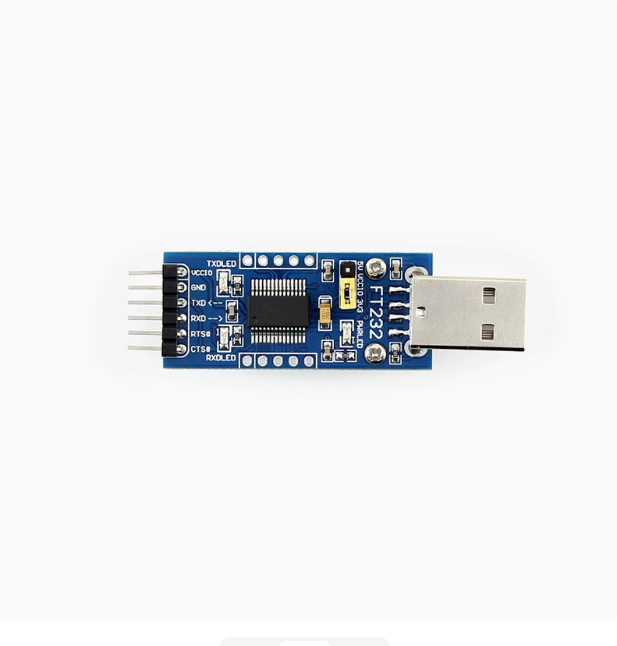

Instructions for Use
| VCCIO | Output 3.3V or 5V(The module is powered by USB, so the jumper cap must be jumped to 3.3V or 5V) |
| GND |
Connect to GND |
| TXD | Connect to MCU.RX(Signal flow direction :MCU.RX<<FT232<<PC.TX |
| RXD |
Connect to MCU.TX(Signal flow direction :MCU.TX>>FT232>>PC.RX) |
| RTS | Connect to MCU.CTS (Signal flow direction :MCU.CTS<<FT232<<PC.RTS) |
| CTS | Connect to MCU.RTS(Signal flow direction :MCU.RTS>>FT232>>PC.CTS) |
Note: This product does not come with a USB cable
