TEC1-12703/12704/12705//12706/12707/12708/12709/12710/12712/12715 Refrigeration Sheet
The working state of the cooling plate is to cool on one side and heat on the other. During operation, it is necessary to ensure good heat dissipation for the heat-generating surface. It is strictly prohibited to power on for more than 2 seconds without heat dissipation.
When installing the radiator, it is essential to apply thermal grease.
If there is a literal, it is cold noodles; if there is no literal, it is hot noodles.
Product parameter
| Model | TEC1-12703/12704/12705/12706/12707/12708/12709/12710/12712/12715 |

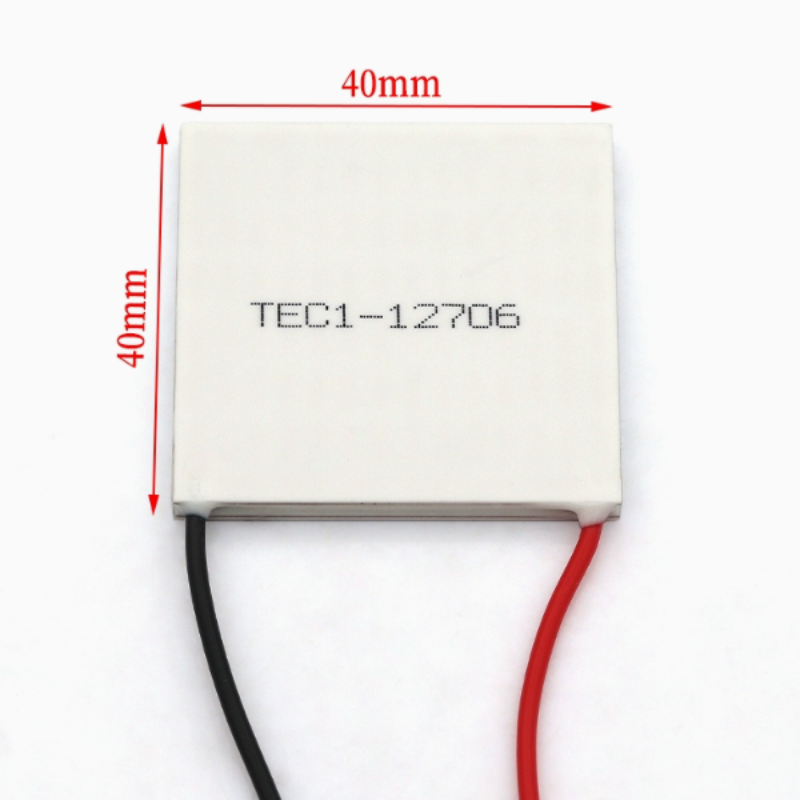

| Overall dimensions | 40*40, number of component pairs 127 |
| Wire specification | RV standard wire, single end 5mm tin-plated. |
| Large temperature difference | Tmax(Qc=0) above 60°C. |
| Rated voltage | DC12V(Vmax:15.5V) |
| Assembly pressure | 85N/cm ² |
| Working environment | Temperature range -55℃ to 83℃(Excessively high ambient temperature drops directly affect the refrigeration efficiency). |
| Packaging process | Sealed with standard 704 silicone rubber on all four sides. |
| Packaging standard | Foam box packaging. Storage conditions: Ambient temperature -10℃ to 40℃. |
| Storage conditions | -40 to 60℃ |

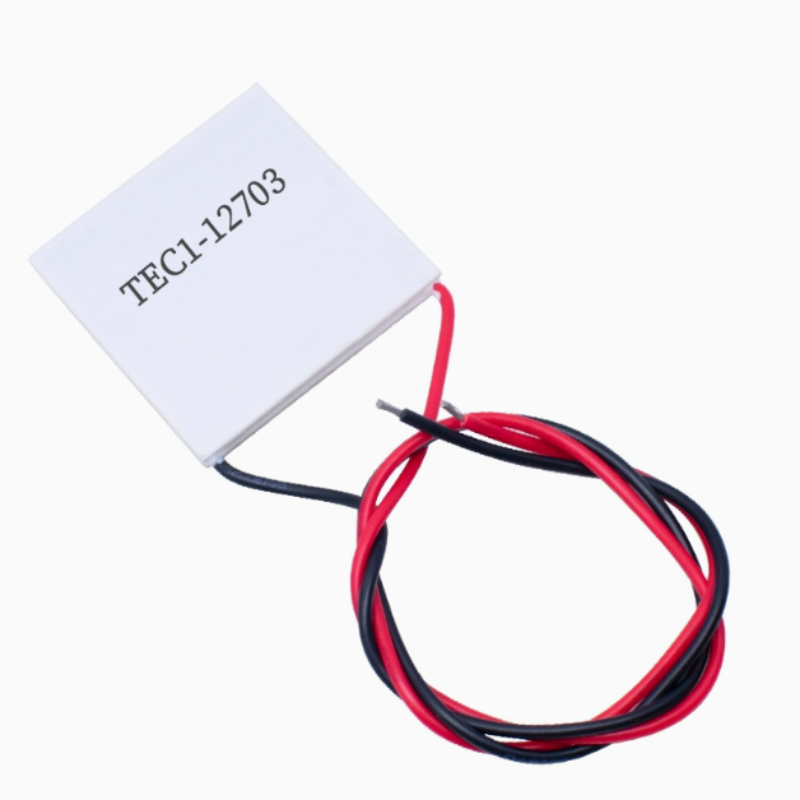

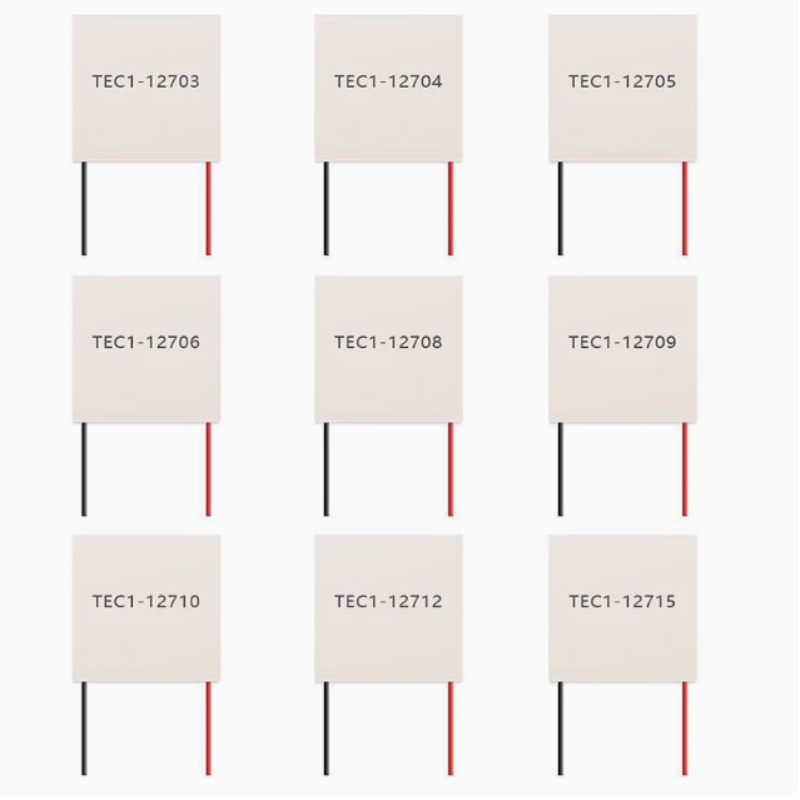

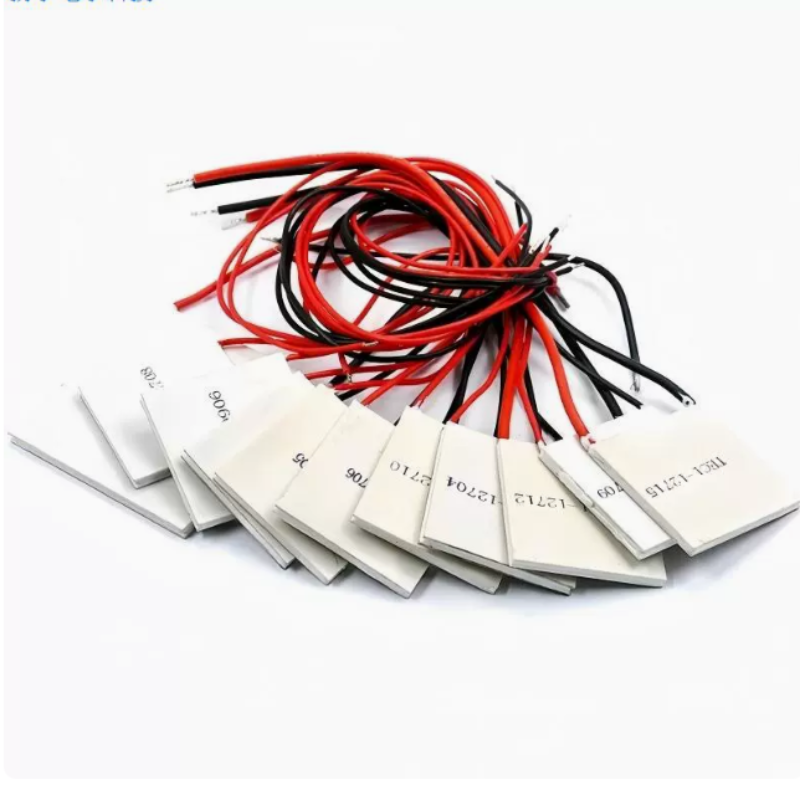

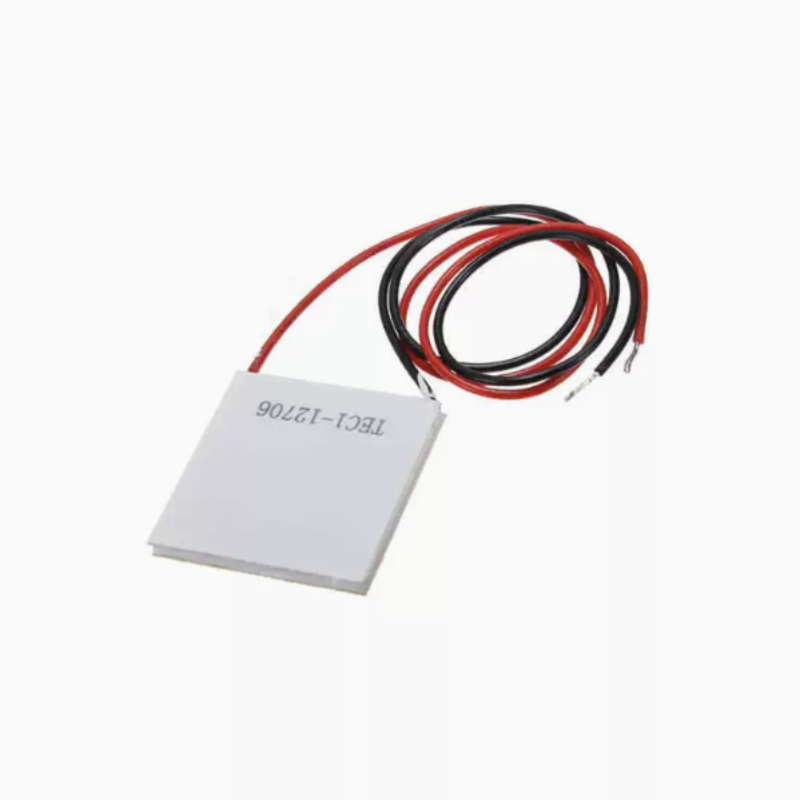

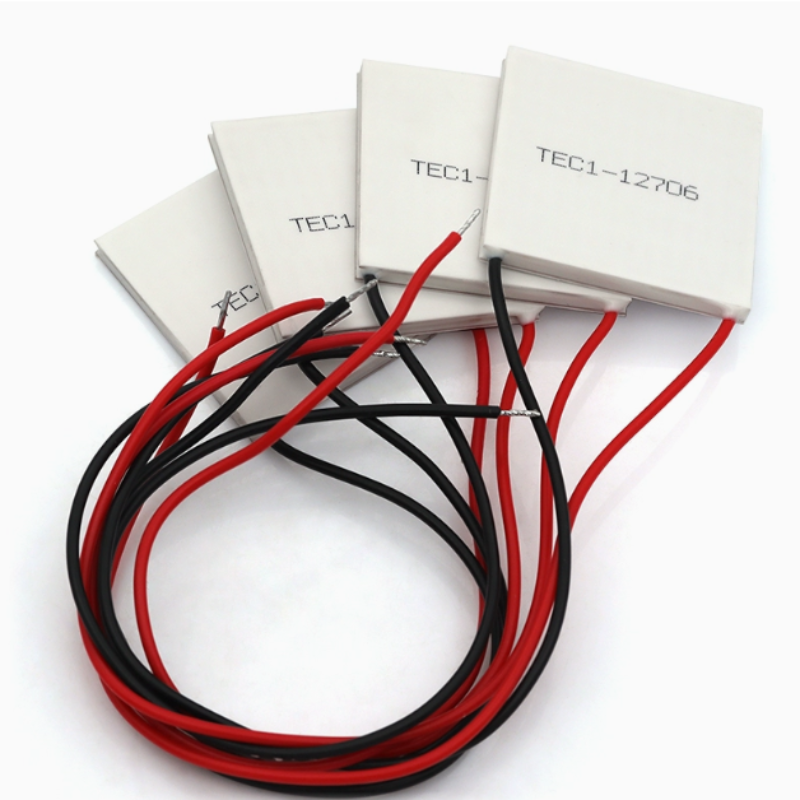

Products photography
