Product introduction
Product torque :1.8kg/cm(4.8v), 2.2kg/cm(6.0v)
Reaction speed :0.10sec/60degree(4.8v), 0.08sec/60degree(6.0v)
Dimensions :22.8mm*12.2mm*28.5mm
Operating voltage :4.8V-6V
Weight :15 grams
Operating temperature :0-55 degrees
Action dead zone :5us
Working mode: Simulation
Gear medium: Plastic
Product parameter
MG90S servo
| Product Name | MG90 14g Digital Servo |
| Net weight of the product | 13.4g |
| Product dimensions | 22.8*12.2*28.5mm |
| Product torque | 1.8kg/cm(4.8v), 2.2kg/cm(6.0v) |
| Reaction speed | 0.10sec/60degree(4.8v), 0.08sec/60degree(6.0v) |
| Operating voltage | 4.8V-6V |
| Operating temperature | 0-55 degrees |
| Action dead zone | 5us |
| Gear medium | Plastic |
| Working mode | Simulation |
SG90S servo
| Product Name | SG909g Plastic Tooth Digital Servo |
| Net weight of the product | 9g |
| Product dimensions | 23*12.2*29mm |
| Product torque | 1.5kg/cm |
| Reaction speed | 0.3 seconds per 60 degrees |
| Operating voltage | 4.2V-6V |
| Operating temperature | 0-55 degrees |
| Action dead zone | 10us |
| Gear medium | Plastic |
| Working mode | Simulation |

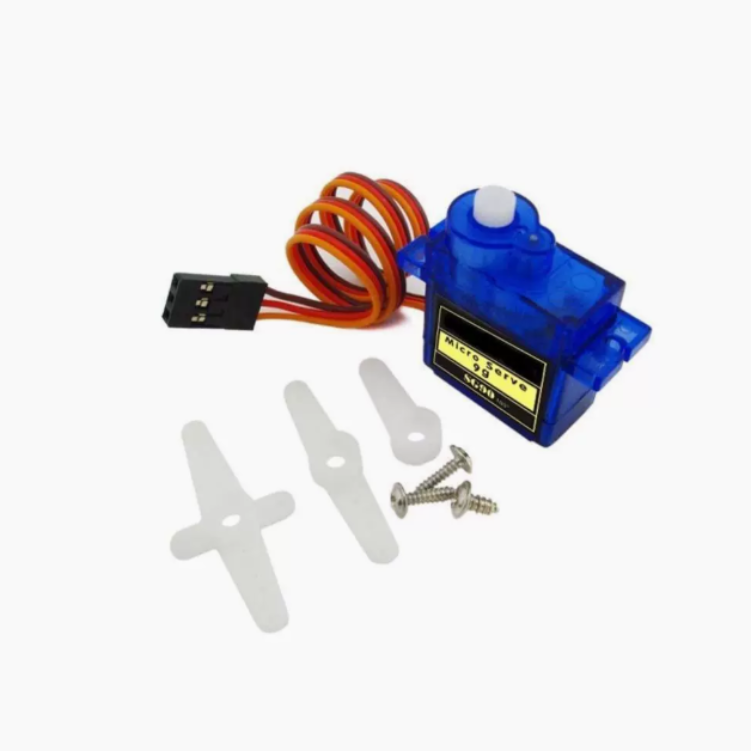

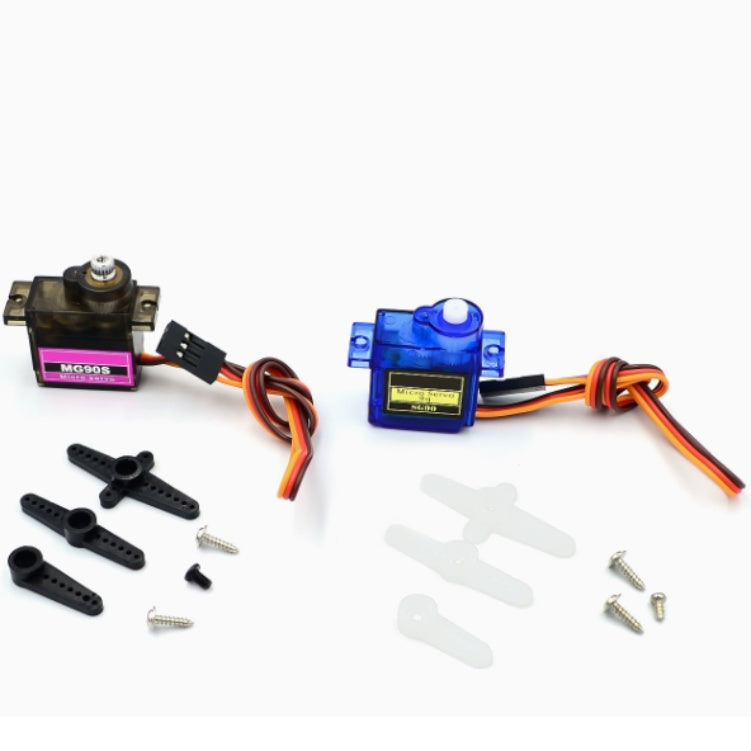

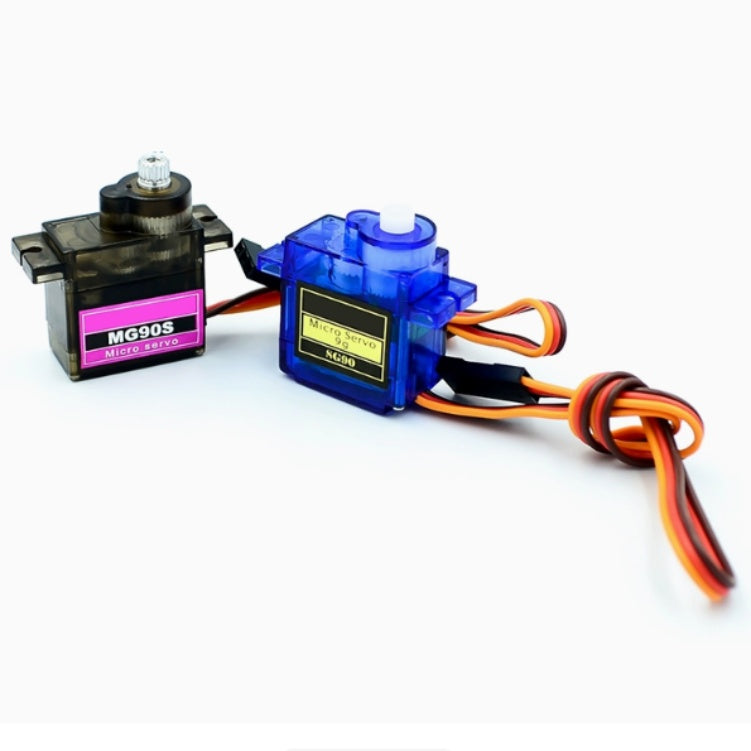

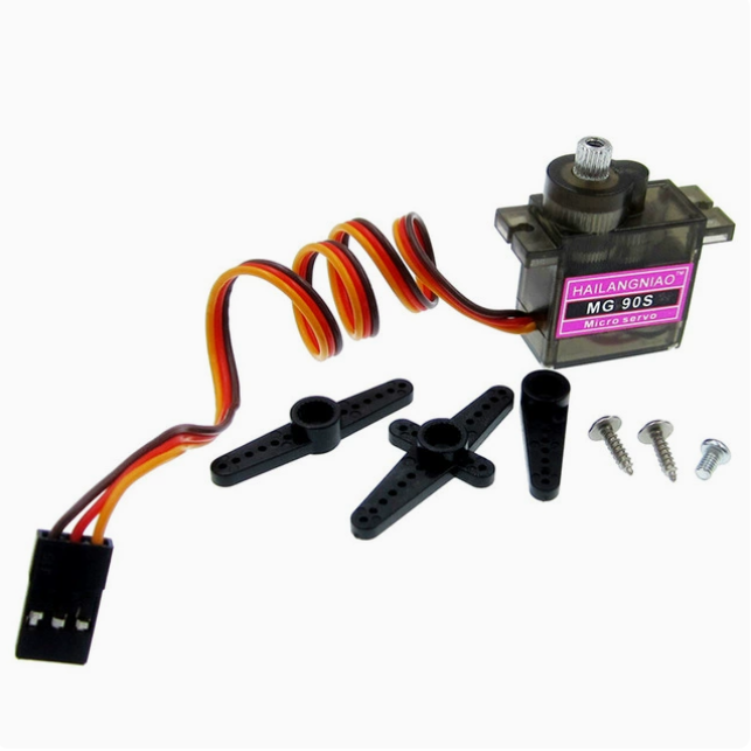

Products photography
