TPS54560 step-down switching power supply module
Low ripple DC-DC,High voltage 60V,stepdown 5A,high current 3.3V/5V/9V/12V/15V/24V
Product introduction
This module adopts the TPS54X60 step-down solution, featuring low output ripple and stable performance. The module is a typical BUCK step-down structure, with an input voltage range of 5.5 to 60V and an output current up to 5A. It offers multiple output versions including 3.3V, 5V, 9V, 12V, 15V and 24V. The board is equipped with a red LED output indicator light, and the module reserves an enabling interface for users to use.
Product details
Parameter Introduction
Module type: Step-down switching power supply
Input voltage :DC5.5-60V
Output voltage :DC 3.3/5/9/12/15/24V/ Adjustable
Output current :5A(max)
Input/output voltage difference: greater than 2V
Static current :1mA
Output ripple: Better than 25mV(Vin=12V, Vout=5V5A; The greater the output power, the greater the ripple.
Conversion efficiency :90%(Vin=12V, Vout=5V1A;) The greater the output power, the lower the efficiency.
Switching frequency :600KHZ
Module heat generation: The greater the input voltage and load, the lower the efficiency and the greater the heat generation.
Operating temperature :-25℃ to 125℃
Protective measures: No protection.

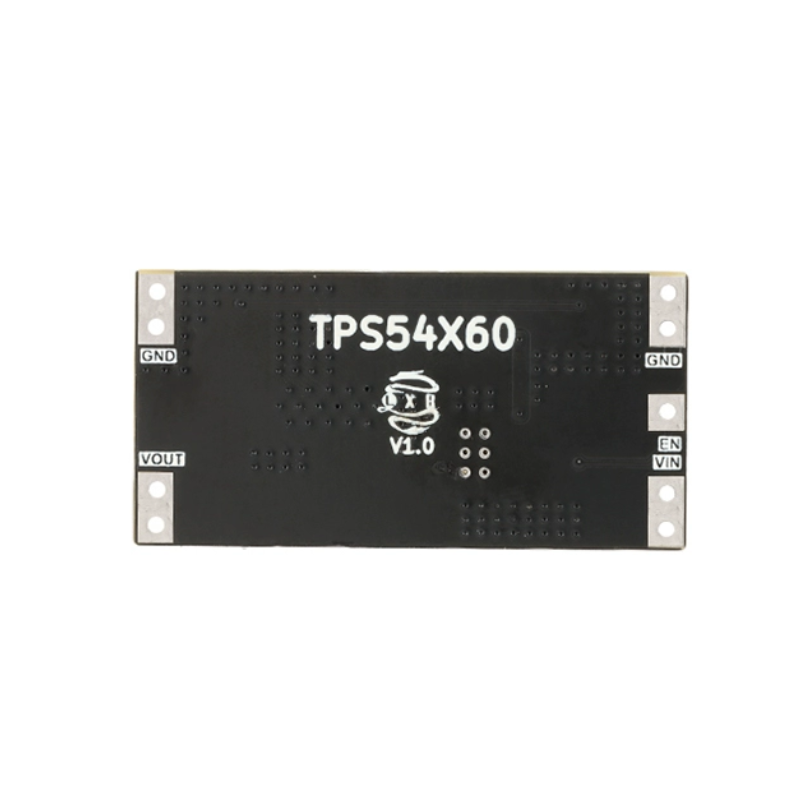

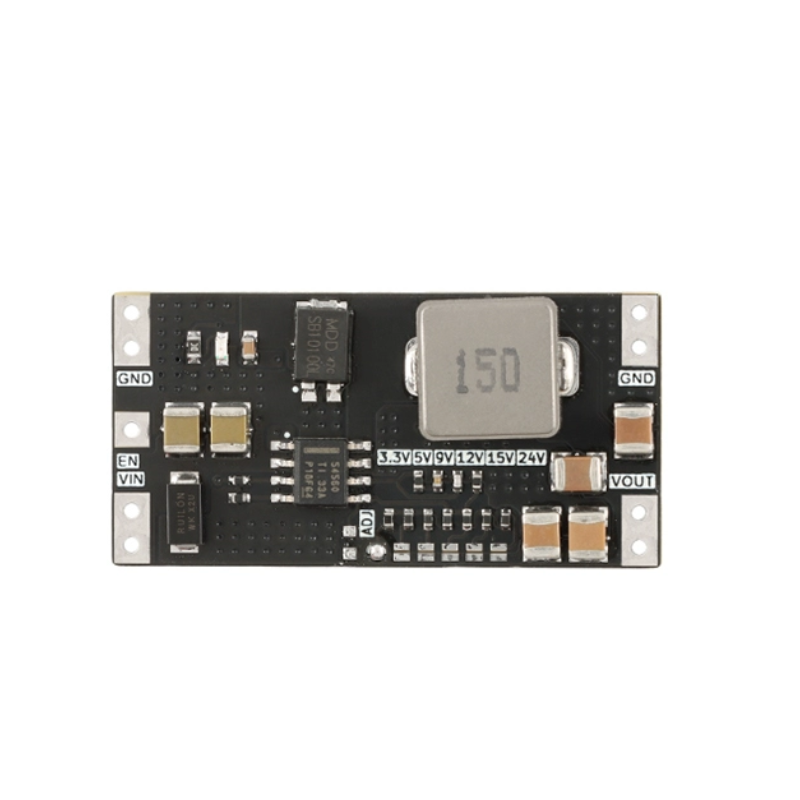

Pin description
| Pin name | pin function |
| VIN | Positive terminal of power input, 5.5-60V |
| GND | Input and output negative poles, shared |
| VOUT | Positive terminal of power output, adjustable at 3.3/5/9/12/15/24V |
| EN |
Enable: Hover or high level enabl Disable: Low level disable, output off |
| Voltage jumper pads |
Short-circuit to enable the corresponding voltage. Note: Do not disconnect or short-circuit multiple at the same time |
Product dimension
Note: Manual measurement may have errors. Please refer to the actual product.

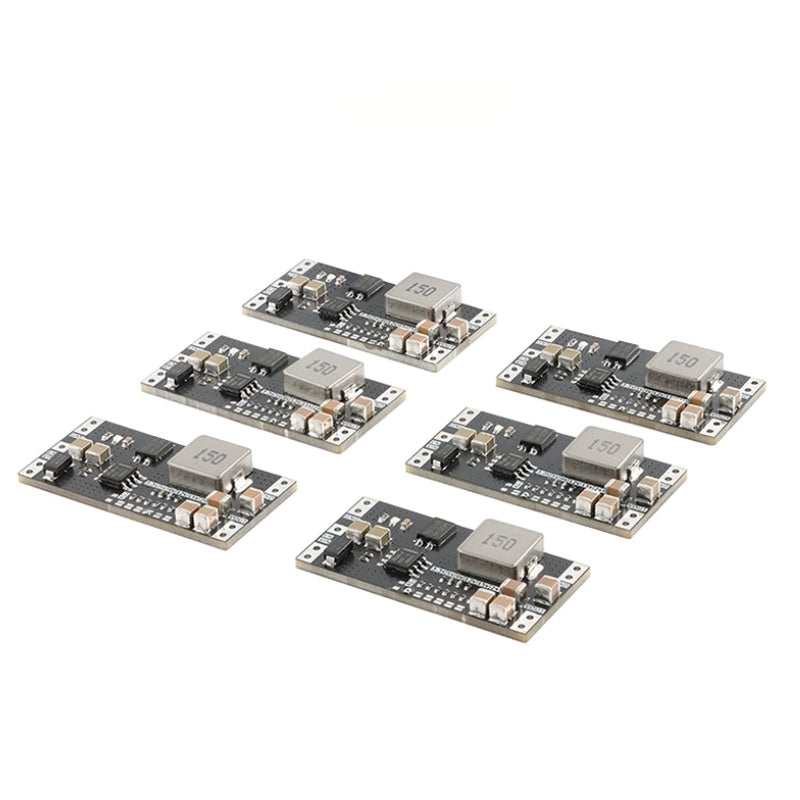

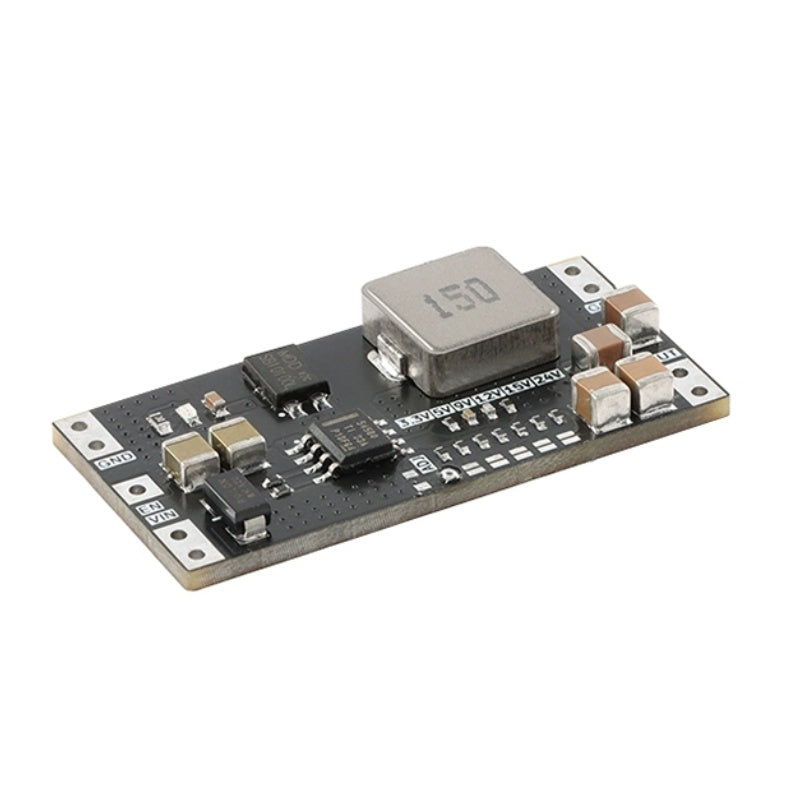

Products photography
