STM32G031G8U6/UFQFPN-28

ARM Cortex-M0+ 32-bit microcontroller -MCU

Product features

Arm® Cortex®-M0+ 32-bit MCU, up to 64 KB Flash, 8 KB RAM, 2 x USART, timers, ADC, comm. I/Fs, 1.7-3.6V

      Core

- Arm® 32-bit Cortex®-M0+ CPU frequency up to 64 MHz

- -40°C to 85°C/125°C operating temperature

      Memories

- Up to 64 Kbytes of Flash memory

- 8 Kbytes of SRAM with HW parity check

      CRC calculation unit

      Reset and power management

- Voltage range: 1.7 V to 3.6 V

- Power-on/Power-down reset (POR/PDR)

- Programmable Browout reset (BOR)

- Programmable voltage detector (PVD)

- Low-power modes: Sleep, Stop, Standby, Shutdown

- V_BAT supply for RTC and backup registers

       Clock management

- 4 to 48 MHz crystal oscillator

- 32 kHz crystal oscillator with calibration

- Internal 16 MHz RC with PLL option (±1 %)

- Internal 32 kHz RC oscillator (±5 %)

       Up to 44 fast I/Os

- All mappable on external interrupt vectors

- Multiple 5 V-tolerant I/Os

       5-channel DMA controller with flexible mapping

       12-bit, 0.4 μs ADC (up to 16 ext. channels)

- Up to 16-bit with hardware oversampling

- Conversion range: 0 to 3.6V

        11 timers (one 128 MHz capable): 16-bit for advanced motor control, one 32-bit and four 16-bit general-purpose, two low-power 16-bit. two watchdogs, SysTick timer

        Calendar RTC with alarm and periodic wakeup from Stop/Standby/Shutdown

        Communication interfaces

- Two I²C-bus interfaces supporting Fast-mode Plus (1 Mbit/s) with extra current sink, one supporting SMBus/PMBus and wakeup from Stop mode

- Two USARTs with master/slave synchronous SPI; one supporting IS07816 interface, LIN, IrDA capability, auto baud rate detection and wakeup feature

- One low-power UART

- Two SPIs (32 Mbits) with 4- to 16-bit programmable bitframe, one multiplexed with I²S interface

         Development support: serial wire debug (SwD)

         96-bit unique ID

         All packages ECOPACK®2 compliant

 Device summary

Product Description

    The STM32G031x4/x6/x8 mainstream microcontrollers are based on high-perfomance Arm® Cortex® -M0+ 32-bit RISC core operating at up to 64 MHz frequency. Offering a high level of integration, they are suitable for a wide range of applications in consumer, industrial and appliance domains and ready for the intemet of Things (IoT) solutions.

    The devices incorporate a memory protection unit (MPU), high-speed embedded memories (up to 64 Kbytes of Flash program memory and 8 Kbytes of SRAM), DMA and an extensive range of system functions, enhanced I/Os and peripherals. The devices offer standard communication interfaces (two I²Cs, two SPIs/one I²S, and two USARTs), one 12-bit ADC (2.5 MSps) with up to 19 channels, an internal voltage reference buffer, a low-power RTC an advanced control PWM timer running at up to double the CPU frequency, four general- purpose 16-bit timers, a 32-bit general-pumpose timer, two low-power 16-bit timers, two watchdog timers, and a SysTick timer.

    The devices operate within ambient temperatures from -40 to 125°C. They can operate with supply voltages from 1.7 V to 3.6 V. Optimized dynamic consumption combined with a comprehensive set of power-saving modes, low-power timers and low-power UART, allows the desian of low-power applications.

   V_BAT direct battery input allows keeping RTC and backup registers powered.

   The devices come in packages with 8 to 48 pins.

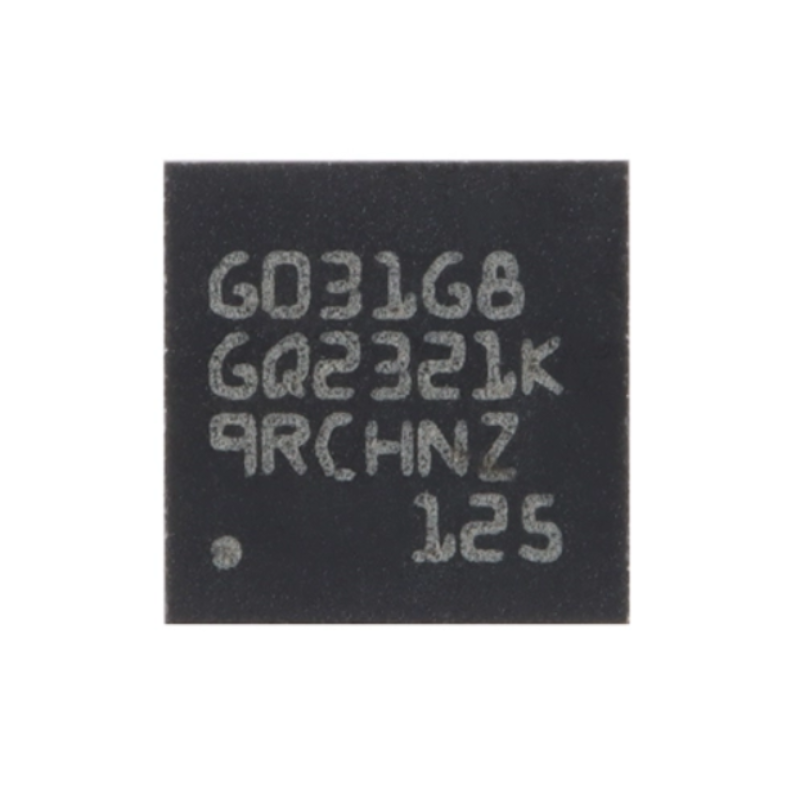

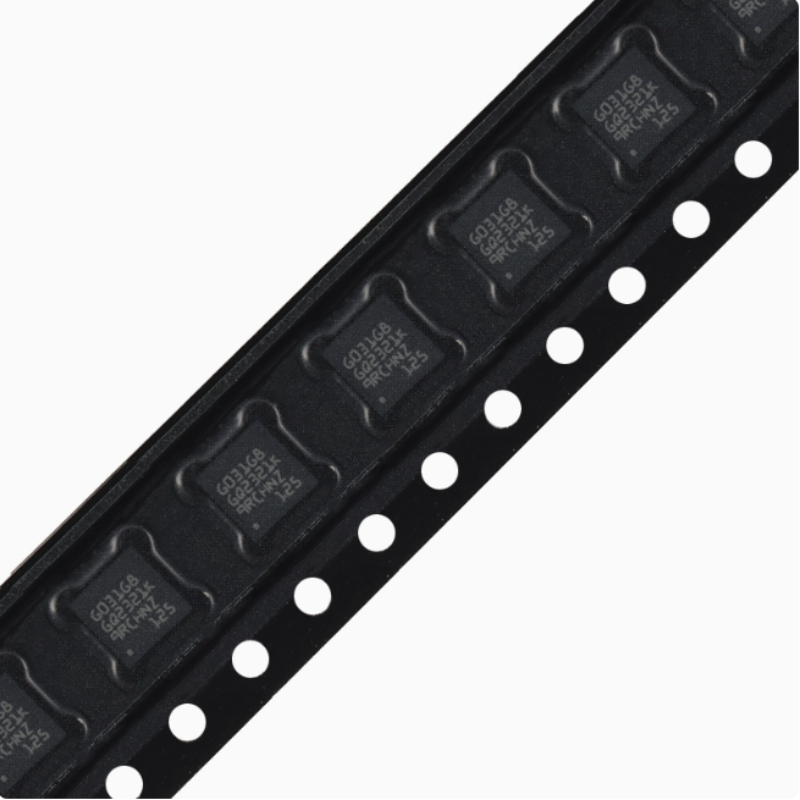

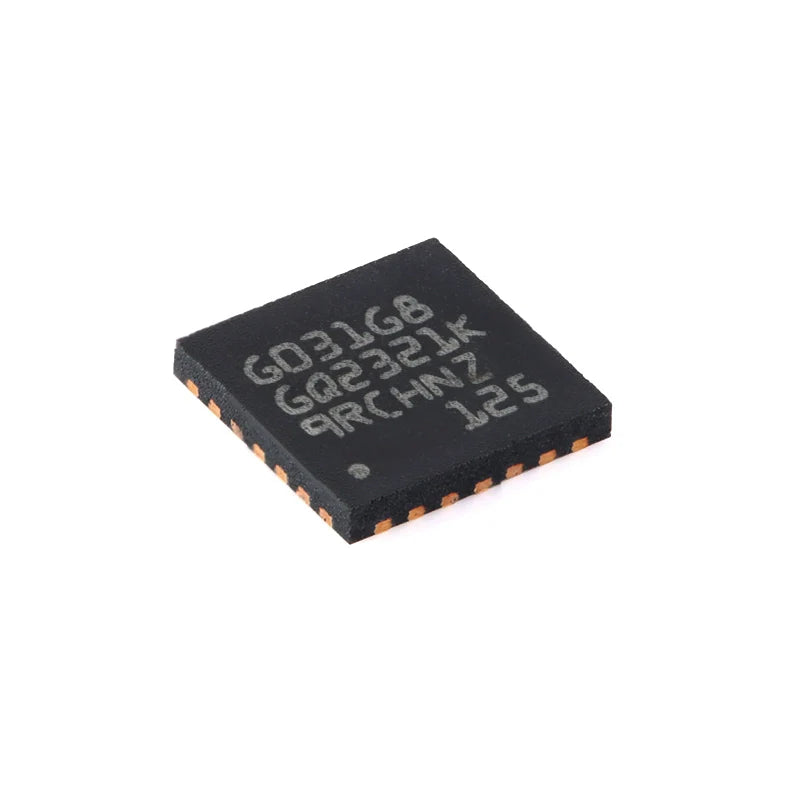

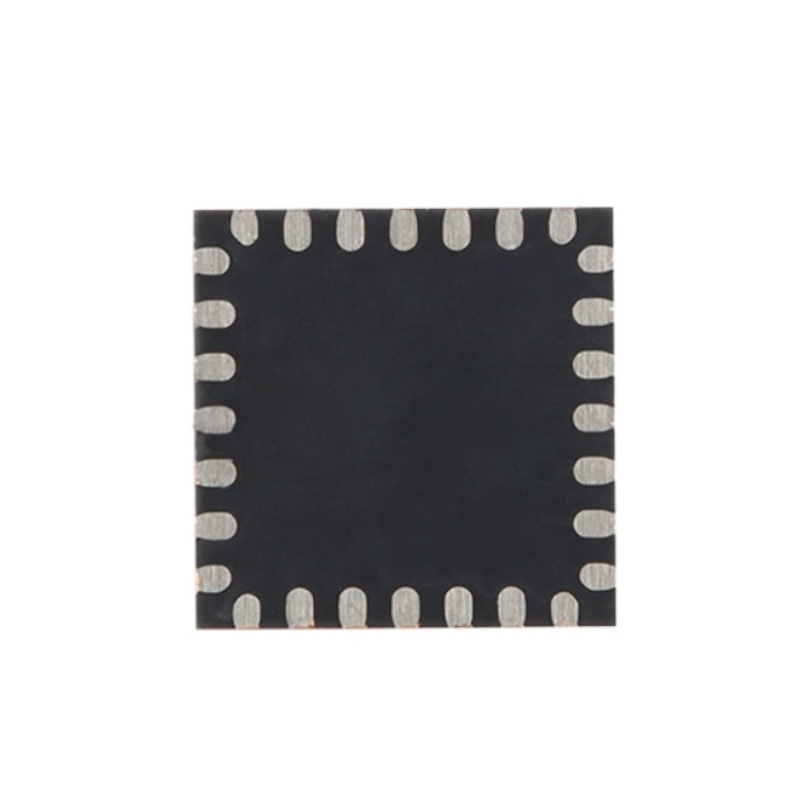

Products photography
