STM32G030F6P6TR/TSSOP-20

ARM Cortex-M0+ 32-bit microcontroller -MCU

Product features

Arm® Cortex®-M0+ 32-bit MCU, up to 64 KB Flash, 8 KB RAM,2 x USART, timers,ADC,comm. I/Fs,2.0-3.6V

      Core

- Arm® 32-bit Cortex®-M0+ CPU,frequency up to 64 MHz

- -40°C to 85°C operating temperature

      Memories

- Up to 64 Kbytes of Flash memory with protection

- 8 Kbytes of SRAM with HW parity check

      CRC calculation unit

      Reset and power management

- Voltage range: 2.0 V to 3.6 V

- Power-on/Power-down reset (POR/PDR)

- Low-power modes: Sleep, Stop, Standby

- V_BAT  supply for RTC and backup registers

       Clock management

- 4 to 48 MHz crystal oscillator

- 32 kHz crystal oscillator with calibration

- Internal 16 MHz RC with PLL option

- Internal 32 kHz RC oscillator (±5 %)

       Up to 44 fast I/Os

- All mappable on external interrupt vectors

- Multiple 5 V-tolerant I/Os

       5-channel DMA controller with flexible mapping

      12-bit, 0.4 μs ADC (up to 16 ext. channels)

- Up to 16-bit with hardware oversampling

- Conversion range: 0 to 3.6V

       8 timers: 16-bit for advanced motor control, four 16-bit general-purpose, two watchdogs, SysTick timer

       CalendarRTC with alarm and periodic wakeup

       Communication interfaces

- Two I²C-bus interfaces supporting Fast-mode Plus (1 Mbit/s) with extra current sink, one supporting SMBus/PMBus and wakeup from Stop mode

- Two USARTs with master/slave synchronous SPI; one supporting ISO7816 interface, LIN, lrDA capability, auto baud rate detection and wakeup feature

- Two SPIs (32 Mbit/s) with 4- to 16-bit programmable bitframe, one multiplexed with I²S interface

        Development support: serial wire debug (SWD)

        All packages ECOPACK² compliant

Device summary

STM32G030F x TSSOP20 pinout

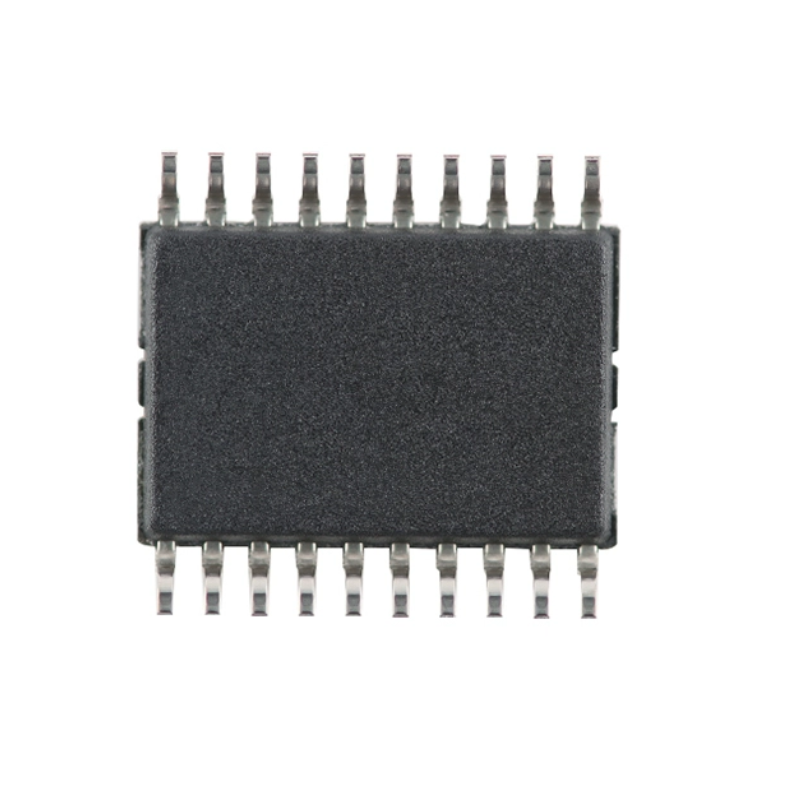

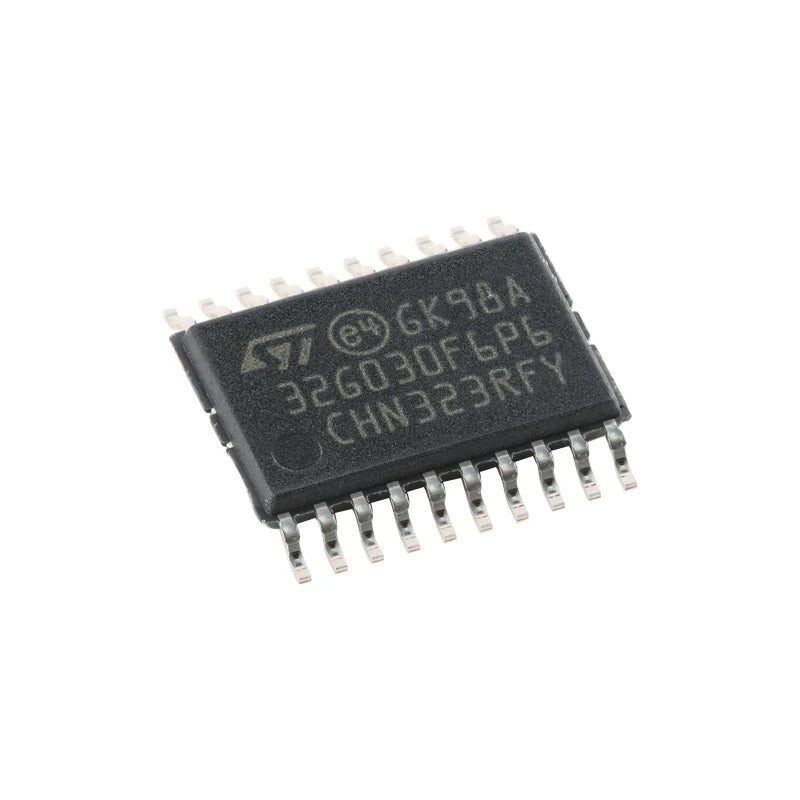

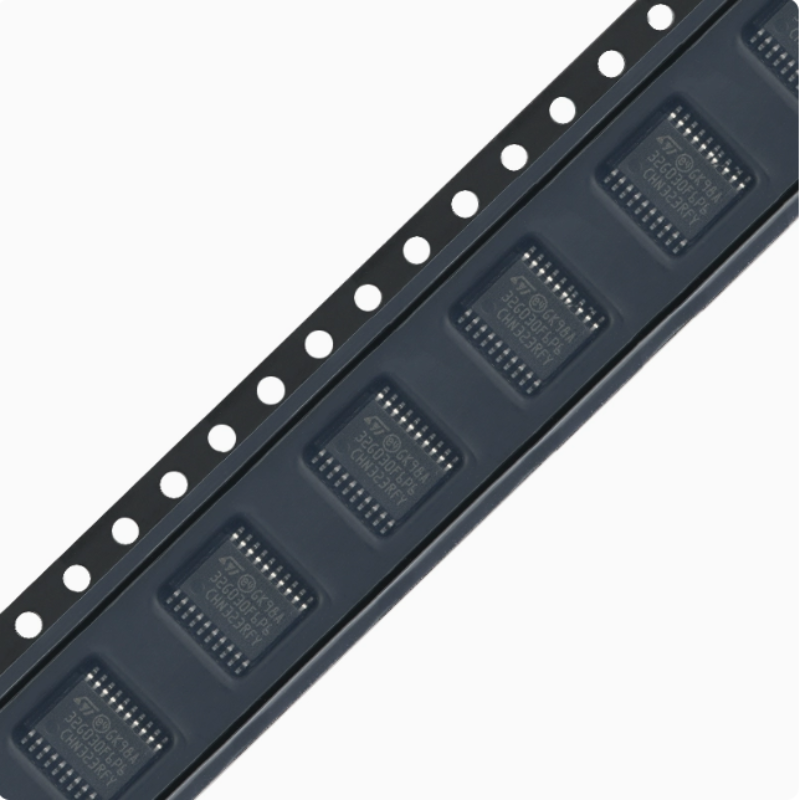

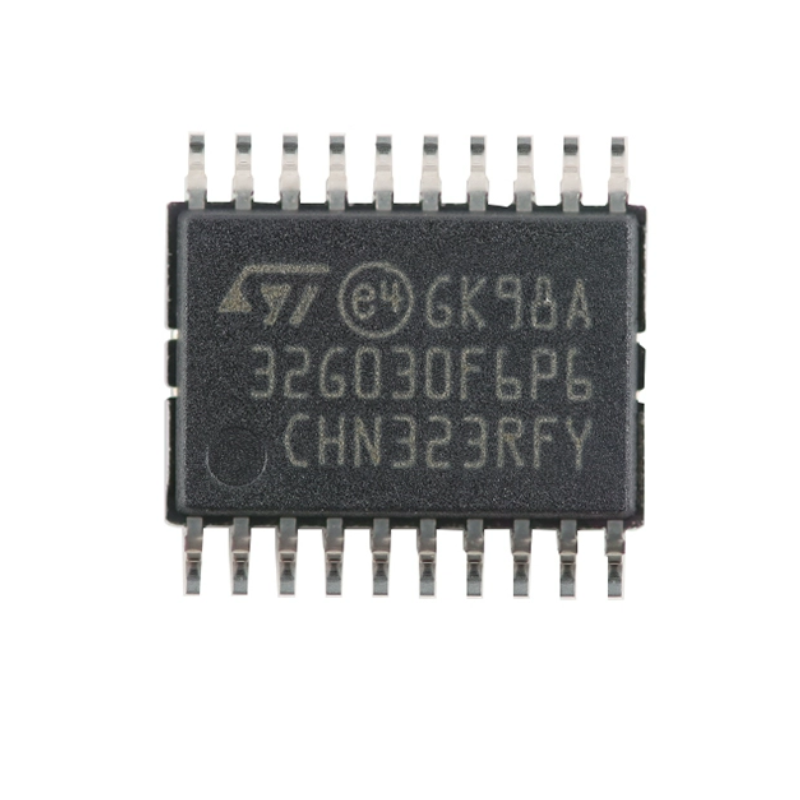

Products photography
