STC15W408AS-351-SKDIP28
Enhanced 1T 8051 single-chip microcomputer microcontroller MCU
Product introduction
A single-chip microcomputer, also known as a single-chip microcontroller, is not a chip that performs a specific logical function, but rather integrates a computer system onto a single chip. It is equivalent to a miniature computer. Compared with a computer, a single-chip microcomputer only lacks I/O devices. In a nutshell: A chip becomes a computer. It is small in size, light in weight and low in price, providing convenient conditions for learning, application and development. At the same time, learning to use a single-chip microcomputer is a good choice for understanding the principles and structure of computers.
Product parameter
| Model |
Operating voltage (V) |
Flash Program Memory (byte) |
SRAM bytes |
Serial and can be awakened after power failure |
SPI |
Power-off wake-up dedicated timer |
DPTR | Watchdog |
Internal high-precision timing |
| STC15W401AS | 2.5-5.5 | 1K | 512 | 1 | have | have | 1 | have | have |
| STC15W402AS | 2.5-5.5 | 2K | 512 | 1 | have | have | 1 | have | have |
| STC15W404AS | 2.5-5.5 | 4K | 512 | 1 | have | have | 1 | have | have |
| STC15W408AS | 2.5-5.5 | 8K | 512 | 1 | have | have | 1 | have | have |
| IAP15W413AS | 2.5-5.5 | 13K | 512 | 1 | have | have | 1 | have | have |
| IRC15W415AS | 2.5-5.5 | 15.5K | 512 | 1 | have | have | 1 | have | have |

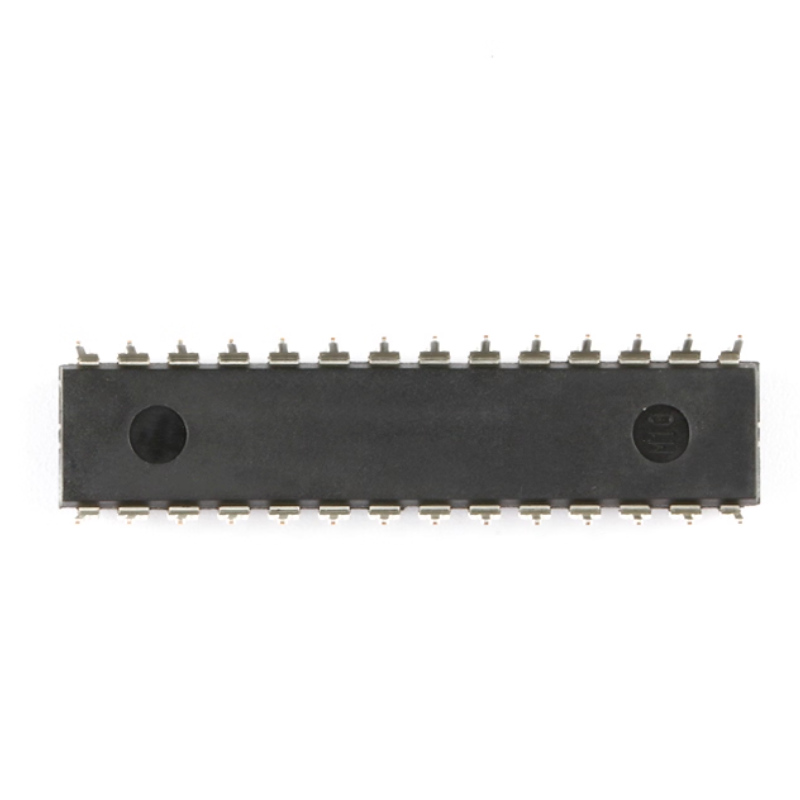

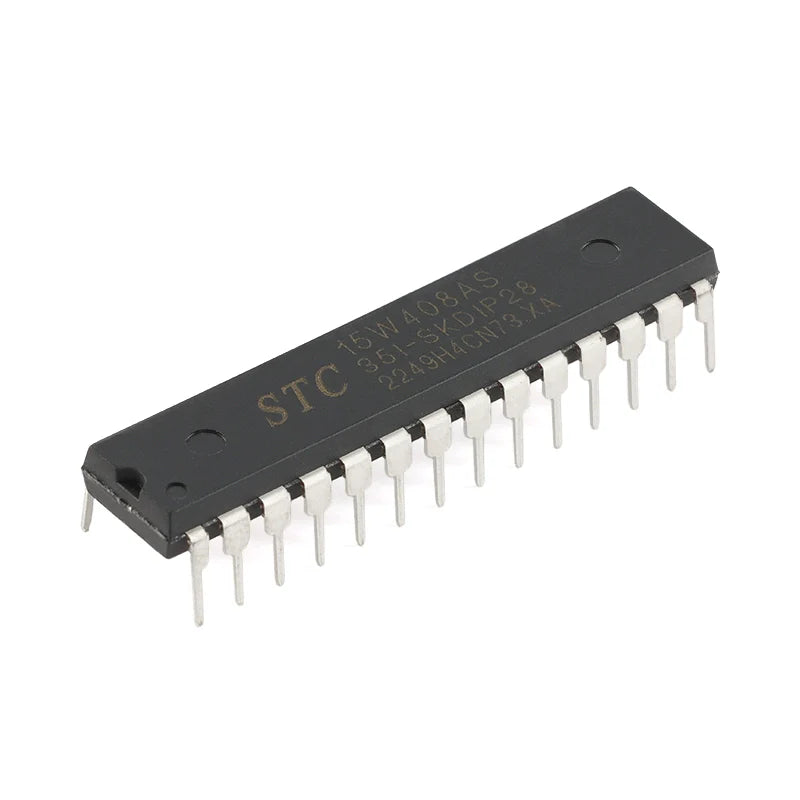

Products photography
