PY32F002BF15U6TR/QFN-20

ARM Cortex-M0 32-bit microcontroller -MCU

Product features

      Core

- 32-bit ARM® Cortex®-MO +

- MAX operating frequency 24 MHz

      Memory

- 24 KB Flash memory

- 3 KB SRAM

      Clock system

- Internal 24 MHz RC oscillator (HSI)

- Internal 32.768 kHz RC oscillator (LSI)

- 32.768 kHz low-speed crystal oscillator (LSE)

- External clock input

      Power management and reset

- Operating voltage: 1.7-5.5V

- Low-power mode: Sleep/Stop

- Power-on/power-off Reset (POR/PDR)

- Low Voltage Reset (BOR)

     General Input/Output (I/O)

- Up to 18 I/Os can all be used as external interrupts

     1 x 12-bit ADC

- Supports up to 8 external input channels and 2 internal channels

- Reference source: Built-in 1.5V/2.048V/2.5V; Reference voltage, power supply voltage Vcc

      Timer

- 1 16-bit advanced control timer (TIM1)

- 1 universal 16-bit timer (TIM14)

- 1 low-power timer (LPTIM), supporting wake-up from stop mode

- 1 independent watchdog timer (IWDG)

- 1 SysTick timer

      Communication interface

- 1 serial peripheral interface (SPI)

- 1 universal synchronous 1 asynchronous transceiver (USART), supporting automatic baud rate detection

- 1 I²C interface, supporting standard mode (100 kHz), fast mode (400 kHz), and 7-bit addressing mode

      Hardware CRC-32 module

      Two-channel comparator

      Unique UID

      Serial Debugging (SWD)

      Operating temperature : -40 to 85°C, -40 to 105°C

Product Description

       The PY32F002B series microcontrollers feature a high-performance 32-bit ARM®Cortex®-M0+ core and are MCUS with a wide voltage operating range. It is embedded with 24 KB Flash and 3KB SRAM memory, with a maximum operating frequency of 24 MHz. It includes a variety of products with different packaging types. The chip integrates communication peripherals such as I²C, SPI, and USART, one 12-bit ADC, two 16-bit timers, and two comparators.

        The operating temperature range of the PY32F002B series microcontrollers is -40 to 85°C or -40 to 105°C, and the operating voltage range is 1.7 to 5.5V. The chip offers sleep/stop low-power operation modes, which can meet the needs of various low-power applications.

Product application

- Controller

- Handheld device

- PC peripherals

- Games and GPS platforms

- Industrial applications, etc.

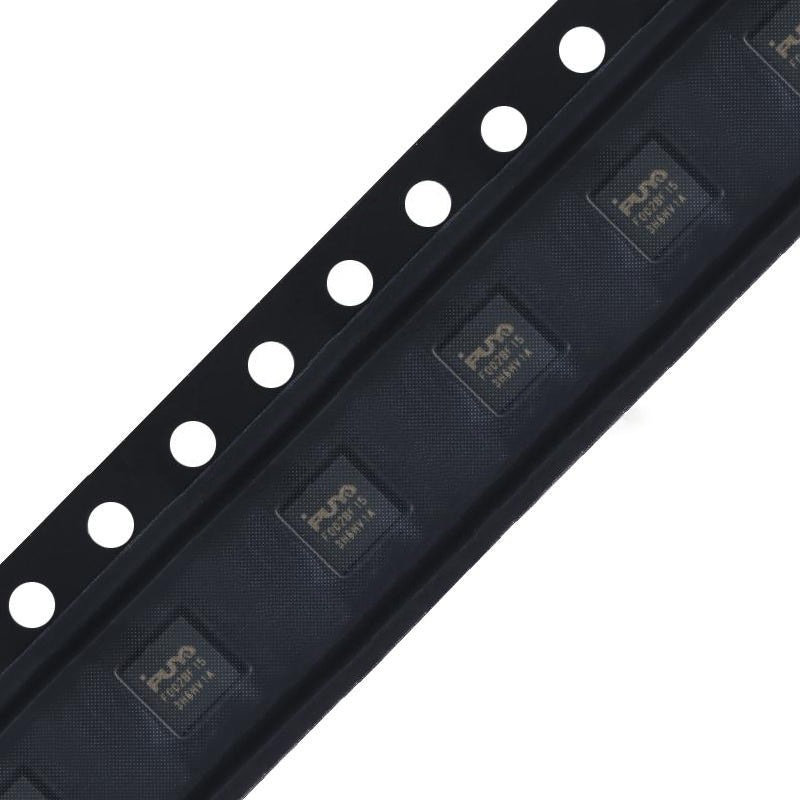

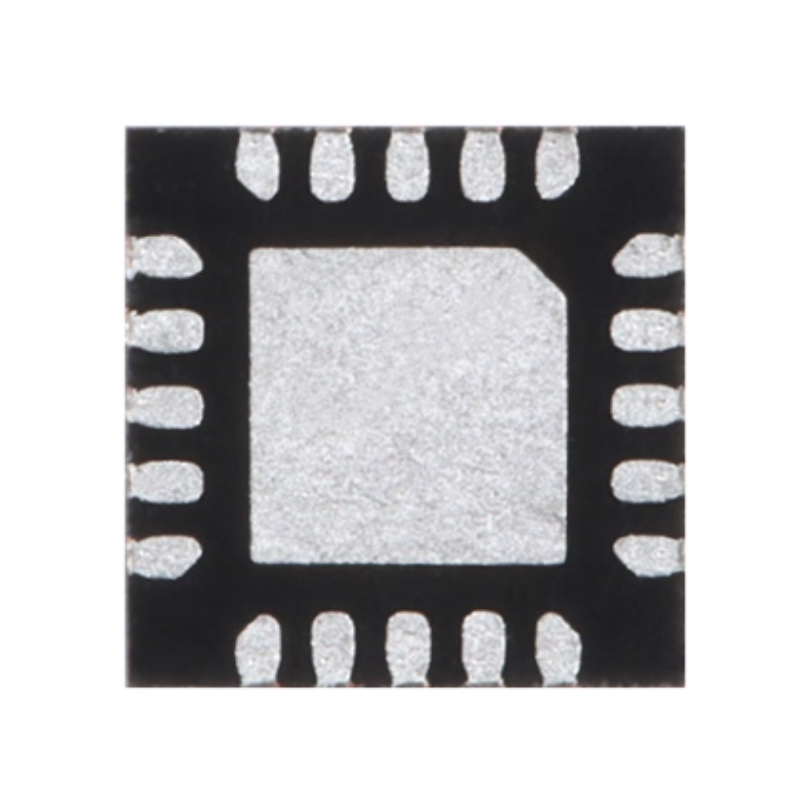

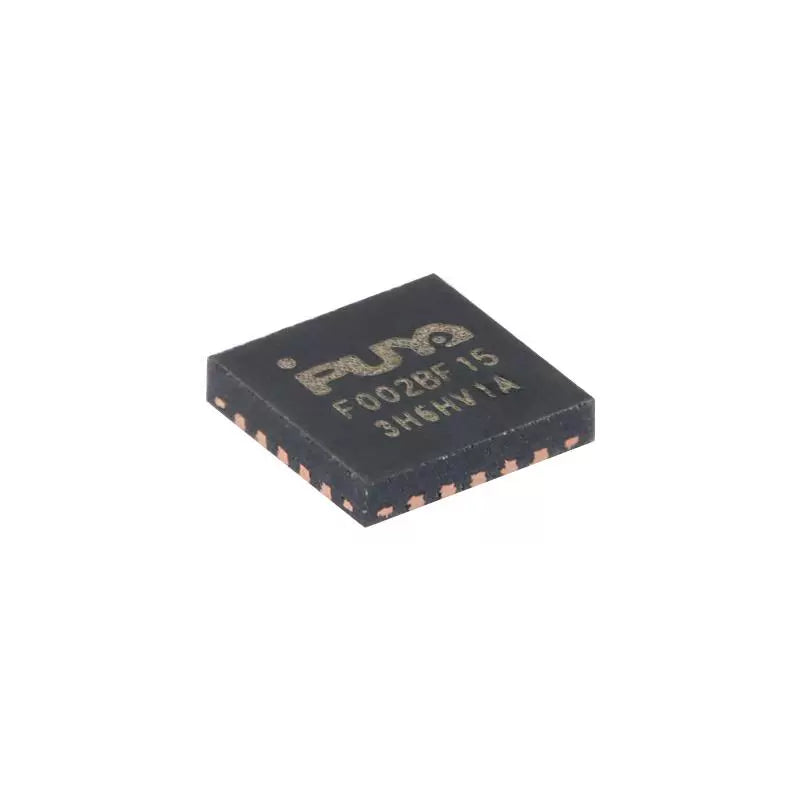

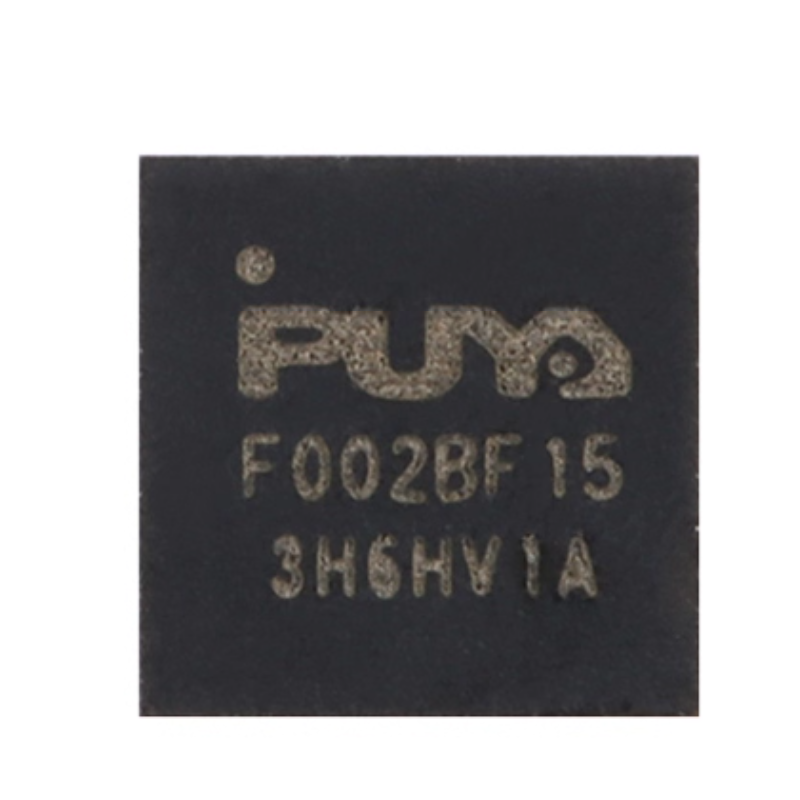

Products photography
