PY32F002AL 15S6TU/SOP-8

ARM Cortex-M0 32-bit microcontroller -MCU

Product features

      Core

- 32-bit ARM® Cortex®-MO+

- MAX operating frequency: 24MHz

      Memory

- MAX 20Kbytes flash memory

- MAX 3Kbytes SRAM

      Clock system

- Internal 8/24 MHz RC oscillator (HSI)

- Internal 32.768 KHz RC oscillator (LSI)

- 4 to 24 MHz Crystal Oscillator (HSE)

      Power management and reset

- Operating voltage : 1.7V to 5.5V

- Low-power modes: Sleep and Stop

- Power-on/power-off Reset (POR/PDR)

- Power Failure Detection Reset (BOR)

      General Input/Output (I/O)

- Up to 18 I/OS can all be used as external interrupts

- The driving current is 8mA

      1 x 12-bit ADC

- Supports up to 9 external input channels

- Input voltage conversion range: 0 to V_CC

      Timer

- A 16-bit advanced control timer (TIM1)

- A basic timer (TIM16)

- A low-power timer (LPTIM) that supports wake-up from stop mode

- An independent watchdog timer (IWDT)

- A SysTick timer

      Communication interface

- A serial peripheral interface (SPI)

- A universal synchronous 1 asynchronous transceiver (USART), supporting automatic baud rate detection

- One I²C interface, supporting standard mode (100kHz), fast mode (400kHz), and 7-bit addressing mode

      Hardware CRC-32 module

      Two comparators

      Unique UID

      Serial Single-wire Debugging (SWD)

      Operating temperature: -40 to 85℃

Product Description

        The PY32F002A series microcontrollers feature a high-performance 32-bit ARM® Cortex®-M0+ core and are MCUS with a wide voltage operating range. Embedded with up to 20Kbytes of fash and 3 Kbytes of SRAM memory, with a maximum operating frequency of 24 MHz. It includes multiple products of various packaging types. The chip integrates multiple communication peripherals such as I²C, SPI, and USART, one 12-bit ADC, and multiple timers.

        The operating temperature range of the PY32F002A series microcontrollers is -40℃ to 85℃, and the operating voltage range is 1.7V to 5.5V. The chip offers sleep and stop low-power operation modes, which can meet the needs of various low-power applications.

Product application

- Controller

- Handheld device

- PC peripherals

- Games and GPS platforms

- Industrial applications, etc.

Product Planning and Features of the PY32F002A series

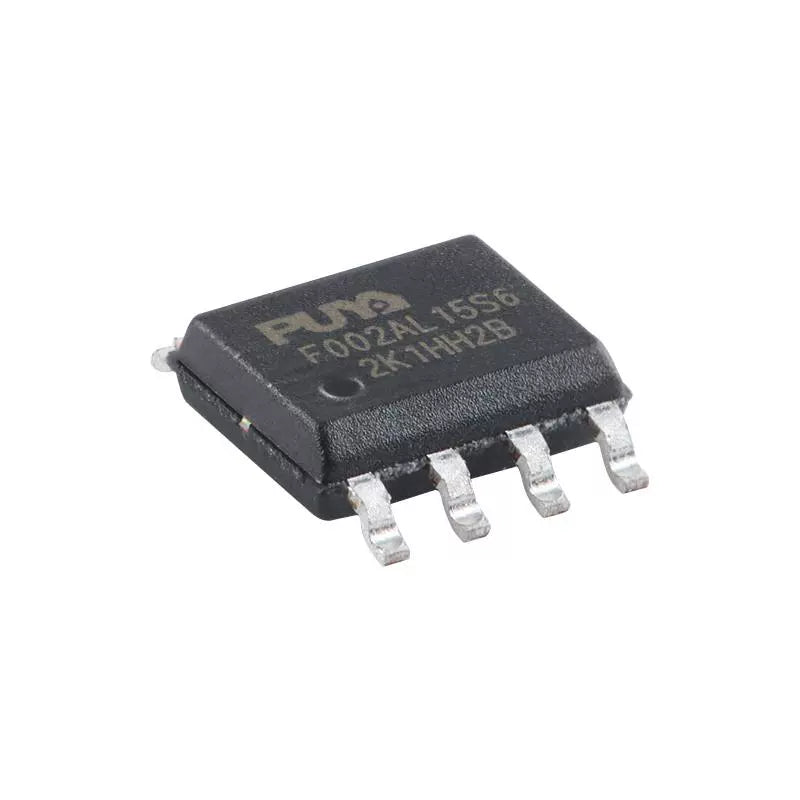

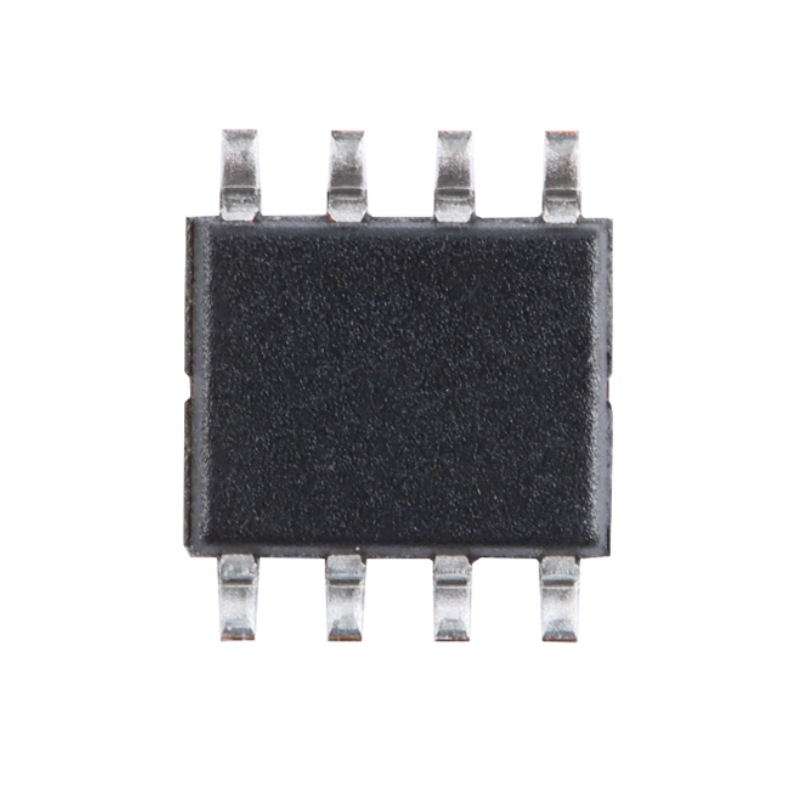

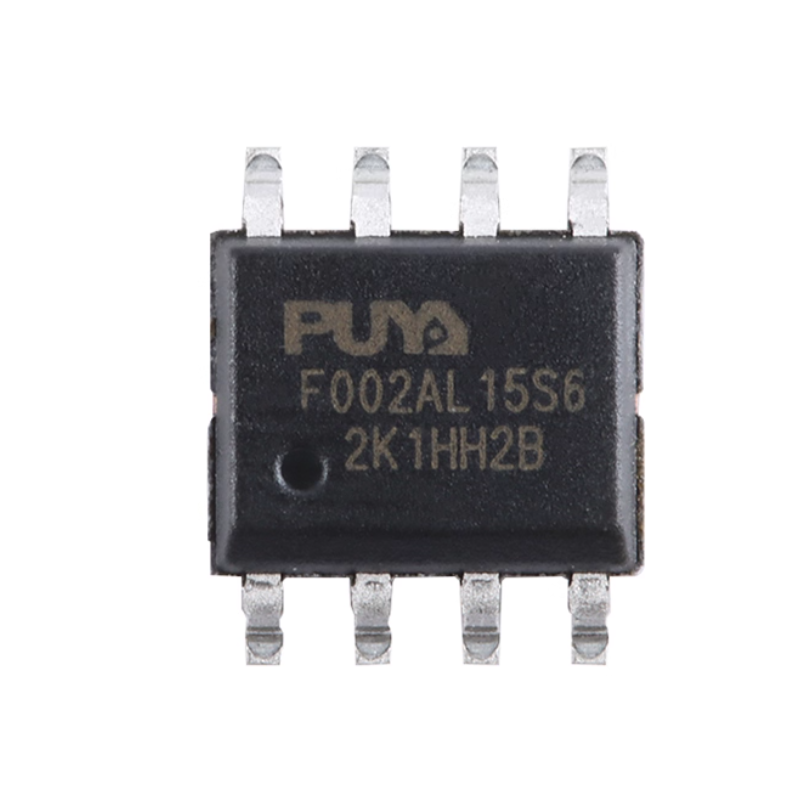

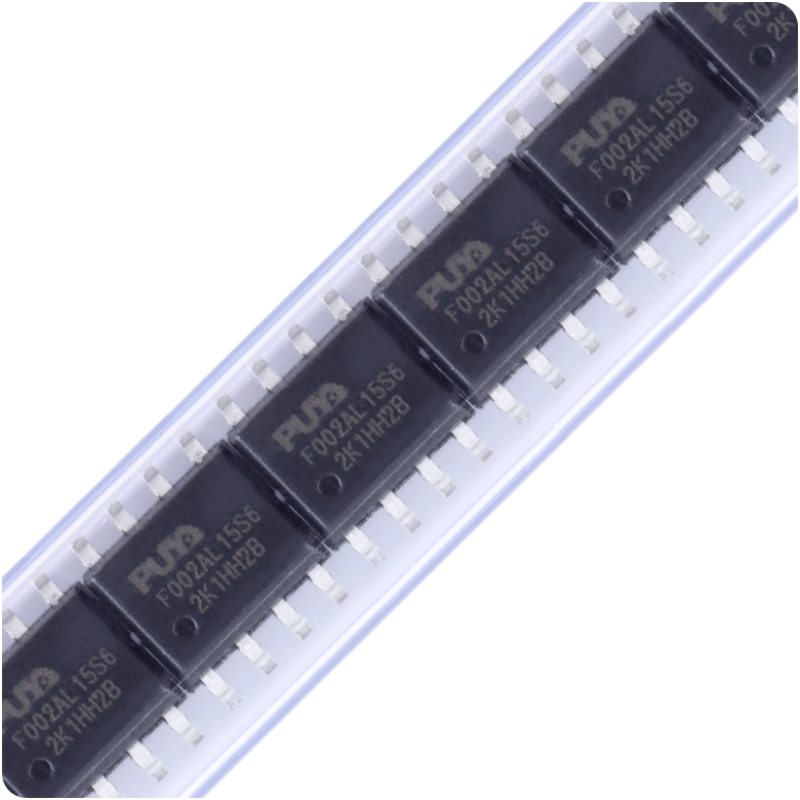

Products photography
