Original PY32F002AF15P6TU TSSOP-20 ARM Cortex-M0 32-Bit Microcontroller -MCU
Original PY32F002AF15P6TU TSSOP-20 ARM Cortex-M0 32-Bit Microcontroller -MCU
Regular price
¥0.60 CNY
Regular price
¥0.00 CNY
Sale price
¥0.60 CNY
Quantity
Couldn't load pickup availability
PY32F002AF15P6TU/TSSOP-20
ARM Cortex-M0 32-bit microcontroller -MCU
Product features
Core
- 32-bit ARM® Cortex®-MO +
- MAX operating frequency: 24MHz
Memory
- MAX 20Kbytes fash memory
- MAX 3Kbytes SRAM
Clock system
- Internal 8/24 MHZ RC oscillator (HSI)
- Internal 32.768KHz RC oscillator (LSI)
- 4 to 24MHz Crystal Oscillator (HSE)
Power management and reset
- Operating voltage : 1.7V to 5.5V
- Low-power modes: Sleep and Stop
- Power-on/power-off Reset (POR/PDR)
- Power Failure Detection Reset (BOR)
General Input/Output (I/O)
- Up to 18 I/OS can all be used as external interrupts
- The driving current is 8mA
- 1 x 12-bit ADC
- Supports up to 9 external input channels
- Input voltage conversion range: 0 to VCC
Timer
- A 16-bit advanced control timer (TIM1)
- A basic timer (TIM16)
- A low-power timer (LPTIM), supporting wake-up from stop mode
- A independent watchdog timer (IWDT)
- A SysTick timer
Communication interface
- A serial peripheral interface (SPI)
- A universal synchronous 1 asynchronous transceiver (USART), supporting automatic baud rate detection
- A I²C interface, supporting standard mode (100kHz), fast mode (400kHz), and 7-bit addressing mode
Hardware CRC-32 module
Two comparators
Unique UID
Serial Single-wire Debugging (SWD)
Operating temperature : -40 to 85℃
Product Description
The PY32F002A series microcontrollers feature a high-performance 32-bit ARM®Cortex®-M0+ core and are MCUS with a wide voltage operating range. Embedded with up to 20Kbytes of fash and 3Kbytes of SRAM memory, with a maximum operating frequency of 24MHz. It includes multiple products of various packaging types. The chip integrates multiple communication peripherals such as I²C, SPI, and USART, one 12-bit ADC, and multiple timers.
The operating temperature range of the PY32F002A series microcontrollers is -40℃ to 85℃, and the operating voltage range is 1.7V to 5.5V. The chip offers sleep and stop low-power operation modes, which can meet the needs of various low-power applications.
Product application
- Controller
- Handheld device
- PC peripherals
- Games and GPS platforms
- Industrial applications, etc.
Product Planning and Features of the PY32F002A series
| Peripheral device | PY32F002AL15S | PY32F002AW15S |
PY32F002AA15M | PY32F002AF15P | PY32F002AW15U |
|
Flash memory (Kbyte) |
20 | 20 | 20 | 20 | 20 |
|
SRAM (Kbyte) |
3 | 3 | 3 | 3 | 3 |
| Universal port | 6 | 14 | 8 | 18 | 15 |
| Number of ADC channels | 4+2 | 6+2 | 5+2 | 8+2 | 10+2 |
| (External + internal) | |||||
| Main frequency | 24MHz | ||||
| Working voltage | 1.7 to 5.5 V | ||||

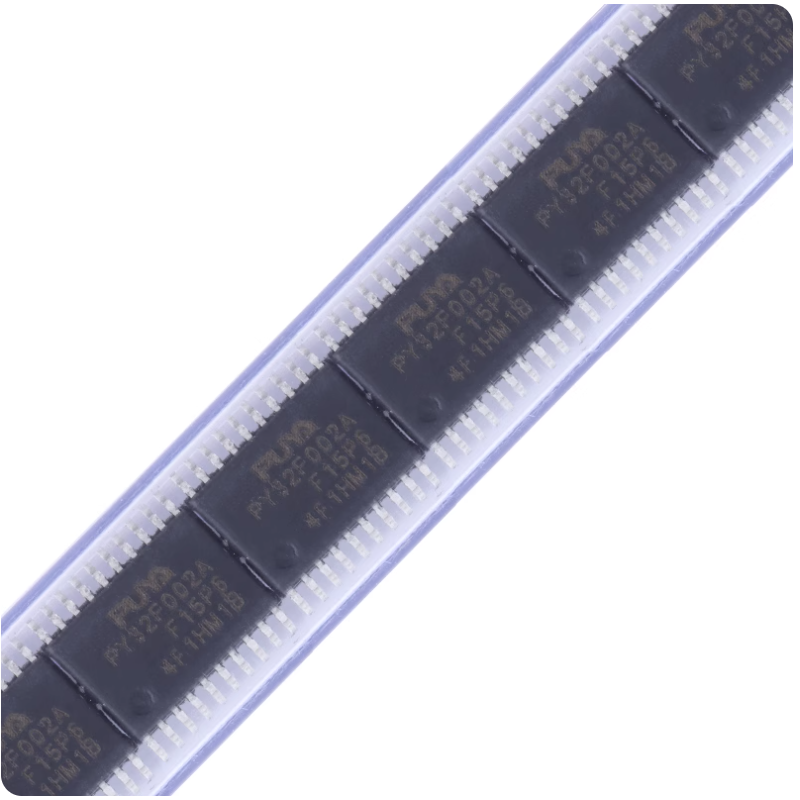

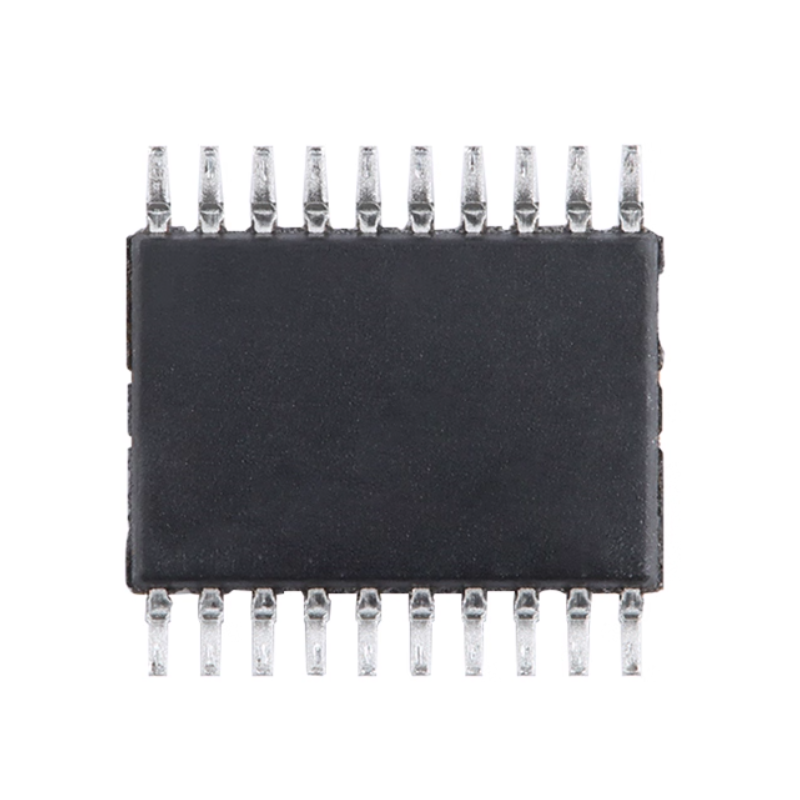

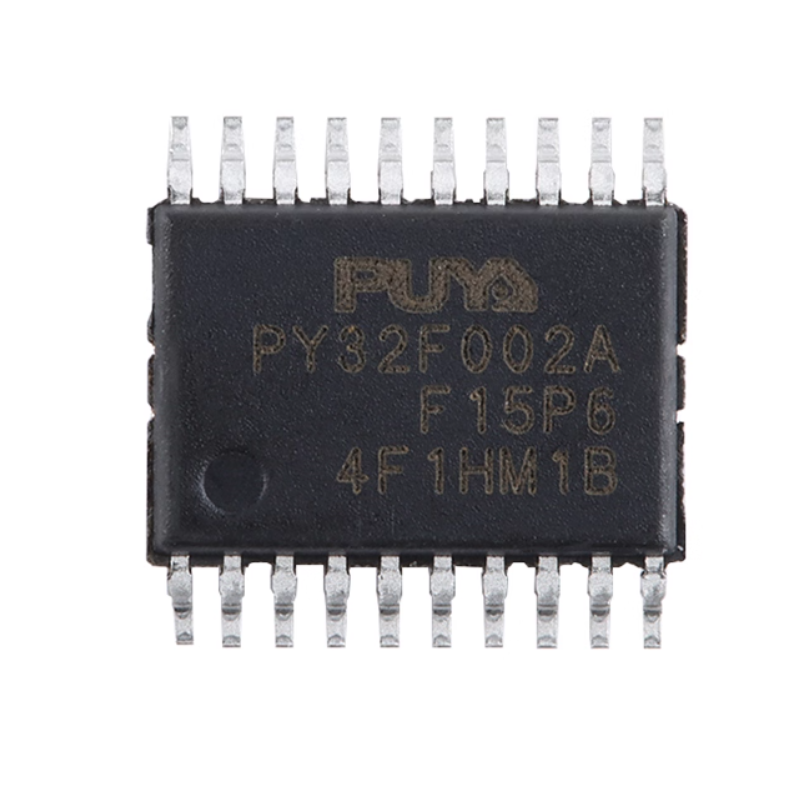

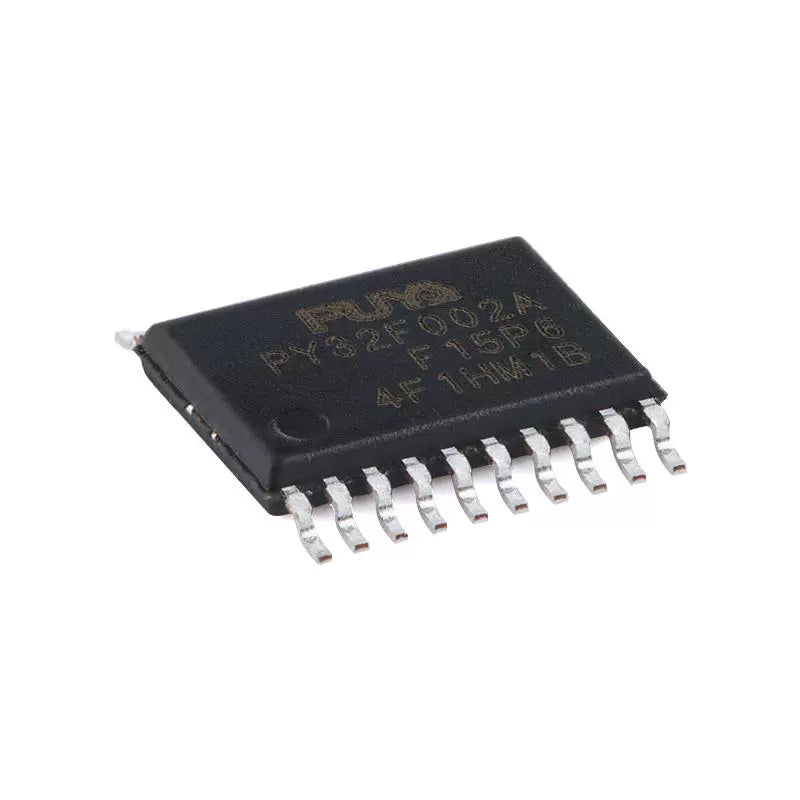

Products photography
