MSPMOG3507SPTR/LQFP-48

Mixed-signal microcontroller with CAN-FD interface

Product Description

       Core

- The working characteristics of an Arm® 32-bit Cortex®-MO+ CPU with a memory protection unit and a frequency up to 80MHz

- Operating temperature range : -40°C to 125°C

- Wide power supply voltage range: 1.62 V to 3.6 V

      Memory

- Flash memory with error correction code (ECC) and up to 128KB

- ECC protected, with hardware parity and up to 32KB of SRAM

     High-performance analog peripheral

- Two 12-bit 4Msps synchronous sampling analog-to-digital converters (ADCs) with a total of up to 17 external channels

         -  The hardware mean calculation can achieve a 14-bit effective resolution at 250ksps

- A 12-bit 1MSPS digital-to-analog converter (DAC) with an integrated output buffer

- Two fog drift and fog cross chopping operational amplifiers (OPAs)

        - Drift of -0.5 μV/℃, with chopping

        - Integrated programmable gain stage up to 32x

- A general-purpose amplifier (GPAMP)

- Three high-speed comparators (COMPs) with 8-bit reference Dacs

        - The propagation delay is 32ns in high-speed mode

        - Supports low-power operation mode (as low as <1μA)

- Programmable analog connections between ADC, OPA, COMP and DAC

- Configurable 1.4V or 2.5V internal shared voltage reference (VREF)

- Integrated temperature sensor

      Optimized low-power mode

- Operating : 96μA/MHz (CoreMark)

- Sleep : 458μA(at 4MHZ)

- Stop : 47μA(at 32kHz)

- Standby : 1.5μA, with RTC and SRAM retention

- Off : 78nA, with IO wake-up capability

      Intelligent digital peripheral

- 7-channel DMA controller

- The math accelerator supports DIV, SQRT, MAC and TRIG calculations

- The seven timers support up to 22 PWM channels

       - A 16-bit universal timer

       - A 16-bit universal timer supports QEI

       - Two 16-bit universal timers support low-power operation in standby mode

       - A 32-bit high-resolution universal timer

       - Two 16-bit advanced timers with dead zone support and up to 12 PWM channels

- Two window-type watchdog timers

- RTC with alarm and calendar mode

       Enhanced monk interface

- Four UART interfaces; One supports LIN, IrDA, DAL1, Smart Card and Manchester, and three support low-power operation in standby mode

- Two I²C interfaces support FM+(1Mbits), SMBus/PMBus and wake-up from stop mode

- Two SPIs, one of which supports up to 32Mbit/s

- A Controller Area Network (CAN) interface supports CAN 2.0A or B as well as CAN-FD

      Clock system

- Internal 4MHz to 32MHz oscillator (SYSOSC) with an accuracy of up to ±1.2%

- Phase-locked loop (PLL) up to 80MHz

- An internal 32kHz low-frequency oscillator (LFOSC) with an accuracy of ±3%

- External 4MHz to 48MHz crystal oscillator (HFXT)

- External 32kHz crystal oscillator (LFXT)

- External clock input

      Data integrity and encryption

- Cyclic Redundancy checker (CRC-16, CRC-32)

- True Random Number Generator (TRNG)

- Use AES encryption with a 128 or 256-bit key

      Flexible I/O functionality

- Up to 60 GPIOs

- Two 5V with a tolerance of IO

- Two high-drive IOs with a drive strength of 20mA

     Development support

- 2-pin Serial line Debugging (SWD)

Product application

        Motor control

        Household appliances

        Uninterruptible power supply and inverter

        Electronic point-of-sale system

        Medical care and health care

        Testing and measurement

        Factory automation and control

        Industrial transportation

        Power grid infrastructure

Pin PT(LQFP)

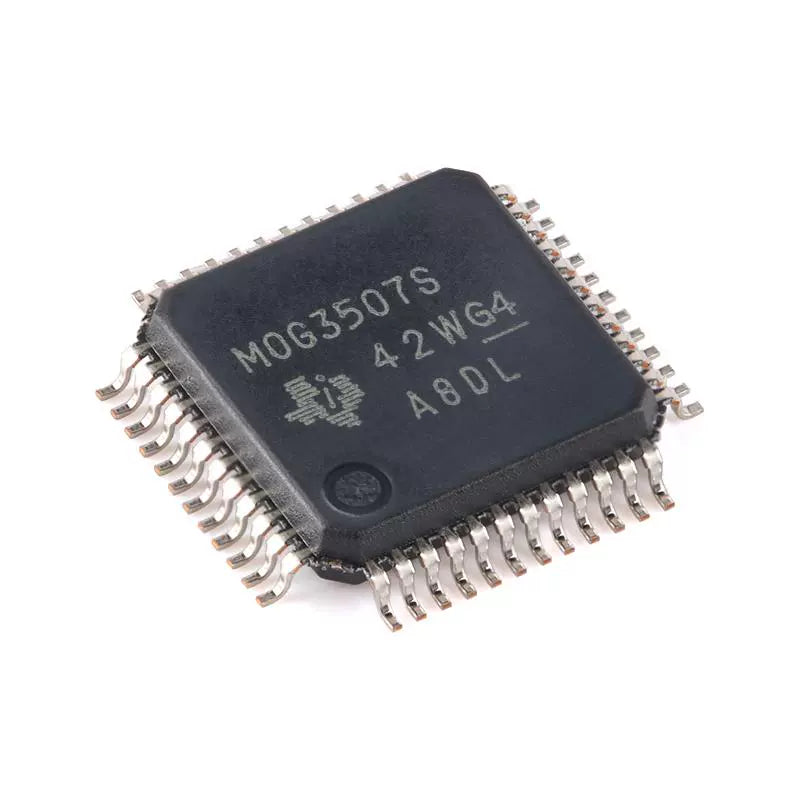

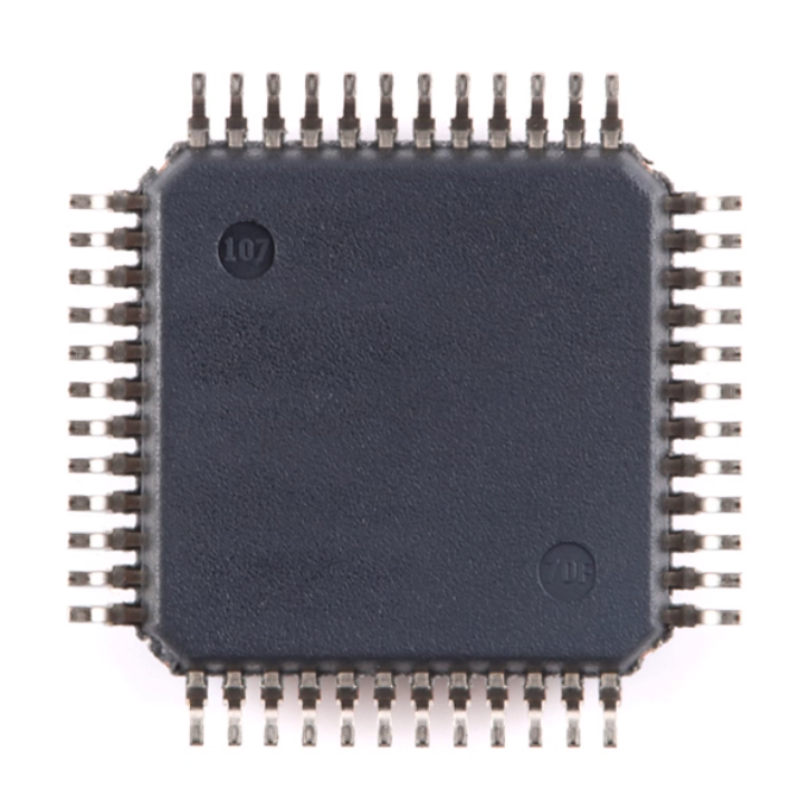

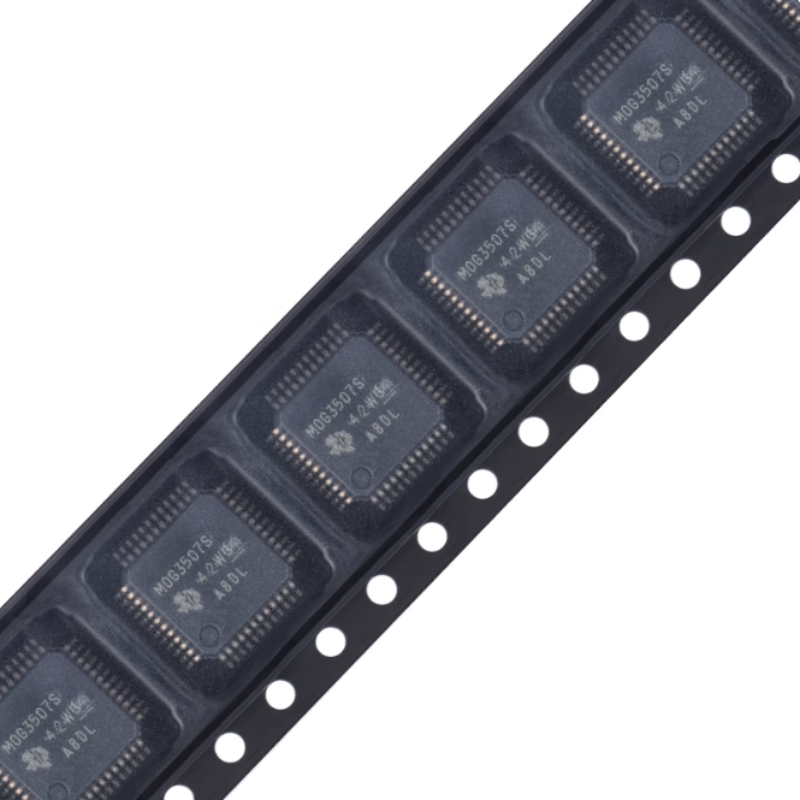

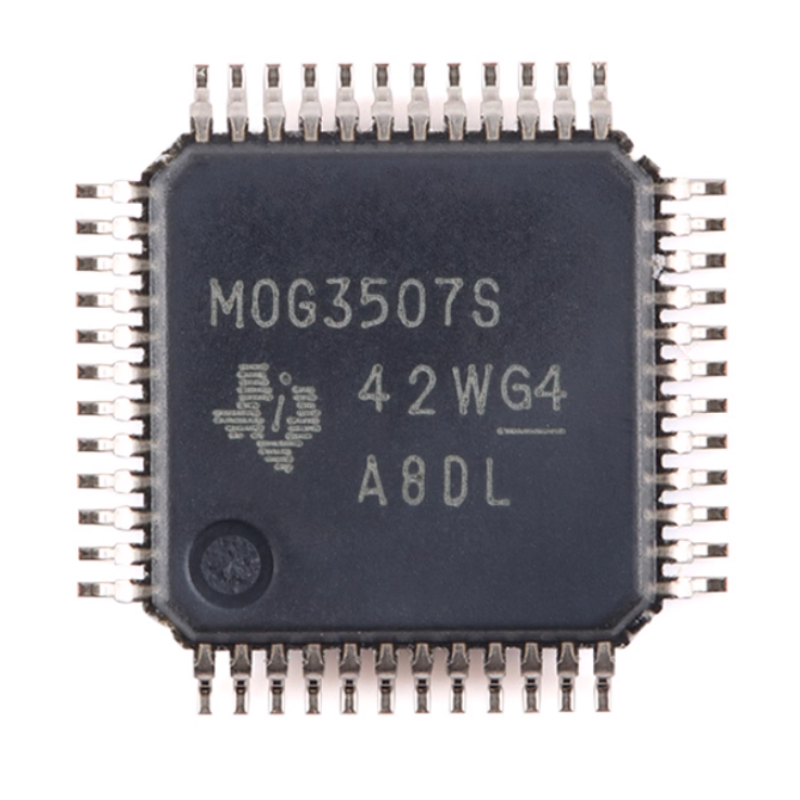

Products photography
