HC32L110C6UA-SFN20TR/QFN-20

ARM Cortex-M0 32-bit microcontroller -MCU

Product features

      Low power consumption performance

- 0.5 μ A@3V deep sleep mode: All clocks are turned off, power-on reset is effective, IO status is maintained, IO interrupts are effective. Power consumption when all registers, RAM and CPU data are saved

- 1.0 μA @3V deep sleep mode + RTC operation

- 6 μA @32.768kHz low-speed operation mode: CPU and peripheral modules run, and programs run from flash

- 20 μA/MHz@3V@16MHz sleep mode: the CPU stops working, peripheral modules run, and the master clock runs

- 120 μA/MHz @3V@16MHz working mode : CPU and peripheral modules run, programs run from Flash

- The ultra-low power consumption wake-up time of -4 us makes mode switching more flexible and efficient, and the system response more agile

      16K/32K byte Flash memory with erasure and write protection

      2K/4K byte RAM memory with parity check to enhance system stability

      Universal I/O pins (16IO/20pin,12IO/16pin)

      Clock, crystal oscillator

- The external high-speed crystal oscillator is 8 to 32 MHz

- External low-speed crystal oscillator 32.768 KHz

- Internal high-speed clock: 4/8/16/22.12/24 MHz

- The internal low-speed clock is 32.8/38.4 KHz

- The hardware supports internal and external clock calibration and monitoring

      Timer/Counter

- 3 general-purpose 16-bit timers/counters

- 3 high-performance 16-bit timers/counters, supporting PWM complementarity and dead zone protection functions

- A programmable 16-bit timer/counter, supporting capture comparison and PWM output

- A 20-bit programmable counting watchdog circuit, with a built-in dedicated ultra-low power RC-OSC providing WDT counting

      Communication interface

- UART0-UART1 standard communication interface

- The LPUART supports ultra-low power communication interfaces that use low-speed clocks

- SPI standard communication interface

- I ²C standard communication interface

      Buzzer frequency generator, supporting complementary output

      Hardware perpetual calendar RTC module

      Hardware CRC-16 module

      A unique 10-byte ID number

      A 12-bit 1Msps sampling high-speed and high-precision SARADC with an integrated operational amplifier can measure weak external signals

      A 2-channel voltage comparator VC integrating a 6-bit DAC and programmable reference input

     Integrated low voltage detector LVD, configurable with 16 levels of comparison, can monitor port voltage and power supply voltage

     Embedded debugging solution, providing a full-featured real-time debugger

     Operating temperature: -40 to 85°C

     Working voltage: 1.8-5.5V

Product Description

       The HC32L110 series is an ultra-low power, Low Pin Count, wide voltage operating range MCU designed to extend the battery life of portable measurement systems. It integrates a 12-bit 1Msps high-precision SARADC and a rich array of communication peripherals such as comparators, multiple Uarts, SPI, and I²C, featuring high integration, high anti-interference, high reliability, and ultra-low power consumption. This product adopts the Cortex-M0+ core and is compatible with the mature Keil & IAR debugging and development software, supporting C language and assembly language, as well as assembly instructions.

Product application

- Sensor applications, Internet of Things applications;

- Intelligent transportation, smart city, smart home;

- Applications of intelligent sensors such as fire alarm detectors, smart door locks, and wireless monitoring systems;

- Various portable devices that have strict requirements for battery power supply and power consumption, etc.

Features of ARM Cortex-M0+

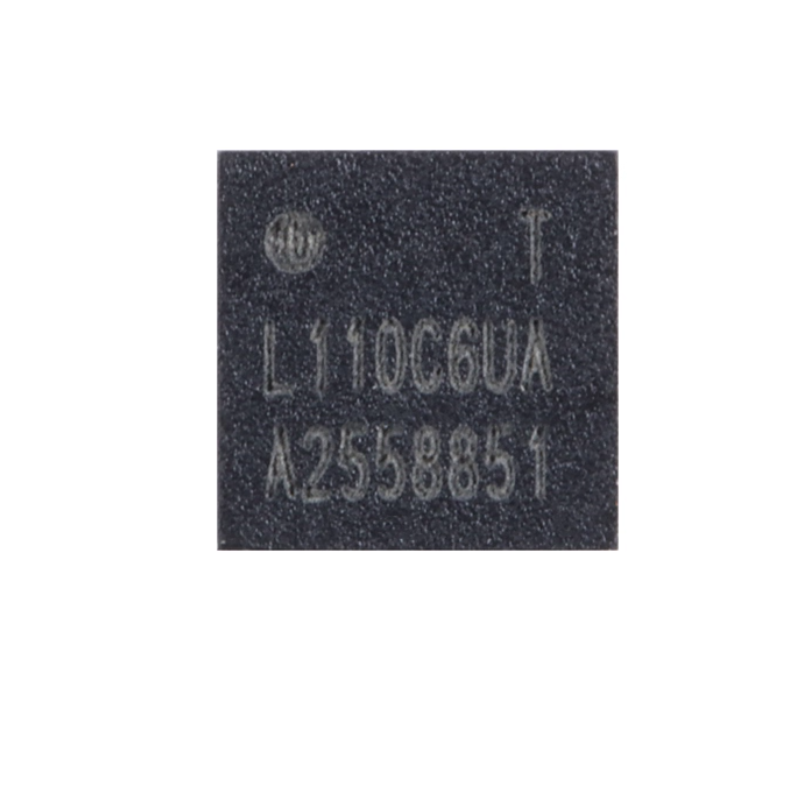

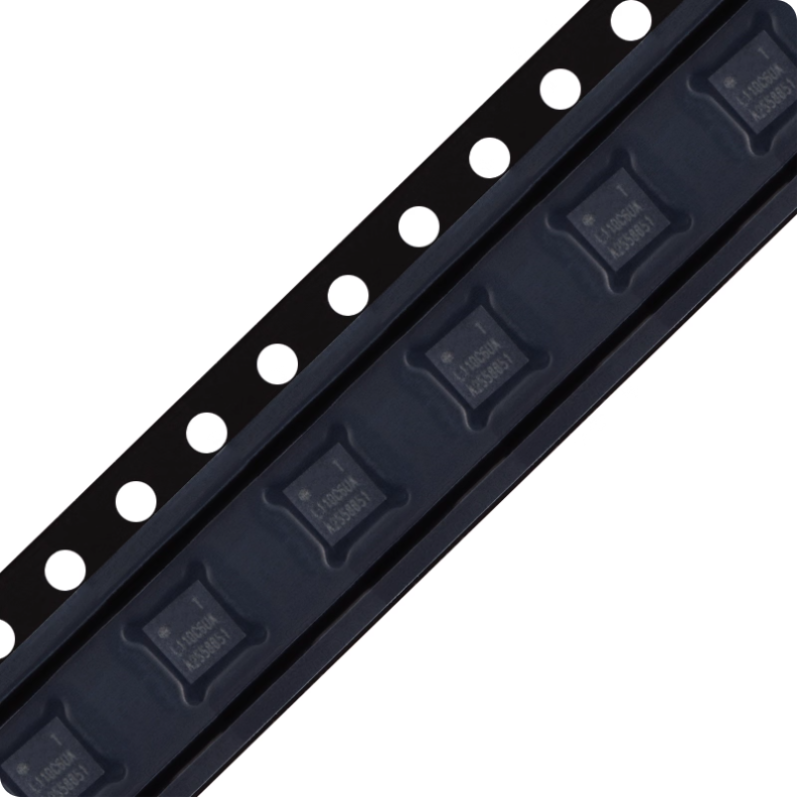

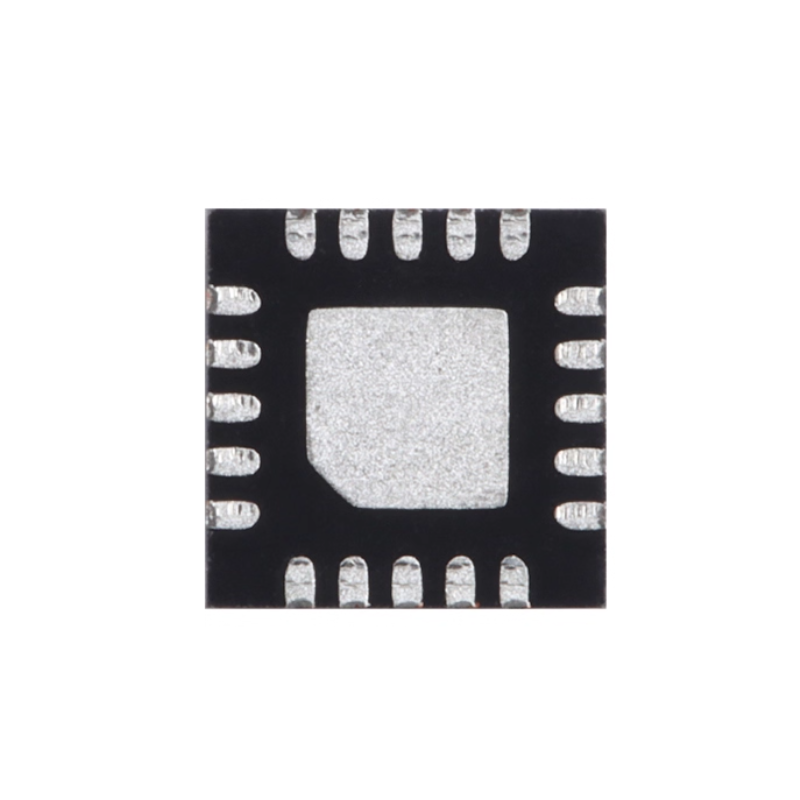

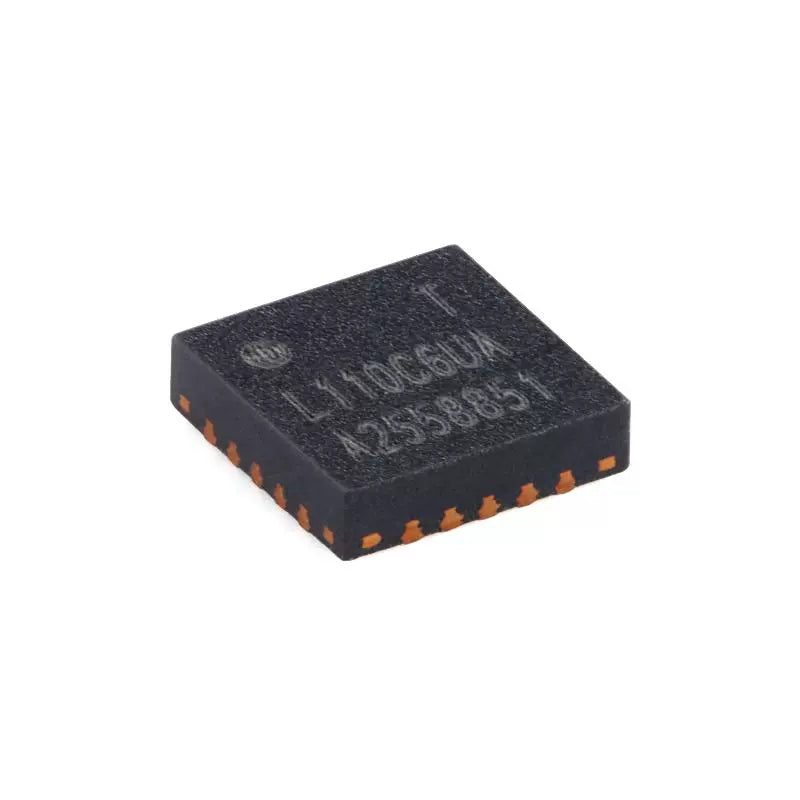

Products photography
