HC32F460KETA-LQFP64/L0FP-64

ARM Cortex-M4 32-bit microcontroller -MCU

Product details

- ARMV7-M architecture 32-bit cortex-M4 CPU, integrated FPU, MPU, DSP supporting SIMD instructions, and CoreSight standard debugging unit. The maximum operating main frequency is 200MHz. The Flash acceleration unit enables 0-wait program execution, achieving computing performance of 250DMIPS or 680Coremarks.

       Built-in memory

- MAX 512 KByte Flash memory, supporting security protection and data encryption.

- MAX 192 KByte SRAM, including 32KByte 200MHZ single-cycle access high-speed RAM and 4 KByte Retention RAM.

       Power supply, clock, reset management

- System power supply (Vcc):1.8-3.6 V.

- 6 independent clock sources: external master clock crystal oscillator (4-25 MHZ), external secondary crystal oscillator (32.768 kHz), internal high-speed RC(16/20 MHZ), internal medium-speed RC(8 MHz), internal low-speed RC(32 kHz), internal WDT-specific RC(10 kHz).

- There are 14 reset sources, including power-on reset (POR), low voltage detection reset (LVDR), and port reset (PDR), each with an independent flag bit.

       Low-power operation

- The peripheral functions can be independently turned off or on.

- Three low-power modes :sleep, Stop, and Powerdown mode.

- In the Run mode and Sleep mode, it supports switching between ultra-high-speed mode, high-speed mode and ultra-low-speed mode.

- Standby Power consumption :Stop mode typ.90uA@25°C, Power down mode as low as 1.8uA@25°C.

- In the -Power down mode, it supports wake-up of 16 ports, supports ultra-low power RTC operation, and retains data with 4KByte SRAM.

- Quick wake-up in standby mode. The fastest wake-up time in Stop mode is 2us, and in Power down mode, it is 20us.

       The peripheral operation support system significantly reduces the CPU processing load

- 8-channel dual-host DMAC.

- USBFS dedicated DMAC.

- Data Computing Unit (DCU).

- Support mutual triggering of peripheral events (AOS).

      High-performance simulation

- Two independent 12-bit 2.5MSPS ADCs.

- 1 programmable gain amplifier (PGA).

- 3 independent voltage comparators (CMP), supporting 2 internal reference voltages.

- 1 on-chip temperature sensor (OTS).

      Timer

- 3 multi-functional 16-bit PWM timers (Timer 6).

- 3 16-bit motor PWM timers (Timer 4).

- 6 16-bit universal timers (Timer A).

- 2 16-bit basic timers (Timer 0).

      MAX83 GPIos

- Single-cycle CPU access, with a maximum output of 100 MHZ.

- max 81 5V-tolerant IO.

      Max: 20 communication interfaces

- 3 I2C ports, supporting the SMBus protocol.

- 4 USArts, supporting the IS07816-3 protocol.

- 4 SPIs

- 4 I2S, built-in audio PLL supports audio-level sampling accuracy.

- 2 SDIO, supporting SD/MMC/eMMC formats.

- 1 QSPI, supporting 200Mbps high-speed access (XIP).

- 1 CAN, supporting the ISO11898-1 standard protocol.

- 1 USB 2.0FS, built-in PHY, supporting Device/Host.

Product Description

            The HC32F460 series is a high-performance MCU based on the ARM®Cortex®-M4 32-bit RISC CPU with a maximum operating frequency of 200MHz. The Cortex-M4 core integrates a floating-point unit (FPU) and a DSP, enabling single-precision floating-point arithmetic operations. It supports all ARM single-precision data processing instructions and data types, as well as a complete DSP instruction set. The kernel integrates an MPU unit and superimposes a dedicated MPU unit for DMAC to ensure the security of system operation.

             The HC32F460 series integrates high-speed on-chip memory, including MAX512KB Flash and MAX192KB SRAM. It integrates a Flash access acceleration unit to enable single-cycle program execution of the CPU on Flash. The polling bus matrix supports multiple bus hosts to access memory and peripherals simultaneously, improving operational performance. The bus host includes CPU, DMA, USB-specific DMA, etc. In addition to the bus matrix, it supports data transfer between peripheral devices, basic arithmetic operations and mutual triggering of events, which can significantly reduce the transaction processing load of the CPU.

             The HC32F460 series integrates a wealth of peripheral functions. It includes 2 independent 12-bit 2.5MSPS ADCs, 1 gain-adjustable PGA, 3 voltage comparators (CMP), and 3 multi-functional 16-bit PWM timers (Timer 6) supporting 6 complementary PWM outputs. The 3 motor PWM timers (Timer 4) support 18 complementary PWM outputs, and the 6 16-bit universal timers (Timer A) support 3 three-phase orthogonal encoding inputs and 48 independent Duty configurable PWM outputs. 11 serial communication interfaces (I2C/UART/SPI),1 QSPI interface,1 CAN,4 I2S supporting audio PLL,2 SDIO,1 USB FS Controller with on-chip FS PHY supporting Device/Host.

              The HC32F460 series supports a wide voltage range (1.8-3.6V), a wide temperature range (-40-105°C), and various low-power modes. In Run mode and Sleep mode, you can switch between ultra-high-speed mode (≤200MHz), high-speed mode (≤168MHz), and ultra-low-speed mode (≤8MHz). Supports fast wake-up in low-power mode, with the fastest wake-up in STOP mode reaching 2μs and in Power Down mode reaching 20μs.

Product application

               The HC32F460 series offers LOFP packages of 48 pins, 64 pins and 100 pins. 48-pin and 60-pin OFN packages; The 100-pin VFBGA package is suitable for high-performance motor frequency conversion control, smart hardware, IoT connection modules and other fields.

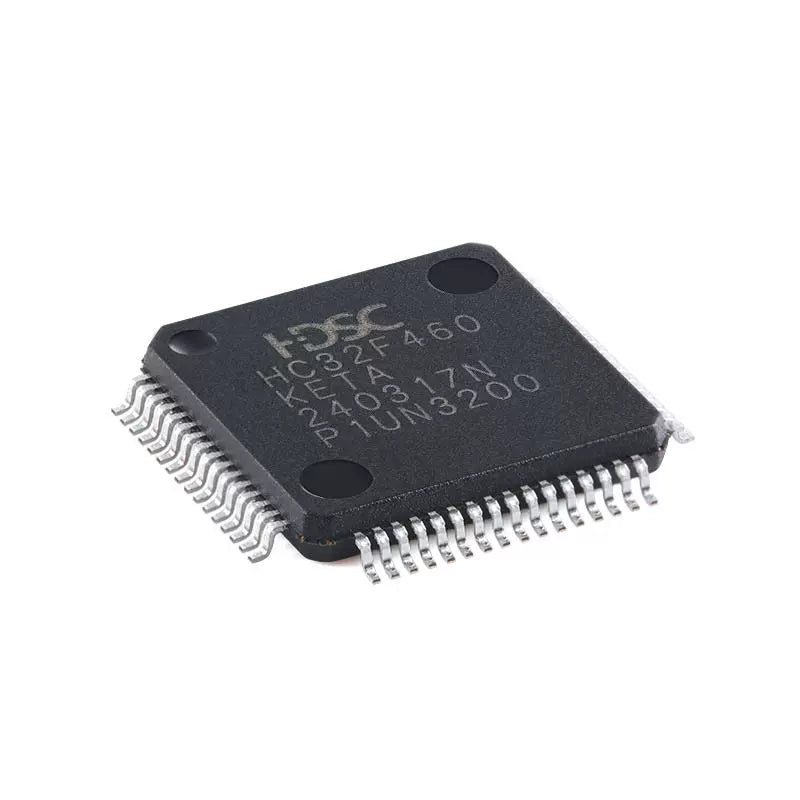

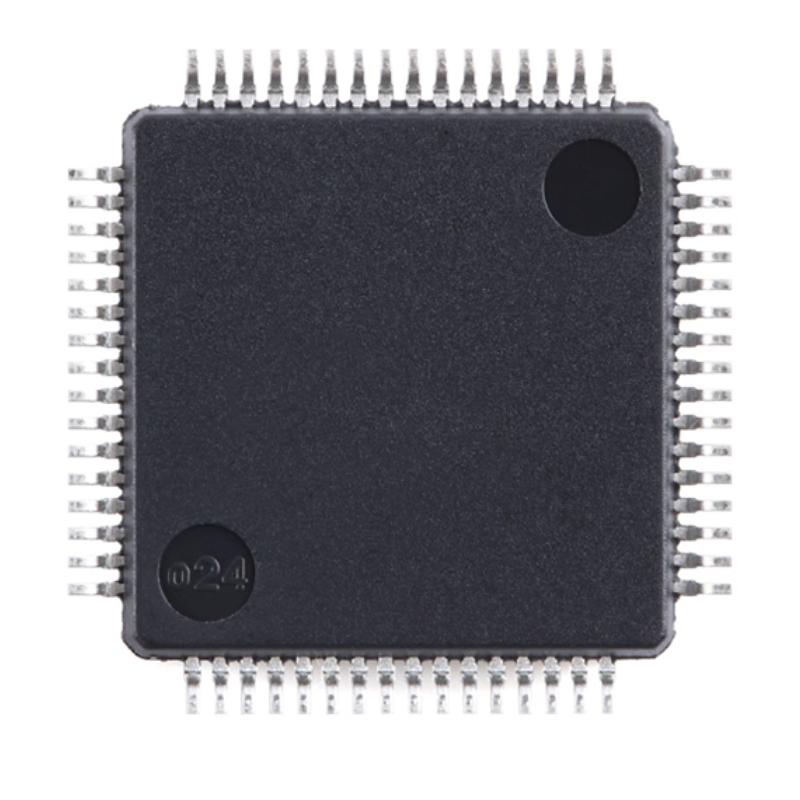

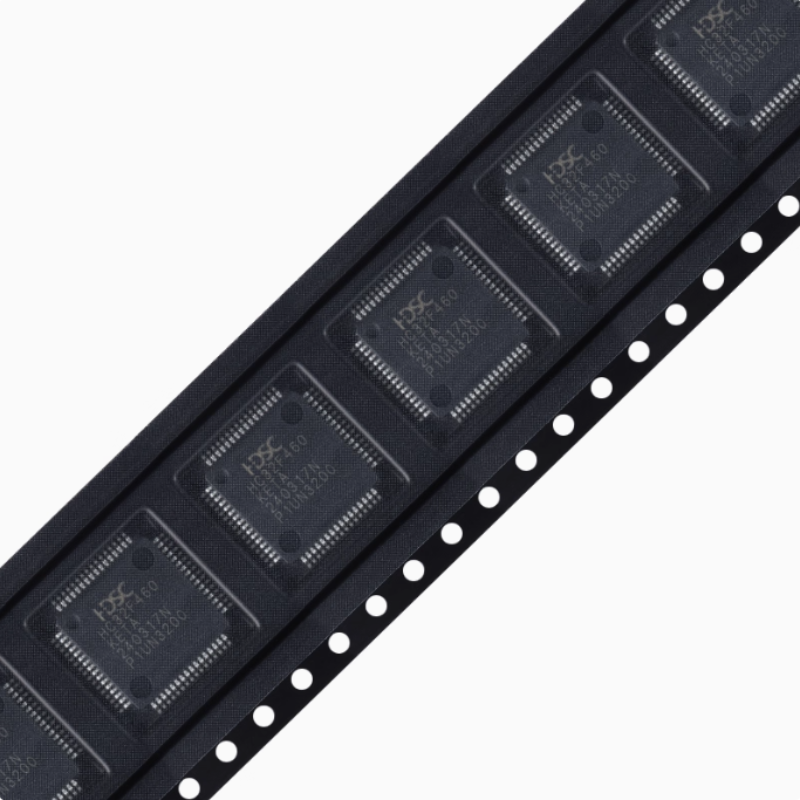

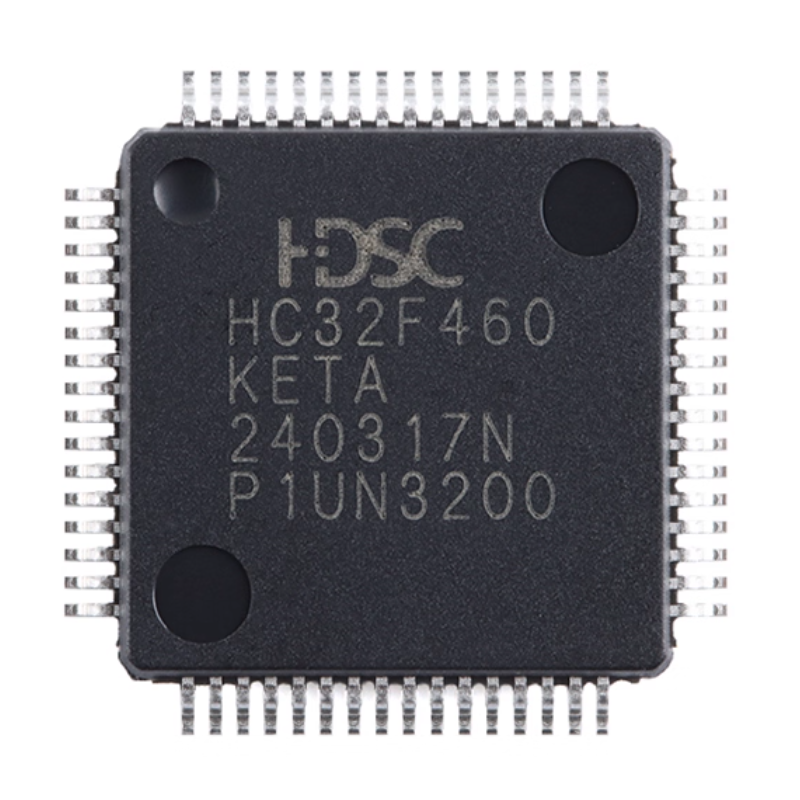

Products photography
