HC32F005C6PA-TSSOP20TR/TSSOP-20

ARM Cortex-M0 32-bit microcontroller -MCU

Product introduction

         The HC32F003 series/HC32F005 series are MCUS with Low Pin Count and wide voltage operating range. It integrates a 12-bit 1Msps high-precision SARADC and a rich set of communication peripherals such as comparators, multiple Uarts, SPI, and 12C, featuring high integration, high anti-interference, and high reliability. This product adopts the Cortex-M0+ core and is compatible with the mature Keil & IAR debugging and development software, supporting C language and assembly language, as well as assembly instructions.

Product parameter

32MHz Cortex-M0+ 32-bit CPU platform

The HC32F003 series /HC32F005 series feature a flexible power management system

- 5 μA@3V deep sleep mode: Power consumption when all clocks are turned off, power-on reset is effective, IO status is maintained, IO interrupts are effective, and all registers, RAM, and CPU data are saved

- 10 μA @32kHz low-speed operation mode: The CPU and peripheral modules are running, and the program is running from Flash

- 30 μA/MHz@3V@16MHz sleep mode: the CPU stops working, peripheral modules run, and the master clock runs

- 150 μAMHz@3V@16MHz working mode :CPU and peripheral modules run, programs run from Flash

- The -4 μs low power wake-up time makes mode switching more flexible and efficient, and the system response more agile

       Flash memory with erasure and write protection function

- The HC32F003 series supports 16K-byte Flash

- The HC32F005 series supports 32K-byte Flash

       RAM memory with parity check enhances the stability of the system

- The HC32F003 series supports 2K bytes of RAM

- The HC32F005 series supports 4K bytes of RAM

Universal I/O pins (16I/O /20pin,1210/16pin)

        Clock, crystal oscillator

- Internal high-speed clock: 4/8/16/22.12/24MHZ

- The internal low-speed clock is 32.8/38.4kHz

- The external high-speed crystal oscillator is 8 to 32MHZ

- The hardware supports internal and external clock calibration and monitoring

        Timer/Counter

- 3 general-purpose 16-bit timers/counters

- 3 high-performance 16-bit timers/counters, supporting PWM complementarity and dead zone protection functions

- A programmable 16-bit timer/counter, supporting capture comparison and PWM output

- A 20-bit programmable counting watchdog circuit, with a built-in dedicated low-power RC-OSC providing WDT counting

        Communication interface

        UARTO-UART1 standard communication interface

- SPI standard communication interface

- 12C standard communication interface

        Buzzer frequency generator, supporting complementary output

        Hardware CRC-16 module

        The ID number is only -10 bytes

        A 12-bit 1Msps sampling high-speed and high-precision SARADC with an integrated operational amplifier can measure weak external signals

        A 2-channel voltage comparator VC integrating a 6-bit DAC and programmable reference input

        Integrated low voltage detector LVD, configurable with 16 levels of comparison, can monitor port voltage and power supply voltage

         Embedded debugging solution, providing full-featured real-time debugging

         Operating temperature :-40 to 85℃/-40 to 105°C

          Working voltage :1.8-5.5V

          Packaging forms :QFN20, QFN24, TSSOP20, SOP20

Supported models

Product application

        Small household appliances, chargers, reclosing switches, remote controls, electronic cigarettes, gas alarms, digital display meters, thermostats, recorders and other industries.

        Intelligent transportation, smart city, smart home.

        Applications of intelligent sensors such as fire alarm detectors, smart door locks, and wireless monitoring systems.

        Motor drive.

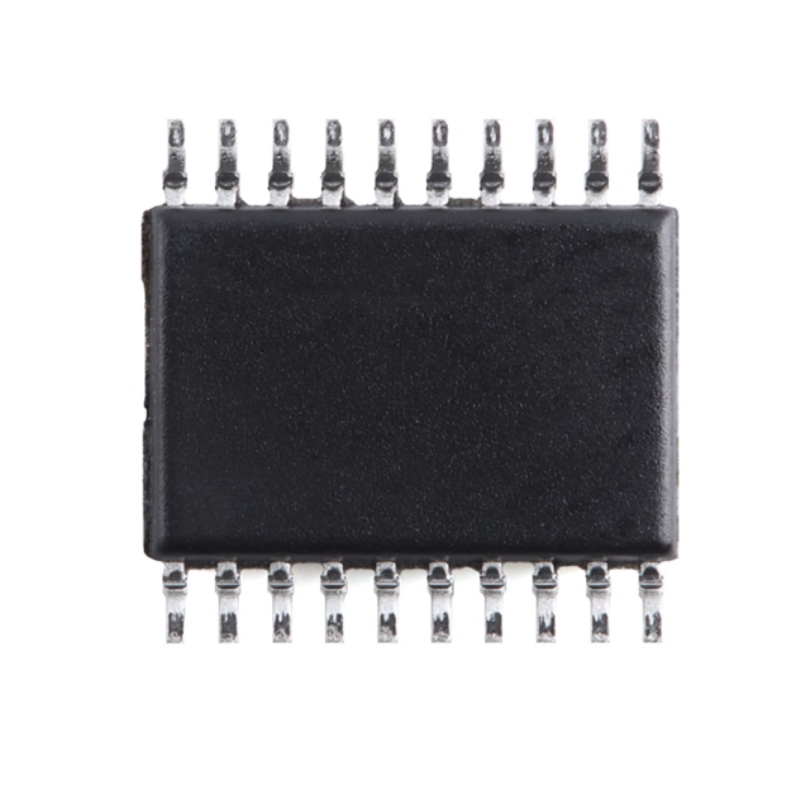

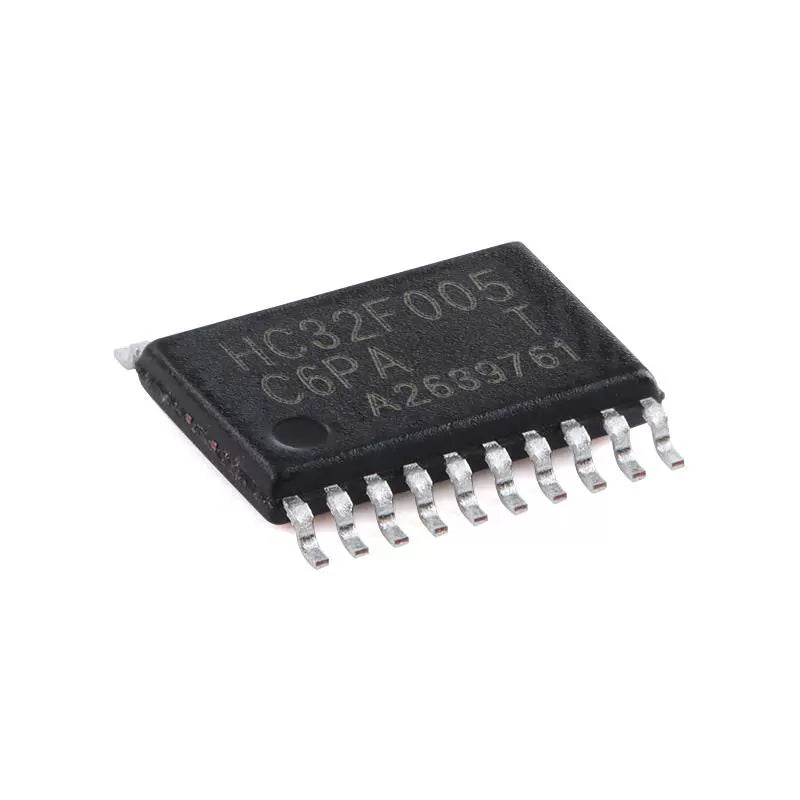

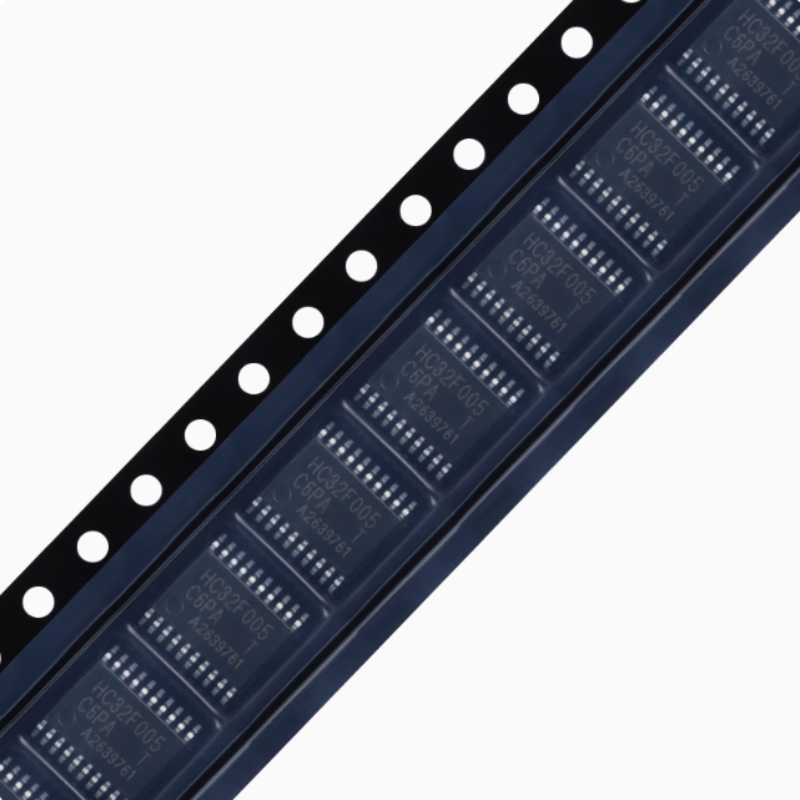

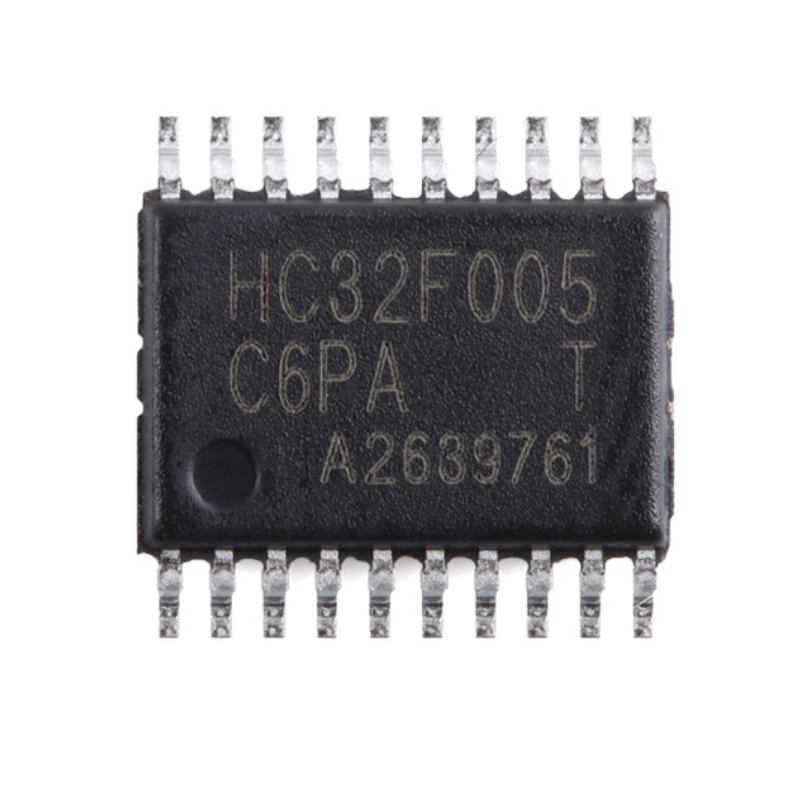

Products photography
