Original Genuine DY-SV17F Voice Playback Module IO Trigger Serial Port Control USB Download Flash

The IO of the voice playback module is triggered

Serial port control USB download flash

Product Overview

        The DY-SV17F is an intelligent voice module independently developed by our company, integrating seven working modes including I0 segmented triggering, UART serial port control, ONE_line single-bus serial port control, and standard MP3. The on-board 5W Class D power amplifier can directly drive 42, 3-5W speakers. Supports MP3.WAV decoding formats, has an on-board 32Mbit(4MByte)flash storage for audio files, and can be connected to a computer via a USB data cable to update audio files.

Product Features

1. Supports MP3 and WAV decoding formats.

2. support the sampling rate (KHz) : 8/11.025/12116/22.05124/32/44.1148

3. 24-bit DAC output, with a dynamic range supporting 90dB and a signal-to-performance ratio supporting 85dB.

4. It is equipped with 32Mbit(4MByte) on-board flash storage and can be connected to a computer via a USB data cable to update audio files.

5. It comes with a built-in 5W Class D power amplifier, which can directly drive 42, 3W to 5W speakers.

6. The UART serial port control voice broadcast function can control functions such as play, pause, song selection, volume increase or decrease, etc

The maximum number of selected tracks is 65,535, with a baud rate of 9,600 BPS.

7. Supports IO trigger playback function, allowing 8 10-port individual triggers for 8 tracks or 8 I0 port combinations to trigger 255 tracks.

8. Supports One line single-bus serial port control, which can control functions such as play, pause, song selection, volume increase or decrease, etc.

9. Supports 3 configurations for up to 7 working modes to choose from.

Mode Operation Instructions

1.  I/O combination Mode 0(Key combination playback

The single-chip microcomputer controls the I/O combination to trigger (effective at low level), release after the specified track is played (IO0-IO7 returns to high level), and stop after the current track is played. If triggered again in the middle of the playback, a new track will be played and the playback will stop when it ends. If it keeps triggering (without releasing the level), it will play in a loop. The playback process is busy and effective.

Note: The title of the piece must be named according to a five-digit number.

2. IO Combination Mode 1(Level Combination Playback)

The single-chip microcomputer controls the IO combination to trigger the specified track (effective at low level), and continuously plays the specified track in a loop. The playback stops when the level is released (1O0-1O7 returns to high level). Release the level in the middle of playback to stop playing immediately. The playback process is busy and effective.

Note: The title of the piece must be named according to a five-digit number.

3. IO Independent Mode 0(Key independent Control)

1O0-1O7 independently controls 8 tracks. 1Otriggers (valid at low level) the designated track and then releases (1O0-1O7 returns to high level). Stops when the current track is played. If triggered again in the middle of the playback, a new track will be played and the playback will stop when it ends. If it keeps triggering (without releasing the level), it will play in a loop. The playback process is busy and effective.

Note: The title of the piece must be named according to a five-digit number.

4. IO Independent Mode 1(Level Independent Control)

IO0-1O7 independently controls 8 tracks. When IOtriggers (low level is effective) the specified track, it continuously loops and plays the specified track. When the level is released (IO0-1O7 returns to high level), the playback stops. Release the level in the middle of playback to stop playing immediately. The playback process is busy and effective.

Note: The title of the piece must be named according to a five-digit number.

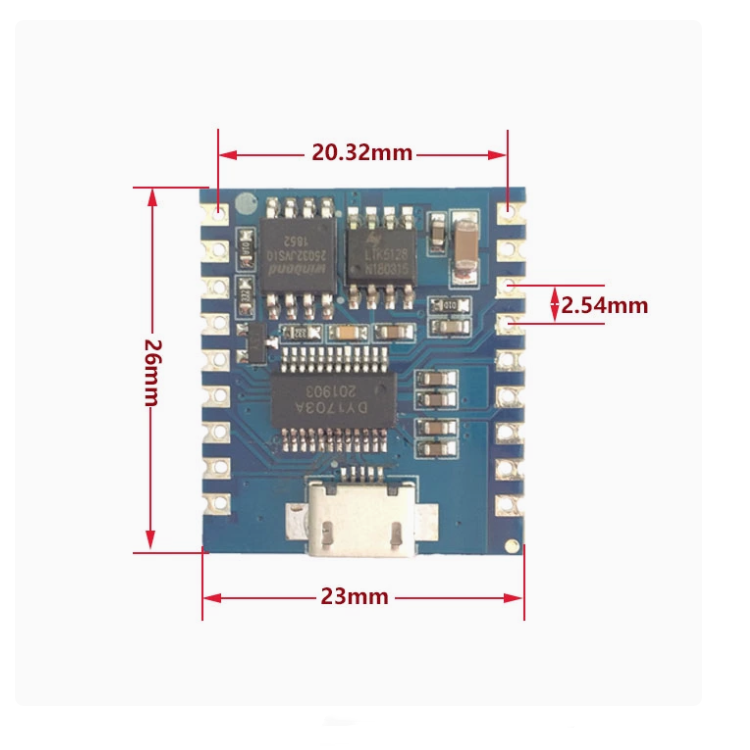

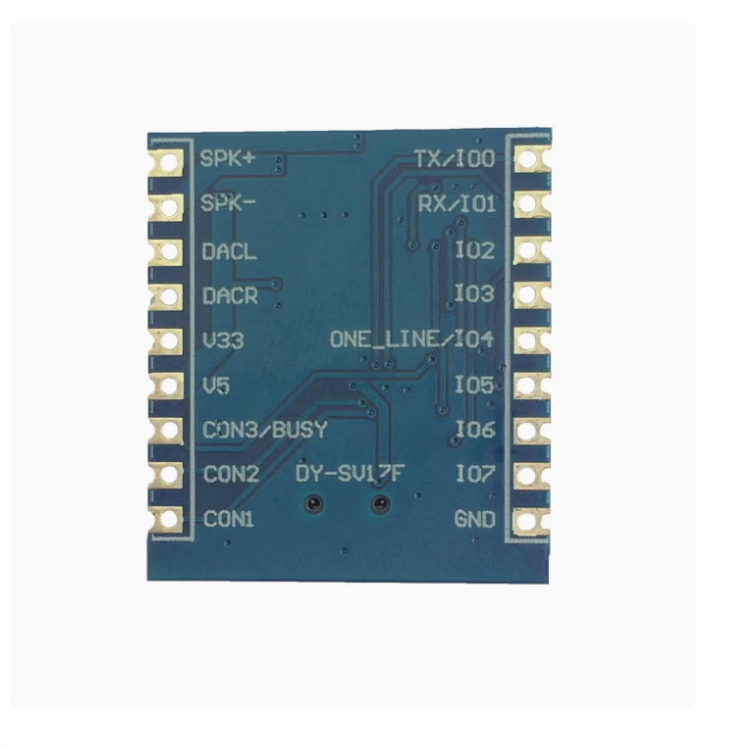

Product size

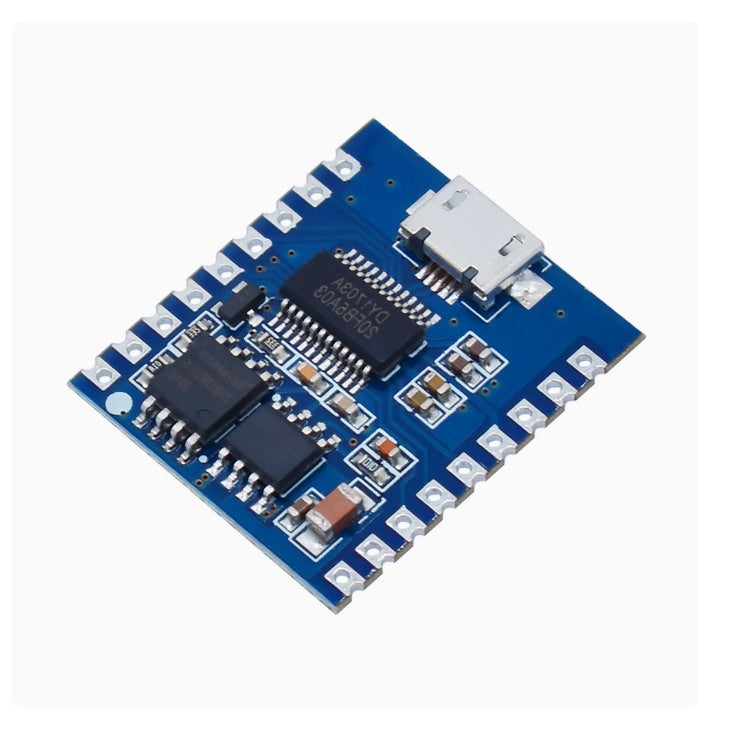

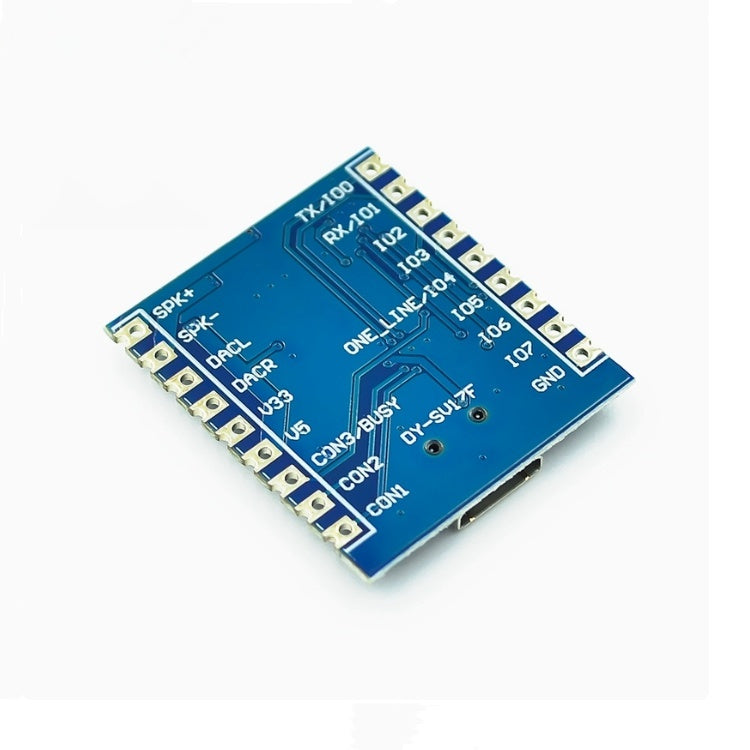

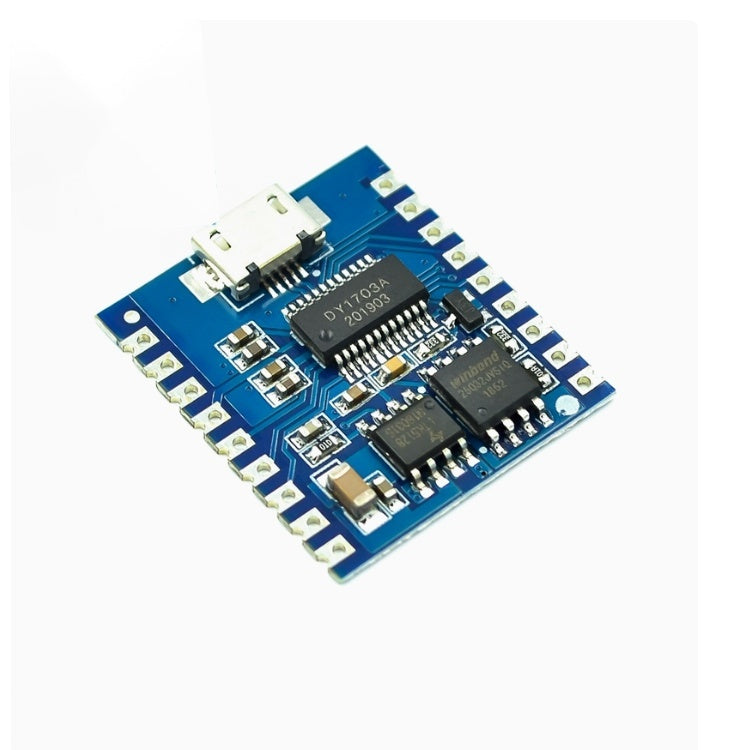

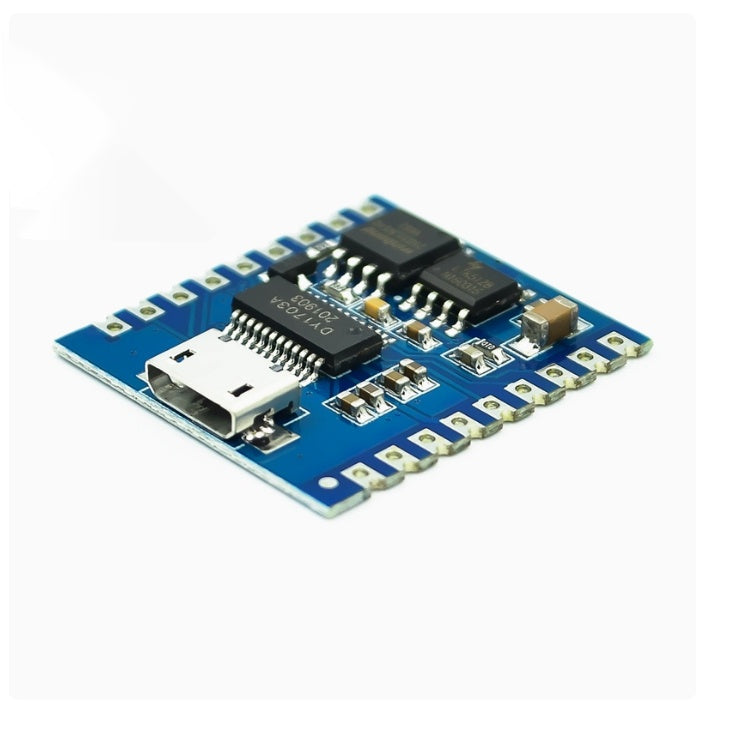

Products photography
