GD32F103RBT6 LQFP-64

Original genuine surface mount 32-bit microcontroller chip

GD32F103xx Main Features

       ARM® Cortex™-M3 core

- Frequency up to 108 MHz

- Single-cycle multiplier and hardware divider

- NVIC support 16 interrupts, each interrupt has 16 priority levels

- Flash memory

       Flash up to 3072 KB

- SRAM up to 96 KB

- 2KB ISP loader ROM

      Low-power management

- Support power saving mode: sleep, deep-sleep and standby mode

- Independent battery supply for RTC and backup register

      High performance analog peripherals

- 3 x 12-bit, 1 μs ADC

- 2 x DAC

      Varity of peripherals interface

- Up to 5 x USART/Irda/LIN/ISO7816

- Up to 3 x SPI (18Mbit/s)

- Up to 2 x I²C (400Kbit/s)

- Up to 2 x CAN 2.0 B (1Mbit/s)

- USB 2.0 FS (12Mbit/s)

      On-chip resources

- 1 x Advanced Timer, 1 x SysTick Timer, up to 10 x GPTM, 2 x WDT

- 2 x DMA supported

- POR,PDR and LVD

- 80% available GPIO

- 32 bit CRC

- Clock: HSI (8MHz) and LSI (40KHz)

- External Memory Control supported: SRAM, PSRAM, NOR-Flash, LCD

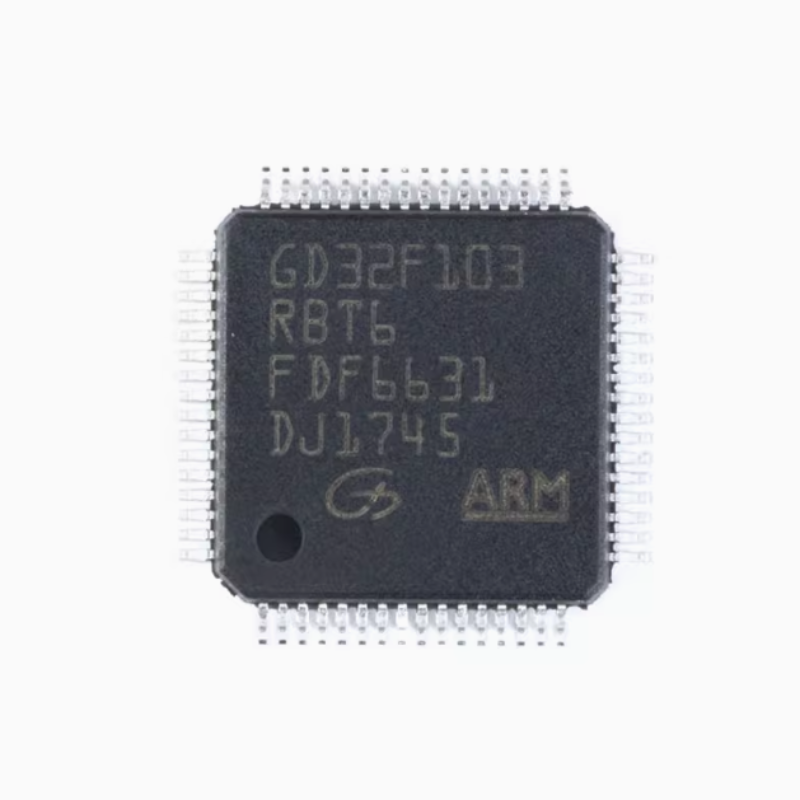

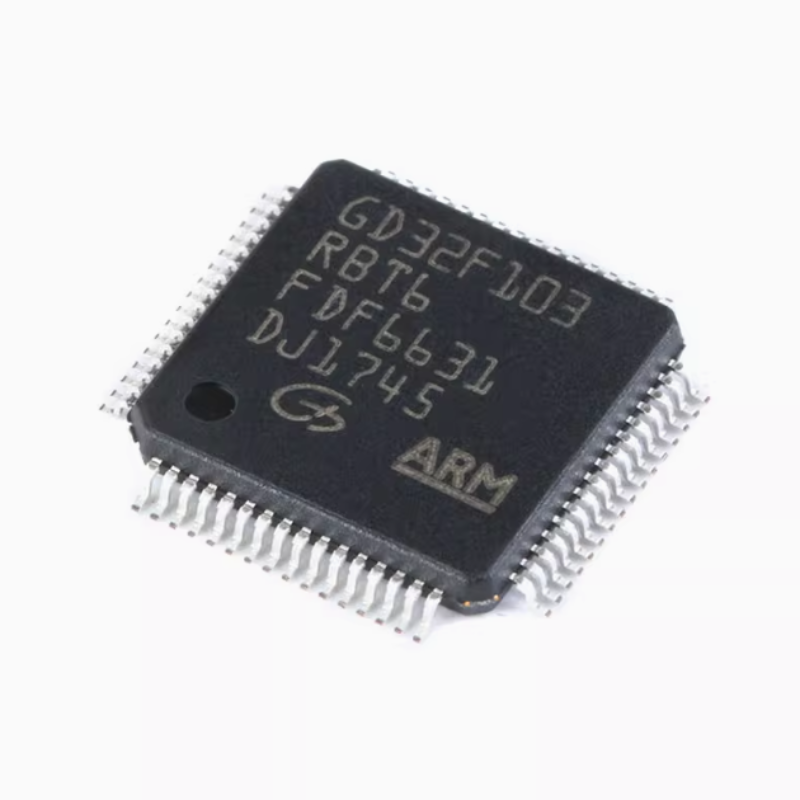

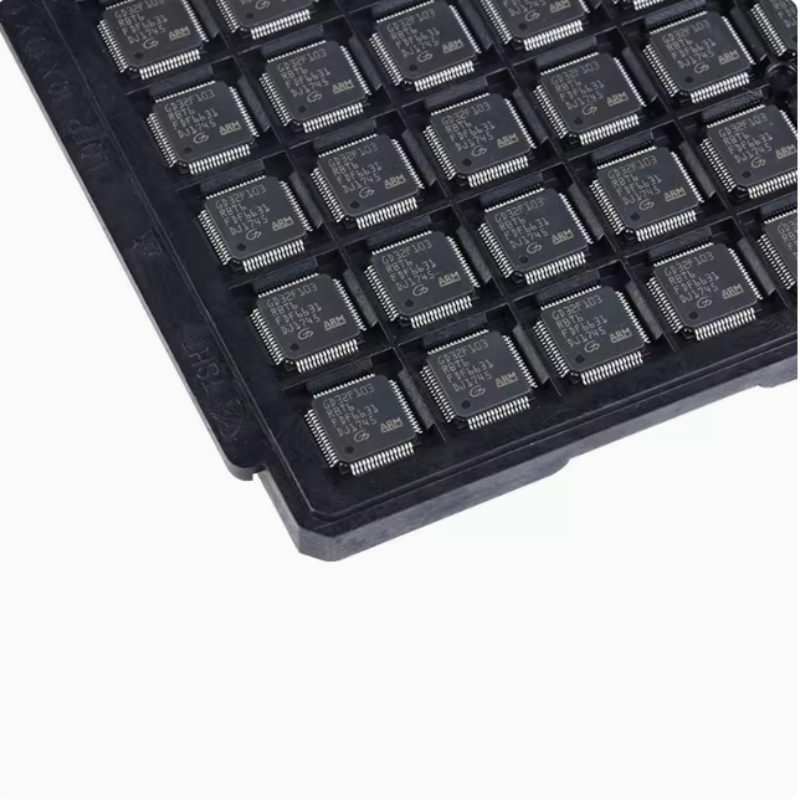

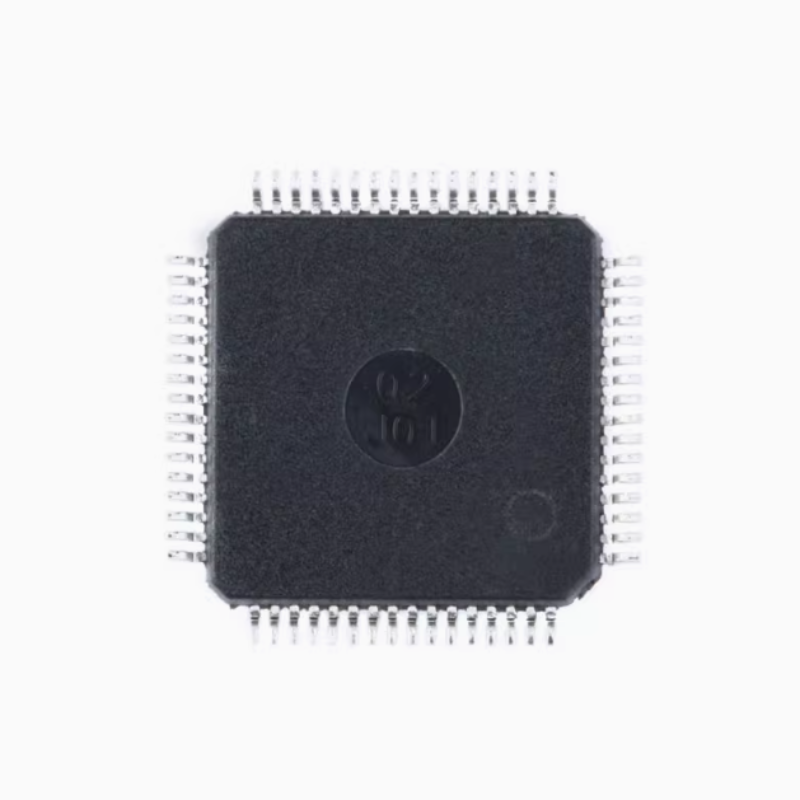

Products photography
