ATMEGA32U4-MU QFN-44

Surface Mount 8-Bit Microcontroller Chip 16MHZ

Device Overview

         The low-power Microchip 8bit AVR RISC-based microcontroller featuring 32kB self-programming flash program memory 2.5KB SRAM, 1KB EEPROM, US8 2.0 full-speed/low speed device, 12-channel 10-bit A/D-converter, and JTAG interface for on-chip-debug. The device achieves up to 16 MIPS throughput at 16 MHz. 2.7-5.5 Volt operation.

           By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, allowing you to optimize power consumption versus processing speed.

Additional Features

USB 2.0 Full-speed/Low Speed Device Module with Interrupt on Transfer Completion.

Complies fully with Universal Serial Bus Specification Rev 2.0.

Supports data transfer rates up to 12Mbit/s and 1.5Mbit/s.

Endpoint 0 for Control Transfers: up to 64-bytes.

Six Programmable Endpoints with IN or Out Directions and with Bulk, interrupt or lsochronous Transfers.

Configurable Endpoints size up to 256 bytes in double bank mode.

Fully independent 832 bytes USB DPRAM for endpoint memory allocation.

Suspend/Resume Interrupts.

CPU Reset possible on UsB Bus Reset detection.

48MHz from PLL for Full-speed Bus Operation.

USB Bus Connection/Disconnection on Microcontroller Request.

Crystal-less operation for Low Speed mode.

Product parameters

Number of UsB Modules: 1, Full Speed

Digital Communication Peripherals: 1-UART,2-SPI, 1-12C

Capture/Compare/PWM Peripherals: 2 Input Capture, 2 CCP, 12PWM

Timers: 2x8-bit, 2x16-bit

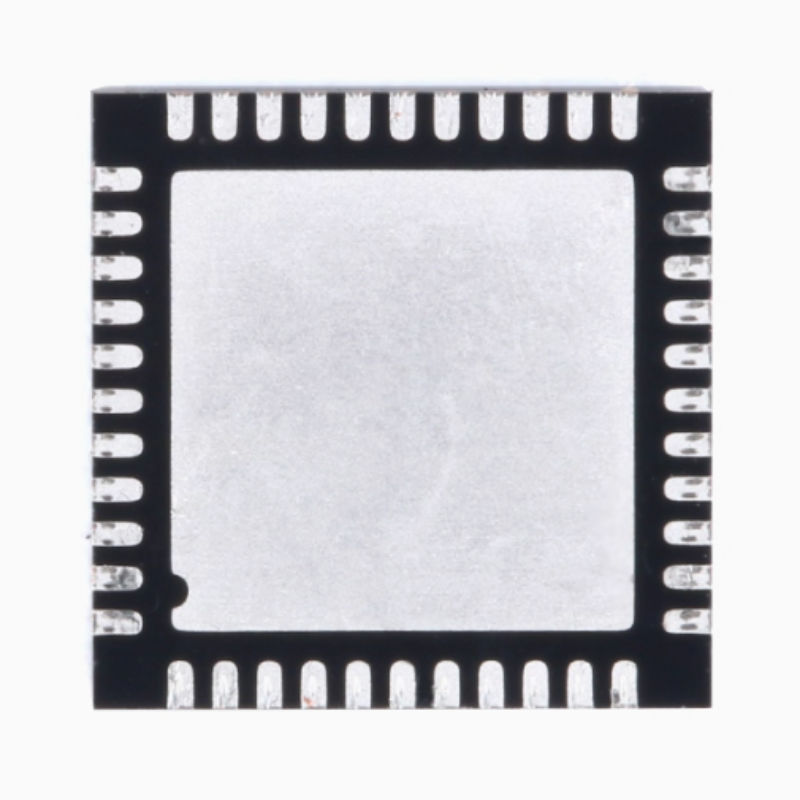

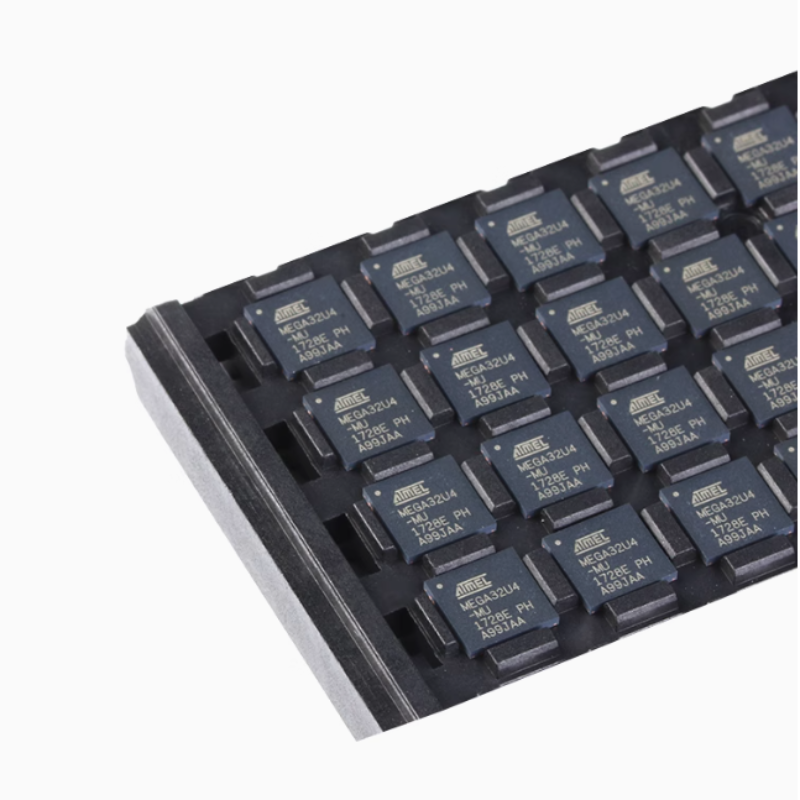

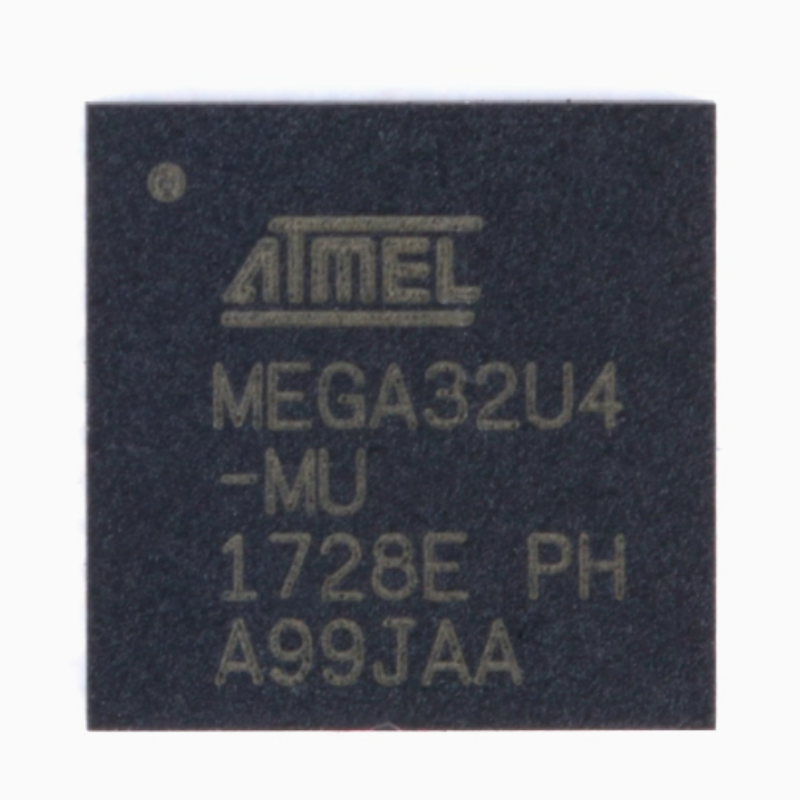

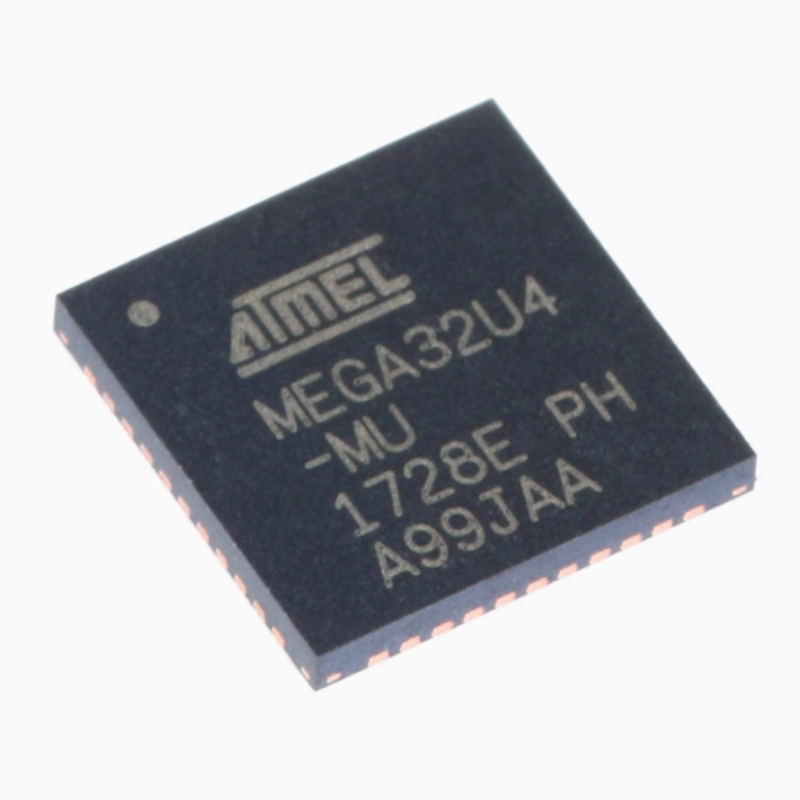

Products photography
