STM32H743VIT6

LQFP-100 ARM Cortex-M7 32-bit Microcontroller -MCU

Product features

32-bit Arm® Cortex®-M7 480MHz MCUs, up to 2MB Flash, up to 1MB RAM, 46 com and analog interfaces.

      Core

- 32-bit Arm® Cortex®-M7 core with double- precision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache, frequency up to 480 MHz, MPU, 1027 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions

      Memories

- Up to 2 Mbytes of Flash memory with read-while-write support

- Up to 1 Mbyte of RAM: 192 Kbytes of TCM RAM (inc. 64 Kbytes of ITCM RAM+128 Kbytes of DTCM RAM for time critical routines), Up to 864 Kbytes ofuser SRAM, and 4 Kbytes of SRAM in Backup domain

- Dual mode Quad-SPI memory interface running up to 133 MHz

- Flexible external memory controller with up to 32-bit data bus: SRAM,PSRAM,SDRAM/LPSDR SDRAM, NOR/NAND Flash memory clocked up to 100 MHz in Synchronous mode

- CRC calculation unit

      Security

- ROP, PC-ROP, active tamper

      General-purpose input/outputs

- Up to 168 I/O ports with interrupt capability

      Reset and power management

- 3 separate power domains which can be independently clock-gated or switched off:

         - D1: high-performance capabilities

         - D2: communication peripherals and timers

         - D3:reset/clock control/power management

      Interconnect matrix

- 3 bus matrices (1 AXI and 2 AHB)

- Bridges (5 x AHB2-APB, 2 x AXI2-AHB)

      4 DMA controllers to unload the CPU

- 1 x high-speed master direct memory access controller (MDMA) with linked list support

- 2 x dual-port DMAs with FIFO

- 1 x basic DMA with request router capabilities

      Up to 35 communication peripherals

- 4 x I²Cs FM+ interfaces (SMBus/PMBus)

- 4 x USARTS/4X UARTS (ISO7816 interface, LIN, lrDA, up to 12.5 Mbits) and 1x LPUART 6 x SPls, 3 with muxed duplex l²S audio class accuracy via intemal audio PLL or external clock, 1x I²S in LP domain (up to 150 MHz)

- 4 x SAls (serial audio interface)

- SPDIFRX interface

- SWPMl single-wire protocol master I/F

- MDlO Slave interface

- 2 x SD/SDIO/MMC interfaces (up to 125 MHz)

- 2 x CAN controllers: 2 with CAN FD, 1 with time-triggered CAN (TT-CAN)

- 2 x USB OTG interfaces (1FS,1HS/FS)crystal less solution with LPM and BCD

- Ethernet MAC interface with DMA controller

- HDMI-CEC

- 8-to 14-bit camera interface (up to 80 MHz)

       11 analog peripherals

- 3x ADCs with 16-bit max, resolution (up to 36 channels, up to 3.6 MSPS)

- 1 x temperature sensor

- 2 x 12-bit D/A converters (1 MHz)

- 2 x ultra-low-power comparators

- 2 x operational amplifiers (7.3 MHz bandwidth)

- 1 x digital filters for sigma delta modulator (DFSDM) with 8 channels/4 filters

      Graphics

- LCD-TFT controller up to XGA resolution

- 1.62 to 3.6 V application supply and I/Os

- POR, PDR, PVD and BOR

- Dedicated USB power embedding a 3.3 V intemal regulator to supply the internal PHYs

- Embedded regulator (LDO) with configurable scalable output to supply the digital circuitry

- Voltage scaling in Run and Stop mode (6 configurable ranges)

- Backup regulator (~0.9 V)

- Voltage reference for analog peripheral

- Low-power modes: Sleep, Stop, Standby and V_BAT  supporting battery charging

 Device summary

Reference	Part number
STM32H742xI/G	STM32H742VI,STM32H742ZI STM32H742II,STM32H742BI. STM32H742XI,STM32H742AI. STM32H742VG.STM32H742ZG STM32H742IG,STM32H742BG. STM32H742XG,STM32H742AG
STM32H743xI/G	STM32H743VI,STM32H743ZI STM32H743II, STM32H743BI, STM32H743XI,STM32H743AI. STM32H743VG,STM32H743ZG STM32H743IG.STM32H743BG. STM32H743XG,STM32H743AG

Product Description

        STM32H742xI/G and STM32H743xI/G devices are based on the high-performance Arm® Cortex®-M7 32-bit RISC core operating at up to 480 MHz.The Cortex®-M7 core features a floating point unit (FPU) which supports Arm® double-precision (lEEE 754 compliant) and single-precision data-processing instructions and data types. STM32H742xI/G and STM32H743xI/G devices support a full set of DSP instructions and a memory protection unit (MPU) to enhance application security.

         STM32H742xI/G and STM32H743xI/G devices incorporate high-speed embedded memories with a dual-bank Flash memory of up to 2 Mbytes, up to 1 Mbyte Of RAM (including 192 Kbytes of TCM RAM, up to 864 Kbytes of user SRAM and 4 Kbytes of backup SRAM), as well as an extensive range of enhanced I/Os and peripherals connected to APB buses, AHB buses, 2x32-bit multi-AHB bus matrix and a multi layer AXI interconnect supporting internal and external memory access.

          All the devices offer three ADCs, two DACs, two ultra-low power comparators, a low-power RTC, a high-resolution timer, 12 general-purpose 16-bit timers, two PWM timers for motor control, five low-power timers, a true random number generator (RNG).The devices support four digital filters for external sigma-delta modulators (DFSDM).They also feature standard and advanced communication interfaces.

Standard peripherals

       Four I²Cs

       Four USARTs, four UARTs and one LPUART

       Six SPls, three I²Ss in Half-duplex mode. To achieve audio class accuracy, the I²s peripherals can be clocked by a dedicated internal audio PLL or by an external clock to allow synchronization.

       Four SAl serial audio interfaces

       One SPDlFRX interface

       One SWPMI (Single Wire Protocol Master Interface)

       Management Data Input/Output (MDIO) slaves

       Two SDMMC interfaces

       A USB OTG full-speed and a USB OTG high-speed interface with full-speed capability (with the ULPI)

       One FDCAN plus one TT-FDCAN interface

       An Ethernet interface

       Chrom-ART Accelerator™

       HDMI-CEC

Advanced peripherals including

       A flexible memory control (FMC) interface

       A Quad-SPl Flash memory interface

       A camera interface for CMOS sensors

       An LCD-TFT display controller (only available on STM32H743xI/G)

       A JPEG hardware compressor/decompressor (only available on STM32H743xI/G)

Product details

     STM32H742xI/G and STM32H743xI/G devices operate in the -40 to +85 °C temperature range from a 1.62 to 3.6 V power supply. The supply voltage can drop down to 1.62 V by using an external power supervisor (see Section 3.5.2: Power supply supervisor) and connecting the PDR ON pin to V_SS.  Otherwise the supply voltage must stay above 1.71 V with the embedded power voltage detector enabled.

      Dedicated supply inputs for USB (OTG-FS and OTG-HS) are available on all packages except LQFP100 to allow a greater power supply choice.

      A comprehensive set of power-saving modes allows the design of low-power applications.

      STM32H742xI/G and STM32H743xI/G devices are offered in 8 packages ranging from 100 pins to 240 pins/balls. The set of included peripherals changes with the device chosen.

These features make STM32H742xI/G and STM32H743xI/G microcontrollers suitable for a wide range of applications:

       Motor drive and application control

       Medical equipment

       Industrial applications: PLC, inverters, circuit breakers

       Printers, and scanners

       Alarm systems, video intercom, and HVAC

       Home audio appliances

       Mobile applications, internet of Things

       Wearable devices: smart watches

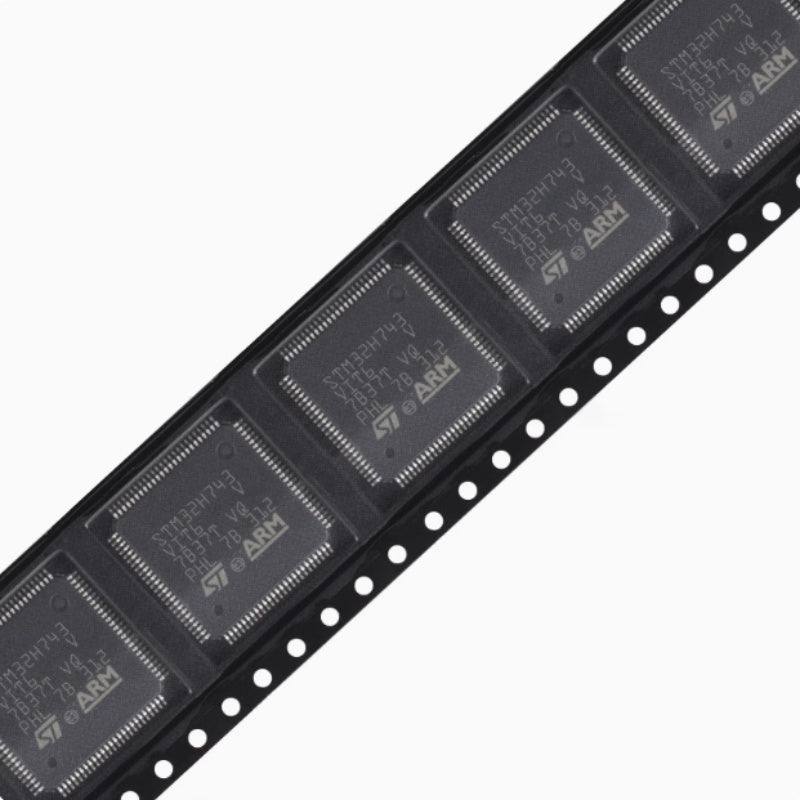

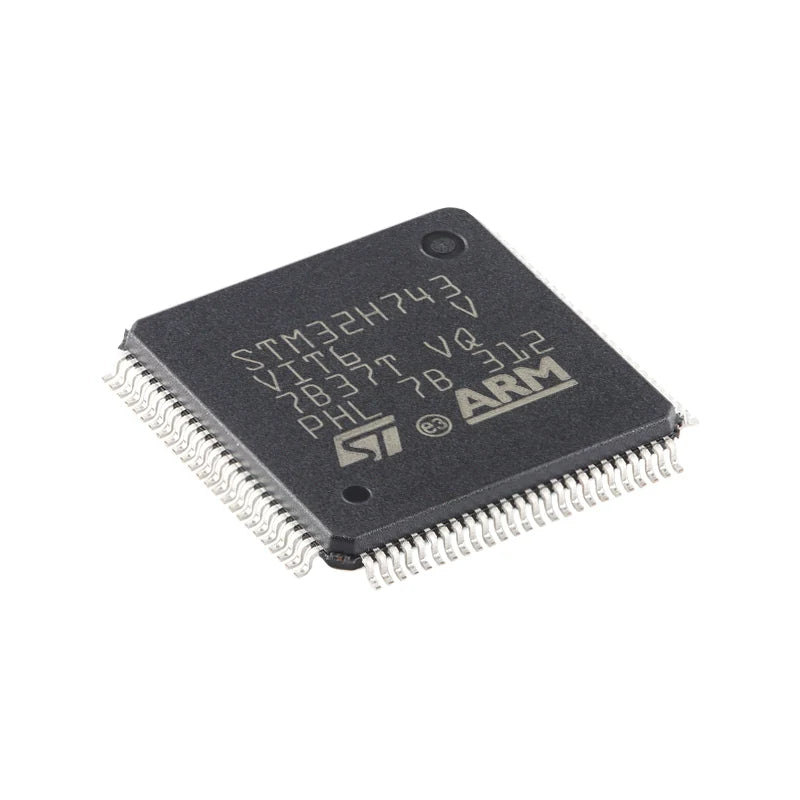

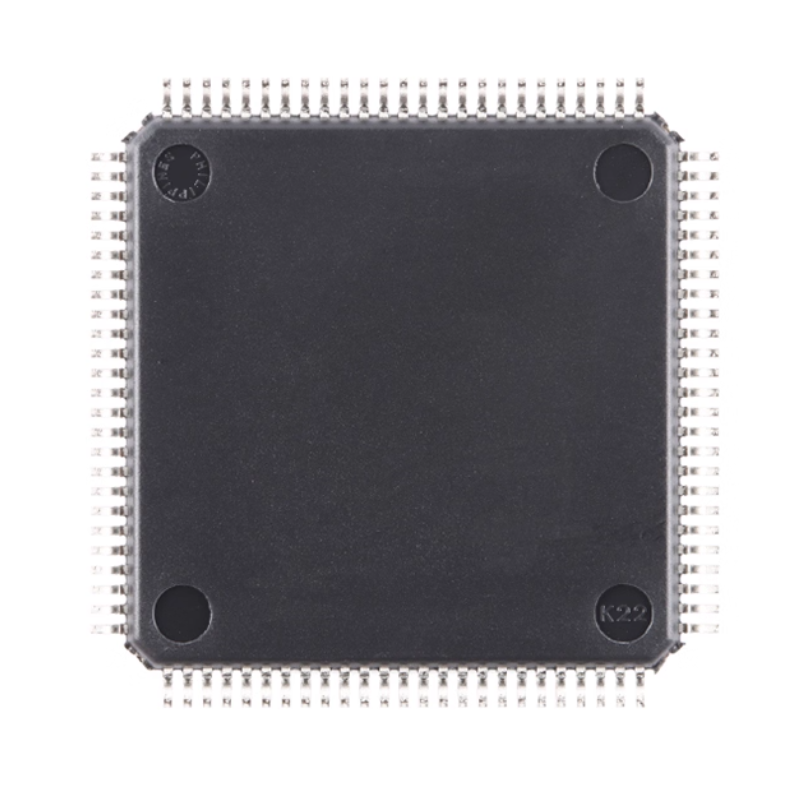

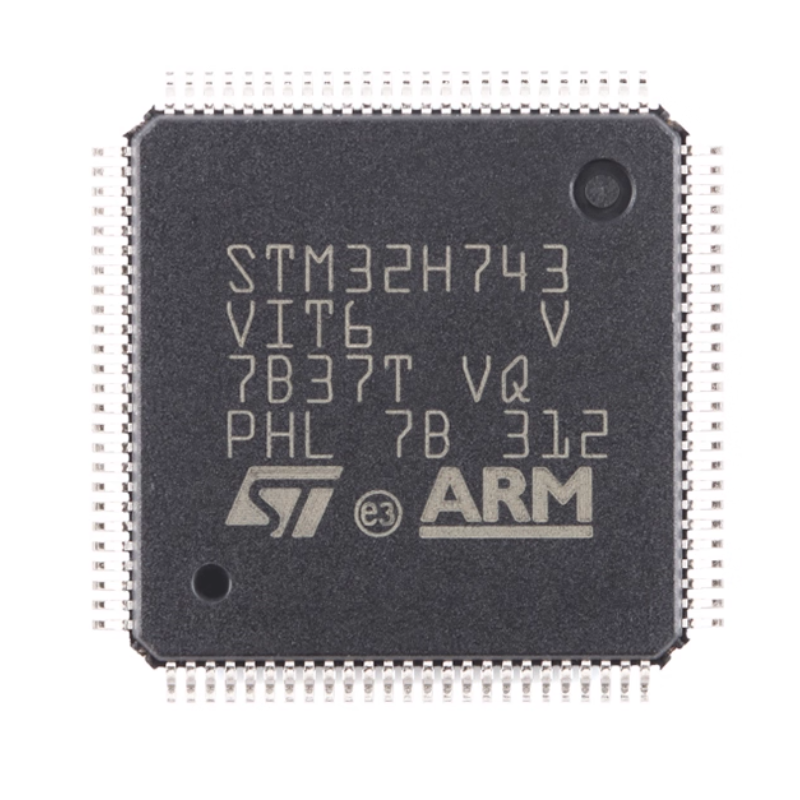

Products photography
