STM32G431RBT6/L0FP-64

ARM Cortex-M4 32-bit microcontroller -MCU

Product features

      Core

- Arm® 32-bit Cortex®-M4 CPU with FPU,Adaptive real-time accelerator(ART Accelerator)allowing 0-wait-state execution from Flash memory, frequency up to 170 MHz with 213 DMIPS, MPU, DSP instructions

      Operating conditions

- V_DD, V_DDA voltage range: 1.71 V to 3.6 V

      Mathematical hardware accelerators

- CORDlC for trigonometric functions acceleration

- FMAC: Filter mathematical accelerator

      Memories

- 128 Kbytes of Flash memory with ECC support, proprietary code readout protection (PCROP), securable memory area, 1 Kbyte OTP

- 22 Kbytes of SRAM, with hardware parity check implemented on the first 16 Kbytes

- Routine booster: 10 Kbytes of SRAM on instruction and data bus, with hardware parity check (CCM SRAM)

      Reset and supply management

- Power-on/power-down reset(POR/PDR/BOR)

- Programmable voltage detector (PVD)

- Low-power modes: sleep, stop, standby and shutdown

- VBAT supply for RTC and backup registers

      Clock management

- 4 to 48 MHz crystal oscillator

- 32 kHz oscillator with calibration

- Internal 16 MHz RC with PLL option (± 1%)

- internal 32 kHz RC oscillator (± 5%)

      Up to 86 fast I/Os

- All mappable on external interrupt vectors

- Several I/Os with 5V tolerant capability

      Calendar RTC with alarm, periodic wakeup from stop/standby

      Communication interfaces

- 1 x FDCAN controller supporting flexible data rate

- 3 x I²C Fast mode plus (1 Mbit/s) with 20 mA current sink, SMBus/PMBus, wakeup from stop

- 4 x USART/UARTS (ISO 7816 interface, LIN, IrDA, modem control)

- 1 x LPUART

- 3x SPis, 4 to 16 programmable bit frames 2 x with multiplexed half duplex I²s interface

      Interconnect matrix

      12-channel DMA controller

      2 x ADCs 0.25 μs(up to 23 channels).Resolution up to 16-bit with hardware oversampling,0 to 3.6 V conversion range

      4 x 12-bit DAC channels

- 2 x buffered external channels 1 MSPS

- 2 x unbuffered internal channels 15 MSPS

      4 x ultra-fast rail-to-rail analog comparators

      3 x operational amplifiers that can be used in PGA mode, all terminals accessible

      Internal voltage reference buffer(VREFBUF) supporting three output voltages (2.048 V, 2.5 V, 2.95 V)

      14 timers

- 1 x 32-bit timer and 2 x 16-bit timers with up to four IC/OC/PWM or pulse counter and quadrature (incremental) encoder input

- 2 x 16-bit 8-channel advanced motor control timers, with up to 8 x PWM channels, dead time generation and emergency stop

- 1 x 16-bit timer with 2 x IC/OCs, one OCN/PWM, dead time generation and emergency stop

-  2 x 16-bit timers with IC/OC/OCN/PWM. dead time generation and emergency stop

- 2 x watchdog timers (independent, window)

- 1 x SysTick timer: 24-bit downcounter

- 2 x 16-bit basic timers

- 1 x low-power timer

- 1 x SAl (serial audio interface)

- USB 2.0 full-speed interface with LPM and BCD support

- IRTIM (infrared interface)

- USB Type-C™/USB power delivery controller (UCPD)

      True random number generator (RNG)

      CRC calculation unit, 96-bit unique ID

      Development support: serial wire debug (SWD), JTAG, Embedded trace macrocell™

 Device summary

Reference	Part number
STM32G431x6	STM32G431C6,STM32G431K6,STM32G431R6,STM32G431V6, STM32G431M6
STM32G431x8	STM32G431C8,STM32G431K8,STM32G431R8,STM32G431V8,STM32G431M8
STM32G431xB	STM32G431CB,STM32G431KB,STM32G431RB, STM32G431VB, STM32G431MB

Product Description

     The STM32G431x6/x8/xB devices are based on the high-performance Arm® Cortex®-M4 32-bit RISC core. They operate at a frequency of up to 170 MHz.

     The Cortex-M4 core features a single-precision floating-point unit (FPU), which supports all the Arm single-precision data-processing instructions and all the data types. It also implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) which enhances the application's security.

     These devices embed high-speed memories (128 Kbytes of Flash memory, and 32 Kbytes of SRAM), an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

    The devices also embed several protection mechanisms for embedded Flash memory and SRAM: readout protection, write protection, securable memory area and proprietary code readout protection.

    The devices embed peripherals allowing mathematical/arithmetic function acceleration (CORDIC for trigonometric functions and FMAC unit for filter functions).

    They offer two fast 12-bit ADCs (5 Msps), four comparators, three operational amplifiers. four DAC channels (2 external and 2 interal), an intermnal voltage reference buffer, a low-power RTC, one general-purpose 32-bit timers, two 16-bit PWM timers dedicated to motorcontrol, seven general-purpose 16-bit timers, and one 16-bit low-power timer.

They also feature standard and advanced communication interfaces such as:

       Three I²Cs

       Three SPIs multiplexed with two half duplex I²Ss

       Three USARTs, one UART and one low-power UART

       One FDCAN

       One SAI

       USB device

       UCPD

     The devices operate in the -40 to +85 ℃ (+105 ℃ junction), -40 to +105 ℃ (+125 °C junction) and -40 to +125 ℃ (+130 ℃ junction) temperature ranges from a 1.71 to 3.6 V power supply.  A comprehensive set of power-saving modes allows the design of low-power applications.

    Some independent power supplies are supported including an analog independent supply input for ADC, DAC, OPAMPs and comparators.  A V_BAT  input allows backup of the RTC and the registers.

    The STM32G431x6/x8/xB family offers 9 packages from 32-pin to 100-pin.

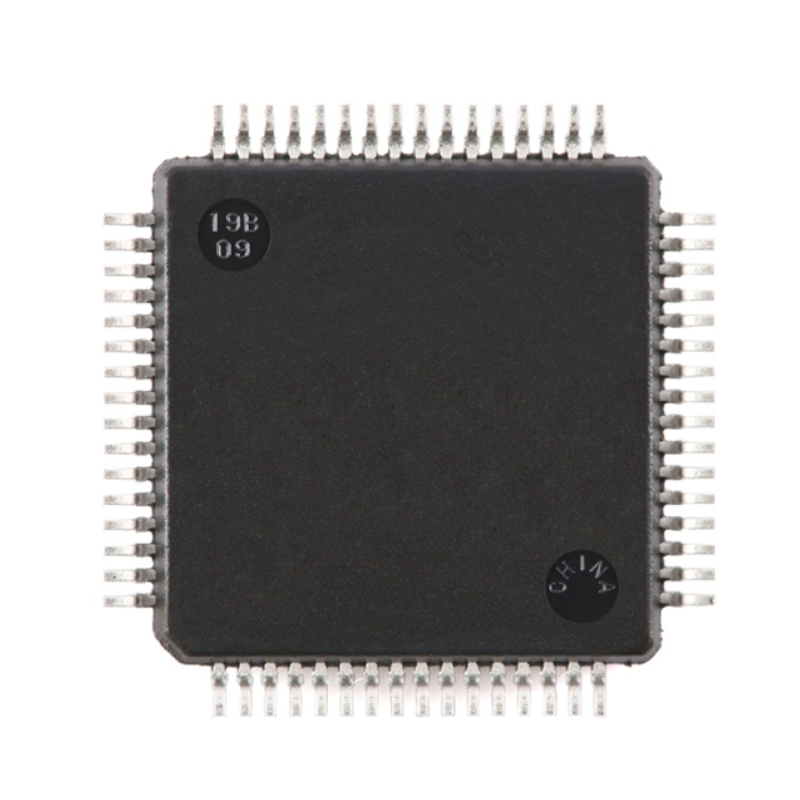

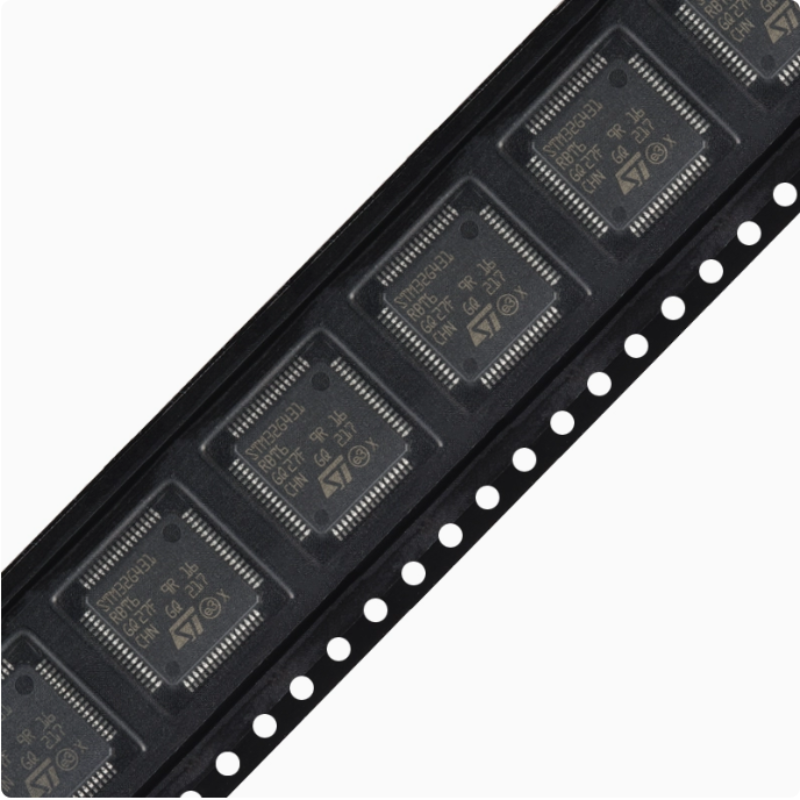

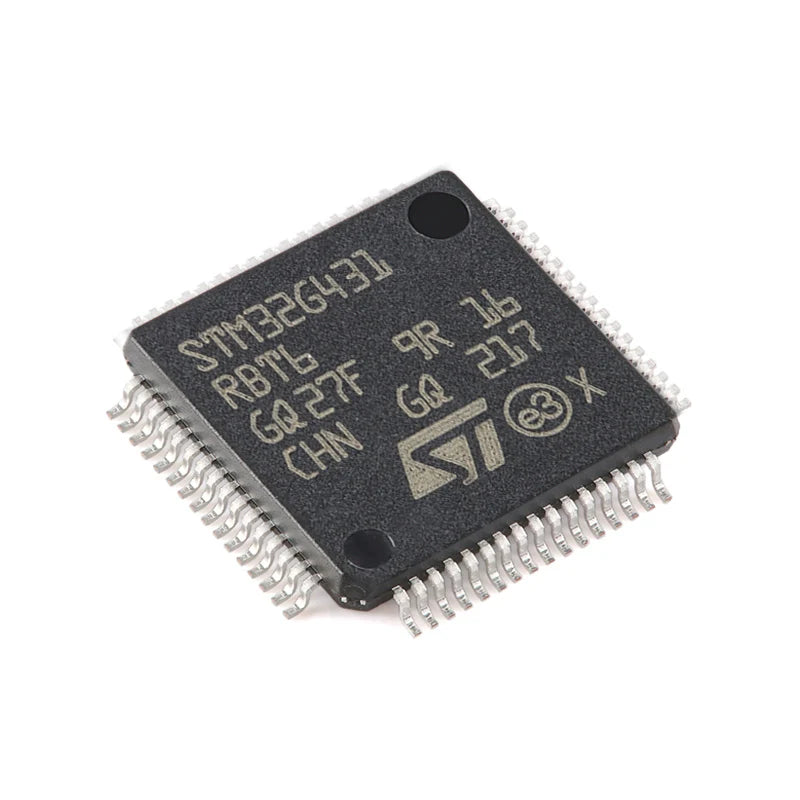

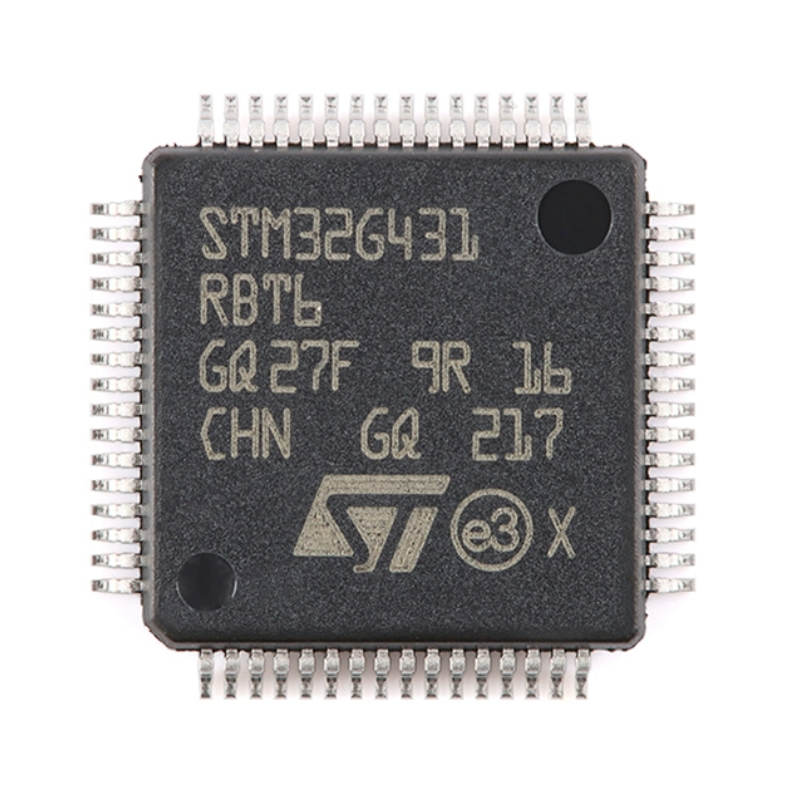

Products photography
