STM32G431C8T6/LQFP-48

ARM Cortex-M4 32-bit microcontroller -MCU

Product features

Arm@ Cortex®-M4 32-bit MCU+FPU, 170 MHZ/ 213 DMIPS, up to 128 KB Flash, 32 KB SRAM, rich analog, math accelerator

     Core

- Arm® 32-bit Cortex®-M4 CPU with FPU,Adaptive real-time accelerator (ART Accelerator)allowing 0-wait-state execution from Flash memory, frequency up to 170 MHz with 213 DMIPS, MPU, DSP instructions

     Operating conditions:

- V_DD, V_DDA voltage range: 1.71 V to 3.6 V

     Mathematical hardware accelerators

- CORDlC for trigonometric functions acceleration

- FMAC: filter mathematical accelerator

     Memories

- 128 Kbytes of Flash memory with ECC support, proprietary code readout protection (PCROP),securable memory area, 1 Kbyte OTP

- 22 Kbytes of SRAM, with hardware parity check implemented on the first 16 kbytes

- Routine booster: 10 Kbytes of SRAM on instruction and data bus, with hardware parity check (CCM SRAM)

     Reset and supply management

- Power-on/power-down reset(POR/PDR/BOR)

- Programmable voltage detector (PVD)

- Low-power modes: sleep, stop, standby and shutdown

- V_BAT  supply for RTC and backup registers

     Clock management

- 4 to 48 MHz crystal oscillator

- 32 kHz oscillator with calibration

- Internal 16 MHz RC with PLL option (± 1%)

- Internal 32 kHz RC oscillator(± 5%)

     Up to 86 fast l/Os

- All mappable on external interrupt vectors

- Several l/Os with 5 V tolerant capability

     Calendar RTC with alarm, periodic wakeup from stop/standby

     Communication interfaces

- 1 x FDCAN controller supporting flexible data rate

- 3 x I²C Fast mode plus (1 Mbits) with 20 mA current sink, SBus/PMBus,wakeup from stop

- 4 x USART/UARTs (IS0 7816 interface, LIN, lrDA, modem control)

- 1 x LPUART

- 3 x SPls, 4 to 16 programmable bit frames

- 2 x with multiplexed half duplex I²S interface

     Interconnect matrix

     12-channel DMA controller

     2 x ADCs 0.25 μs(up to 23 channels). Resolution up to 16-bit with hardware oversampling, 0 to 3.6 V conversion range

     4 x 12-bit DAC channels

- 2 x buffered external channels 1 MSPS

- 2 x unbuffered internal channels 15 MSPS

     4 x ultra-fast rail-to-rail analog comparators

     3 x operational amplifiers that can be used in PGA mode, all terminals accessible

     Internal voltage reference buffer (VREFBUF) supporting three output voltages (2.048 V, 2.5 V. 2.95 V)

     14 timers:

- 1 x 32-bit timer and 2 x 16-bit timers with up to four lC/OC/PWM or pulse counter and quadrature (incremental) encoder input

- 2 x 16-bit 8-channel advanced motor control timers, with up to 8 x PWM channels, dead time generation and emergency stop

- 1 x 16-bit timer with 2 x lC/OCs, one OCN/PWM, dead time generation and emergency stop

- 2 x16-bit timers with IC/OC/OCN/PWM, dead time generation and emergency stop

- 2 x watchdog timers (independent, window)

- 1 x SysTick timer: 24-bit downcounter

- 2 x 16-bit basic timers

- 1 x low-power timer

- 1 x SAl (serial audio interface)

- USB 2.0 full-speed interface with LPM and BCD support

- IRTIM (infrared interface)

- USB Type-C™/USB power delivery controller (UCPD)

    True random number generator (RNG)

    CRC calculation unit, 96-bit unique lD

    Development support: serial wire debug(SWD), JTAG, Embedded Trace Macrocell™

 Device summary

Reference	Part number
STM32G431x6	STM32G431C6,STM32G431K6,STM32G431R6,STM32G431V6,STM32G431M6
STM32G431x8	STM32G431C8,STM32G431K8,STM32G431R8,STM32G431V8,STM32G431M8
STM32G431xB	STM32G431CB,STM32G431KB,STM32G431RB,STM32G431VB.STM32G431ME

Product Description

              The STM32G431x6/x8/xB devices are based on the high-performance Arm® Cortex®-M4 32-bit RISC core. They operate at a frequency of up to 170 MHz.

              The Cortex-M4 core features a single-precision floating-point unit (FPU), which supports all the Arm single-precision data-processing instructions and all the data types. it also implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) which enhances the application's security.

              These devices embed high-speed memories (128 Kbytes of Flash memory, and 32 Kbytes of SRAM), an extensive range of enhanced l/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

              The devices also embed several protection mechanisms for embedded Flash memory and SRAM: readout protection, write protection, securable memory area and proprietary code readout protection.

              The devices embed peripherals allowing mathematical/arithmetic function acceleration (CORDlC for trigonometric functions and FMAC unit for filter functions).

               They offer two fast 12-bit ADCs (5 Msps), four comparators, three operational amplifiers, four DAC channels (2 external and 2 internal), an internal voltage reference buffer, a low-power RTC,one general-purpose 32-bit timers, two 16-bit PWM timers dedicated to motor control, seven general-purpose 16-bit timers, and one 16-bit low-power timer.

They also feature standard and advanced communication interfaces such as.

        Three I²Cs

        Three SPls multiplexed with two half duplex l²Ss

        Three USARTs, one UART and one low-power UART.

        One FDCAN

        One SAl

        USB device

        UCPD

                 The devices operate in the -40 to +85 ℃ (+105 ℃ junction) and -40 to +125 ℃ (+130 °C junction) temperature ranges from a 1.71 to 3.6 V power supply. A comprehensive set of power-saving modes allows the design of low-power applications.

                  Some independent power supplies are supported including an analog independent supply input for ADC, DAC, OPAMPs and comparators. A VBAT input allows backup of the RTC and the registers.

                   The STM32G431x6/x8/xB family offers 9 packages from 32-pin to 100-pin.

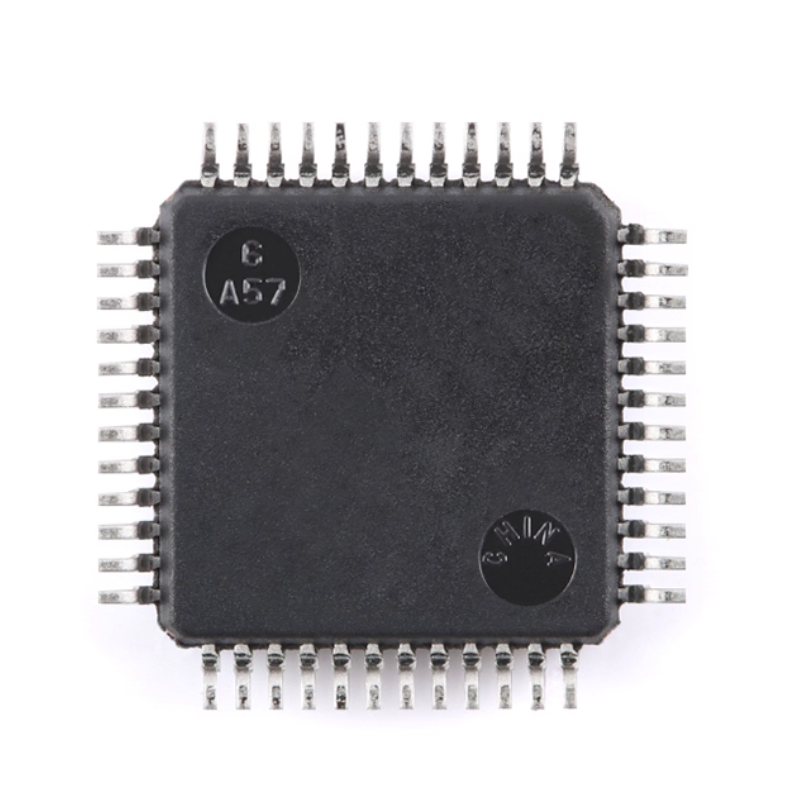

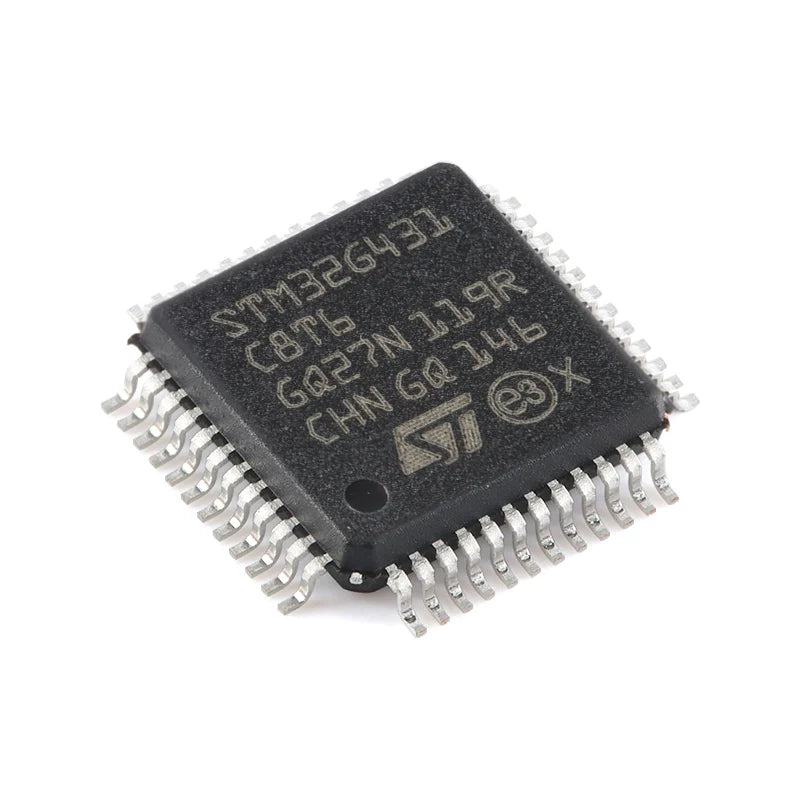

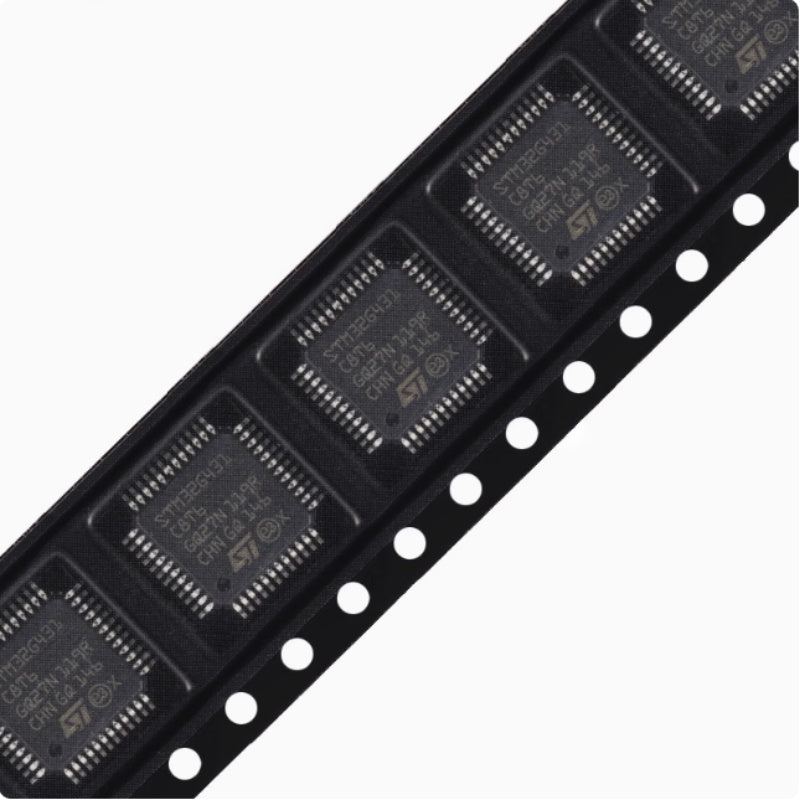

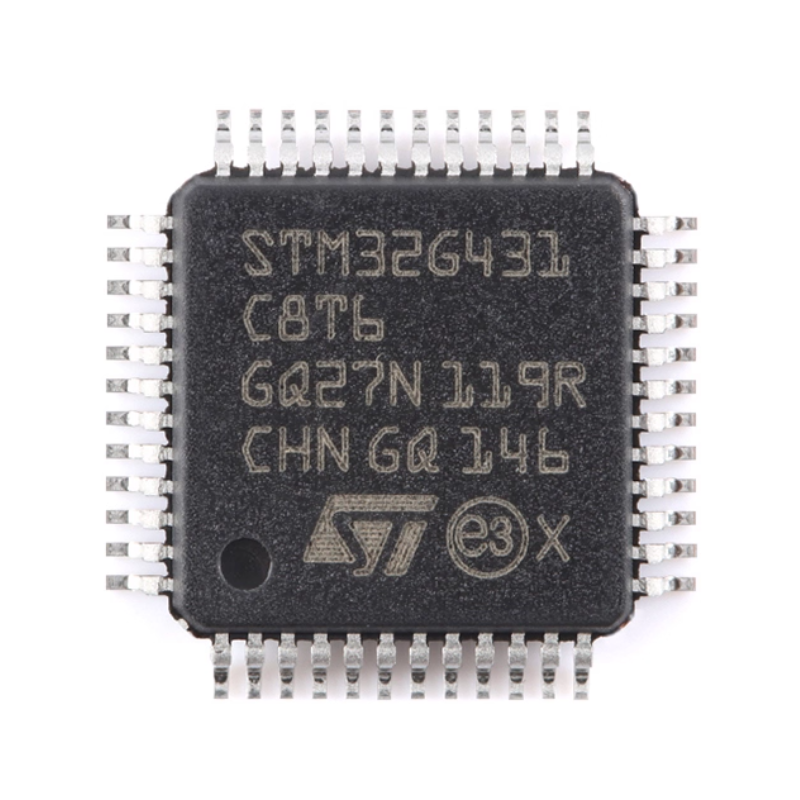

Products photography
