STM32G030C8T6 LQFP-48

ARM Cortex-M0+ 32-bit microcontroller -MCU

Product Description

           The STM32G030x6/x8 mainstream microcontrollers are based on high-perfommance Arm® Cortex®-M0+32-bit RISC core operating  at up to 64 MHz frequency. Offering a high level of integration,  they are suitable for a wide range of applications in consumer,  industrial and appliance domains and ready for the Internet of Things (loT) solutions.

          The devices incorporate a memory protection unit (MPU), high-speed embedded memories (8 Kbytes of SRAM and up to 64 Kbytes of Flash program memory with read protection, write protection), DMA, an extensive range of system functions, enhanced l/Os, and peripherals. The devices offer standard communication interfaces (two l2Cs, two SPIs / one I2s, and two USARTs), one 12-bit ADC (2.5 MSps) with up to 19 channels, a low-power RTC, an advanced control PWM timer four general-purpose 16-bit timers, two watchdog timers, and a SysTick timer.

         The devices operate within ambient temperatures from -40 to 85°C. They can operate with supply voltages from 2.0 V to 3.6V Optimized dynamic consumption combined with a comprehensive set of power-saving modes allows the design of low-power  applications.

         The devices come in packages with 8 to 48 pins.

Product details

Arm® Cortex®-M0+32-bit MCU, up to 64 KB Flash, 8 KB RAM, 2 x USART, timers, ADC, comm.l/Fs, 2.0-3.6V

Features

      Core

- Arm® 32-bit Cortex®-M0+ CPU,frequency up to 64 MHz

- 40°C to 85°C operating temperature

      Memories

- Up to 64 Kbytes of Flash memory with protection

- 8 Kbytes of SRAM with HW parity check

      CRC calculation unit

- Reset and power management

- Voltage range: 2.0 V to 3.6 V

- Power-on/Power-down reset (POR/PDR)

- Low-power modes: Sleep, Stop, Standby

- Supply for RTC and backup registers

      Clock management

- 4 to 48 MHz crystal oscillator

- 32 kHz crystal oscillator with calibration

- Internal 16 MHz RC with PLL option

- Internal 32 kHz RC oscillator (±5 %)

       Up to 44 fast l/Os

- All mappable on extemal interrupt vectors

- Multiple 5 V-tolerant l/Os

      5-channel DMA controller with flexible mapping

      12-bit, 0.4 μs ADC (up to 16 ext. channels)

- Up to 16-bit with hardware oversampling

- Conversion range: 0 to 3.6V

       8 timers: 16-bit for advanced motor control，four 16-bit general-purpose, two watchdogs，SysTick timer

      Calendar RTC with alarm and periodic wakeup from Stop/Standby

      Communication interfaces

- Two USARTs with master/slave synchronous SPl; one supporting ISO7816 interface, LIN, IrDA capability, auto baud rate detection and wakeup feature.

- Two SPls (32 Mbit/s) with 4 - to 16-bit programmable bitframe, one multiplexed with I2s interface.

     Development support: serial wire debug (SWD)

     All packages ECOPACK 2 compliant

Device summary

Parameter conditions

       Parameter values defined at temperatures or in temperature ranges out of the ordering information scope are to be iqnored.

       Packages used for characterizing certain electrical parameters may differ from the commercial packages as per the ordering information.

General operating conditions

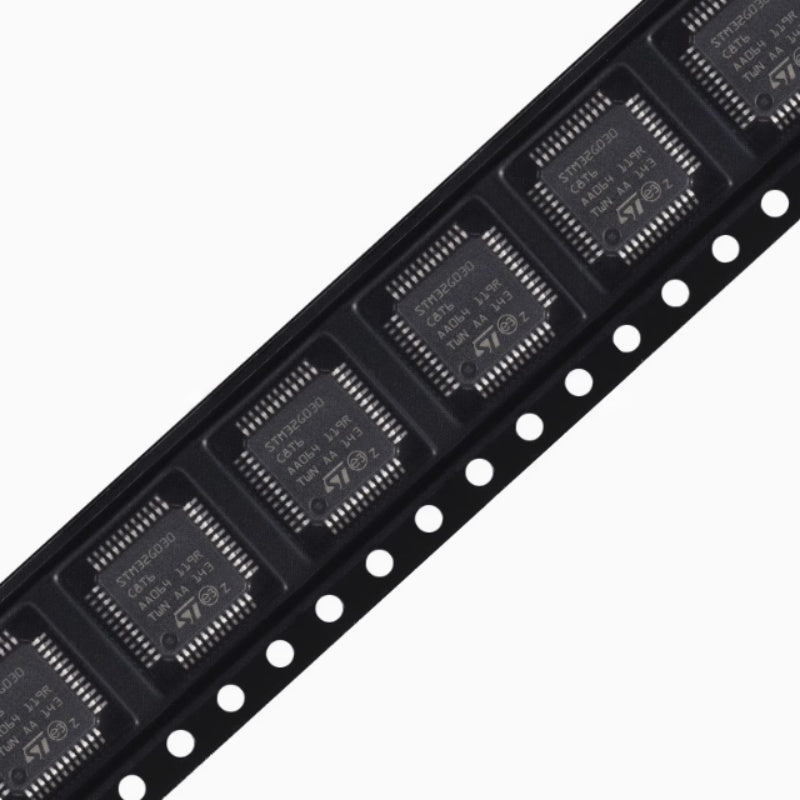

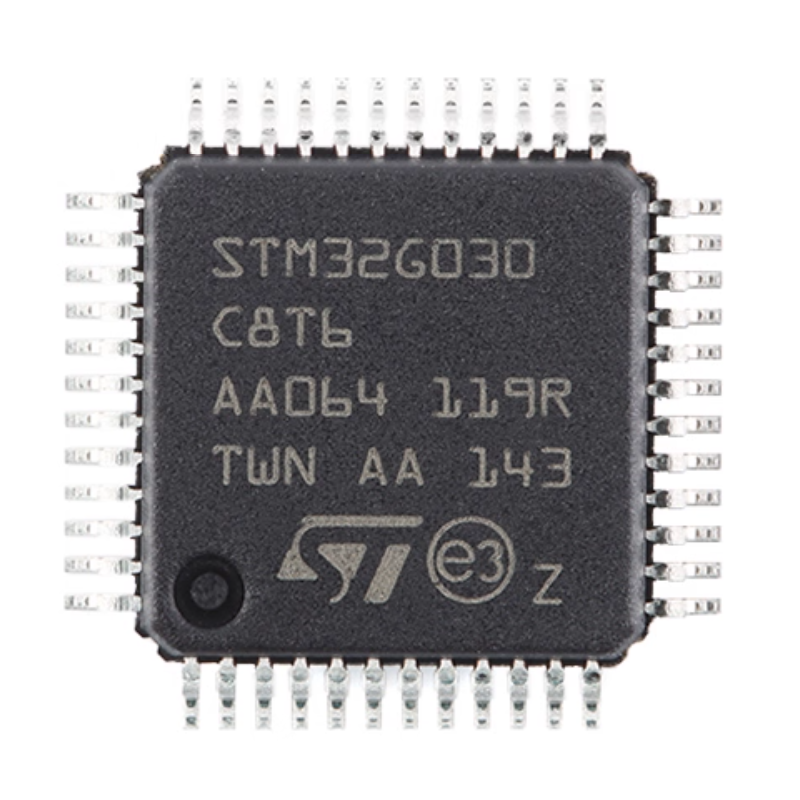

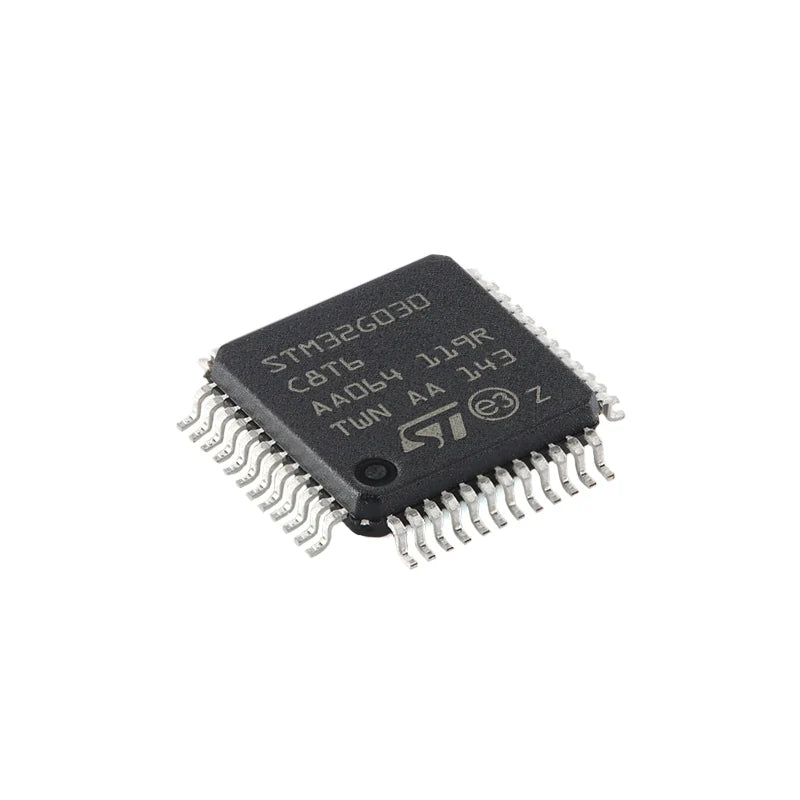

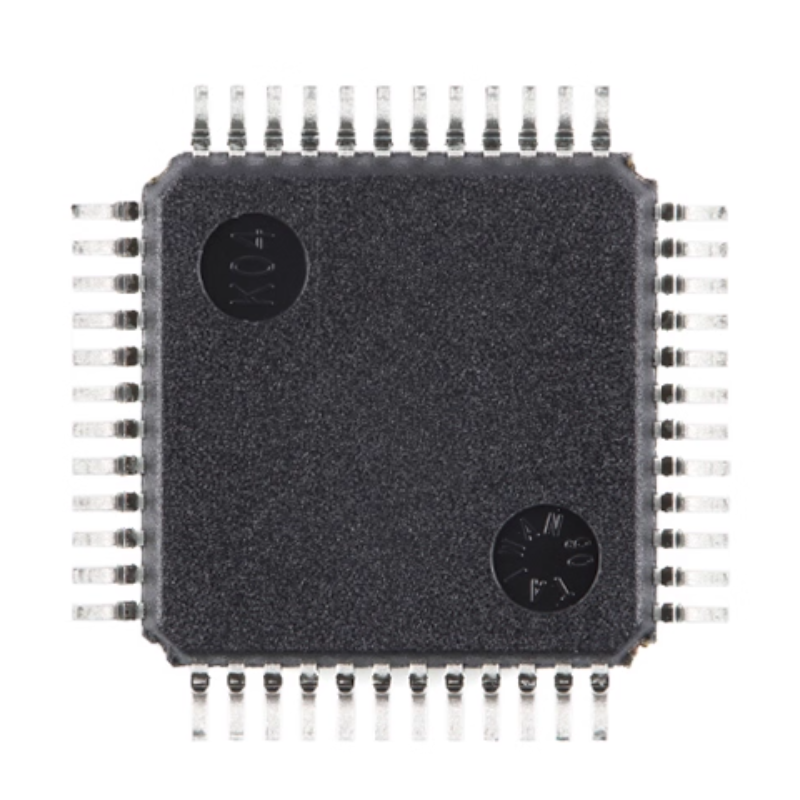

Products photography
