STM32F411CEU6/UFQFPN-48

32-bit embedded microcontroller -MCU

Product introduction

STM32F411CE

High-performance basic series ARM Cortex-M4 MCU with DSP and FPU, featuring 512KB Flash, 100MHzCPU and ART accelerator

            The STM32F411xC/xE devices are based on the high-performance Arm® Cortex® -M4 32-bit RISC core operating at a frequency of up to 100 MHz. The Cortex® -M4 core features a Floating point unit (FPU) single precision which supports all Arm  single-precision data-processing instructions and data types. it also implements a full set of DSP instructions and a  memory protection unit (MPU) which enhances application security.

            The STM32F411xC/xE belongs to the STM32 Dynamic Eficiency™ product line (with products combining power efficiency,  performance and integration) while adding a new innovative feature called Batch Acquisition Mode (BAM) allowing to save  even more power consumption during data batching.

           The STM32F411xC/xE incorporate high-speed embedded memories (up to 512 Kbytes of Flash memory, 128 Kbytes of SRAM),  and an extensive range of enhanced l/Os and peripherals connected to two APB buses,  two AHB bus and a 32-bit multi-AHB bus matrix.

           All devices offer one 12-bit ADC, a low-power RTC,  six general-purpose 16-bit timers including one PWM timer for motor control,  two general-purpose 32-bit timers. They also feature standard and advanced communication interfaces.

          The STM32F411xC/xE operates in the -40 to + 125°c temperature range from a 1.7 (PDR OFF) to 3.6 V power supply. A comprehensive set of power-saving mode allows the desian of low-power applications.

          These features make the STM32F411xC/xE microcontrollers suitable for a wide range of applications.

Product features

• Dynamic Efficiency Line with BAM (Batch Acquisition Mode)

- 1.7V to 3.6V power supply

- 40°C to 85/105/125 °C temperature range

• Debug mode

- Serial wire debug (SWD) & JTAG interfaces

- Cortex®-M4 Embedded Trace Macrocell™

• Up to 81 I/O ports with interrupt capability

Product parameter

• Control

5 x 16-bit timer

1 x 16-bit motor control PWM synchronized

AC timer

2 x 32-bit timer

• Analog

1 x 12-bit ADC 2.4 MSPS

16 channels/0.41μs

Temperatre sensor

• Connectivity

3 x PC

3 x USART

LIN, smartcard, lrDA, modem control

5 x SPl or 5xPS(2 x PS with full duplex]

SDIO

USB 2.0 OTG FS

• System

Power supply 1.2V Intense regulator POR/PDR/PVD/BOR

PLL

Clock control

RTC/AWU

2 x watehdogs (independent and window)

Cyclie Redundancy Check (CRC)

96 bit unique ID

612-Kbyte Flash memory

128-Kbyte SRAM

80-Kbyte backup data

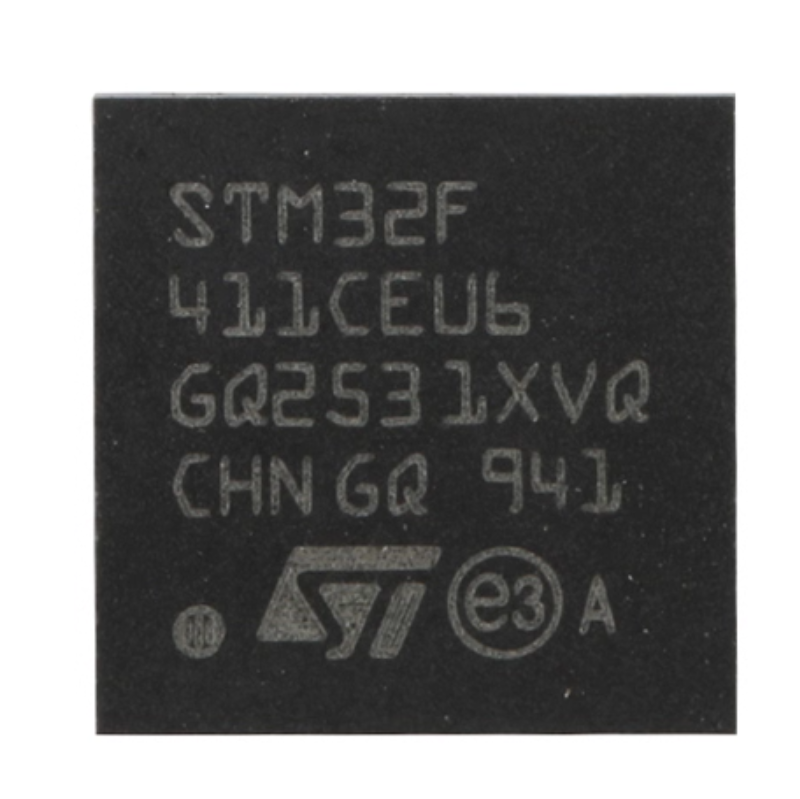

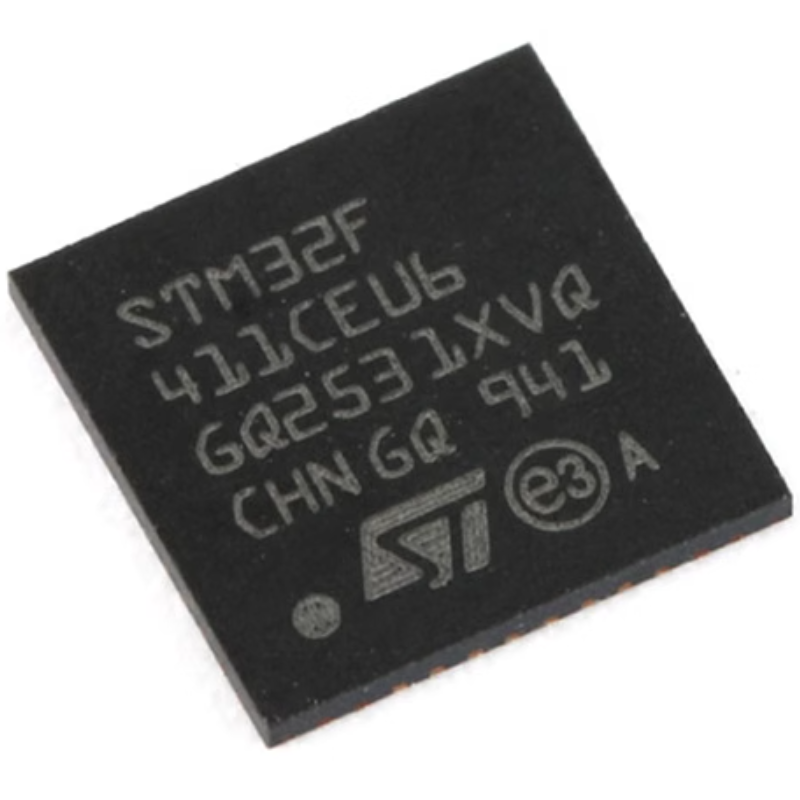

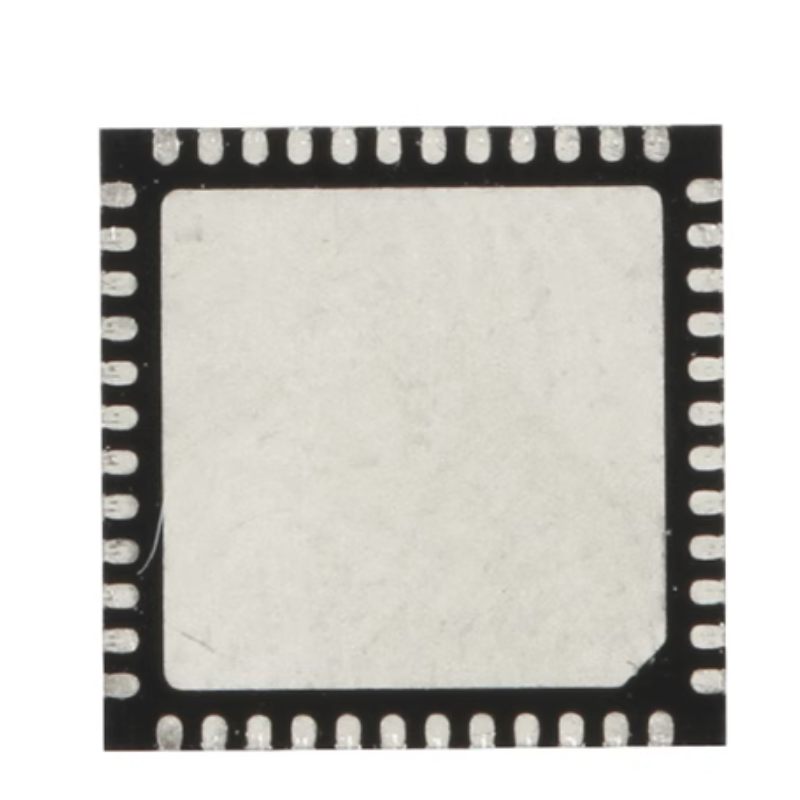

Products photography
