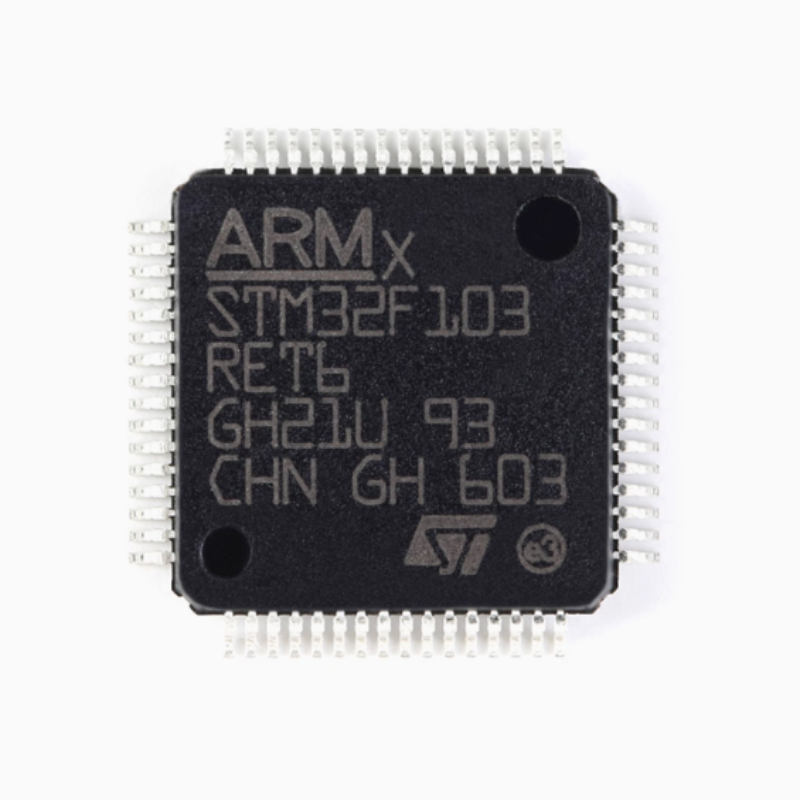

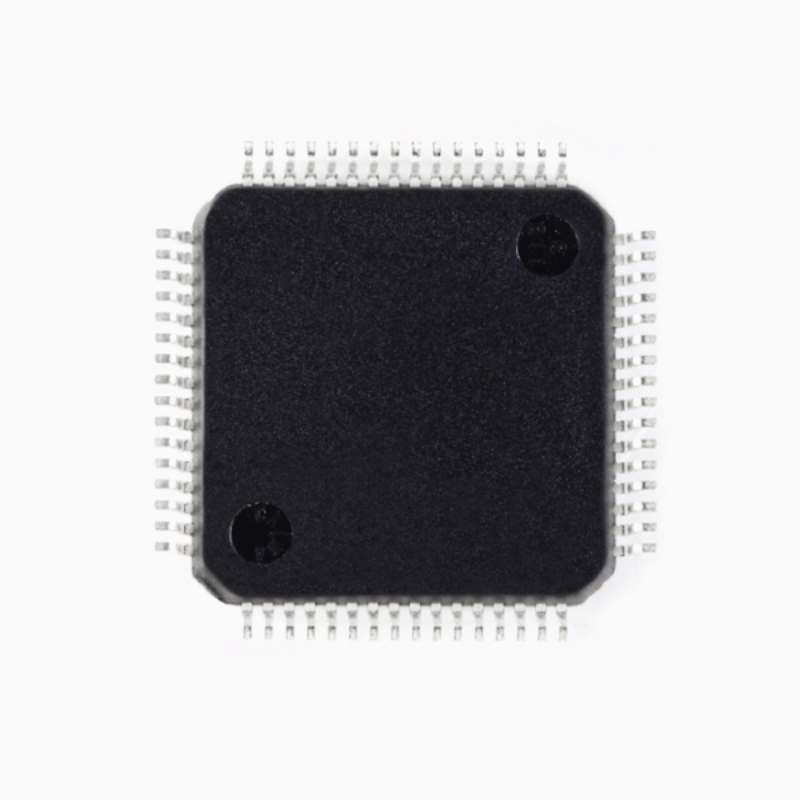

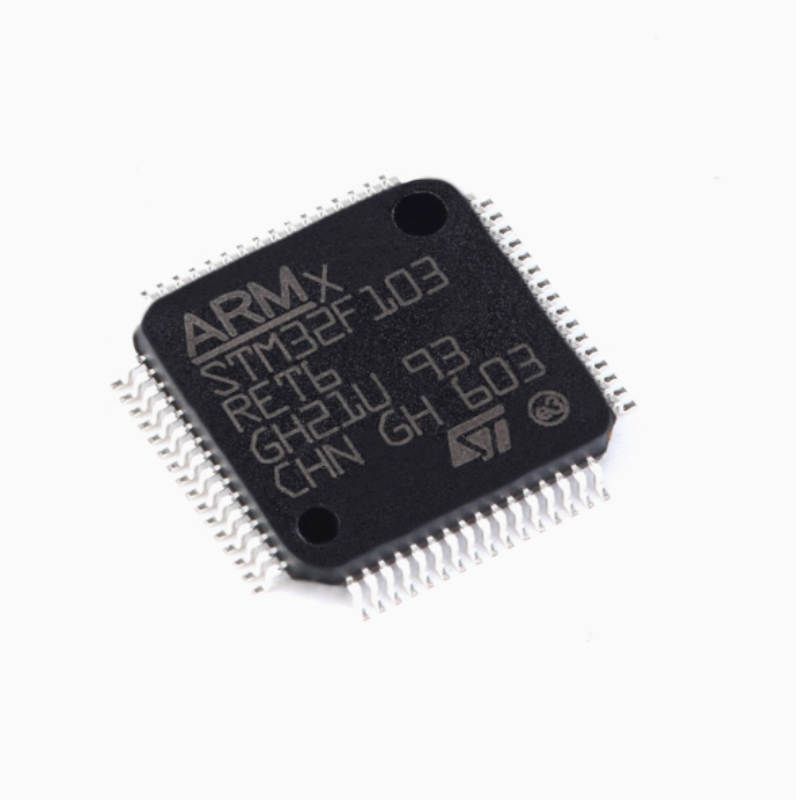

STM32F103RET6 LQFP-64

ARM Cortex-M3 32-bit microcontroller MCU

Product Description

Mainstream Performance line, ARM Cortex-M3 MCU with 512 Kbytes Flash, 72 MHz CPU, motor control, USB and CAN

             The STM32F103xC,STM32F103xD and STM32F103xE performance line family incorporates the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 512 Kbytes and SRAM up to 64 Kbytes), and an extensive range of enhanced l/Os and peripherals connected to two APB buses.  All devices offer three 12-bit ADCs, four general-purpose 16-bit timers plus two PWM timers, as well as standard and advanced communication interfaces: three SPls, one SDlO, five USARTs, an USB and a CAN.

             The STM32F103xC/D/E high-density performance line family operates in the -40 to+105° c temperature range, from a 2.0 to 3.6V power supply.  A comprehensive set of power-saving mode allows the design of low-power applications.

             These features make the STM32F103xC/D/E high-density performance line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems video intercom, and HVAC.

Product details

Features

       Core: ARM® 32-bit Cortex®-M3 CPU

- 72 MHz maximum frequency, 1.25 DMIPS/MHZ(Dhrystone 2.1) performance at 0 wait state memory access

- Single-cycle multiplication and hardware division

        Memories

- 256 to 512 Kbytes of Flash memory

- up to 64 Kbytes of SRAM

- Flexible static memory controller with 4 Chip Select. Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories

- LCD parallel interface, 8080/6800 modes

       Clock, reset and supply management

- 2.0 to 3.6 V application supply and l/Os

- POR, PDR, and programmable voltage detector(PVD)

- 4-to-16 MHz crystal oscillator

- Internal 8 MHz factory-trimmed RC

- Internal 40 kHz RC with calibration

- 32 kHz oscillator for RTC with calibration

       Low power

- Sleep, Stop and Standby modes

- supply for RTC and backup registers

       3 x 12-bit,  AD converters (up to 21channels)

- Conversion range: 0 to 3.6V

- Triple-sample and hold capability

- Temperature sensor

        2 x 12-bit D/A converters

       DMA: 12-channel DMA controller

- Supported peripherals: timers, ADCs, DAC,SDIO, SPIs and USARTS

        Debug mode

- Serial wire debug (SWD) & JTAG interfaces

-Cortex® -M3 Embedded Trace Macrocell

       Up to 112 fast l/O ports

- 51/80/112 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant

      Up to 11 timers

- Up to four 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input

- 2 x 16-bit motor control PWM timers with dead-time generation and emergency stop

- 2 x watchdog timers (Independent and Window)

- SysTick timer: a 24-bit downcounter

- 2x16-bit basic timers to drive the DAC
