STM32F103RCT6/L0FP-64

ARM Cortex-M3 32-bit Microcontroller -MCU

Product details

Features

Core: ARM® 32-bit Cortex®-M3 CPU

• 72 MHz maximum frequency, 1.25 DMIPS/MHZ(Dhrystone 2.1) performance at 0 wait state memory access

• Single-cycle multiplication and hardware division

Memories

• 256 to 512 Kbytes of Flash memory

• up to 64 Kbytes of SRAM

• Flexible static memory controller with 4 Chip Select. Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories

• LCD parallel interface, 8080/6800 modes

Clock, reset and supply management

• 2.0 to 3.6 V application supply and l/Os

• POR, PDR, and programmable voltage detector(PVD)

• 4-to-16 MHz crystal oscillator

• Internal 8 MHz factory-trimmed RC

• Internal 40 kHz RC with calibration

• 32 kHz oscillator for RTC with calibration

Low power

• Sleep, Stop and Standby modes

• supply for RTC and backup registers

3 x 12-bit,  AD converters (up to 21channels)

• Conversion range: 0 to 3.6V

• Triple-sample and hold capability

• Temperature sensor

2 x 12-bit D/A converters

DMA: 12-channel DMA controller

• Supported peripherals: timers, ADCs, DAC,SDIO, SPIs and USARTS

Debug mode

• Serial wire debug (SWD) & JTAG interfaces

• Cortex® -M3 Embedded Trace Macrocell

Up to 112 fast l/O ports

• 51/80/112 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant

Device summary

Product Description

            The STM32F103xC,STM32F103xD and STM32F103xE performance line family incorporates the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 512 Kbytes and SRAM up to 64 Kbytes), and an extensive range of enhanced l/Os and peripherals connected to two APB buses.  All devices offer three 12-bit ADCs, four general-purpose 16-bit timers plus two PWM timers, as well as standard and advanced communication interfaces: three SPls, one SDlO, five USARTs, an USB and a CAN.

            The STM32F103xC/D/E high-density performance line family operates in the -40 to+105 Celsius temperature range, from a 2.0 to 3.6V power supply.  A comprehensive set of power-saving mode allows the design of low-power applications.

            These features make the STM32F103xC/D/E high-density performance line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems video intercom, and HVAC.

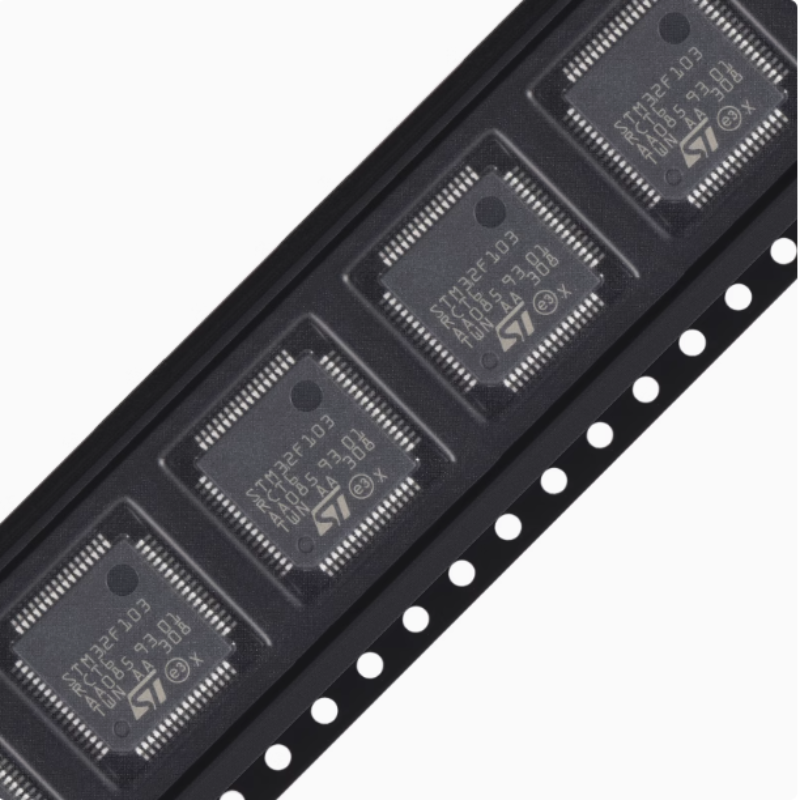

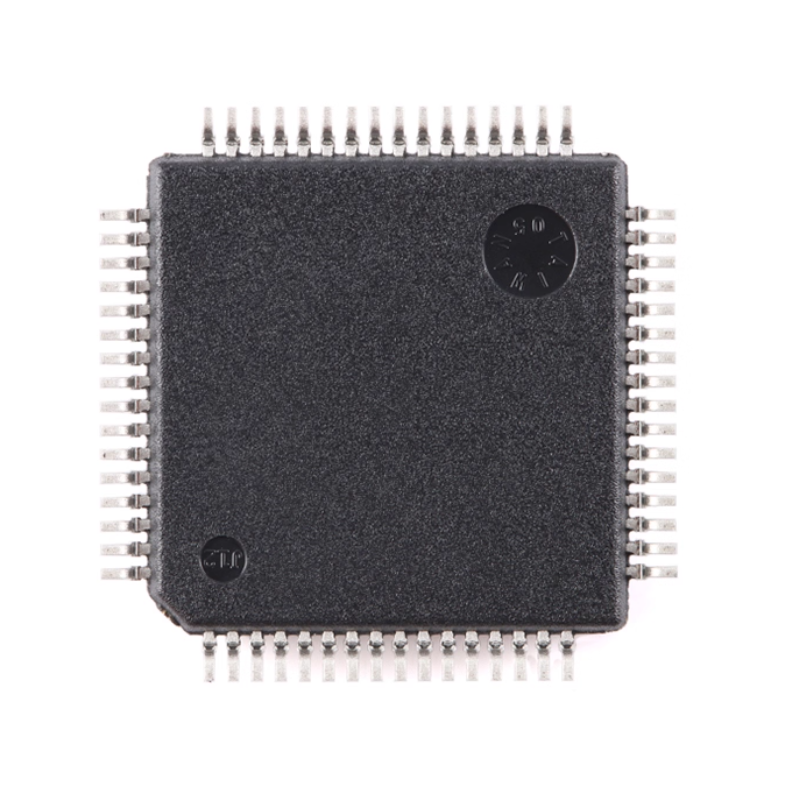

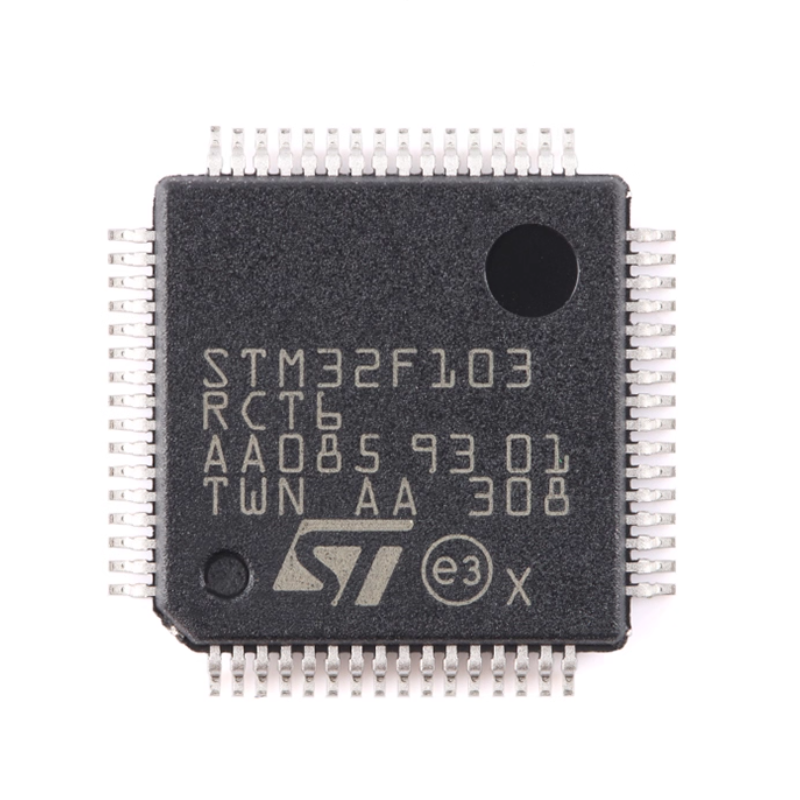

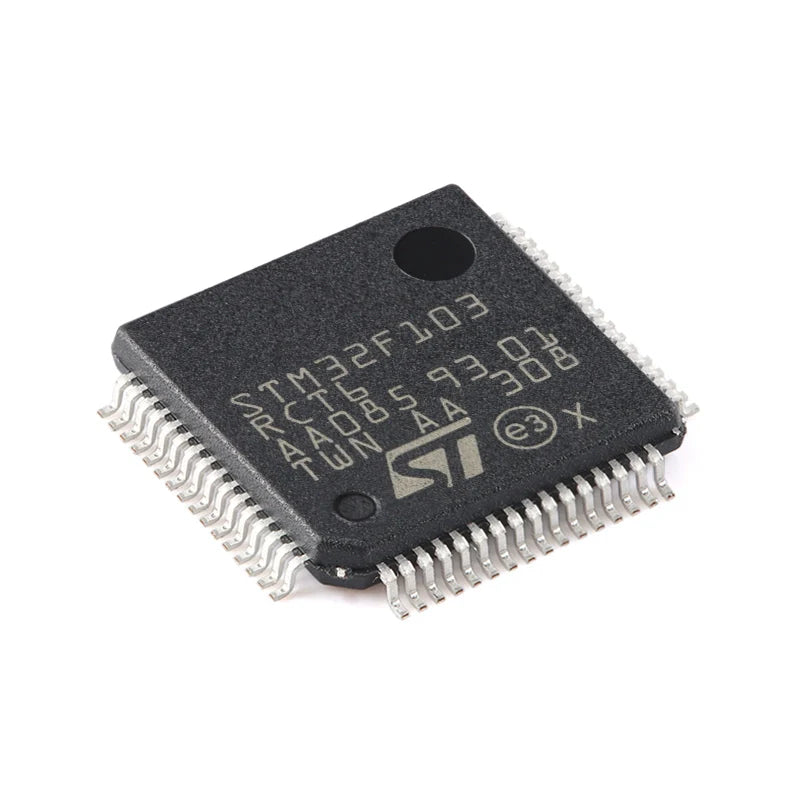

Products photography
