STM32F070F6P6 TSSOP-20

Original genuine ARM Cortex-M0 32-bit microcontroller MCU

Product Description

STM32F070F6

Mainstream ARM Cortex-M0 Value line MCU with up to 32 Kbvtes Flash, 48 MHz CPU, USB

        The STM32F070CB/RB/C6/F6 microcontrollers incorporate the high-performance ARM®Cortex®-M0 32-bit RISC core operating at a 48 MHz frequency, high-speed embedded memories (up to 128 Kbytes of Flash memory and up to 16 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces (up to two I²Cs, up to two SPIs and up to four USARTS), one USB Full speed device, one 12-bit ADC, seven general-purpose 16-bit timers and an advanced-control PWM timer.

        The STM32F070CB/RB/C6/F6 microcontrollers operate in the -40 to +85 ℃ temperature range from a 2.4 to 3.6V power supply, A comprehensive set of power-saving modes allows the design of low-power applications.

        The STM32F070CB/RB/C6/F6 microcontrollers include devices in three different packages ranging from 20 pins to 64 pins. Depending on the device chosen, different sets of peripherals are included. The description below provides an overview of the complete range of STM32F070CB/RB/C6/F6 peripherals proposed.

        These features make the STM32F070CB/RB/C6/F6 microcontrollers suitable for a wide range of applications such as application control and user interfaces, handheld equipment, A/V receivers and digital TV, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.

Product features

Core

- ARM® 32-bit Cortex®-M0 CPU, frequency up to 48 MHz

Memories

- 32 to 128 Kbytes of Flash memory

- 6 to 16 Kbytes of SRAM with HW parity

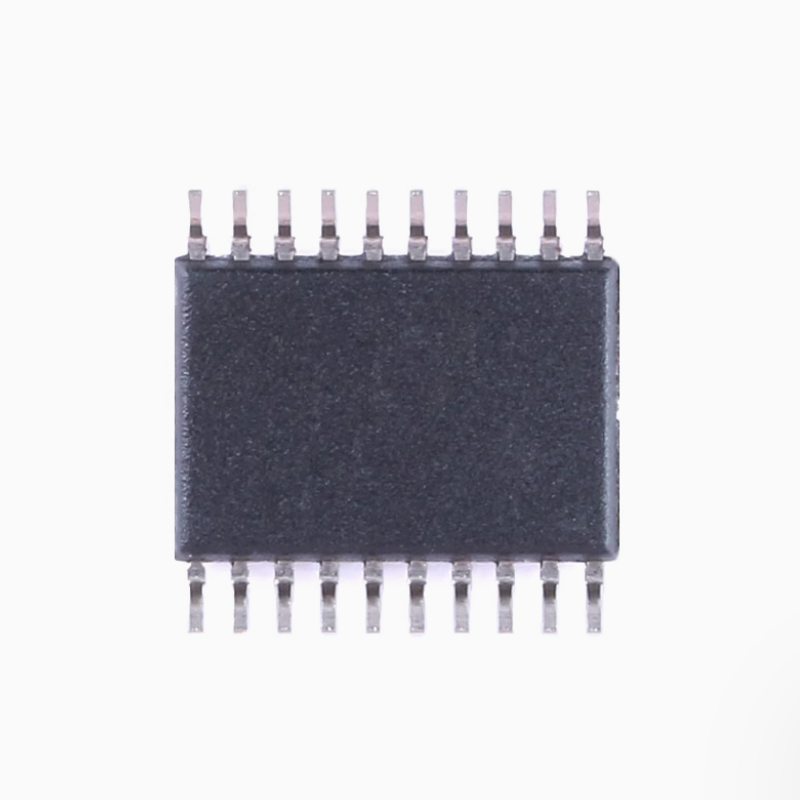

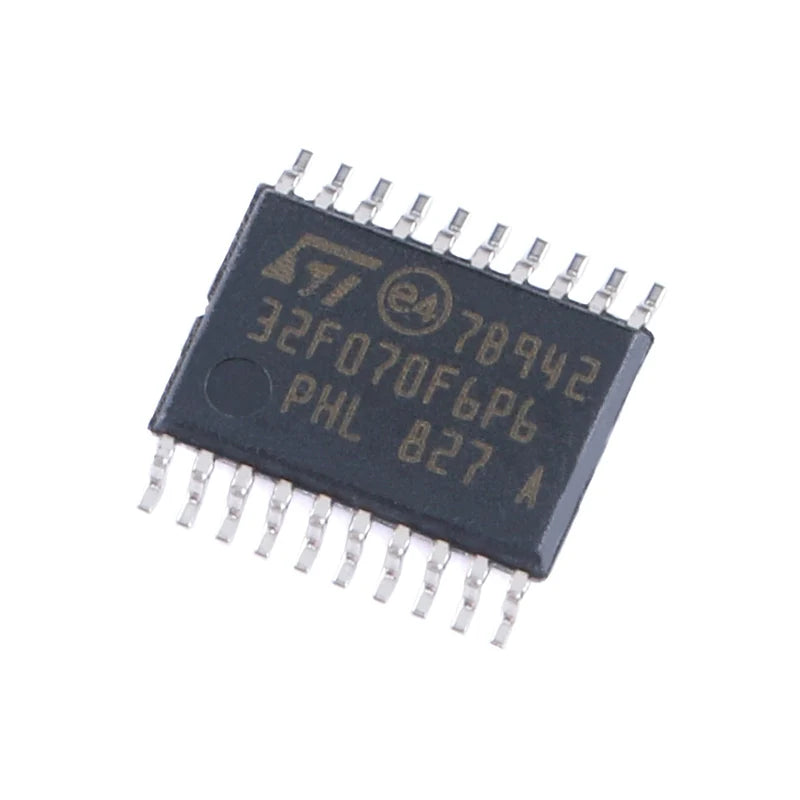

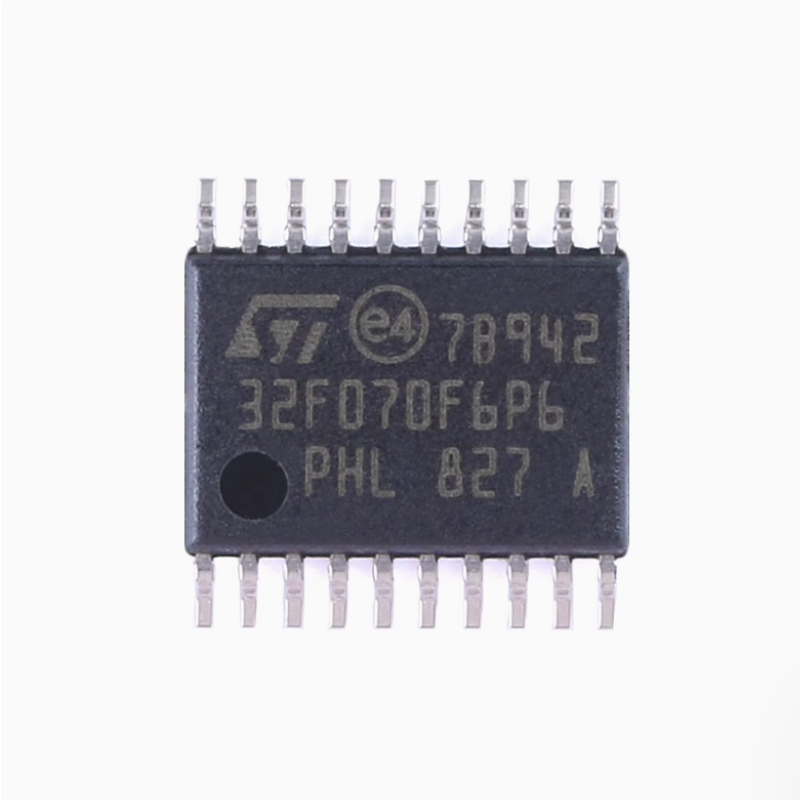

Products photography
