STM32F030K6T6LQFP-32

ARM Cortex-M0 32-Bit Microcontroller MCU

Product Description

Mainstream ARM Cortex-M0 Value line MCU with 32 Kbytes Flash, 48 MHz CPU

            The STM32F030x4/x6/x8/xC microcontrollers incorporate the high performance ARM®cortex®M0 32-bit RISC core operating at a 48 MHz frequency, high-speed embedded memories (up to 256 Kbytes of Flash memory and up to 32 Kbytes of SRAM),  and an extensive range of enhanced peripherals and l/Os. All devices offer standard communication interfaces ( up to two I²Cs, up to two SPIs and up to six USARTs), one 12-bit ADC, seven general-purpose 16-bit timers and an advanced-control PWM timer.

            The STM32F030x4/x6/x8/xC microcontrollers operate in the -40 to+85°C temperature range from a 2.4 to 3.6V power supply. A comprehensive set of power-saving modes allows the design of low-power applications.

            The STM32F030x4/x6/x8/xC microcontrollers include devices in four different packages ranging from 20 pins to 64 pins. Depending on the device chosen, different sets of peripherals are included, The description below provides an overview of the complete range of STM32F030x4/x6/x8/xC peripherals proposed.

            These features make the STM32F030x4/x6/x8/xC microcontrollers suitable for a wide range of applications such as  application control and user interfaces, handheld equipment, A/V receivers and digital TV, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms,  and HVACS.

Product features

      Core

- ARM®32-bit Cortex®-M0 CPU, frequency up to 48 MHZ

      Memories

- 16 to 256 Kbytes of Flash memory

- 4 to 32 Kbytes of SRAM with HW parity

      CRC calculation unit

      Reset and power management

- Power-on/Power down reset (POR/PDR)

- Low power modes: Sleep, Stop, Standby

      Clock management

- 4 to 32 MHz crystal oscillator

- 32 kHz oscillator for RTC with calibration

- Internal 8 MHz RC with x 6 PLL option

- Internal 40 kHz RC oscillator

      Up to 55 fast l/Os

- All mappable on external interrupt vectors

- Up to 55 l/Os with 5V tolerant capability

      5-channel DMA controller

      One 12-bit,1.0 μs ADC (up to 16 channels)

- Conversion range:0 to 3.6 V

- Separate analog supply: 2.4V to 3.6 V

      Calendar RTC with alarm and periodic wakeup from Stop/Standby

      11 timers

- One 16-bit advanced-control timer for six-channel PWM output

- Up to seven 16-bit timers, with up to four lC/OC, OCN, usable for lR control decoding

- Independent and system watchdog timers

- SysTick timer

      Communication interfaces

- Up to two I²C interfaces

- Up to six USARTs supporting master synchronous SPl and modem control;  one with auto baud rate detection

- Up to two SPls (18 Mbit/s) with 4 to 16 programmable bit frames

      Serial wire debug (SWD)

      All packages ECOPACK®2

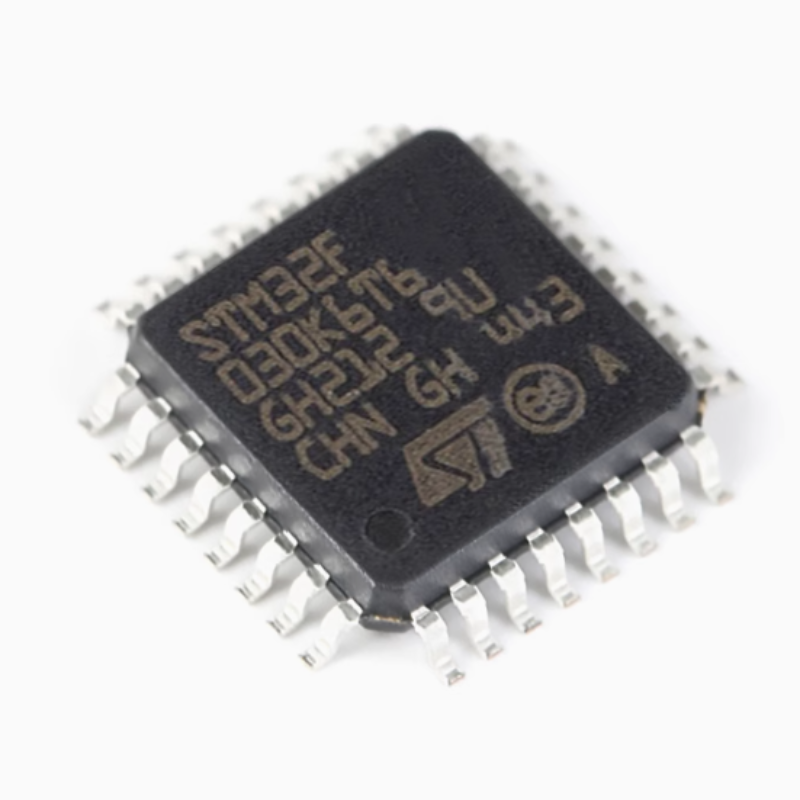

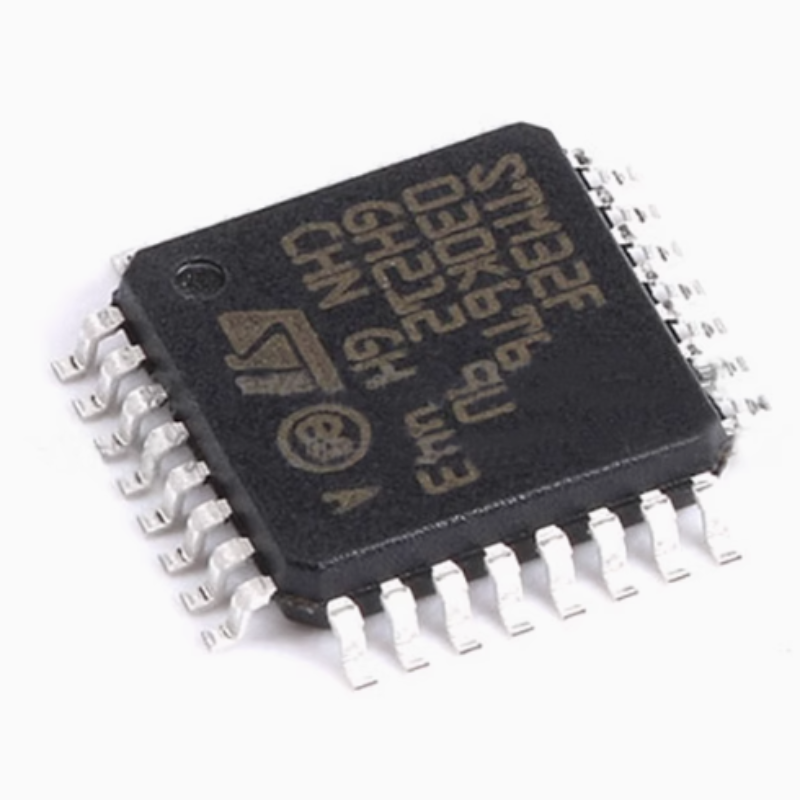

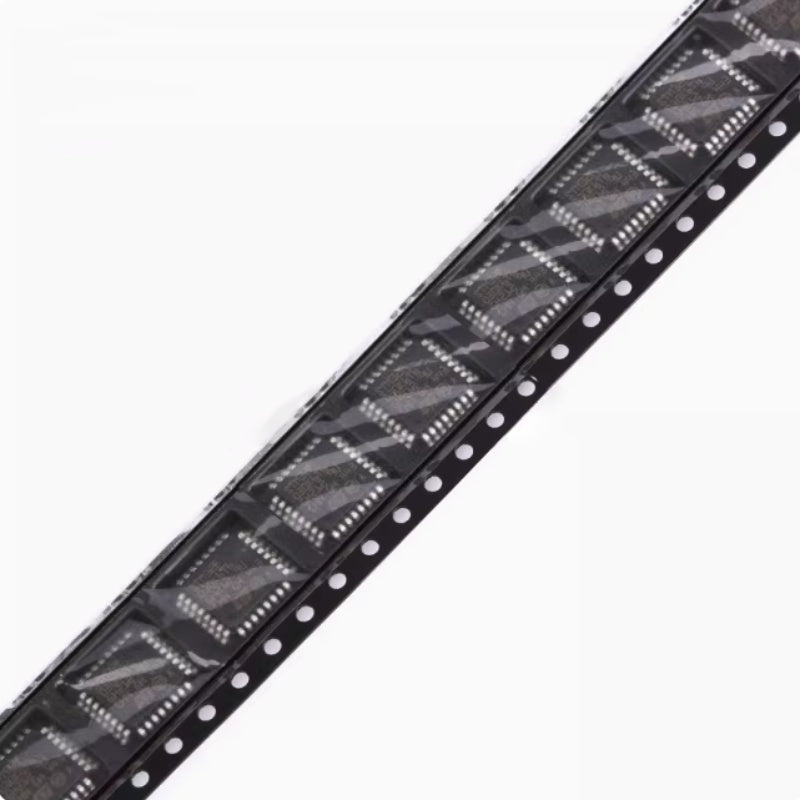

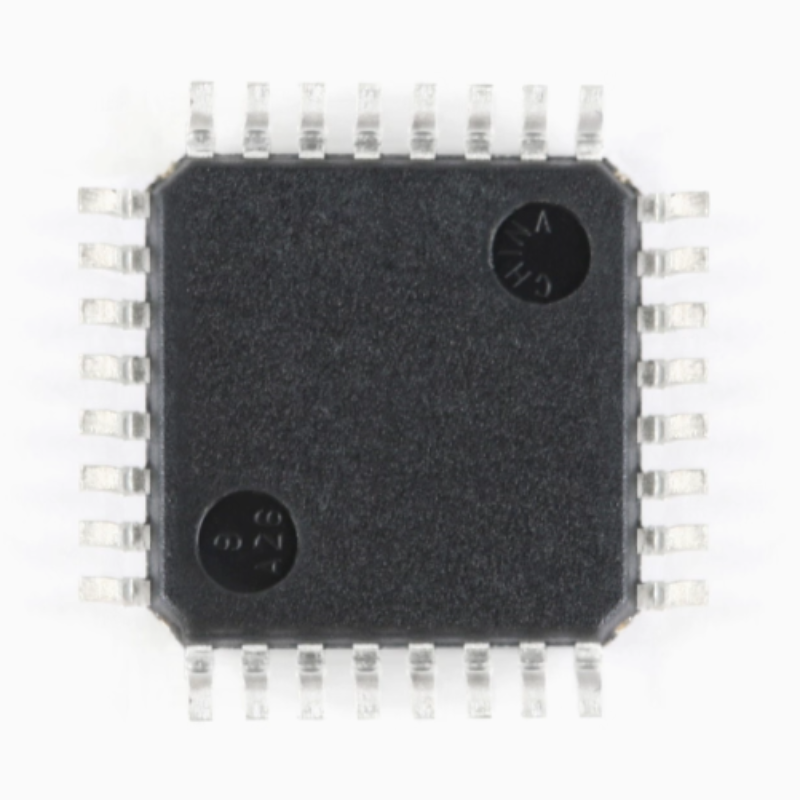

Products photography
