STC/STC8H8K64U-45I-TSSOP20

1T 8051 microprocessor single-chip microcomputer

Product details

Overview

           The STC8H series of single-chip microcontrollers do not require external vibration or external reset. They are the 8051 single-chip microcontrollers that aim for super strong anti-interference, ultra-low cost, high speed and low power consumption. Under the same operating frequency, the STC8H series of single-chip microcontrollers are approximately 12 times faster than the traditional 8051 (11.2 to 13.2 times faster) To execute all 111 instructions in sequence, the STC8H series microcontroller only requires 147 clocks, while the traditional 8051 needs 1,944 clocks. The STC8H series of microcontrollers is a single-clock/machine cycle (1T) microcontroller produced by STC. It is a new generation of 8051 microcontrollers featuring wide voltage, high speed, high reliability, low power consumption, strong anti-static and strong anti-interference capabilities, with super encryption. The instruction code is fully compatible with traditional 8051.

Pin diagram, MIN system

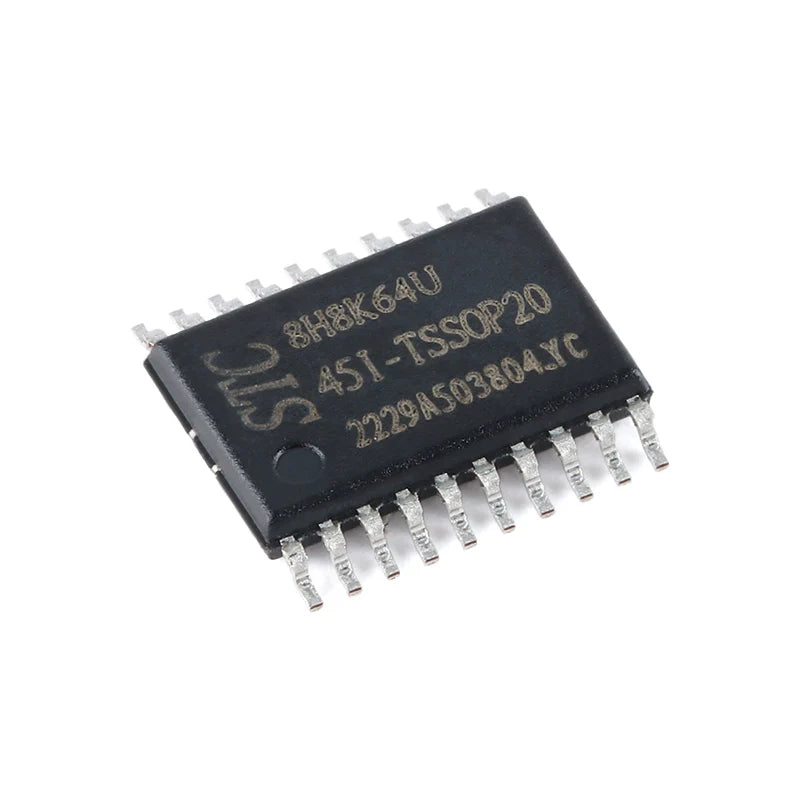

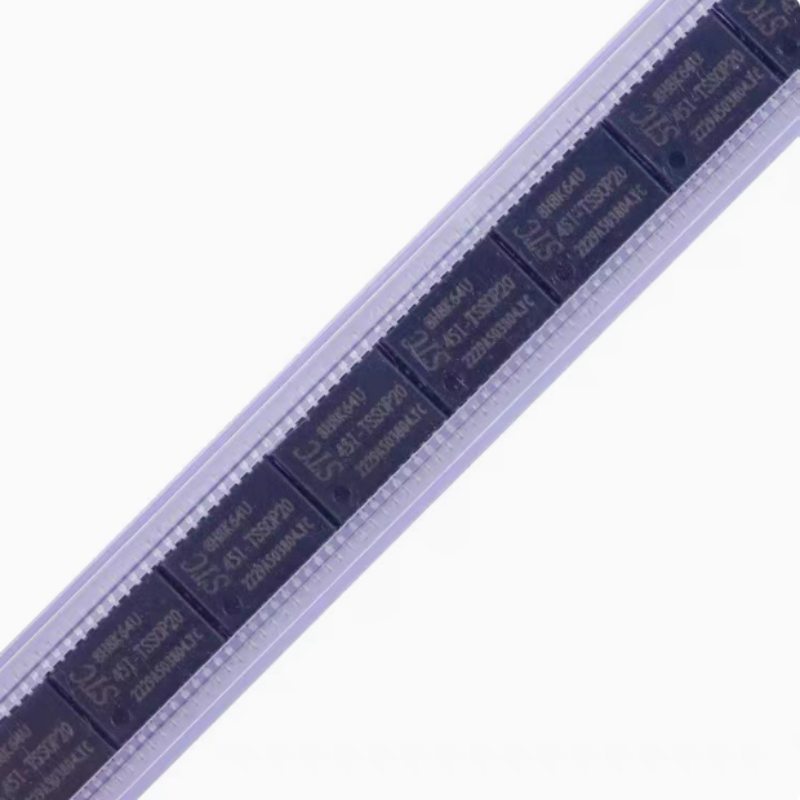

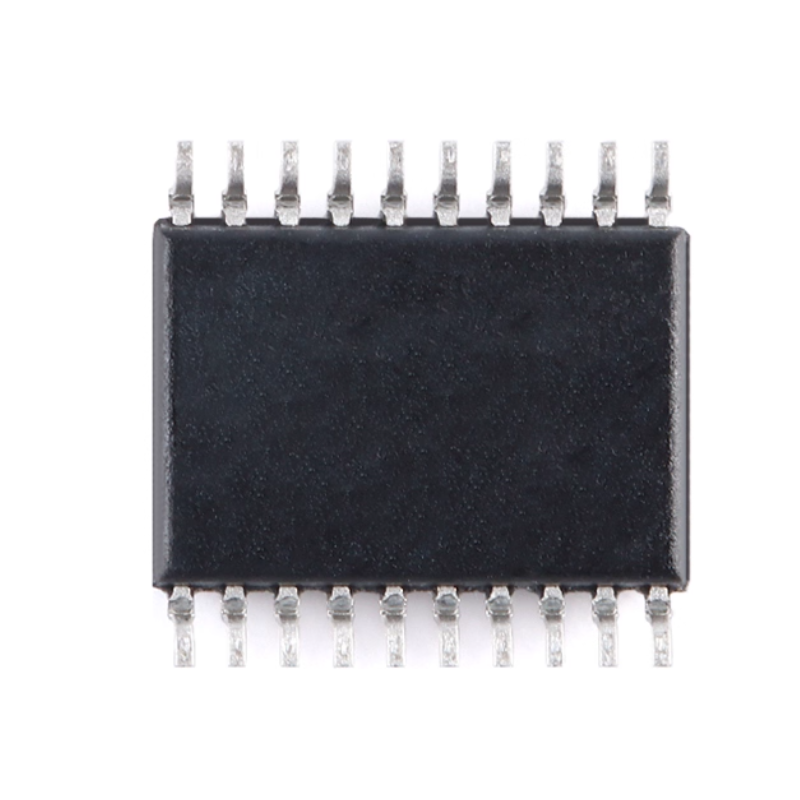

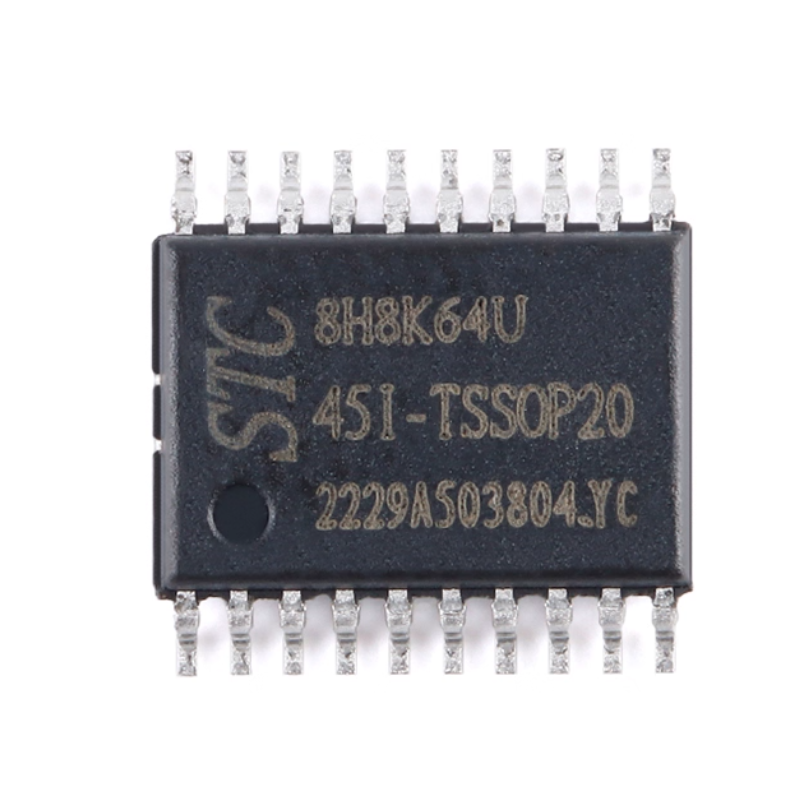

Products photography
