HC32F460PETB-LQFP100/LQFP-100

ARM Cortex-M4 32-bit microcontroller -MCU

Product Description

         The HC32F46 series is a high-performance MCU based on the ARM® Cortex®-M4 32-bit RISC CPU with a maximum operating frequency of 200MHz. The Cortex-M4 core integrates a floating-point unit (FPU) and a DSP, enabling single-precision floating-point arithmetic operations. It supports all ARM single-precision data processing instructions and data types, as well as a complete DSP instruction set. The kernel integrates an MPU unit and superimposes a dedicated MPU unit for DMAC to ensure the security of system operation.

         The HC32F460 series integrates high-speed on-chip memory, including up to 512KB of Flash and up to 192KB of SRAM. It integrates a Flash access acceleration unit to enable single-cycle program execution of the CPU on Flash. The polling bus matrix supports multiple bus hosts to access memory and peripherals simultaneously, improving operational performance. The bus host includes CPU, DMA, USB-specific DMA, etc. In addition to the bus matrix, it supports data transfer between peripheral devices, basic arithmetic operations and mutual triggering of events, which can significantly reduce the transaction processing load of the CPU.

         The HC32F460 series integrates a wealth of peripheral functions. It includes two independent 12-bit 2.5MSPS ADCs, one gain-adjustable PGA, three voltage comparators (CMP), and three multi-functional 16-bit PWM timers (Timer6) supporting six complementary PWM outputs. Three motor PWM timers (Timer4) support 18 complementary PWM outputs, and six 16-bit universal timers (TimerA) support 3 three-phase orthogonal encoding inputs and 48 independent Duty configurable PWM outputs. Eleven serial communication interfaces (I²C/UART/SPI), one OSPI interface, one CAN, four I²S supporting audio PLL, two SDIO, one USBFS Controller with on-chip FS PHY supporting Device/Host.

         The HC32F460 series supports a wide voltage range (1.8V - 3.6V), a wide temperature range (-40℃ - 105℃), and various low-power modes. In Run mode and Sleep mode, you can switch between ultra-high-speed mode (≤200MHz), high-speed mode (≤168MHz), and ultra-low-speed mode (≤8MHz). Supports fast wake-up in low-power mode. The fastest wake-up in STOP mode is up to 2μs, and in Power Down mode, it is up to 20μs.

Product features

- ARMv7-M architecture 32-bit Cortex-M4 CPU, integrated FPU, MPU, DSP supporting SIMD instructions, and Coresight standard debugging unit. The maximum operating main frequency is 200MHz. The Flash acceleration unit enables 0-wait program execution, achieving computing performance of 250DMIPS or 680Coremarks

      Built-in memory

- Up to 512KByte Flash memory, supporting security protection and data encryption

- MAX 192KByte of SRAM, including 32KByte of 200MHz single-cycle access high-speed RAM and 4KByte of Retention RAM

       Power supply, clock, reset management

- System power supply (Vcc): 1.8V - 3.6V

- Six independent clock sources: external master clock crystal oscillator (4-25 MHz), external secondary crystal oscillator (32.768kHz), internal high-speed RC(16/20 MHz), internal medium-speed RC(8MHz), internal low-speed RC(32kHz), and internal WDT-specific RC(10kHz)

- There are 14 reset sources, including power-on reset (POR), low voltage detection reset (LVDR), and port bit (PDR), each with an independent flag bit

        Low-power operation

- The peripheral functions can be independently turned off or on

- Three low-power modes :Sleep, Stop, and Power down modes

- In the Run mode and Sleep mode, it supports switching between ultra-high-speed mode, high-speed mode and ultra-low-speed mode

- Standby Power consumption :stop mode typ.90uA@25°C, Power down mode as low as 1.8uA@25°C

- In the -Power down mode, it supports wake-up of 16 ports, supports ultra-low power RTC operation, and retains data with 4KByte SRAM

- Quick wake-up in standby mode. The fastest wake-up time in Stop mode is 2us, and in Power down mode, it is 20us

      The peripheral operation support system significantly reduces the CPU processing load

- 8-channel dual-host DMAC

- USBFS dedicated DMAC

- Data Computing Unit (DCU)

- Support mutual triggering of peripheral events (AOS)

       High-performance simulation

- Two independent 12-bit 2.5MSPS ADCs

- A programmable gain amplifier (PGA)

- Three independent voltage comparators (CMP), supporting two internal reference voltages

- An on-chip temperature sensor (OTS)

       Timer

- Three multi-functional 16-bit PwM timers (Timer6)

- Three 16-bit motor PWM timers (Timer4)

- Six 16-bit universal timers (TimerA)

- Two 16-bit basic timers (Timer0)

       Up to 83 GPIOs

- Single-cycle CPU access, with a maximum output of 100 MHZ

- MAX 81 5V-tolerant IO

       MAX 20 communication interfaces

- Three I² Cs, supporting the SMBus protocol

- Four USArts, supporting ISO7816-3 protocol

- Four SPIs

- Four I²S, built-in audio PLL supports audio-level sampling accuracy

- Two SDIOs, supporting SD/MMC/eMMC formats

- One QSPI, supporting 200Mbps high-speed access (XIP)

- One CAN, supporting the ISO11898-1 standard protocol

- A USB 2.0FS with built-in PHY, supporting Device/Host

        Data encryption function

- AES/HASH/TRNG

Supported models

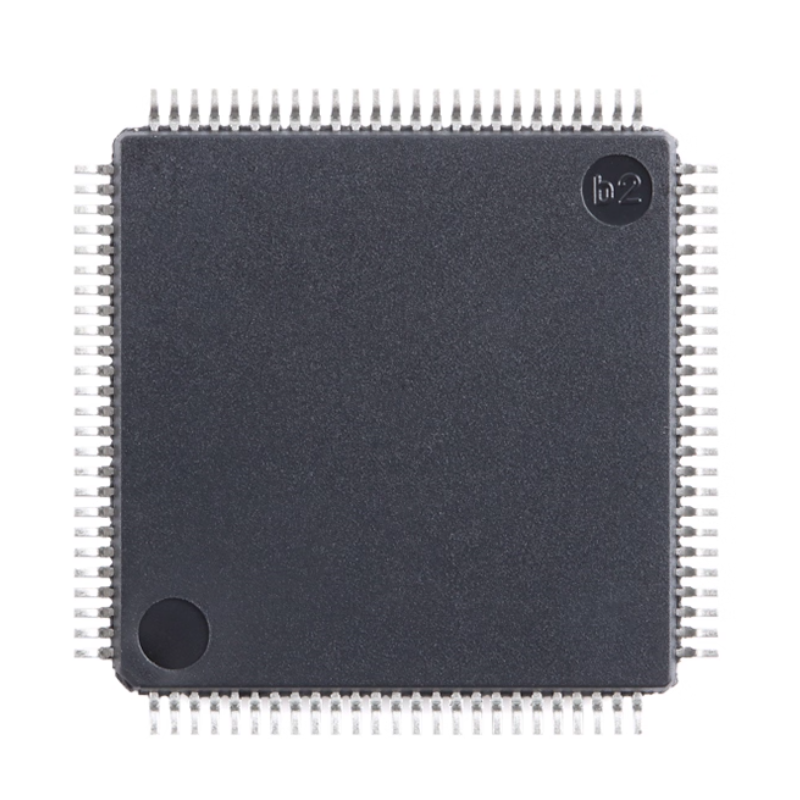

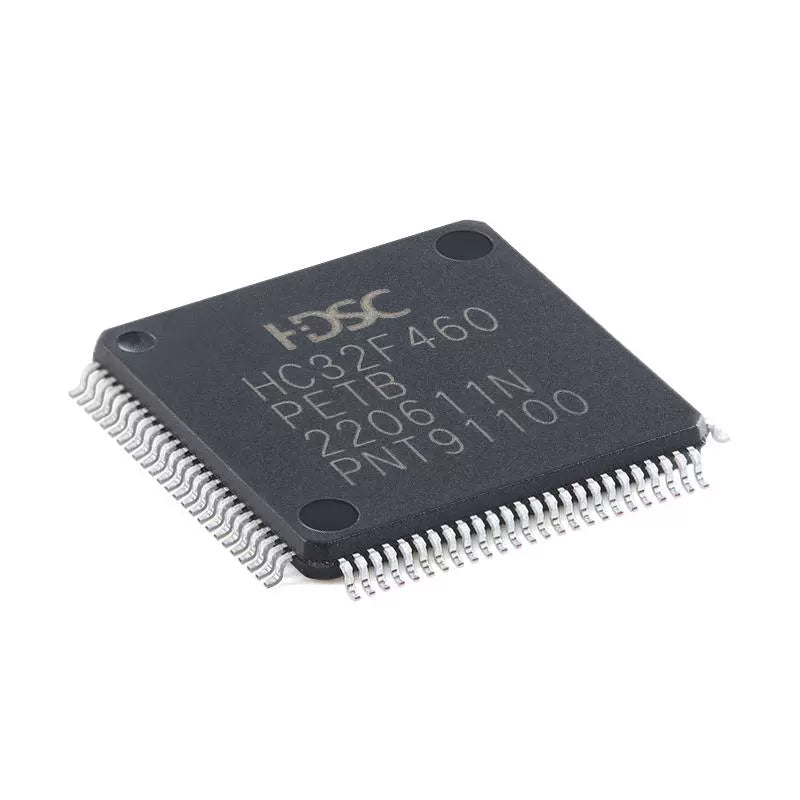

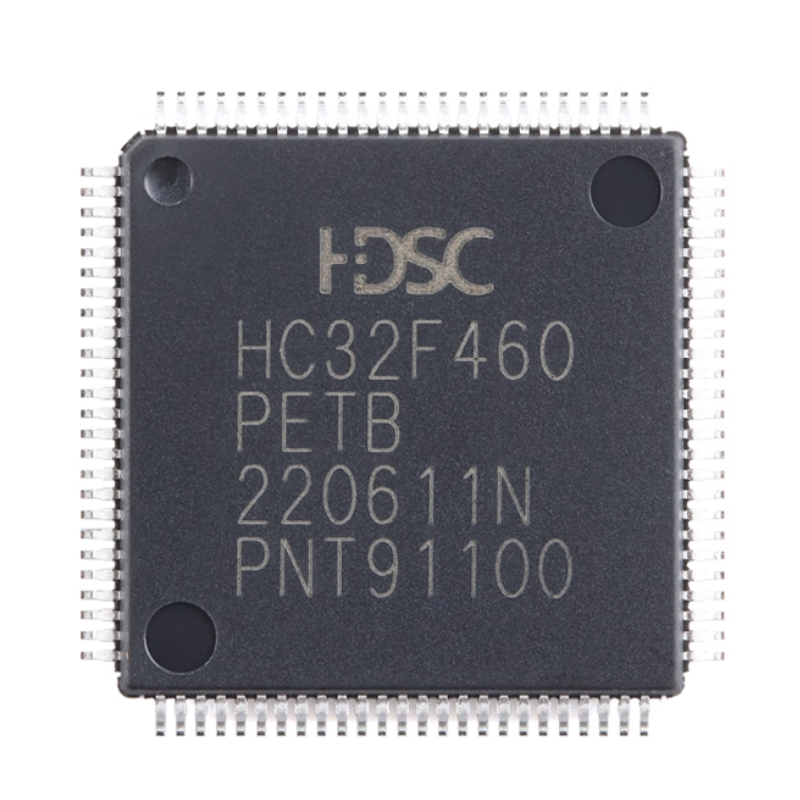

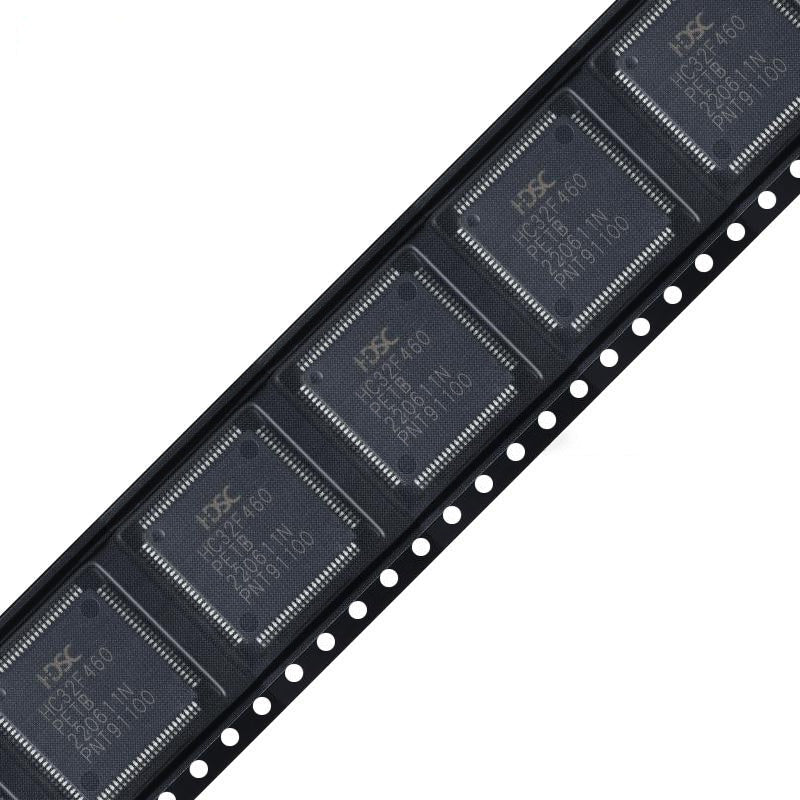

Products photography
