Original Genuine Direct-Plug PIC12F675-I/P 8-Bit Flash Memory Microcontroller DIP-8
Original Genuine Direct-Plug PIC12F675-I/P 8-Bit Flash Memory Microcontroller DIP-8
Regular price
¥5.90 CNY
Regular price
¥0.00 CNY
Sale price
¥5.90 CNY
Quantity
Couldn't load pickup availability
PIC12F675-I/P
Original genuine direct plug 8-bit flash microcontroller DIP-8
Product Description
This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOs flash-based 8-bit microcontroller packs Microchip's powerful PIC® MCU architecture into an 8-pin package and features 4 channels for the10-bit Analog-to-Digital (A/D) converter, 1 channel comparator and 128 bytes of EEPROM data memory.
This device is easily adapted for automotive, industrial, appliances and consumer entry level product applications that require field re-programmability.
Additional Features
- 128 bytes of EEPROM data memory
- Programmable pull-up resistors
- 4 oscilator selections including 4 MHz RC oscillator with programmable calibration and Power-On Reset.
Product parameter
Name |
Value |
Program Memory Type |
Flash |
Program Memory Size (KB) |
1.75 |
CPu Speed (MIPS/DMIPS) |
5 |
SRAM Bytes |
64 |
Timers |
1 x 8-bit,1 x 16-bit |
ADC Input |
4 ch, 10-bit |
Number of Comparators |
1 |
Temperature Range (℃) |
-40 to 125 |
Operating Voltage Range (V) |
2 to 5.5 |
Data EEPROM/HEF (bytes): 128
Pin Count: 8

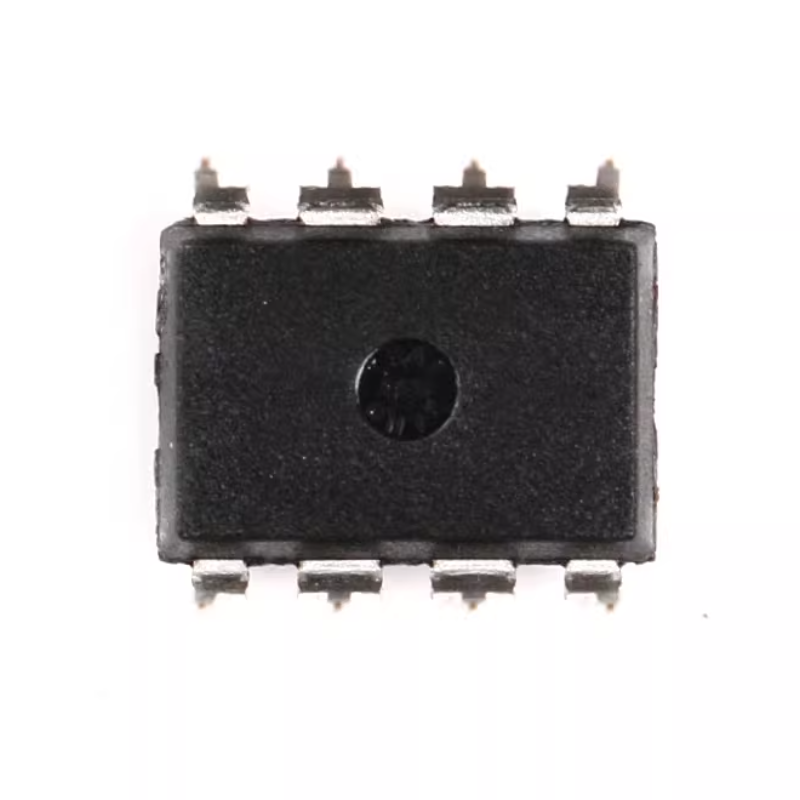

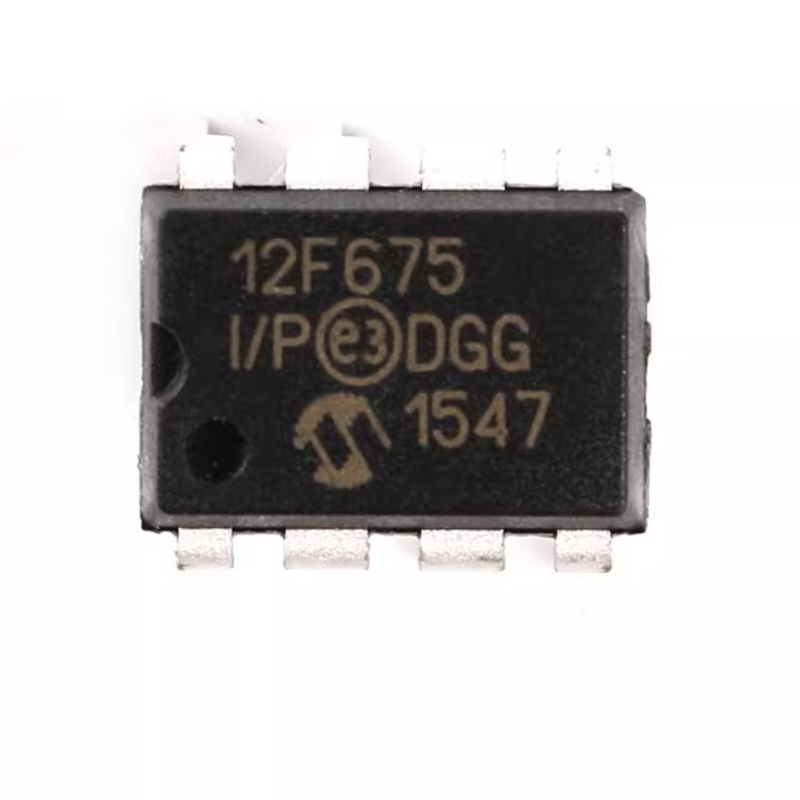

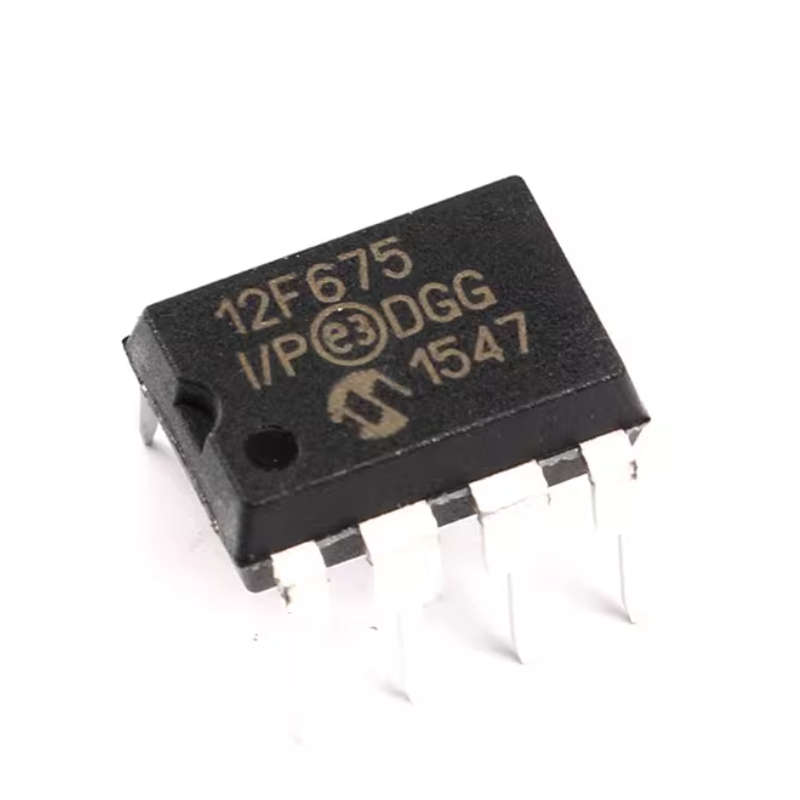

Products photography
