AT32F415CBT7/LQFP-48

ARM Cortex-M4 32-bit microcontroller -MCU

Product details

      Core :ARM® 32-bit Cortex® -M4CPU

- Maximum operating frequency of 150 MHZ, with a memory protection unit (MPU), built-in single-cycle multiplication and hardware division

- It has a DSP instruction set

      Memory

- Flash program/data storage ranging from 64 K bytes to 256K bytes

- The 18K-byte system memory can be used as a Bootloader or configured as a general user program data area at one time

- 32 K bytes of SRAM

- sLib: Set the specified primary storage area as a safe storage area for execution code. Code in this area can only be called but not read

      Clock, reset and power management

- 2.6 to 3.6 volts power supply and I/O pins

- Power-on/power-off reset (POR/PDR), Programmable Voltage monitor (PVD)

- 4 to 25 MHz oscillator

- It is equipped with a factory-calibrated 48 MHZRC oscillator (1% accuracy at 25°C and 2.5% accuracy from -40°C to +105°C), featuring an automatic clock calibration function (ACC)

- It is equipped with a 40 kHz RC oscillator with calibration

- A 32 kHz crystal oscillator with calibration function

       Low power consumption

- Sleep, shutdown, and standby modes

- V_BAT  powers the ERTC and 20 32-bit backup registers

      1 12-bit A/D converter, 0.5μs conversion time (up to 16 input channels)

- Conversion range :0 to 3.6V

- A set of sampling and holding functions

- Temperature sensor

      Two comparators

      DMA: 14-channel DMA controller

- Supported peripherals: Timer, ADC, SDIO, I²S, SPI, I²C, and USART

      Debugging mode

- Serial Wire Debugging (SVVD) and JTAG interface

      Up to 55 fast I/O ports

- 27/3955 multi-functional bidirectional I0 ports, all I/O ports can be mapped to 16 external interrupts: almost all I/O ports can tolerate 5V input signals

- All I/O ports are fast I/O, with the highest register access speed being f_AHB /2

      Up to 11 timers

- Up to 5 16-bit timers +2 32-bit timers, each timer with up to 4 channels and incremental encoder inputs for input capture/output comparison /PWM or pulse counting

- 1 16-bit PWM advanced control timer with dead zone control and emergency braking for motor control

- 2 watchdog timers (independent and windowed)

- System time timer: 24-bit self-decrement counter

      ERTC: Enhanced RTC with sub-second accuracy and hardware calendar

      Up to 12 communication interfaces

- 2 I²C interfaces (supporting SMBuS/PMBuS)

- Up to 5 USART interfaces (supporting ISO7816, LIN,IrDA interfaces and modulation and demodulation control)

- 2 SPI interfaces (50 M bits per second), both of which can be reused as I²S interfaces

- CAN interface (2.0B active), with built-in 256-byte dedicated SRAM

- USB 2.0 full-speed device/host /OTG controller, with 1280 bytes of dedicated SRAM built-in, supports Crystal-less in device mode

- SDIO interface

      CRC calculation unit

      The unique code of a 96-bit chip

Selection list

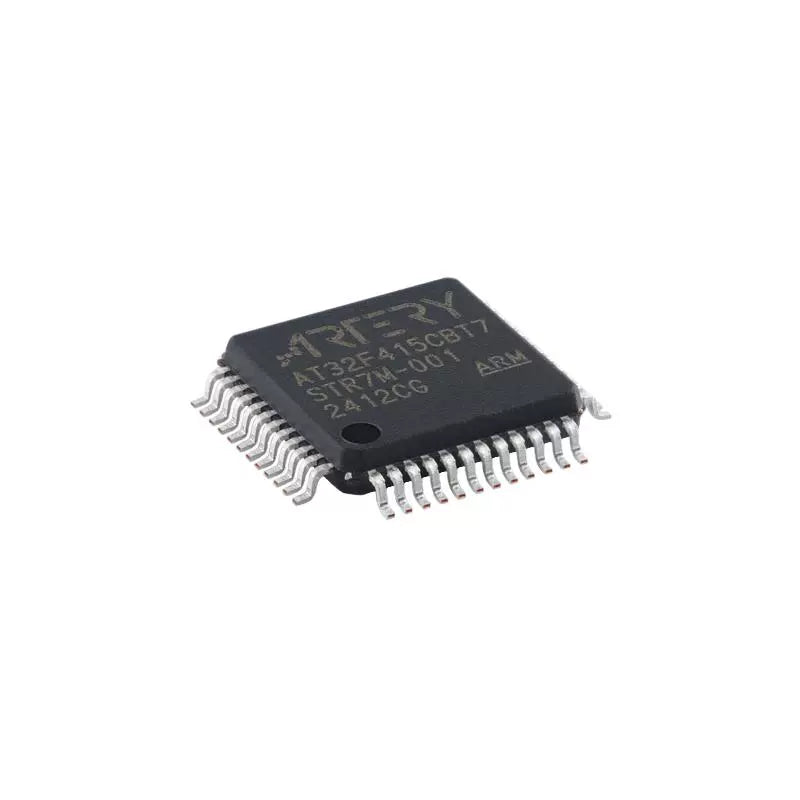

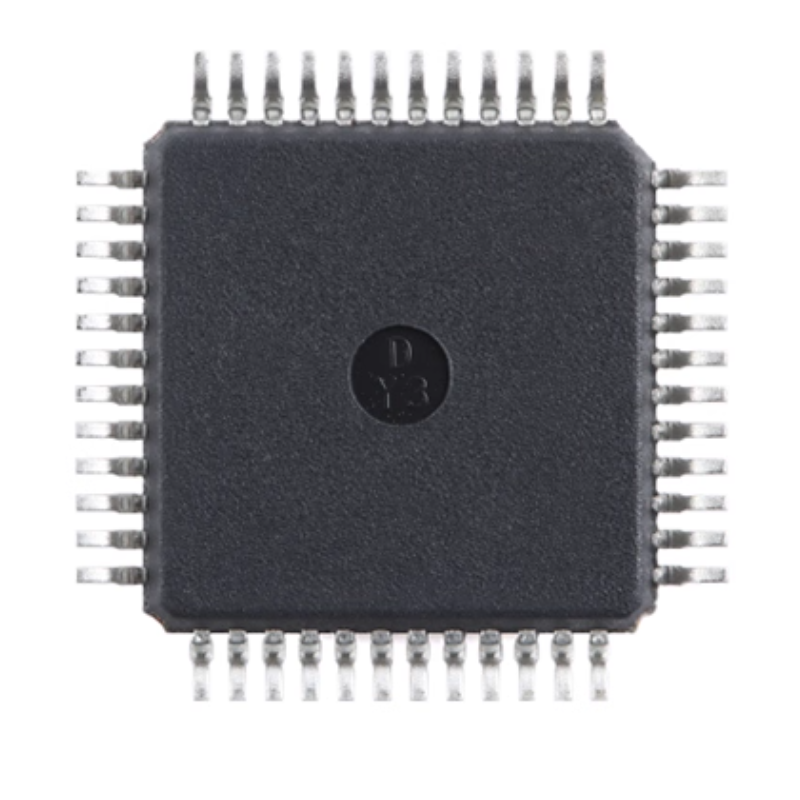

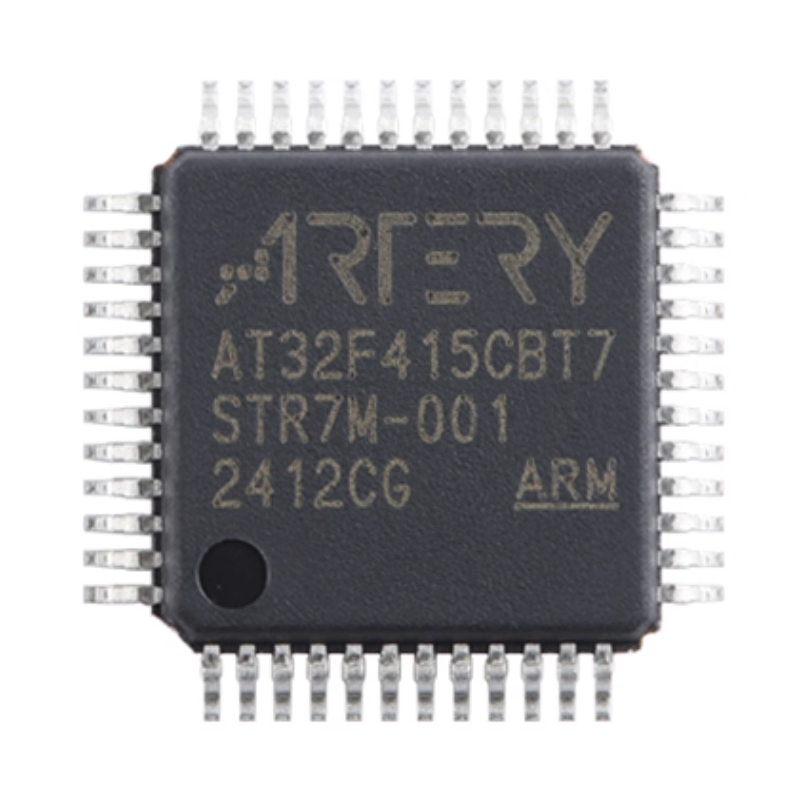

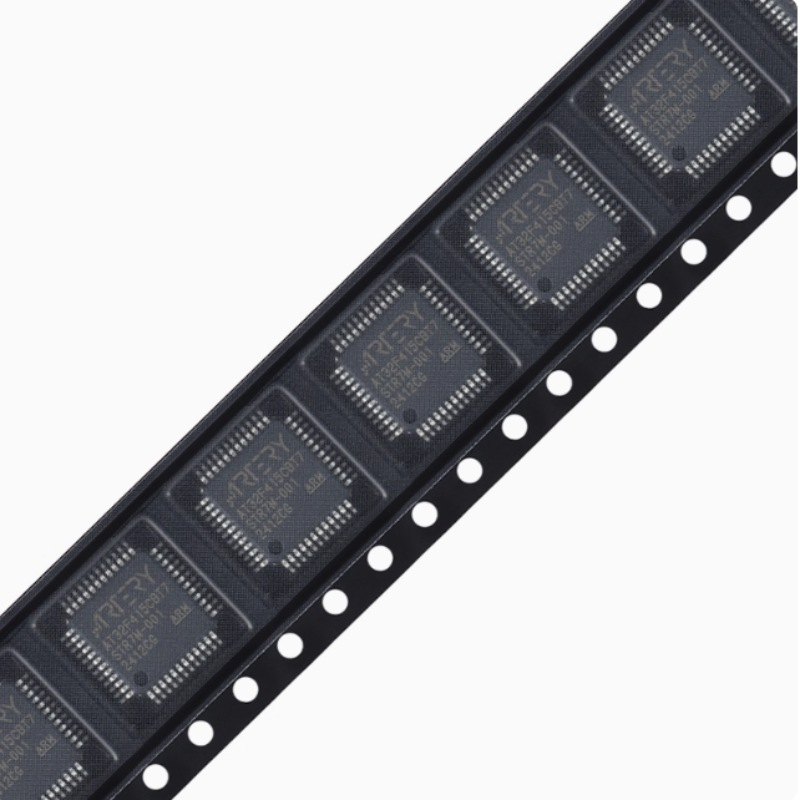

Products photography
