GD32F107VCT6/LQFP-100

ARM Cortex-M3 32-bit microcontroller -MCU chip

Product Description

         The GD32F107xx device belongs to the connectivity line of GD32 MCU Family. It is a new 32-bit general-purpose microcontroller based on the ARM® Cortex™-M3 RISC core with  enhanced connectivity performance and best ratio in terms of processing power, reduced power consumption and peripheral set. The Cortex™-M3 is a next generation processor core which is tightly coupled with a Nested Vectored Interrupt Controller (NVC), SysTick timer and advanced debug support.

          The GD32F107xx device incorporates the ARM® Cortex™ -M3 32-bit processor core operating at 108 MHz frequency with Flash accesses zero wait states to obtain maximum efficiency. It provides up to 1 MB on-chip Flash memory and up to 96 KB SRAM memory. An extensive range of enhanced I/Os and peripherals connected to two APB buses. The devices offer one 12-bit ADCs, up to two 12-bit DACs , up to ten general-purpose 16-bit timers, two basic timers plus two PWM advanced-control timer, as well as standard and advanced communication interfaces:  up to three SPIs, two I²Cs, three USARTs and two UARTs, two I²Ss,  two CANs, an USB OTG FS and an Ethernet MAC.

           The device operates from a 2.6 to 3.6 V power supply and available in -40 to +85°c temperature range. Several power saving modes provide the flexibility for maximum optimization between wakeup latency and power consumption, an especially important consideration in low power applications.

           The above features make the GD32F107xx devices suitable for a wide range of interconnection applications, especially in areas such as industrial control, motor drives, power monitor and alarm systems, consumer and handheld equipment, POS, vehicle GPS, LED display and so on.

Electrical characteristics

             The maximum ratings are the limits to which the device can be subjected without permanently damaging the device. Note that the device is not guaranteed to operate properly at the maximum ratings. Exposure to the absolute maximum rating conditions for extended periods may affect device reliability.

Absolute maximum ratings

Dc operating conditions

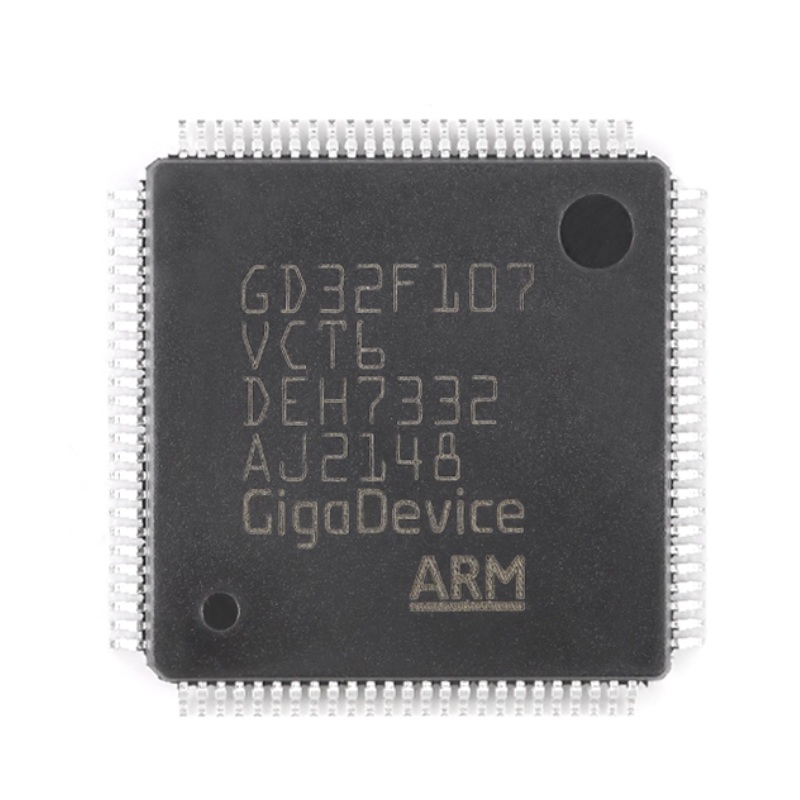

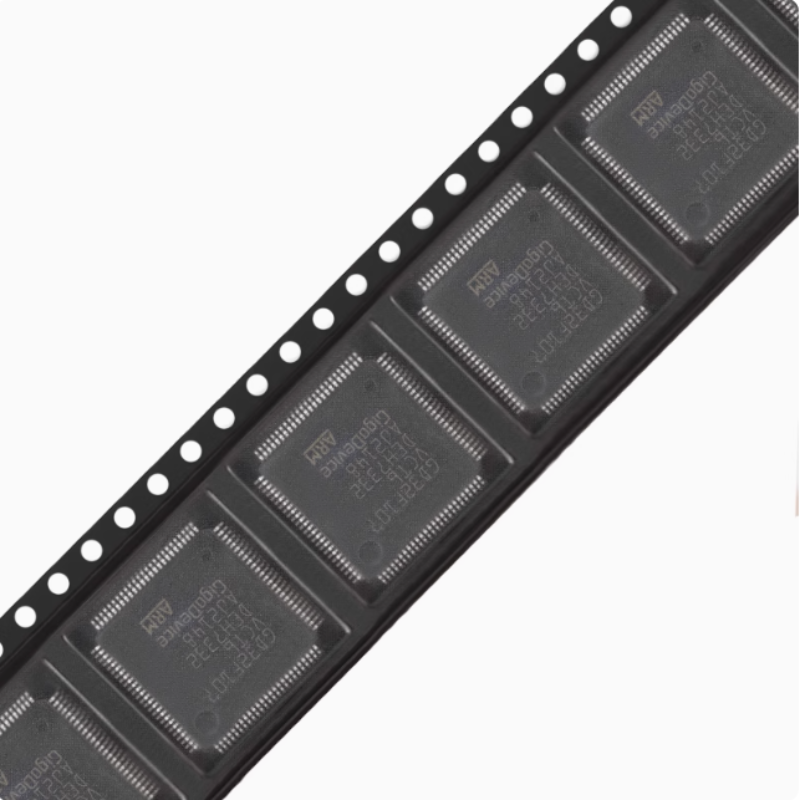

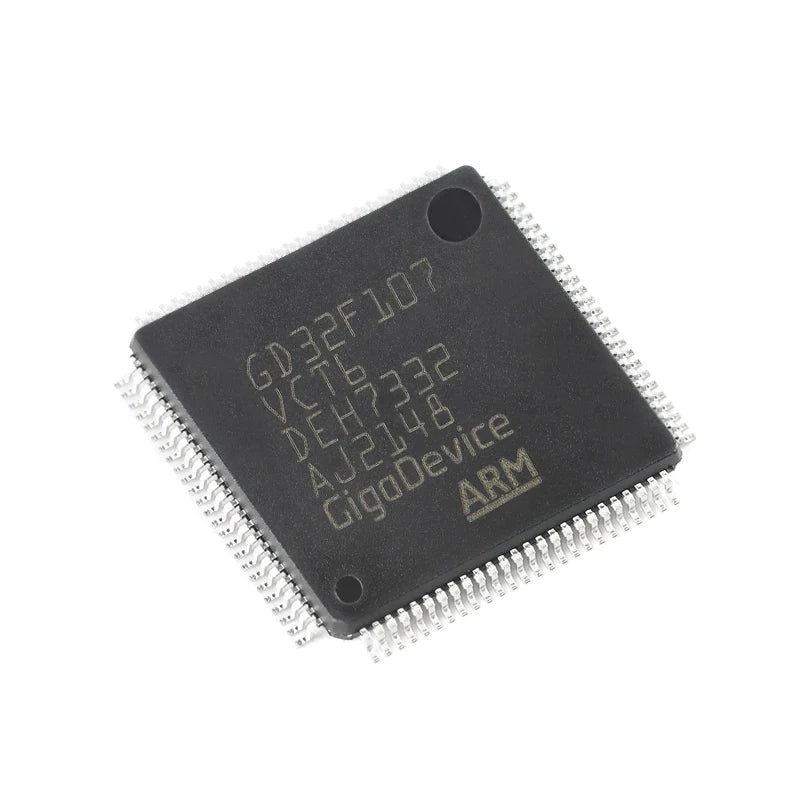

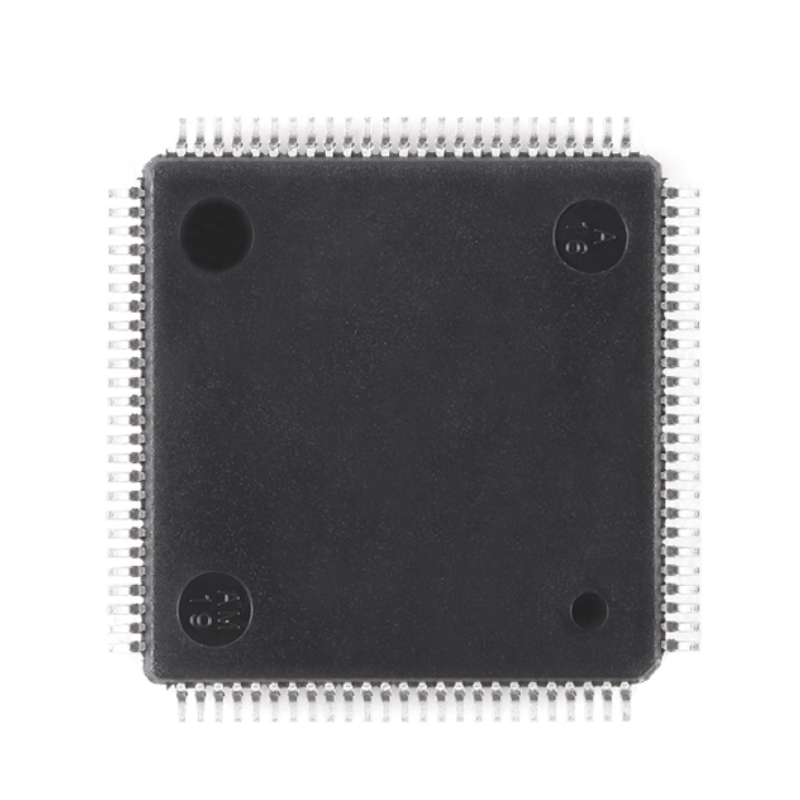

Products photography
