Original ESP32-C3-WROOM-02-N4 2.4GHz WiFi+ Bluetooth BLE5.0 Wireless Module

ESP32-C3-WROOM-02-N4

2.4GHz WiFi+ Bluetooth BLE5.0 wireless Module (85°C version)

Product details

MCU

• Built-in ESP32-C3 chip, RISC-V 32-bit single-core microprocessor, with a maximum main frequency of 160 MHZ

• 384 KB ROM

• 400 KB SRAM(of which 16 KB is dedicated to cache)

• 8 KB RTC SRAM


Wi-Fi

• Supports IEEE 802.11b /g/n protocol

• The frequency range of the working channel center is 2412 to 2484 MHZ

• It supports 20 MHz and 40 MHz bandwidths in the 2.4GHz band

• Supports 1T1R mode, with a data rate as high as 150 Mbps

• Wireless Multimedia (WMM)

• Frame aggregation (TX/RX A-MPDU, TX/RX A-MSDU)

• lmmediate Block ACK

• Fragmentation and defragmentation

• Transmission opportunity (TXOP)

• Beacon Automatic Monitoring (Hardware TSF)

• 4x Virtual Wi-Fi interface

• It simultaneously supports the Station mode, SoftAP mode, and Station+SoftAP mode of the basic infrastructure network (lnfrastructure BSS)

• Style and hybrid mode

• Antenna diversity


Bluetooth ®

• Low-power Bluetooth (Bluetooth LE):Bluetooth 5, Bluetooth mesh

• The supported rates are 125 Kbps, 500 Kbps, 1 Mbps and 2 Mbps

• Advertising Extensions

• Multiple Advertisement Sets

• Channel Selection Algorithm #2


Hardware Module

• interfaces :GPIO, SPI, UART, I2C, 12S, remote control peripheral, LED PWM controller, General DMA controller, TWA® controller (compatible with ISO 11898-1), USB serial port /TAG Controller, temperature sensor, SAR analog-to-digital converter.

• 40 MHz integrated crystal oscillator 4 MB SPl flash

• Operating voltage/Supply voltage :30-3.6V

• Working environment temperature :


         -85 °C version module :-40 to 85°C

         -105 °C version module :-40 to 105°C

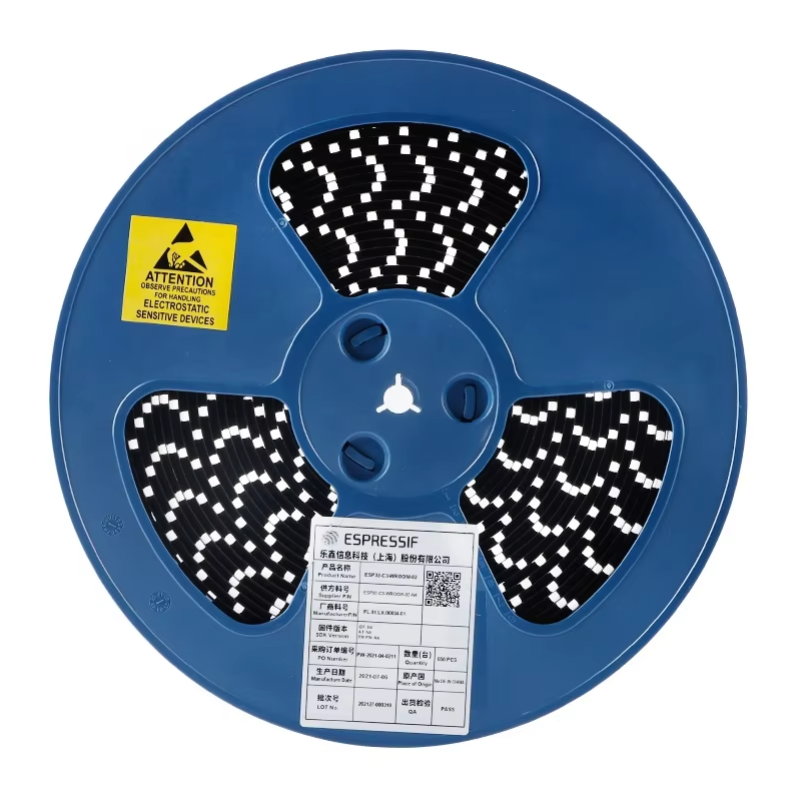

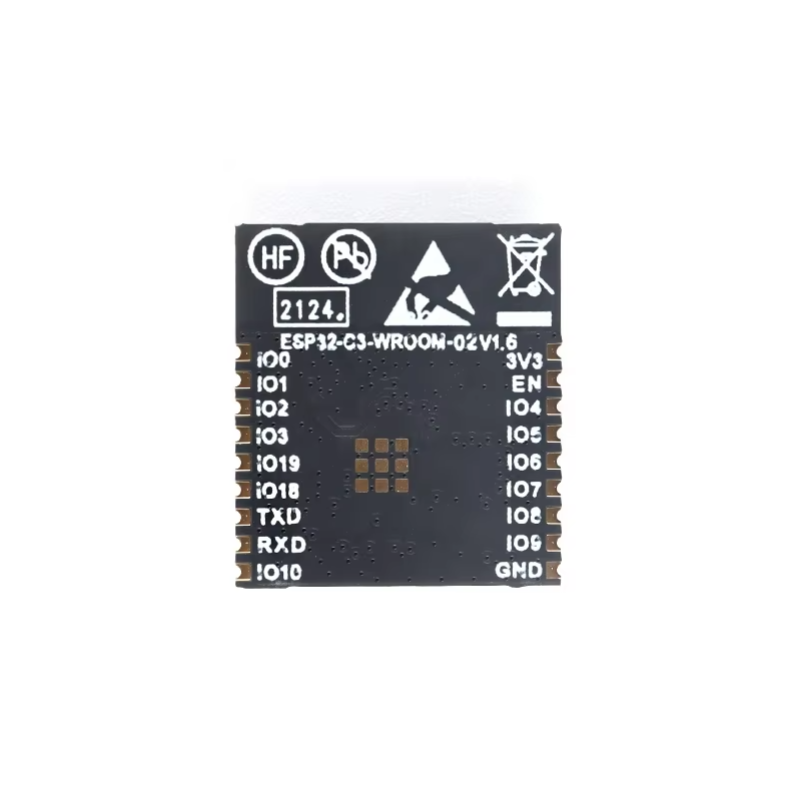

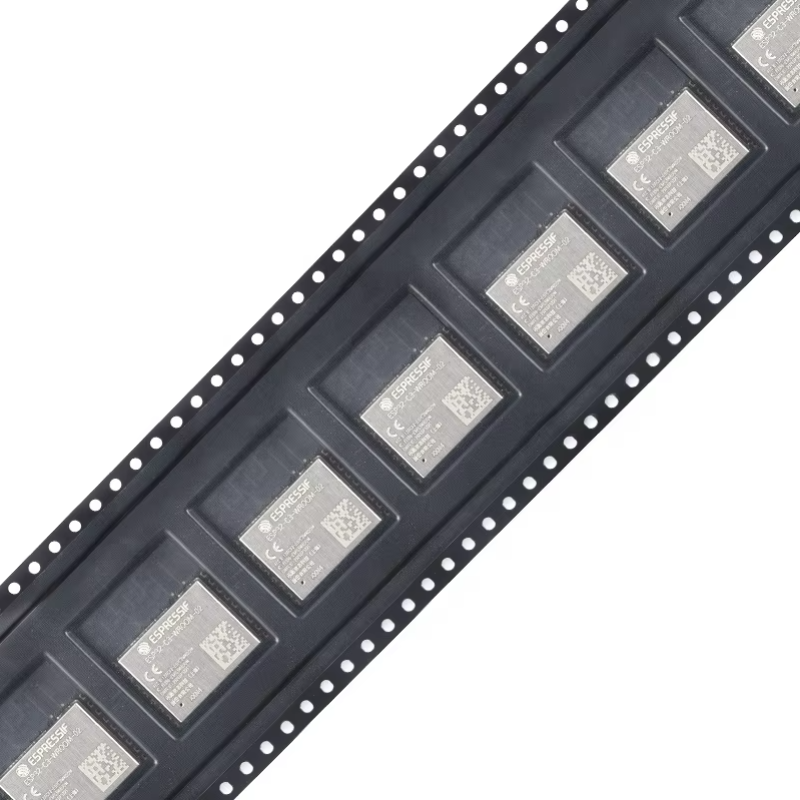

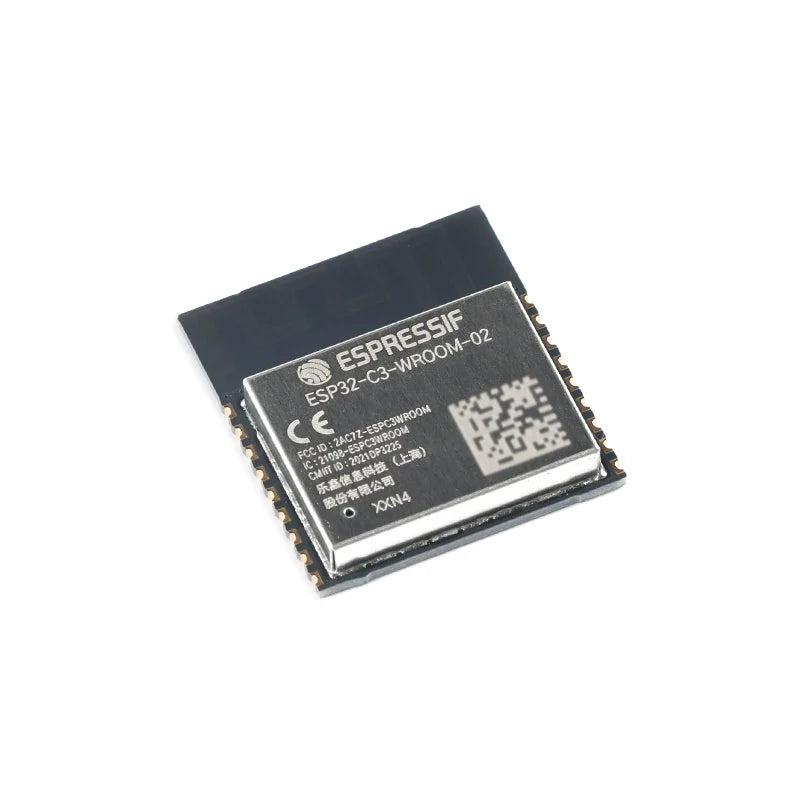

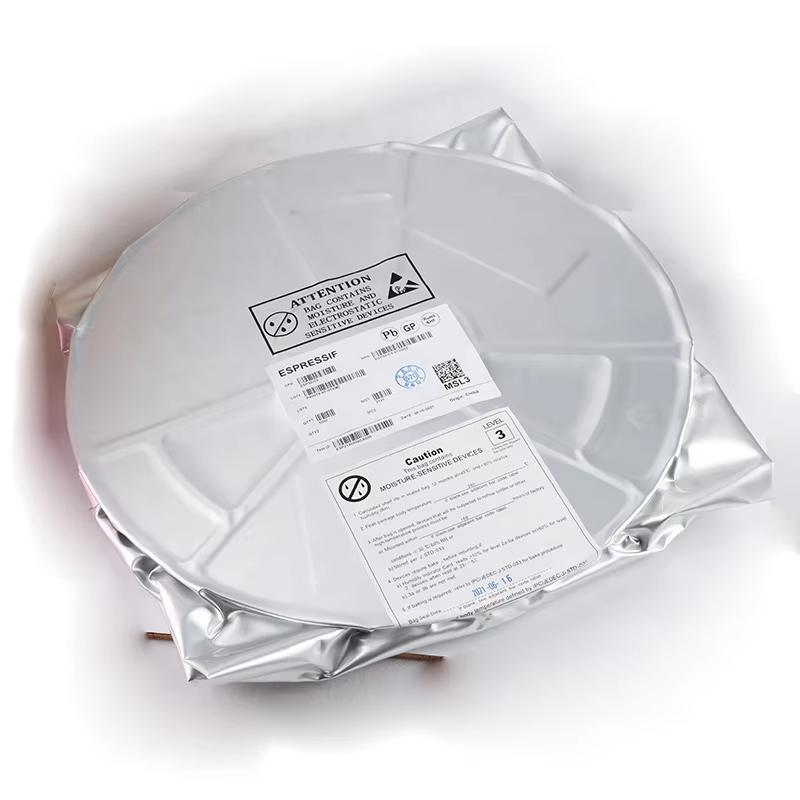

Products photography
