JDY-24M Bluetooth Networking Module Bluetooth Networking/MESH Networking/ZIGBEE/Bluetooth Transparent Transmission/BLE Bluetooth Transparent Transmission

JDY-24M Bluetooth networking module

Bluetooth networking, MESH networking, ZIGBEE Bluetooth transparent transmission, BLE Bluetooth BLE transparent transmission

Product introduction

       The JDY-24M networking Bluetooth function supports master-slave transparent transmission, iBeacon, BLE probe, iBeacon detection, MESH networking, with a maximum MESH networking capacity of up to 65535 devices. It adopts multi-hop wireless anti-collision technology, and the networking communication speed supports sending 17 bytes of data at 50ms. A single module supports both routing nodes and terminal nodes. Routing nodes support data relay (but do not support low power consumption), while terminal nodes support low power consumption (automatically sleep after data transmission by pressing a key to wake up). For JDY-24M networking, generally, only the networking NETID and short-circuit address need to be configured. Then, the module will automatically form a network. When the networking module communicates with the APP, it is equivalent to transparent transmission. This greatly facilitates users to develop apps that are compatible with the apps of older products.

Product parameter

1: Supports transparent data transmission with mobile phone apps (working current about 1mA).

2: Support high-speed transparent transmission between modules and their master and slave.

3: Supports iBeacon function (ultra-low power consumption).

4: Supports iBeacon probe function.

5: Supports BLE Bluetooth probe function.

6: Supports multi-link slave mode. Multi-link slaves can be connected to multiple mobile phones simultaneously for transparent transmission.

7: Supports Bluetooth MESH(serial port data communication for networking, output 10 control, input key control) networking.

8:MESH networking supports both response and non-response communication for data transmission.

9: Networking remote control.

10: Multi-connection master-slave hybrid connection.

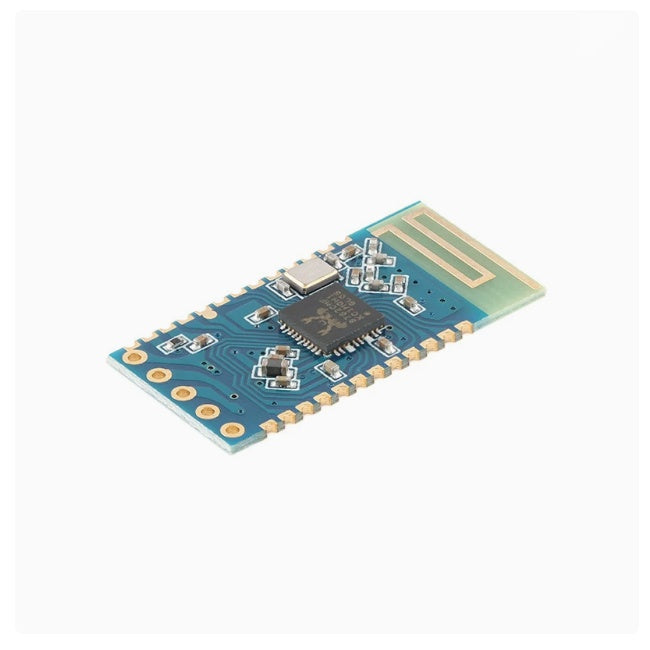

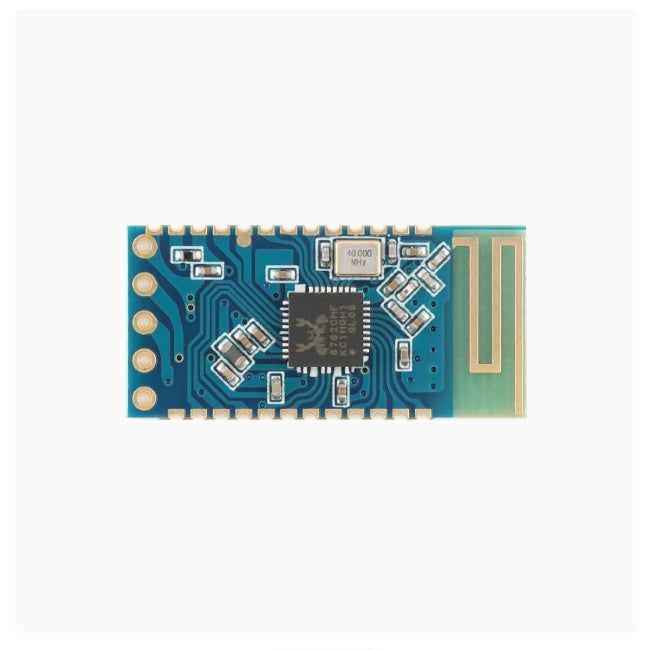

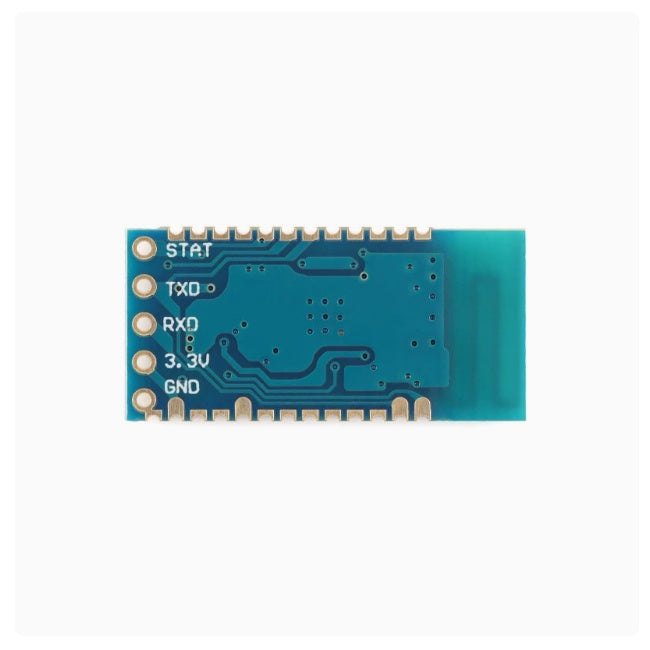

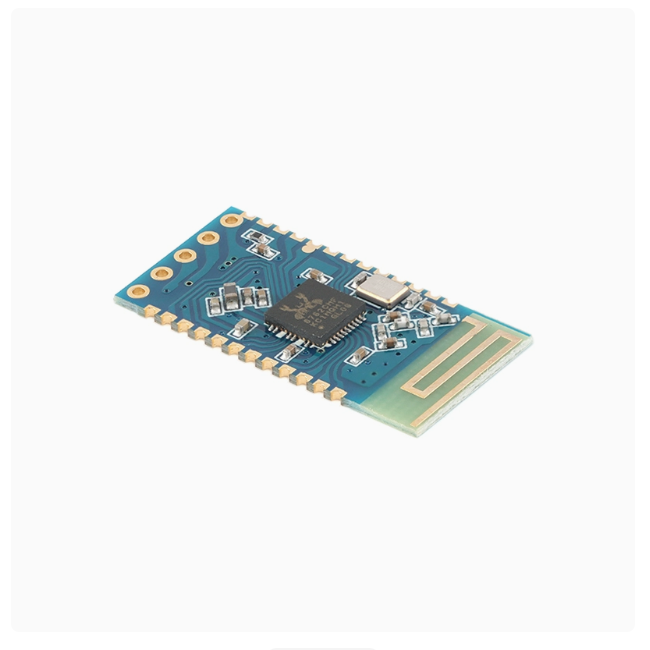

Product photography
