Human Body Sensing Module PIR Module Infrared Module Pyroelectric Human Body Infrared Sensor Imported PM-8

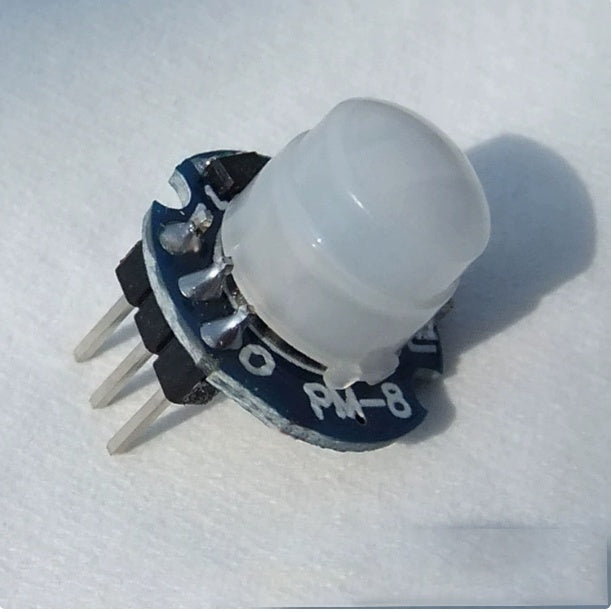

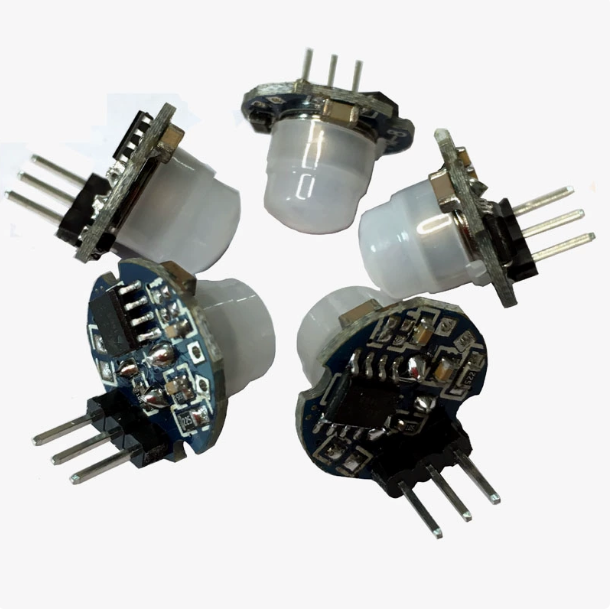

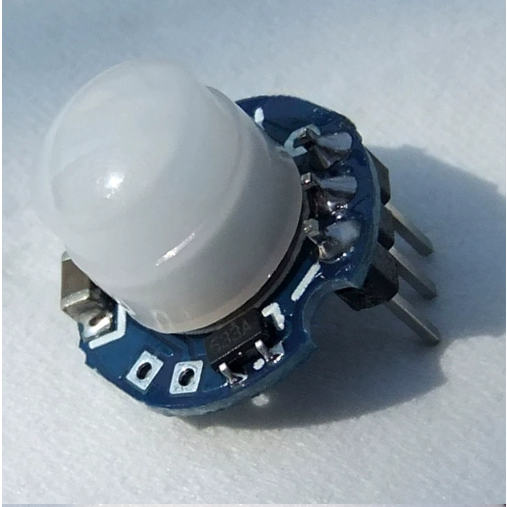

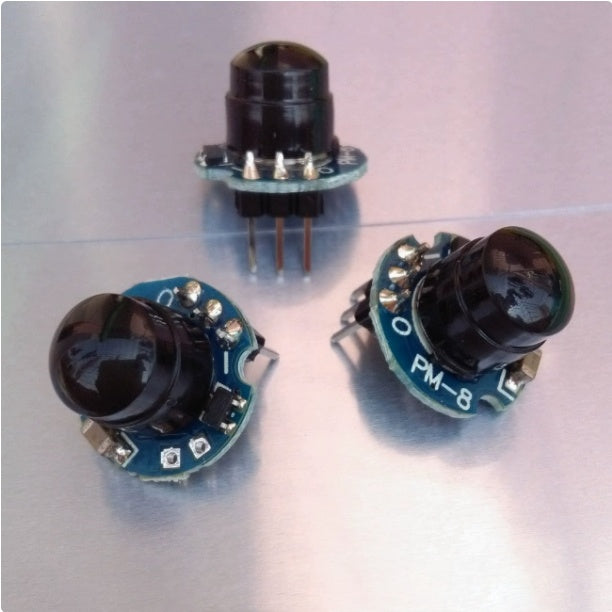

PM-8 Pyroelectric Human body infrared sensor module

Model :PM-8
Power supply: DC 3.3V-12V
Static current :30uA
Output capacity: 10mA
Supply distance: 0-5 meters. The missed inspection rate within 5 meters is less than 0.1%.
High-level holding time: Adjustable from 200 milliseconds to 5 minutes.
Sensing Angle: 120 degrees horizontally, 70 degrees vertically.

Purpose

   Human body sensor lights, alarms, security systems, access control cameras as needed, automatic detection in agriculture, forestry and mining, etc.
   This module features high sensitivity, excellent anti-interference performance, an internal locking time of 4 seconds, low static power consumption, compact size, and easy installation. It is pre-installed with lenses and pre-welded pin headers. Once equipped with a power supply, it can be used without any debugging.
