High-power 40A forward and reverse DC motor speed regulator brushed motor controller DC12V/24V/36V

¥35.00 CNY

~~¥0.00 CNY~~ ¥35.00 CNY

Sale Sold out

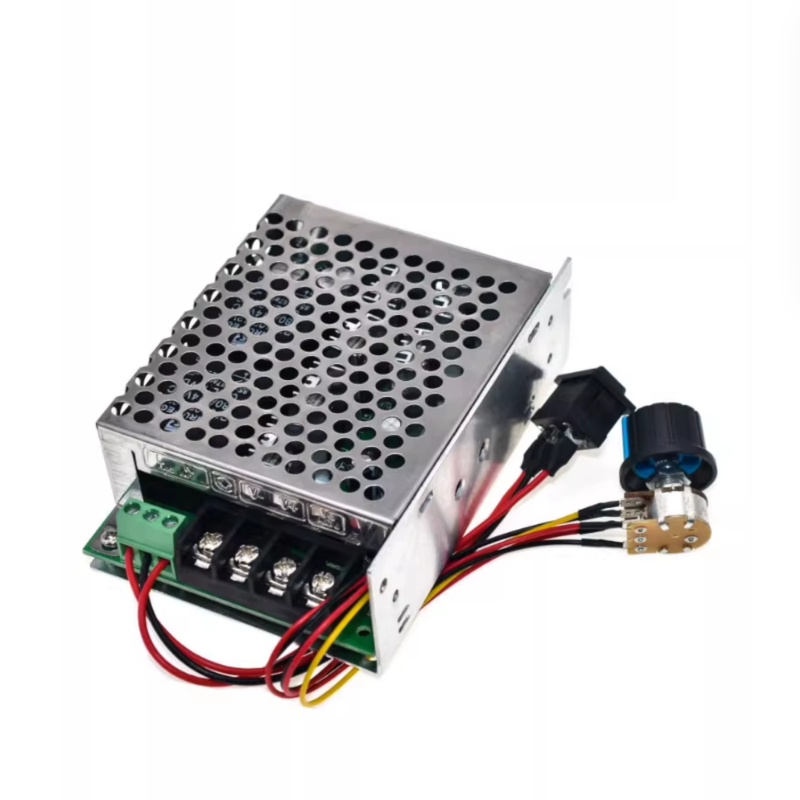

Specification 40A governor (without housing) 40A Governor (with housing)

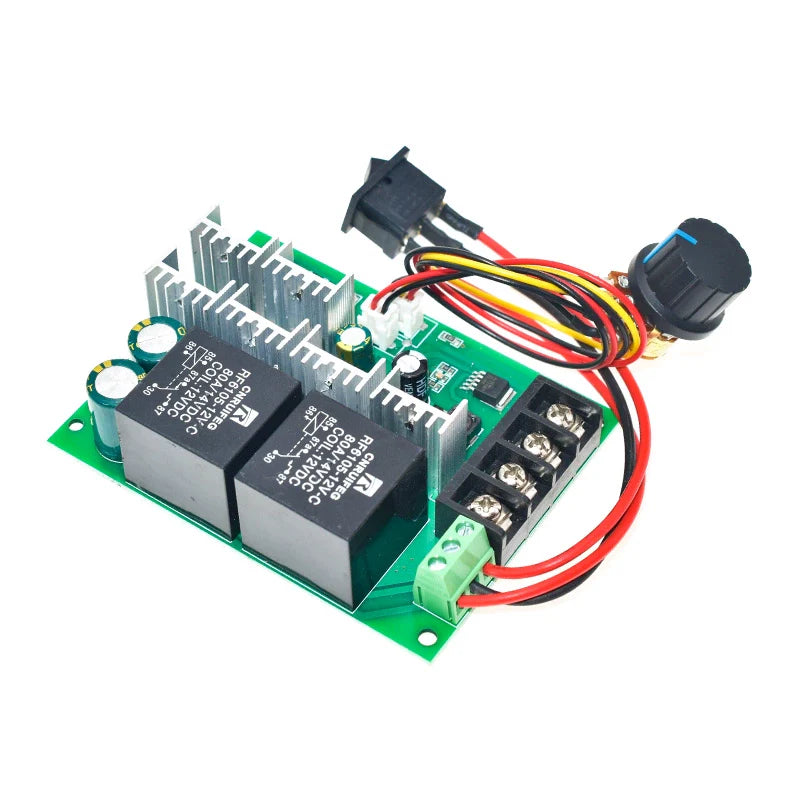

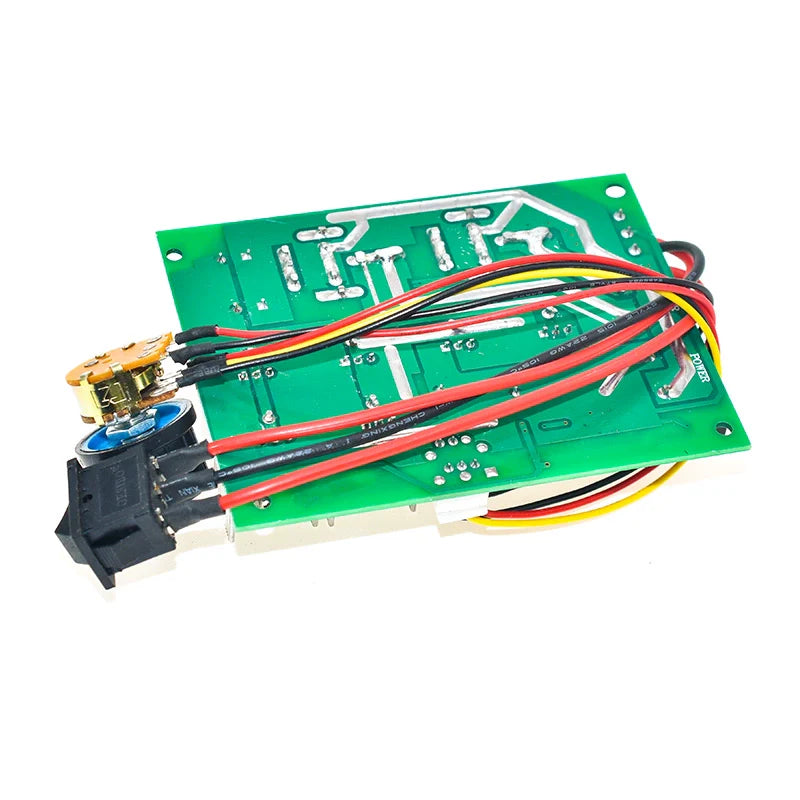

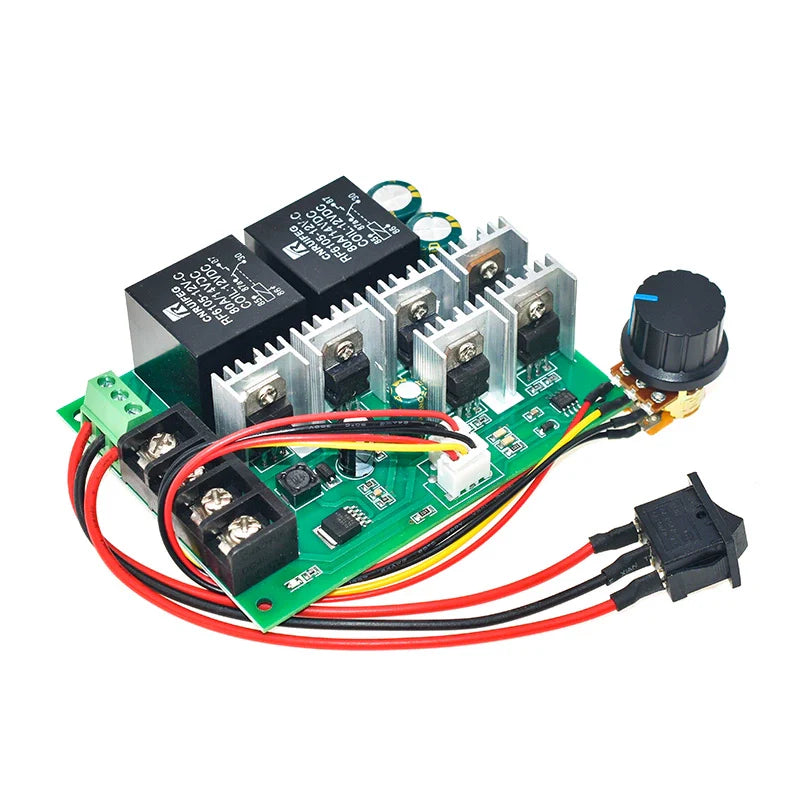

High-power 40A DC motor speed controller

It is suitable for brushed motors with a forward and reverse switch

Special reminder

Before powering on, make sure the positive and negative connections are correct. Do not touch the heat sink when wiring, as doing so may burn out the circuit board. Note that this is not a power module. It must be connected to a motor to adjust the speed. If the motor is not connected, the output measured by a multimeter will not change. It cannot be connected to alternating current.

Product parameters

Input voltage :DC10-50V

Output voltage: Linear under load

Output limit current :40A(20A for long-term use. Pay attention to maintaining unobstructed heat dissipation conditions of the module)

Maximum power :2000W

Speed regulation type: Current regulation

Speed regulation method: Potentiometer (linear)

Adjustable duty cycle range :0- 100%

Control frequency :25KHZ

Wiring type: Fence type terminal block

Knob wire length :20CM

Net product yield :245 grams
