0C4.0pd3.0 full-protocol fast charging module

SCPFCP Apple Fast Charging motherboard, mobile phone fast charging charger

       This model comes in two versions, 3516 and 3518. The difference is that 3516 does not support OnePlus' VOOC fast charging and OPPO's DASH fast charging, while 3518 does.

Product Introduction

       This product is compact in size (50*17*12mm) and is suitable for DIY by users! If used with a 12-volt power adapter, it can be used for fast charging of mobile phones on a daily basis. At the same time, it can be powered by batteries, solar panels, DC generators, etc. A great helper in outdoor, vehicle-mounted, power outage and other situations! This is something that mobile phone chargers and power banks can't do! Keep one at home. Having an additional charging method makes you feel more at ease!

1.Wide supply voltage :6 to 35V(The input voltage should be greater than the output voltage you need).

 2. High-performance input reverse connection protection: A dedicated MOSFET is used for reverse connection protection. Although the cost is high, the effect far exceeds that of diodes and it does not get hot! Even beginners don't need to worry about connecting it in reverse and burning it out!

 3. Equipped with fast charging status indicator lights: blue light indicates output, and red light indicates fast charging status!

product function

Fast charging protocol compatibility:

It adopts external MOSFETs and dual wires wound with iron-silicon-aluminum magnetic rings, featuring high efficiency and lower heat generation under the same charging power!

Double parallel low-resistance electrolytic capacitors plus six 1206 ceramic capacitors!

matters needing attention

1.For low-voltage and high-current fast charging, please use the original data cable. If you want to measure the charging voltage and current, be sure to use a USB meter with low internal resistance! Otherwise, it will affect the charging current!

2. The TYPE-C port is used for output charging. Charge your mobile phone or laptop with a C-TO-C/ Type-C male-to-public dual-head data cable!

3. OPPO and OnePlus phones need to be charged via USB ports! For the 3518 model, protocols such as QC4+/QC4.0/PD3.0 must use the TYPE-C port!

4. When the supply voltage is higher than 21 volts, the PD protocol at port C supports a maximum output of 20V 3A. The module is relatively small in size. Please ensure good ventilation and heat dissipation when using it for laptops with PD charging!

5. When both the USB port and the TYPE-C port are plugged into the mobile phone at the same time, both ports will output 5V!

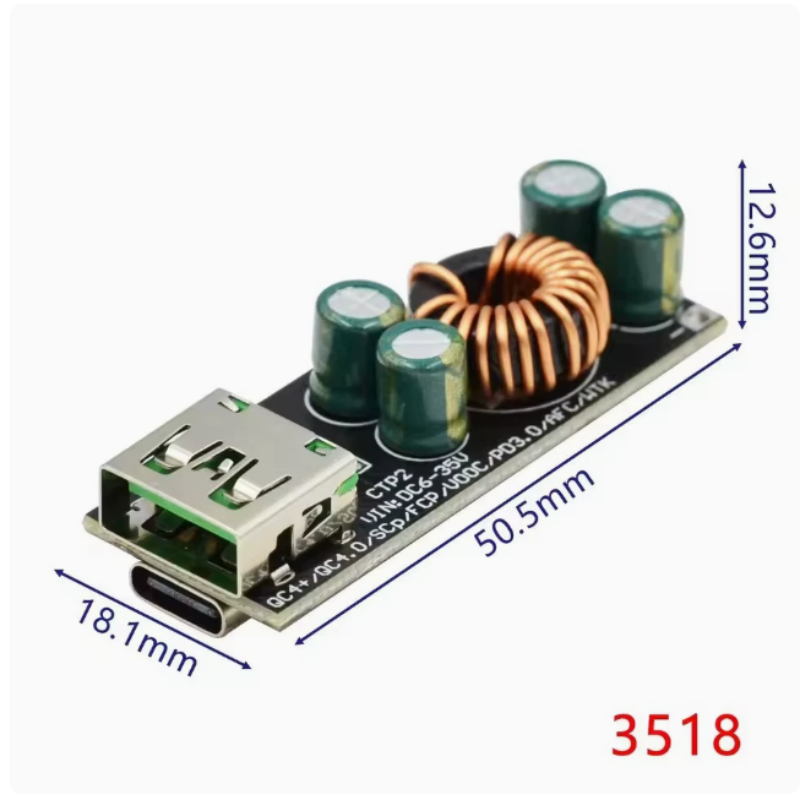

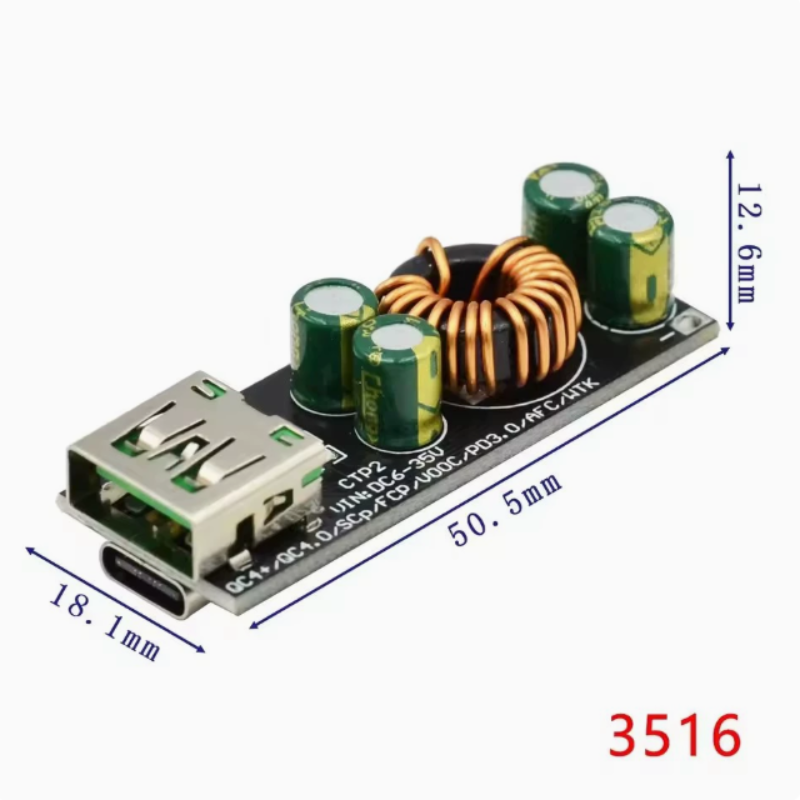

Product dimension

Note: Manual measurement may have errors. Please refer to the actual product.

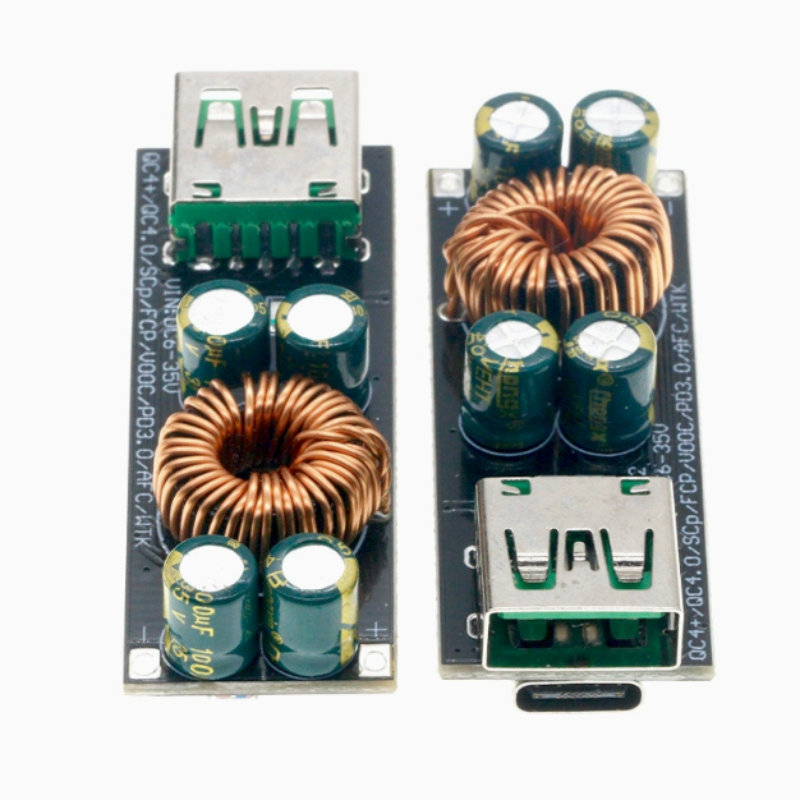

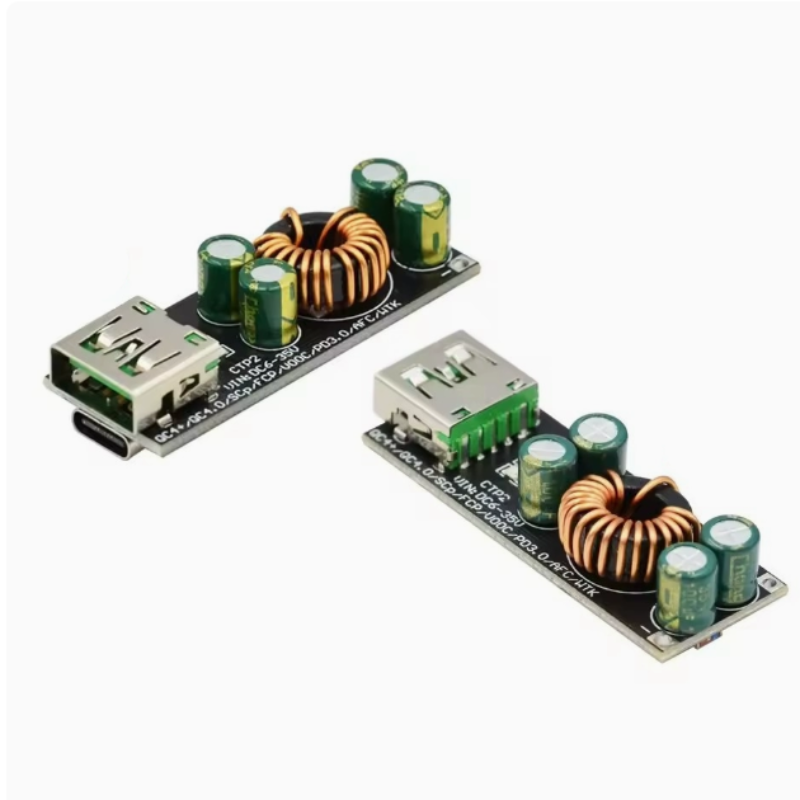

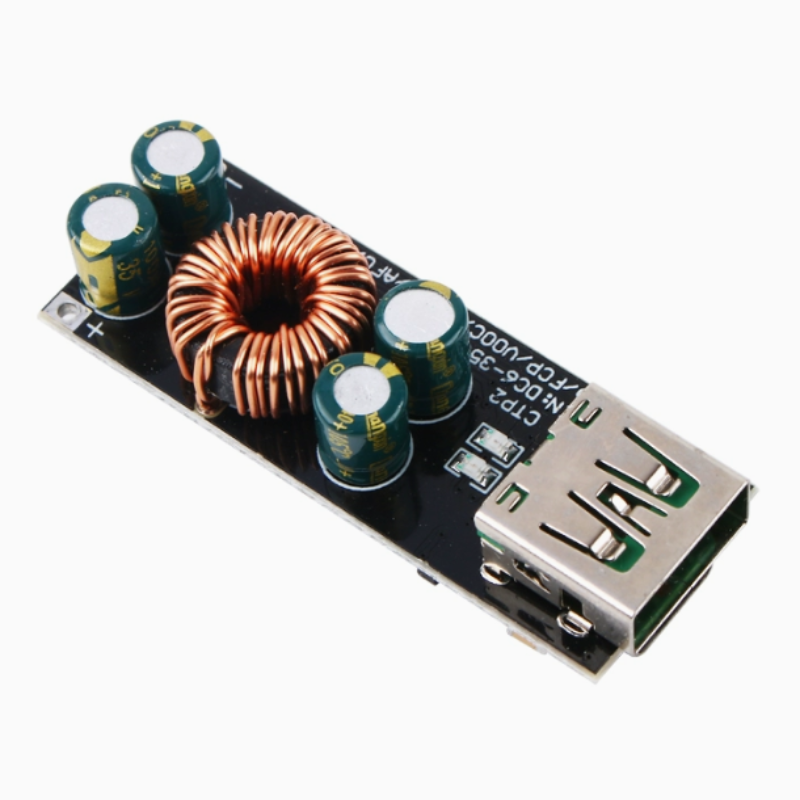

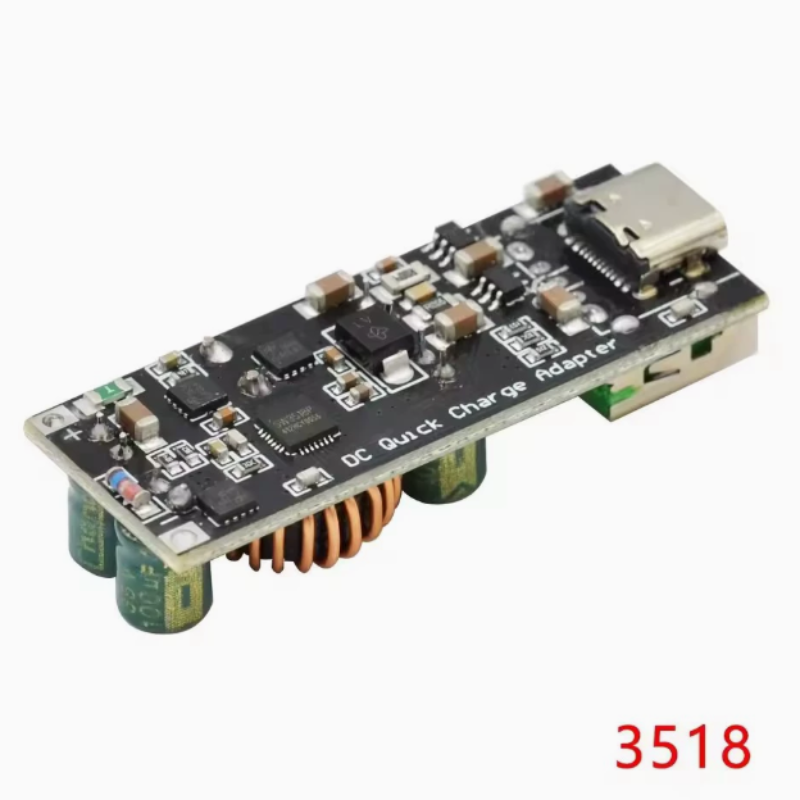

Products photography
