ESP32-S3 Development board series

Wi-Fi+ Bluetooth, with a rich variety of peripherals and multiple models to choose from, complete pecifications.



Product details

Overview of ESP32-S3-N8R2

1.Core module

Chip model :ESP32-S3.

Memory configuration

    16MB Flash(N16)

     8MBPSRAM(R8)

Wireless communication

      Wi-Fi: Supports IEEE 802.11b /g/n(2.4GHz)

      Bluetooth: Supports Bluetooth5 and Bluetooth Low Energy(BLE)

Encapsulation :ESP32-S3-N16R8 module

2. Hardware parameters

Processing capacity

       Dual-core 32-bit Xtensa LX7 processor

       The main frequency is as high as 240 MHz.

       Supports vector computing and DSP instruction sets, making it suitable for AI inference tasks.

Storage

        Built-in 512KB SRAM.

        It features an external 16MB Fash and 8MB PSRAM, which can be used for complex tasks and data caching.

Interfaces and peripherals

        GPIO: Up to 45 universal pins.

        ADC:14 12-bit ADC channels.

        UART:3, supporting serial communication.

        SPI/I2C/I2S: Supports common peripheral communication protocols.

        PWM: Applicable to motor control or LED dimming.

        USB: Supports native USB 2.0, OTG and CDC functions.

        RGB controller: Built-in LCD and LED controller.

Power management

        Supports 5V and 3.3V inputs.

        On-board power regulator (LDO), stable power supply.

Overview of ESP32-S3-N16R8

1.Core module

Chip model :ESP32-S3.

Memory configuration

        16MB Flash(N16)

        8MBPSRAM(R8)

Wireless communication

        Wi-Fi: Supports IEEE 802.11b /g/n(2.4GHz).

        Bluetooth: Supports Bluetooth5 and Bluetooth Low Energy(BLE).

2. Hardware parameters

Processing capacity

        Dual-core 32-bit processor.

        The main frequency is as high as 240 MHZ.

        Supports vector computing and DSP instruction sets, making it suitable for AI inference tasks.

Storage

        Built-in 512KB SRAM.

        It features an external 16MB Flash and 8MB PSRAM, which can be used for complex tasks and data caching.

Interfaces and peripherals

        GPIO: Up to 45 universal pins.

        ADC:14 12-bit ADC channels

        UART:3, supporting serial communication.

        SPI/I2C/I2S: Supports common peripheral communication protocols.

        PWM: Applicable to motor control or LED dimming.

        USB: Supports native USB 2.0, OTG and CDC functions.

        RGB controller: Built-in LCD and LED controller.

Power management

        Supports 5V and 3.3V inputs.

        On-board power regulator (LDO), stable power supply.

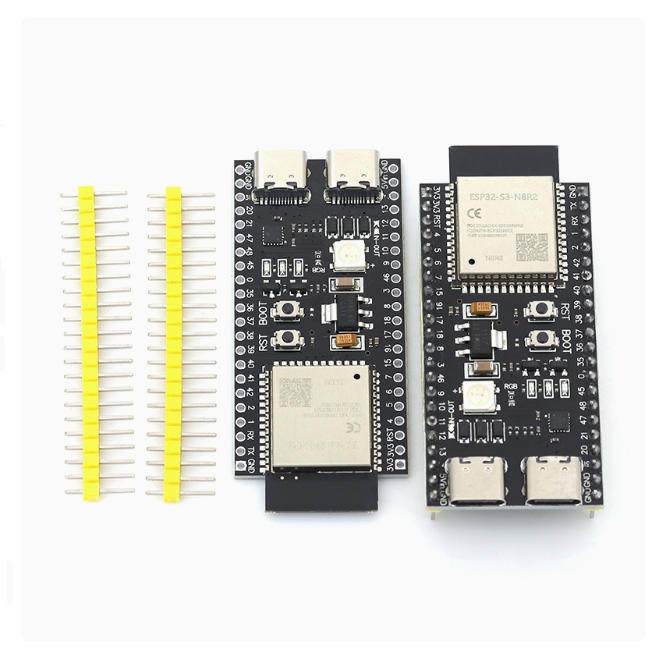

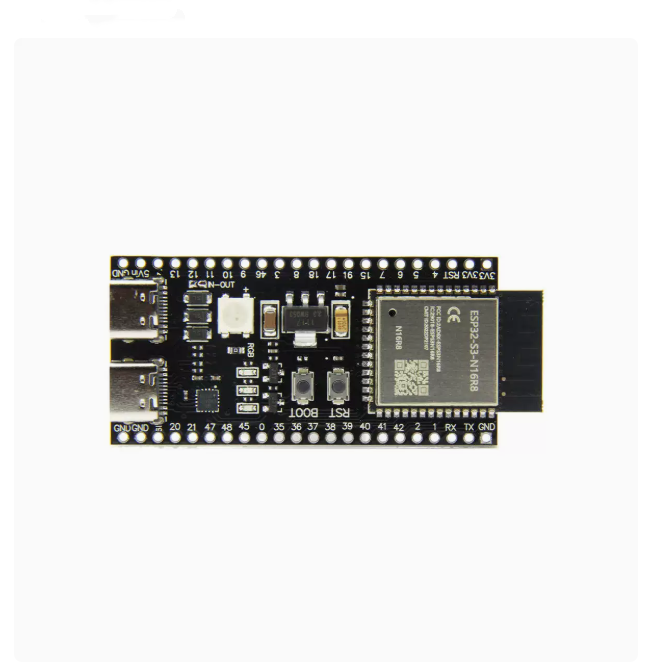

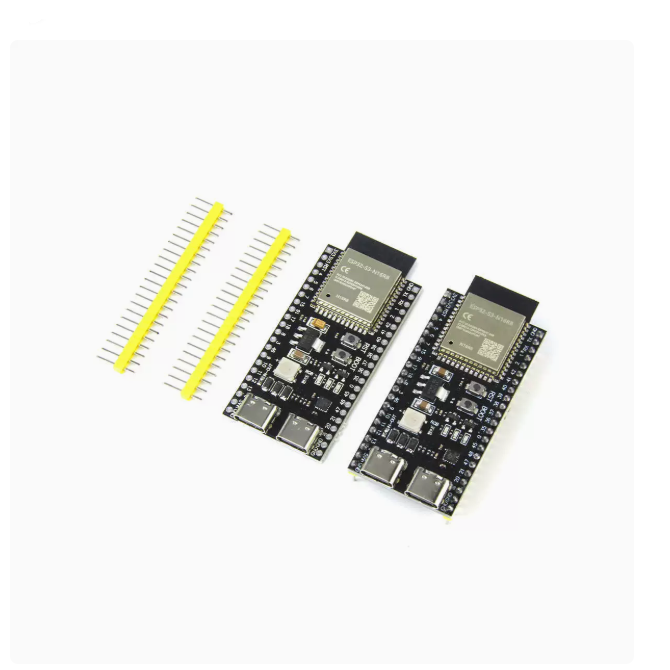

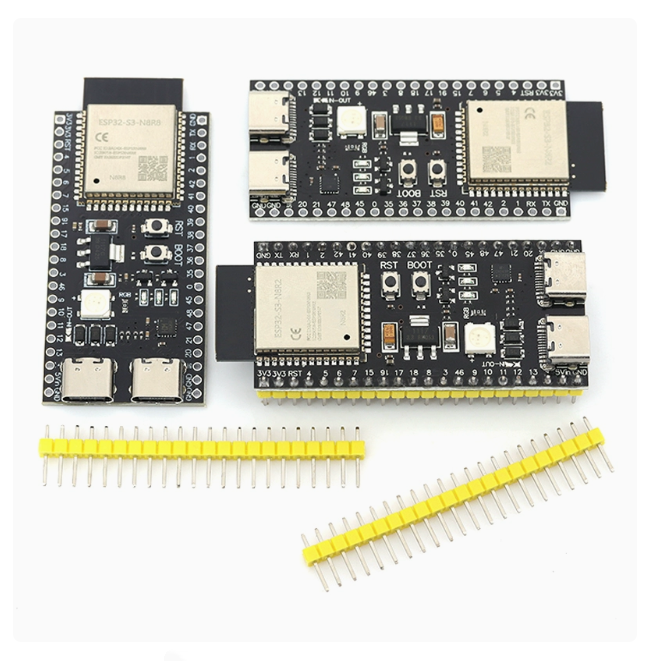

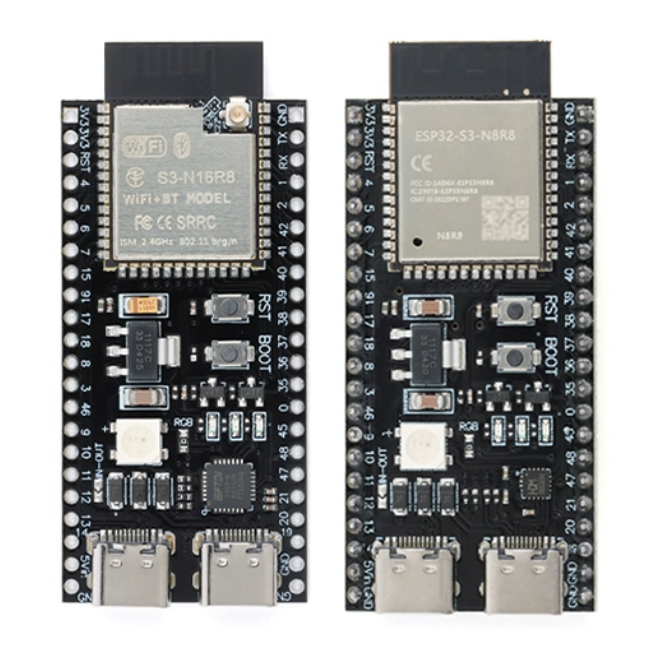

Products photography
