Esp32-C3 Development Board And ESP32 SuperMini Development Board ESP32 Development Board Wifi Bluetooth

¥8.37 CNY

~~¥0.00 CNY~~ ¥8.37 CNY

Sale Sold out

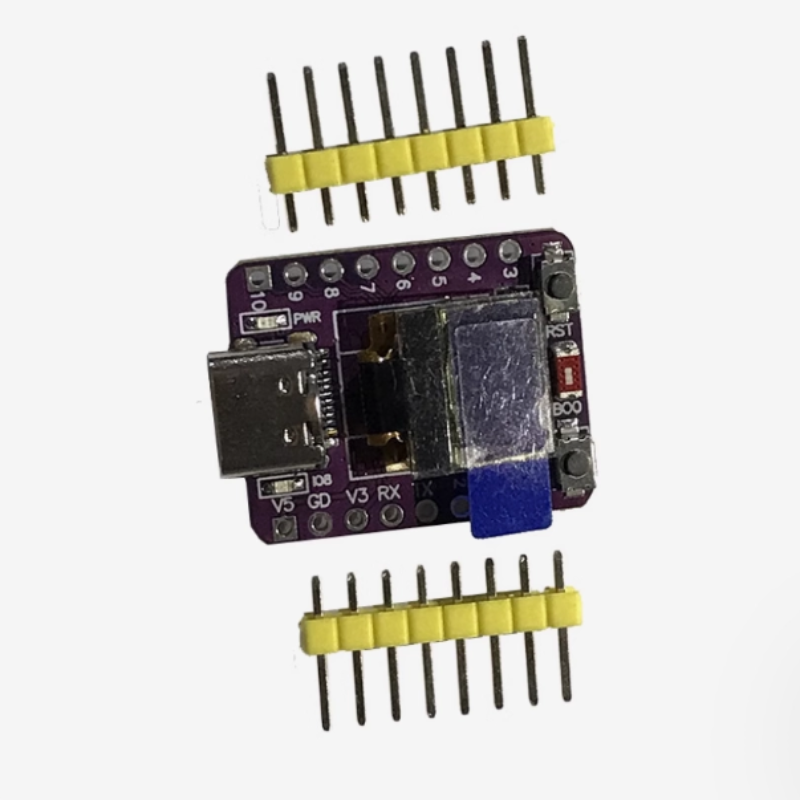

Specification The ESP32-C3 is equipped with 4M built-in flash memory The ESP32-C3 with flash memory is soldered and the header is ready The ESP32-C3 has no flash memory pin and is soldered ESP32-C3 development board ESP32C3 PRO MINI(Pin header without soldering) ESP32-C3 0.42-inch OLED development board Blue Board ESP32-C3 0.42-inch OLED development board

ESP32-C3 development board

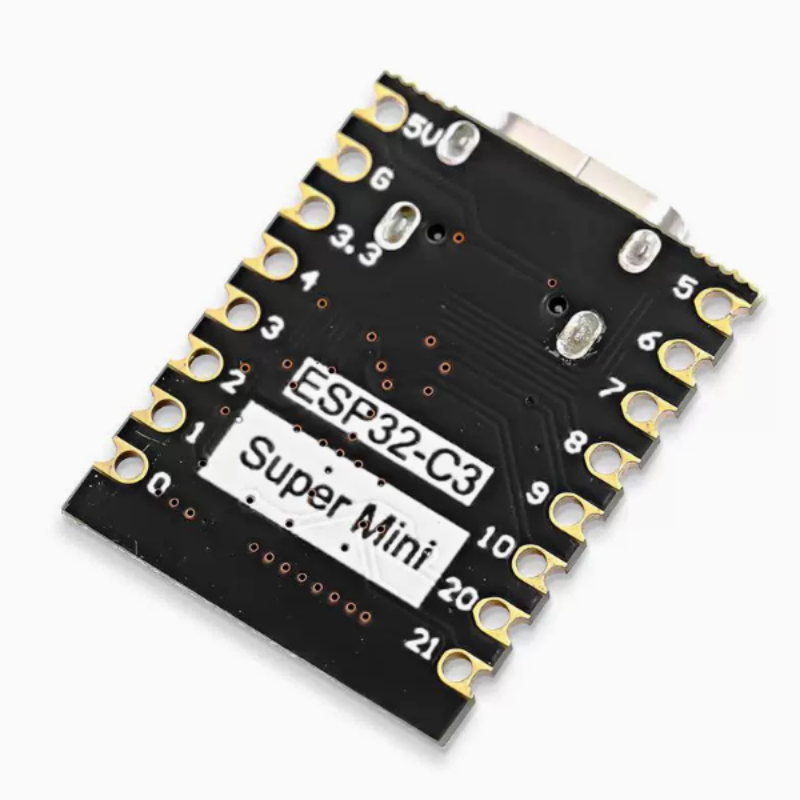

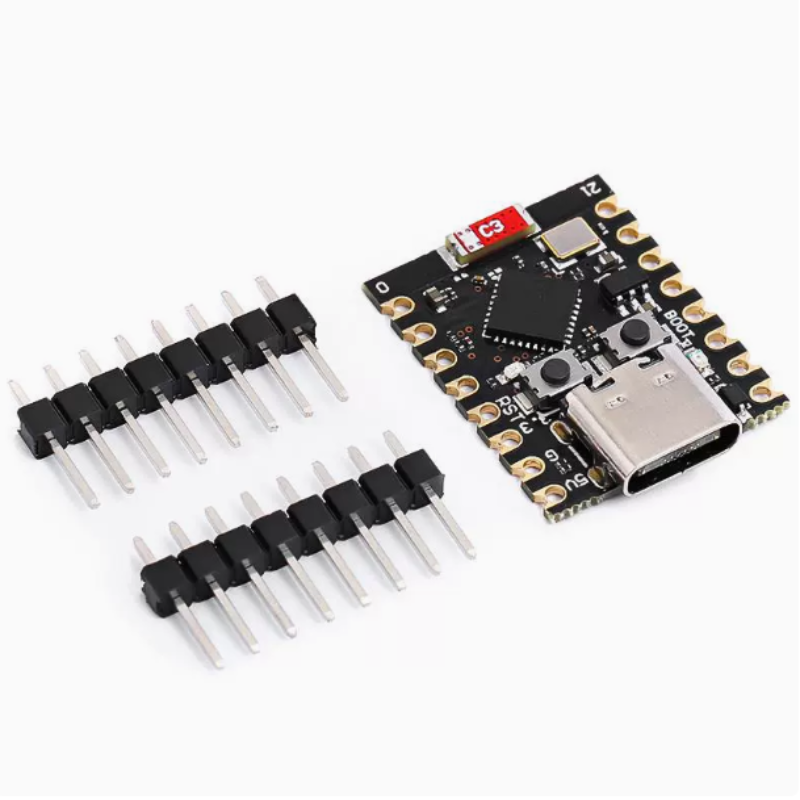

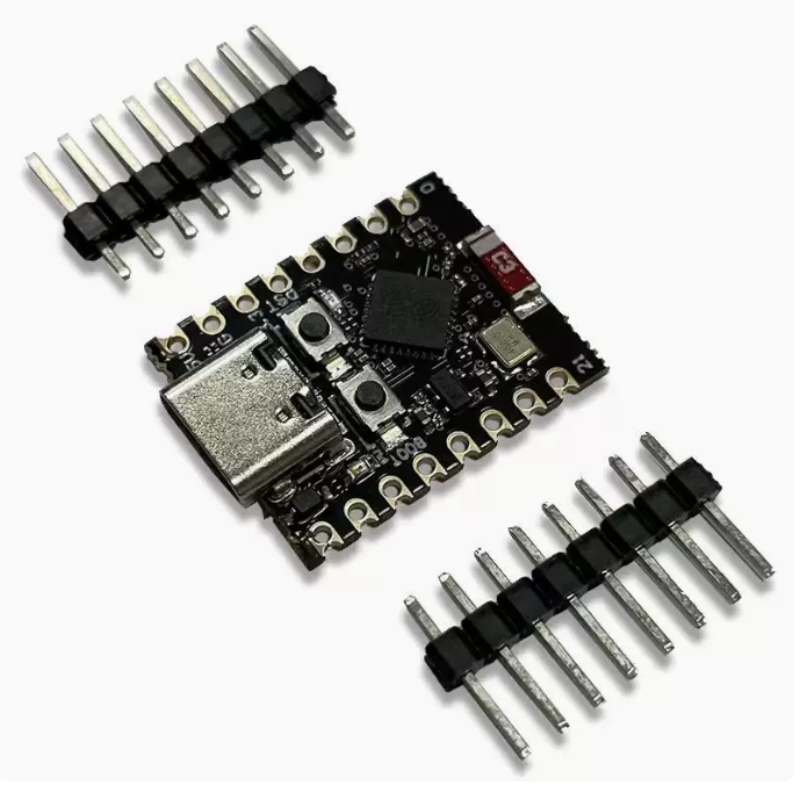

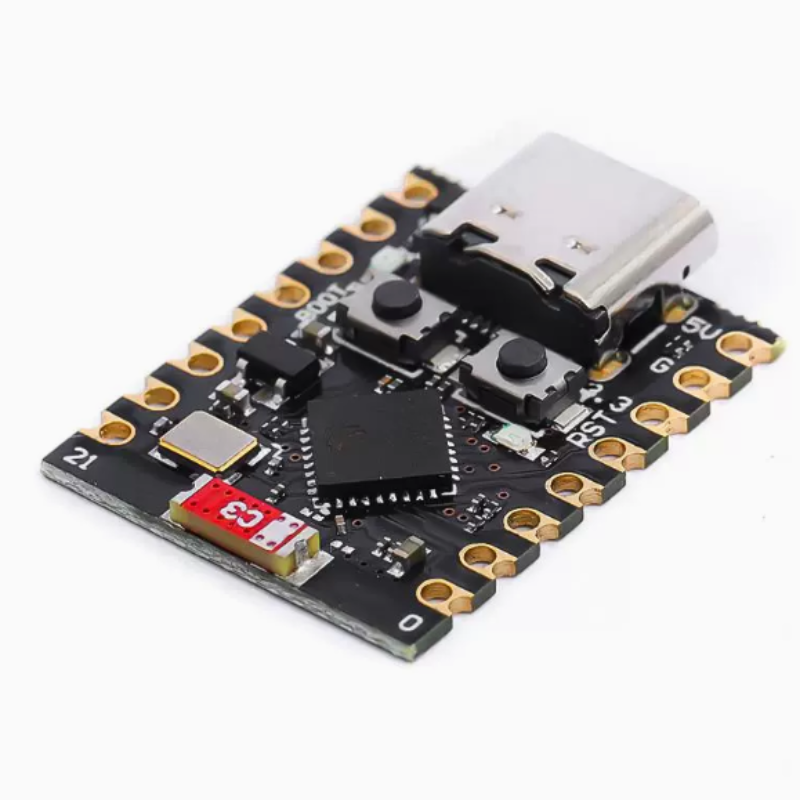

ESP32 SuperMini Development board with wifi and Bluetooth

Product Introduction

The ESP32C3Super Mini is an IoT mini development board based on the Espressif ESP32-C3 WiFi/ Bluetooth dual-mode chip. The ESP32-C3 is a 32-bit RISC-V CPU featuring an FPU(Floating-point Unit), capable of performing 32-bit single-precision operations and possessing powerful computing capabilities. It features outstanding RF performance and supports IEEE802.11b /g/n wiFi and Bluetooth 5(LE) protocols. This board is equipped with an external antenna to enhance the signal strength of wireless applications. It also features a compact and exquisite appearance and combines a single-sided surface mount design. It is equipped with a rich array of interfaces, featuring 11 digital I/O pins that can be used as PWM pins and 4 analog I/O pins that can be used as ADC pins. It supports four serial interfaces including UART, I2C and SPI. There is also a small reset button and a boot loader mode button on the board.

Product parameters

Powerful CPU	ESP32-C3, a 32-bit RISC-V single-core processor with an operating frequency as high as 160MHZ.
WiFi	802.11b/g/n protocol, 2.4GhHz, supports Station mode, SoftAP mode, SoftAP+Station mode, and hybrid mode.
Bluetooth	Bluetooth 5.0
Ultra-low power consumption	The power consumption for deep sleep is approximately 43μA.
Rich board resources	400KBSRAM, 384KBROM, and built-in 4Mflash.
Chip model	ESP32C3FN4
Ultra-small size	As small as a thumb (22.52x18mm) Classic shape, suitable for wearable devices and small projects.
Reliable security features	An encryption hardware accelerator supporting AES-128/256, hash, RSA, HMAC, digital signature and secure boot.
Rich interfaces	1xI2C, 1xSPI, 2xUART, 11xGPIO(PWM), 4xADC.
On-board LED blue light	GPI08 pin
