ATD5833/TMC2225/TMC2208/TMC2209 Ultra-Quiet Stepper Motor Driver Module 3D Printer Accessories

¥10.80 CNY

~~¥0.00 CNY~~ ¥10.80 CNY

Sale Sold out

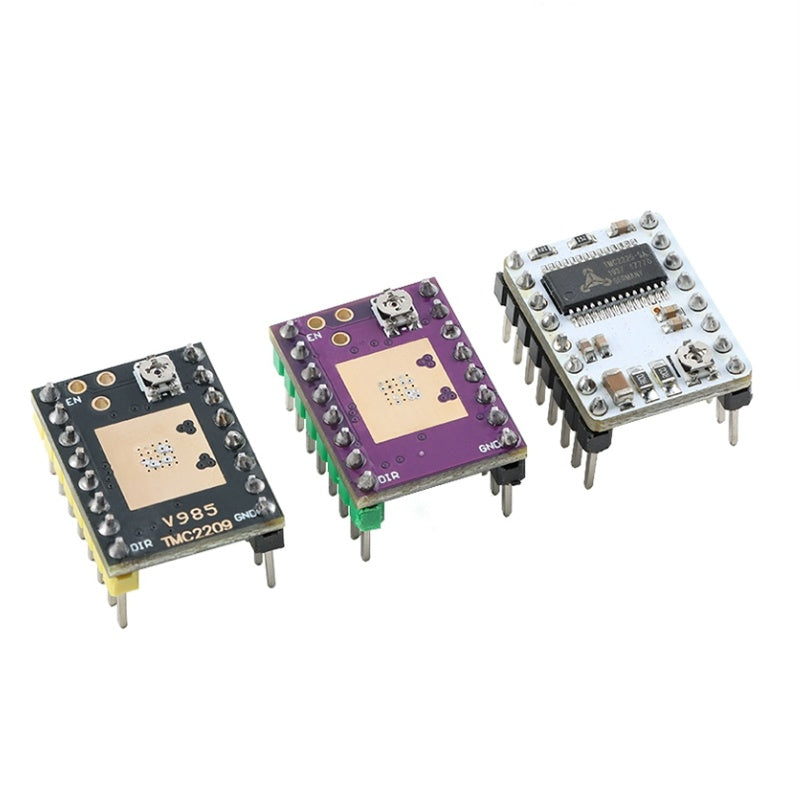

Specification ATD5833 driver Module (Yellow pin header) TMC2208 Driver Module (Yellow pin header) TMC2208 Driver Module - Whiteboard TMC2209 Driver Module (Yellow pin header) TMC2209 Driver Module (Red pin header) Domestic TMC2209 driver module - Purple board TMC2225 driver module

Stepper motor ultra-quiet drive module

ATD5833 / TMC2208 / TMC2209 / TMC22253D printer accessories driver module; Multiple specifications are available

Product introduction

1.The TMC2209 compatible version has all the functions of TMC2208 and can completely replace TMC2208/TMC2209. At the same time, it has better heat dissipation performance, supports larger current, and supports sensorless function.

2. The TMC2225 chip is a resonant and ultra-quiet stepper motor driver chip that integrates drivers and MOS internally, and its pins are fully compatible with DRV8825. It has a highly advantageous cost performance.

3. When the common traditional driver chips drive the stepper motor to operate, there will be high-pitched noise audible to the human ear or motor vibration, which seriously affects the product experience. The TMC2225, through the StealthChop silent technology, can reduce the noise of the stepper motor to below 10dB during low-speed operation, achieving ultra-quiet performance. The SpreadCycle resonance suppression technology can also be adopted to ensure that the stepper motor operates smoothly at high speeds without any jitter.

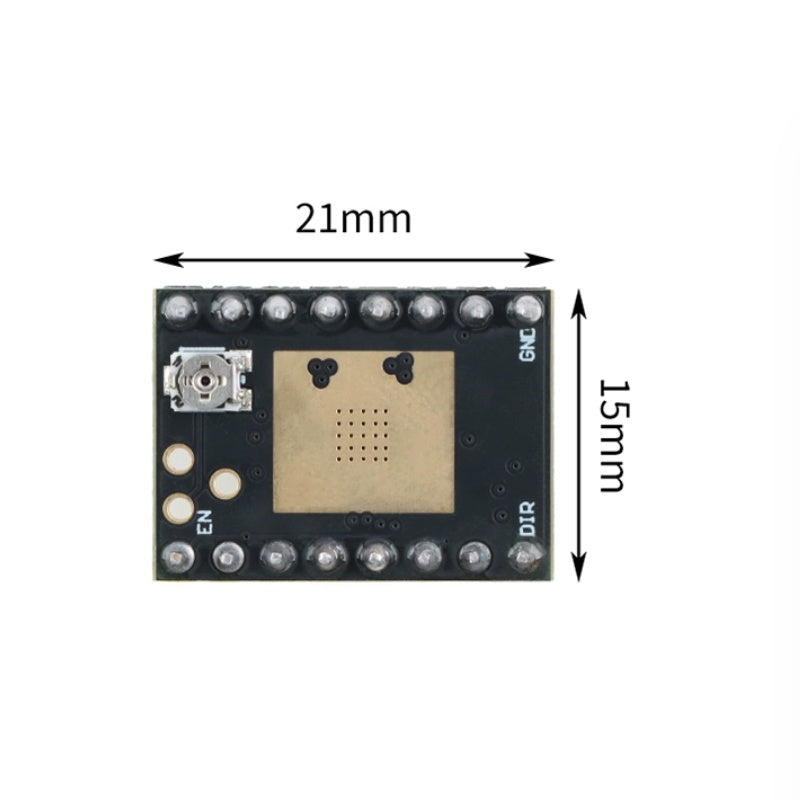

Product details

Yellow pin header

Product Name	TMC2209
Maximum output current	2A
Recommended operating current	Max 1.7A
Microstep	256 microstep subdivision
Configuration	STEP/DIR OR UART
Load drive voltage range	5.5 to 38V
IC logic operating voltage	3/5V

Note: By default, the UART mode without jumpers is supported. If you don't use it, you can ignore it.

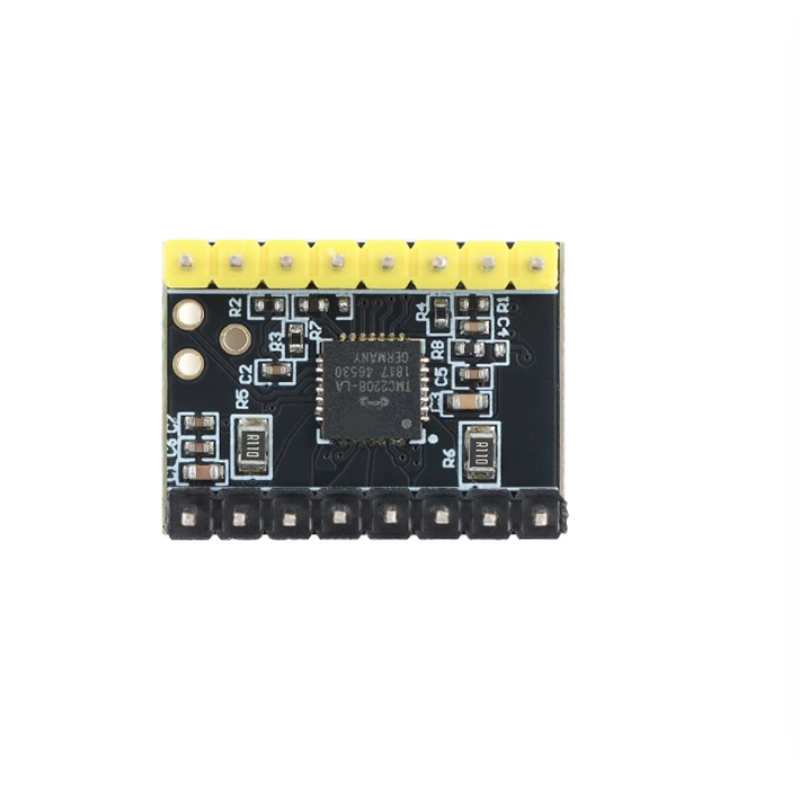

Product Name	TMC2208
Maximum output current	1.4A
Recommended operating current	Max 1.2A
Microstep	256 microstep subdivision
Configuration	STEP/DIR OR UART
Load drive voltage range	5 to 36V
IC logic operating voltage	3.3V/5V

Product Name	ATD5833
Maximum output current	2.5A
Recommended operating current	Max 2A
Microstep	256 microstep subdivision
Configuration	STEP/DIR ORUART
Load drive voltage range	5 to 36V
IC logic operating voltage	3.3V/5V

TMC2208- Whiteboard

1.The single-phase current of the two-phase stepping motor is 1.2A(with a peak of 2.0A), and the motor operation is adjustable. It supports two control methods: Step/DIR interface and SPI interface.

2.Motor input voltage range: 4.75-36V

3.The input voltage of the logic interface is 3-5V.

4. Subdivisions: 256

5. Operate noiselessly by combining efficiency and motor torque.

6. High-precision sensorless motor load detection.

7. Reduce energy consumption by 75%.

8. The high-load drive did not lose synchronization.

TMC2209- Red Pin/Purple plate

1. Excellent silent effect

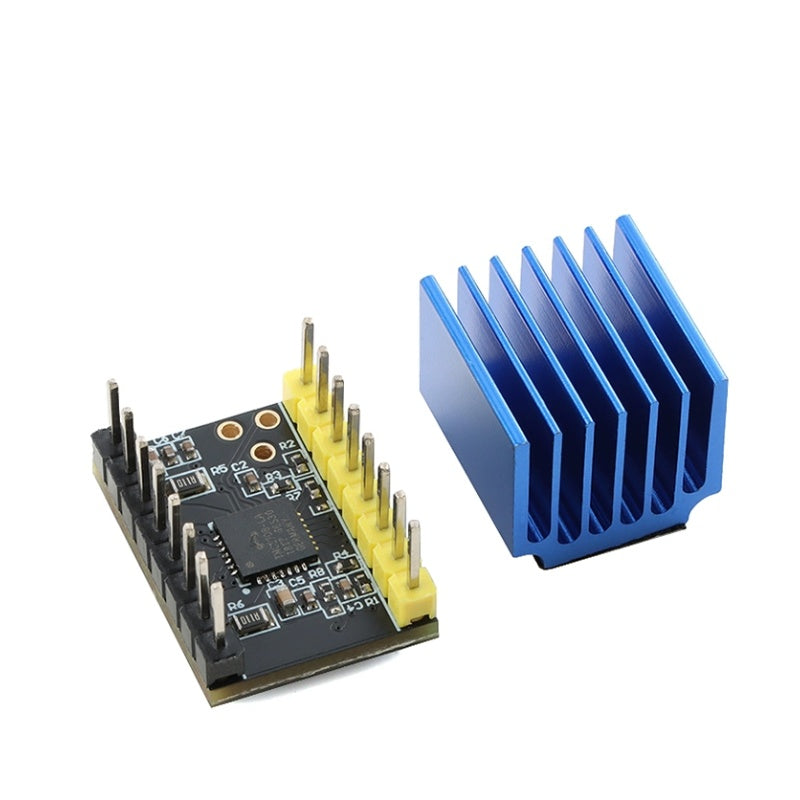

2. Large heat sink, good heat dissipation.

3. Support sensorless feedback function.

4. Default current :1.25A
