0.96-Inch Blue/White/Yellow-Blue Dual-Color IIC Communication Small OLED Display Module 51 Single-Chip Microcomputer

0.96-Inch Blue/White/Yellow-Blue Dual-Color IIC Communication Small OLED Display Module 51 Single-Chip Microcomputer

¥5.50 CNY
¥0.00 CNY ¥5.50 CNY
Sale Sold out
Specification

0.96-inch small OLED display module

Blue/White/yellow-blue bicolor, IIC communication


Product parameter


Pin definition

GND Ground
VDD 3.3-5V
SCK Serial Clock
SDA Serial Data


Size :0.96 inches

Resolution: 128*64

Colour: White

Viewing Angle :>160°

Supports numerous platforms :51 series, MSP430 series, STM32/2, CSR chips, etc

Ultra-low power consumption: 0.04W during normal operation.

Wide voltage support :3.3V to 5V DC

Operating temperature :-30℃ to 80℃

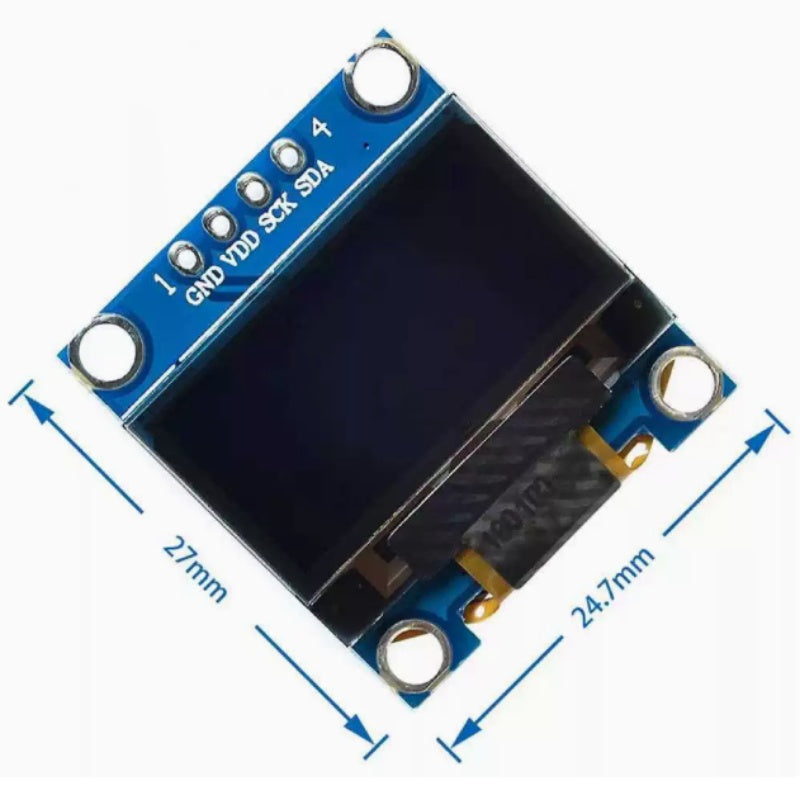

Module volume (length, width and thickness):27.0MM*27.0MM*4.1MM.

Driver chip :SSD1306

Communication method :IIC, only two I/O ports are required.

Backlight: OLED self-luminous, no backlight required.

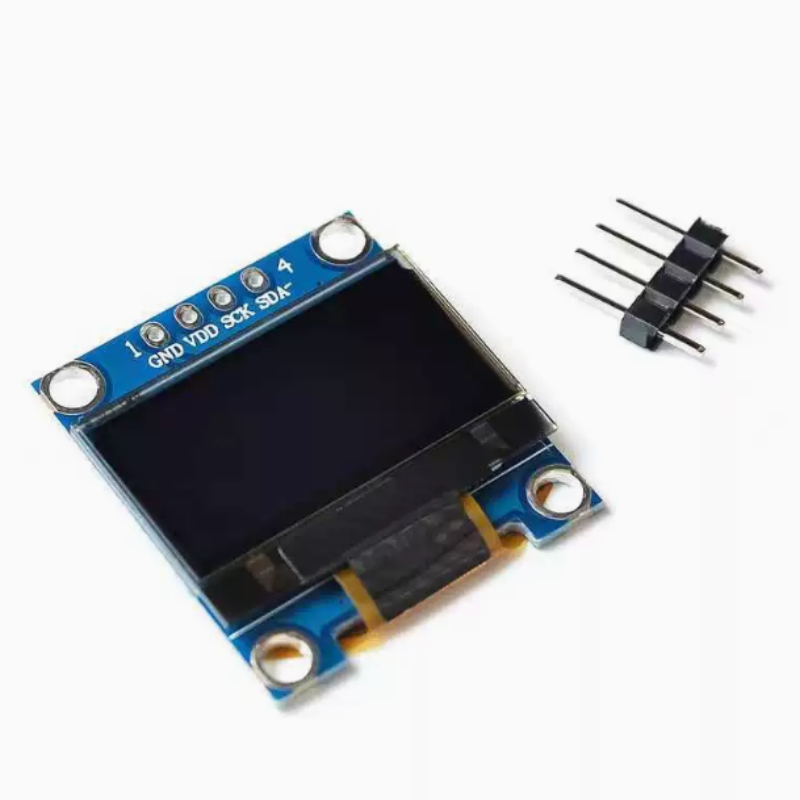

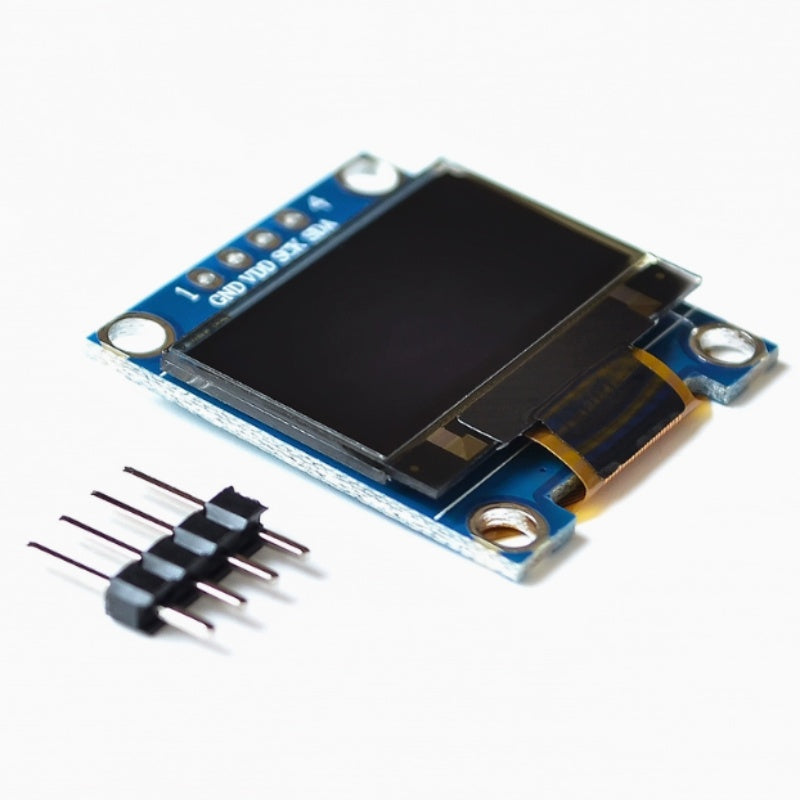

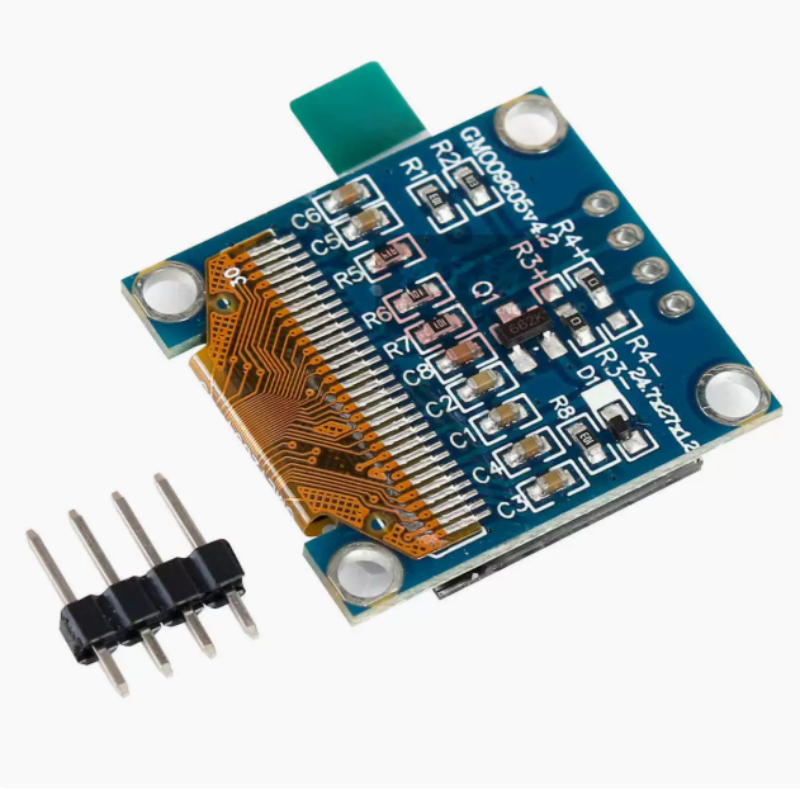

Products photography
